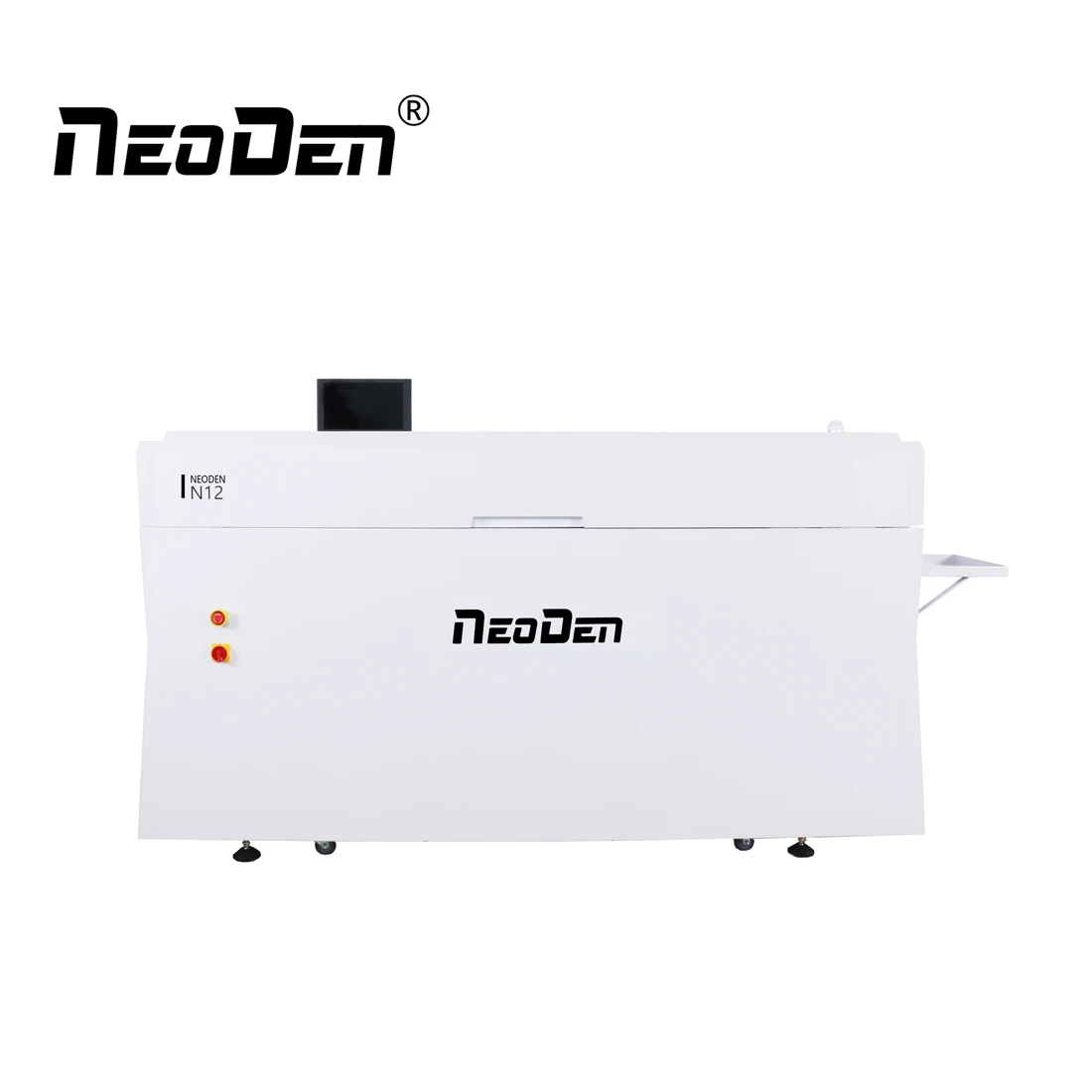

Инфракрасная духовка NeoDen IN12/SMT LED волновая паяльная машина/светодиодная печь
- Категория: >>>
- Поставщик: Zhejiang Neoden Technology Co. Ltd.
Сохранить в закладки 1600379802845:
Описание и отзывы
Характеристики
NeoDen IN12 Infrared Reflow Oven/ SMT LED Wave Soldering Machine/ LED Soldering Reflow Oven Machine
Product Description
NeoDen IN12 is a newly designed and manufactured reflow oven by NeoDen Tech. It has 12 temperature zones, unique heating module design, intelligent control system, built-in welding smoke filtering system, which makes it intelligent, innovative, compact and high-performance.
1. Built-in welding smoke filtering system, effective filtration of harmful gases, elegant appearance and eco-friendly, more in line with the high-end use environment.
2. The control system has features of high integration, timely response, low failure rate and convenient maintenance.
3. The unique design of heating module has the characteristics of high temperature control accuracy, uniform temperature
distribution in the thermal compensation area, high thermal compensation efficiency and low power consumption.
4. Hot air convection, excellent soldering performance.
5. High-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature deviation is significantly reduced compare to the similar reflow oven products in the market.
6. Heat insulation protection design, the casing temperature can be effectively controlled.
7. Smart control with high sensitivity temperature sensor, the temperature can be effectively stabilized.
8. Intelligent, the custom developed intelligent control system, easy to use and powerful.
9. Professional and unique 4-way board surface temperature monitoring system, can give timely and comprehensive data feedback in actual operation, which can effectively cope with any complex electronic products.
10. 40 working files can be stored for an easy loading during the working process.
11. PCB soldering temperature curve can be displayed based on real-time measurement.
12. Lightweight, miniaturization, professional industrial design, flexible application site, more user-friendly.
13. Energy saving, low power consumption, low power supply requirements, the ordinary civil electricity can meet the use.
Compared with similar products in the market, the electricity costs that this machine can save for you within one year, enables you to purchase your second IN12.

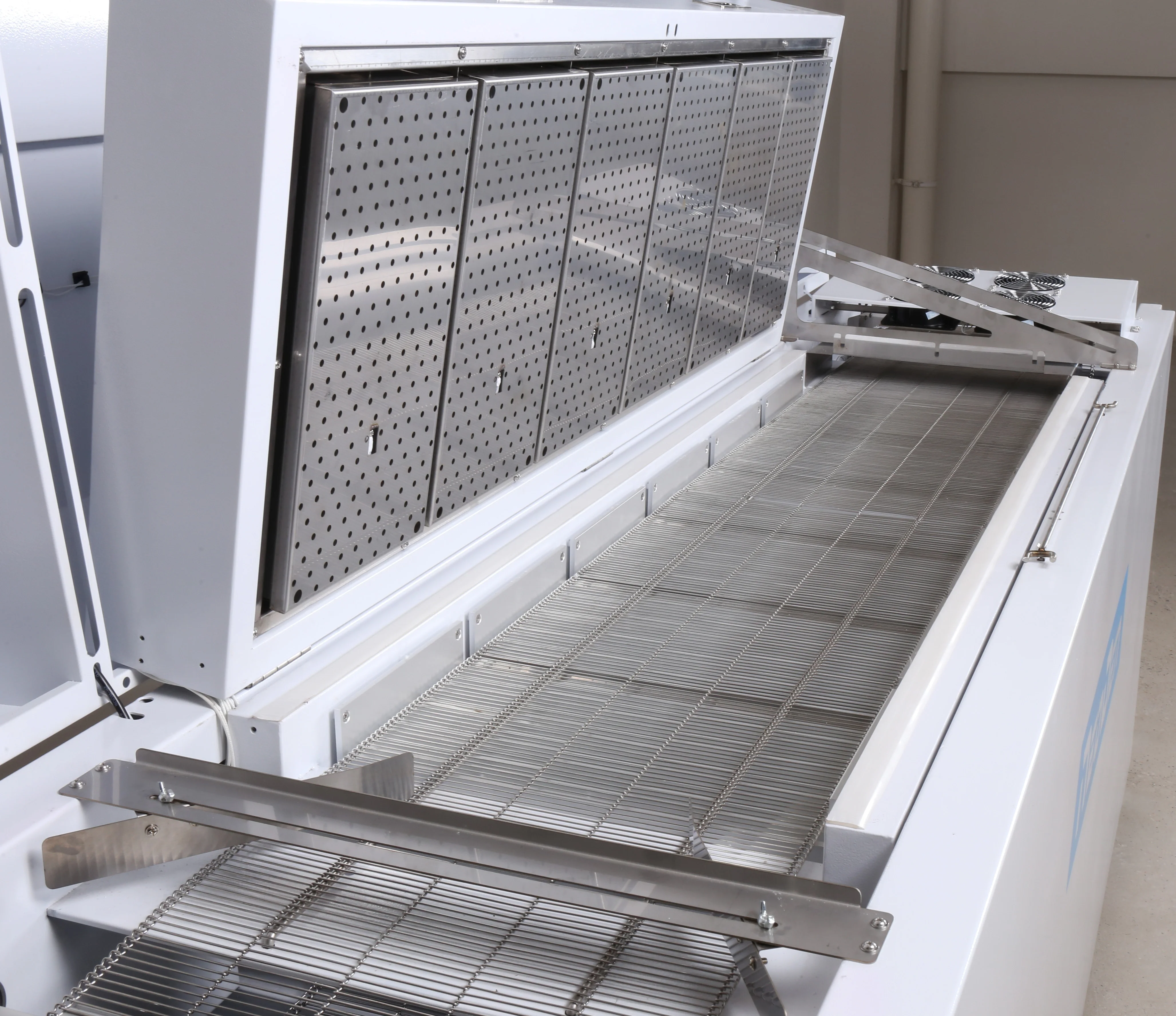

14. The custom-developed stainless steel B mesh belt is durable and wear-resistant. Not easy to deform after long time using.
15. Beautiful and elegant indicator design with red, yellow and green alarm function.
16. Custom-developed drive motor based on the characteristics of the B mesh belt to ensure uniform speed and long life.
17 .The mesh sprocket made of high-precision profile technology and the unique support structure can effectively reduce the vibration of the PCB in the reflow zones, and easily cope with the welding of small size components such as 0201 and complex chips such as BGA/QFP/QFN.

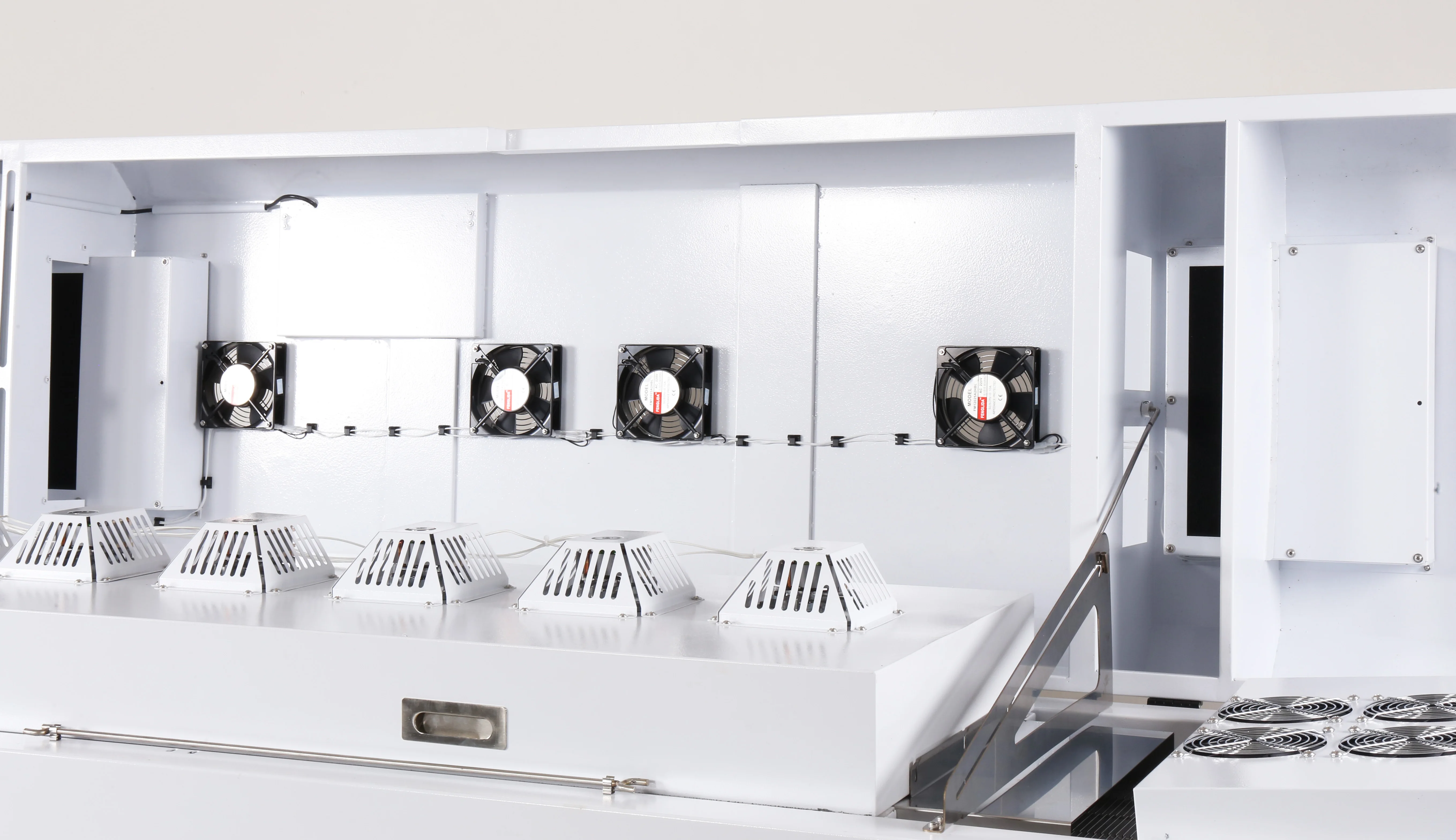

18. The cooling zone with independent circulating air design completely isolates the influence of the external environment on the internal temperature chamber.
19. The optimized welding fume filter systems tested by the dedicated airflow simulation software can filter harmful gases as well as ensuring IN12 can keep room temperature, reducing heat loss and reducing working power consumption.
20. The unique heating plate design effectively ensures IN12 will cool down evenly once the heating is stopped, and effectively prevents the deformation and damage caused by the rapid temperature drop.
21. The internal thermostat is made of stainless steel, which is environment friendly and has no peculiar smell. The inner sides are equipped with insulation cotton to effectively prevent heat loss.

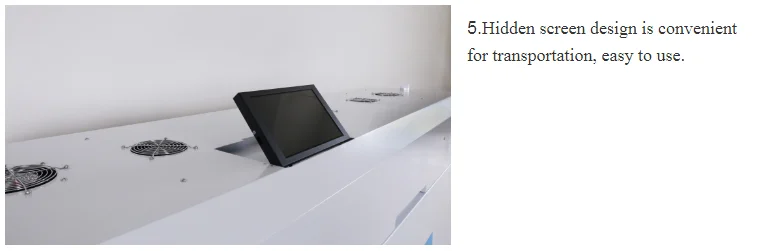

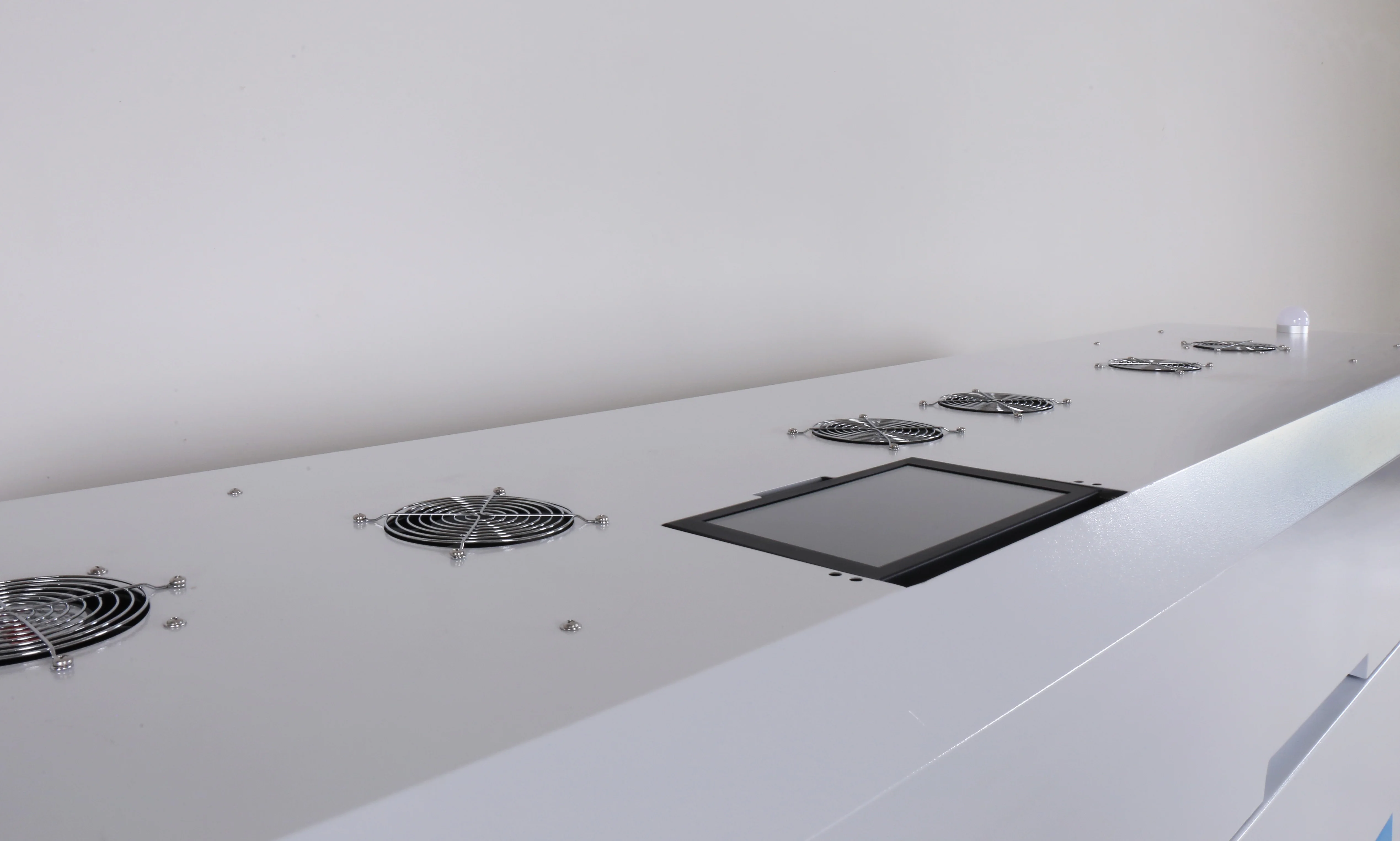

22. Hidden screen design is convenient for transportation, easy to use.
23. The control system adopts imported chips, and the temperature control accuracy reaches ±0.5%.
24. Adjustable wind speed in all heating zones and cooling zones, easily coping with various welding request.
25. The upper temperature cover is automatically limited once opened, effectively ensuring the personal safety for the operators.
26. Exclusively designed PCB guide device to realize the direct connection between the mesh chain and the conveyor.
2. The control system has features of high integration, timely response, low failure rate and convenient maintenance.
3. The unique design of heating module has the characteristics of high temperature control accuracy, uniform temperature
distribution in the thermal compensation area, high thermal compensation efficiency and low power consumption.
4. Hot air convection, excellent soldering performance.
5. High-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature deviation is significantly reduced compare to the similar reflow oven products in the market.
6. Heat insulation protection design, the casing temperature can be effectively controlled.
7. Smart control with high sensitivity temperature sensor, the temperature can be effectively stabilized.
8. Intelligent, the custom developed intelligent control system, easy to use and powerful.
9. Professional and unique 4-way board surface temperature monitoring system, can give timely and comprehensive data feedback in actual operation, which can effectively cope with any complex electronic products.
10. 40 working files can be stored for an easy loading during the working process.
11. PCB soldering temperature curve can be displayed based on real-time measurement.
12. Lightweight, miniaturization, professional industrial design, flexible application site, more user-friendly.
13. Energy saving, low power consumption, low power supply requirements, the ordinary civil electricity can meet the use.
Compared with similar products in the market, the electricity costs that this machine can save for you within one year, enables you to purchase your second IN12.
14. The custom-developed stainless steel B mesh belt is durable and wear-resistant. Not easy to deform after long time using.
15. Beautiful and elegant indicator design with red, yellow and green alarm function.
16. Custom-developed drive motor based on the characteristics of the B mesh belt to ensure uniform speed and long life.
17 .The mesh sprocket made of high-precision profile technology and the unique support structure can effectively reduce the vibration of the PCB in the reflow zones, and easily cope with the welding of small size components such as 0201 and complex chips such as BGA/QFP/QFN.
18. The cooling zone with independent circulating air design completely isolates the influence of the external environment on the internal temperature chamber.
19. The optimized welding fume filter systems tested by the dedicated airflow simulation software can filter harmful gases as well as ensuring IN12 can keep room temperature, reducing heat loss and reducing working power consumption.
20. The unique heating plate design effectively ensures IN12 will cool down evenly once the heating is stopped, and effectively prevents the deformation and damage caused by the rapid temperature drop.
21. The internal thermostat is made of stainless steel, which is environment friendly and has no peculiar smell. The inner sides are equipped with insulation cotton to effectively prevent heat loss.
22. Hidden screen design is convenient for transportation, easy to use.
23. The control system adopts imported chips, and the temperature control accuracy reaches ±0.5%.
24. Adjustable wind speed in all heating zones and cooling zones, easily coping with various welding request.
25. The upper temperature cover is automatically limited once opened, effectively ensuring the personal safety for the operators.
26. Exclusively designed PCB guide device to realize the direct connection between the mesh chain and the conveyor.
Detailed Pictures
Specification
Model | NeoDen IN12 | ||||||
Heating Zone Quantity | Upper6 / Down6 | ||||||
Cooling Fan | Upper4 | ||||||
Controller | VGUS Microcomputer | ||||||
Transmission | Mesh Chain Drive | ||||||
Heating Type | Nichrome Wire & Aluminum Alloy Heating | ||||||
Conveyor Speed | 50~600 mm/min | ||||||
Temperature Range | Room temperature~300ºC | ||||||
Temperature Accuracy | 1ºC | ||||||
PCB Temperature Deviation | ±2ºC | ||||||
Max Soldering Width (PCB Width) | 350mm | ||||||
Length Process Chamber | 1354mm | ||||||
Heat-up Time | 30 min | ||||||
Max Soldering Height (mm) | 35mm (includes PCB thickness) | ||||||
Operation Direction | left→right | ||||||
Electricity Supply | AC 220v/single phase | ||||||
Starting Power | 2.4kw~4.8kw (adjustable) | ||||||
Typical Working Power | approx. 2kw(1.5mm fiberglass PCB ) | ||||||
Machine Size | L2300mm×W650mm×H1280mm | ||||||
Packing Size | L2420mm×W730mm×H1430mm | ||||||
Net Weight | 300KGS | ||||||
Gross Weight | 414KGS | ||||||
SMT Line
Related Products
Manual Solder Printer FP2636
SMT Pick and Place Machine
NeoDen4
SMT Pick and Place Machine
NeoDen K1830
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.
Our Show
Workshop
Exhibition
Certification
Payment & Shipping
FAQ
Q1:This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q2:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q3:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q2:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q3:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
You want to know more? I am always here.
Похожие товары
Goldmore6 легкий внешний аккумулятор, перезаряжаемый аварийный фонарь, фонарь для кемпинга с дистанционным управлением, Мини Солнечный СВЕТОДИОДНЫЙ фонарь для кемпинга
5,70 $ - 6,38 $
P74FA-9700 трубы давления Джонсон 0 до 100kPa
165,00 $ - 187,50 $
CBB пленочный конденсатор 155k 250v
0,05 $ - 0,10 $
Печатная машина NeoDen YS350 SMT, печатная машина, паяльная паста, принтер
3 799,00 $

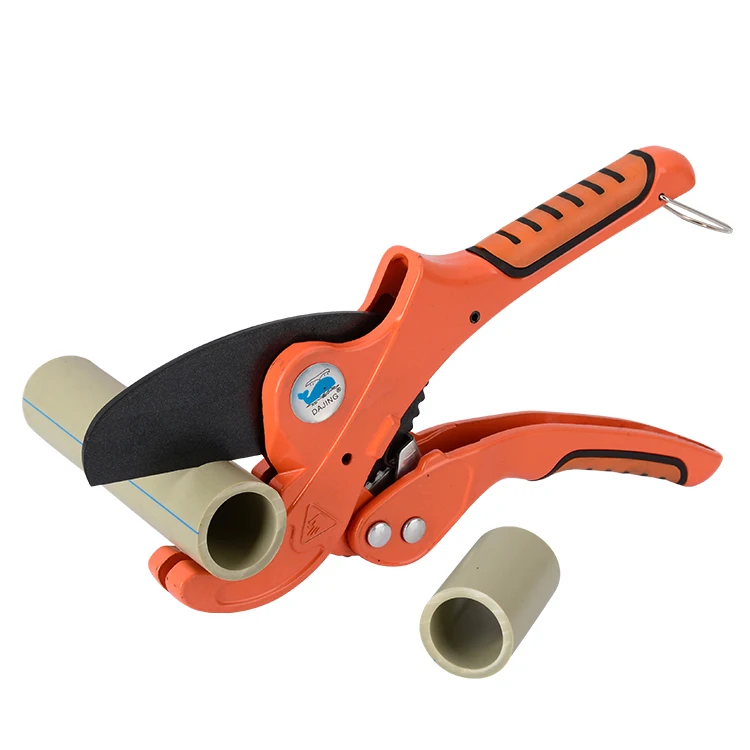

Dajing новый дизайн, полипропиленовый резак для труб, распродажа, полиэтиленовый поливинилхлоридный режущий инструмент, автоматические ручные ножницы с храповым механизмом
2,80 $ - 5,50 $

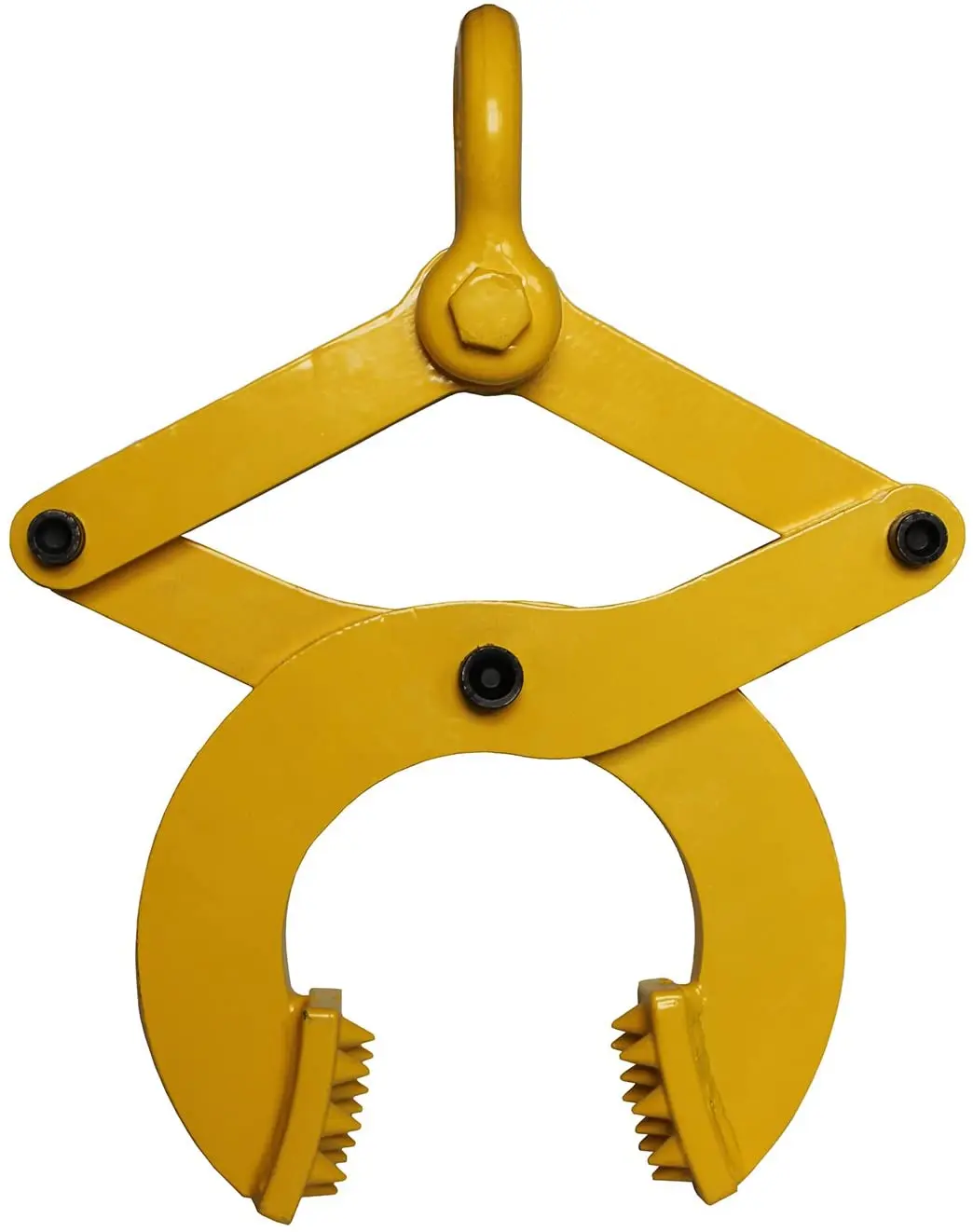

Оптовая продажа, 6000 фунта, вытяжной инструмент с двойным ножничным захватом для поддонов
