Автоматический зонтичный поддон с сенсорным экраном большая головка кровельная катушка проволока для изготовления ногтей аркадная машина катушечный гвоздезатор

Автоматический зонтичный поддон с сенсорным экраном большая головка кровельная катушка проволока для изготовления ногтей аркадная машина катушечный гвоздезатор

Категория: >>>
Поставщик: Anping County Zhongqian Construction Material Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

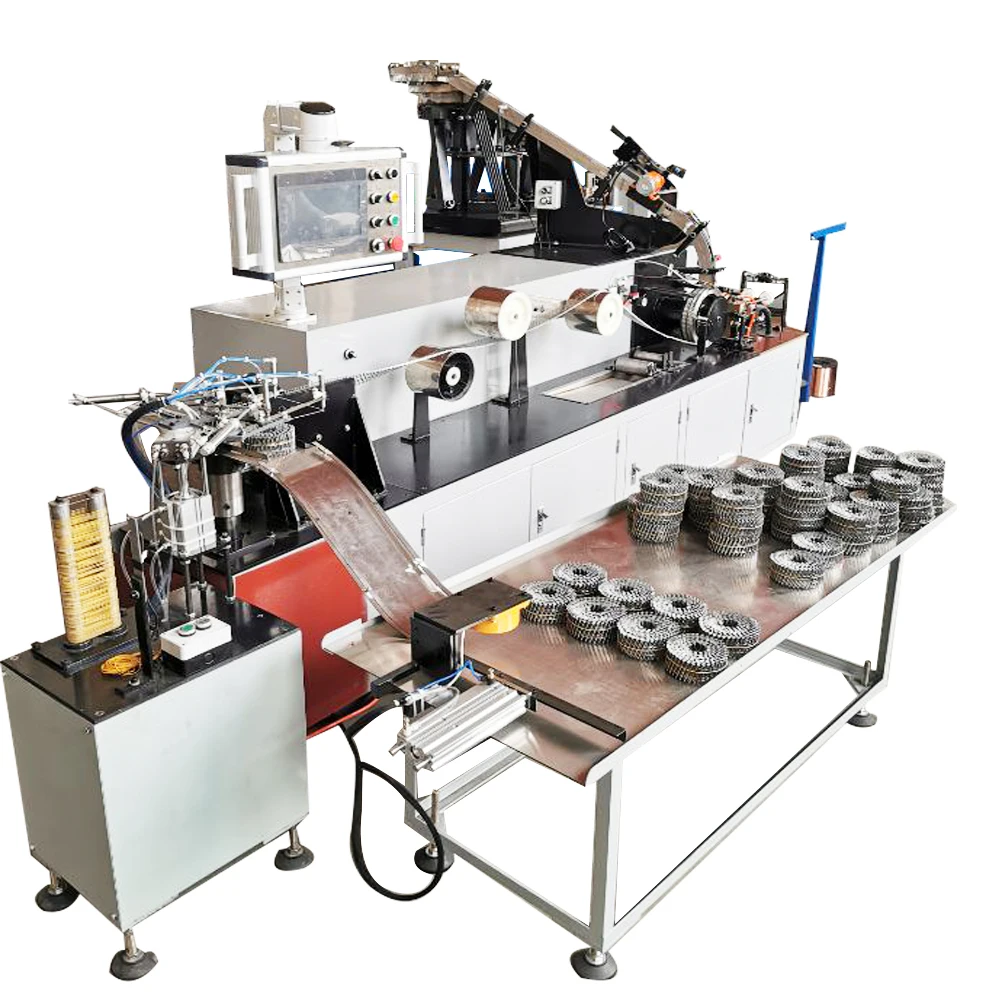

Touch Screen automatic umbrella pallet big head roofing coil wire nail making pallet arcade machine coil nails collator

Available Raw Material for nail making machine:
Normal wire, new metal wire, waste rebar, scrap steel bar, hard-drawn wire, waste electrode, and other kind of waste steel.
Process of nail making:
Wire-Rod → Wires-Drawing → Nail-Making → Polishing →Rolling→Coiling→ Packing → Delivery

coil nails Application
The coil nail collating machine is used for collating loose nail into coil. then use coil nail with nail gun.

coil nails Process of nail making:
Wire-Rod → Wires-Drawing → Nail-Making → Polishing →Rolling→Coiling→ Packing → Delivery

there are mainly 2 types of Touch Screen automatic umbrella pallet big head roofing coil wire nail making pallet arcade machine coil nails collator:

1. semi Automatic coil nail welding machine

Machine Features:

_{1. High frequency welding can ensure bigger weld point and firmly welding, no loose welding or lack of welding.
2. Small welding spark, safer.
3. Better quality vibration plate, smoothly feeding, no nail stuck, easy adjusting.}

_{4. Machine body with thicker and high quality material.}

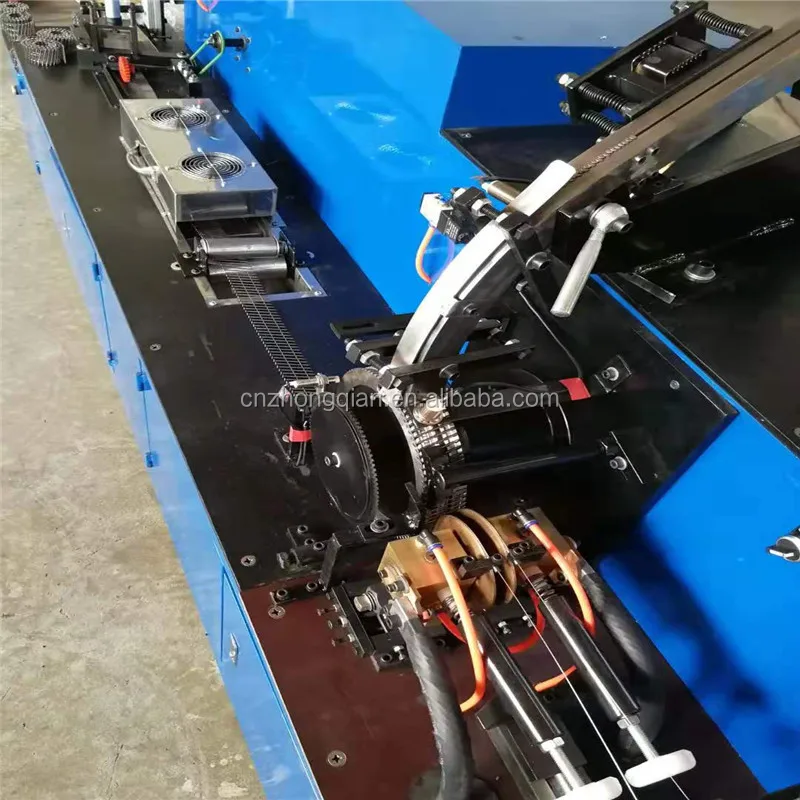

Details Images

only 1 worker necessary to operate the machine, can save much labour cost

speed can reach 2000-3000pcs/min . high speed , more efficient

lower loss,save material

item	specifications
Model No.	ZQ-C01
type	with vibrate hopper
diameter of nail	2.0-4.2mm
length of nail	25-130mm
finished coil nails QTY	300pcs/coil
main motor power	550V
welding rated motor power	15KW
total motor power	17.98KW
dimension	main dimension 228012501720mm
total weight	1400k

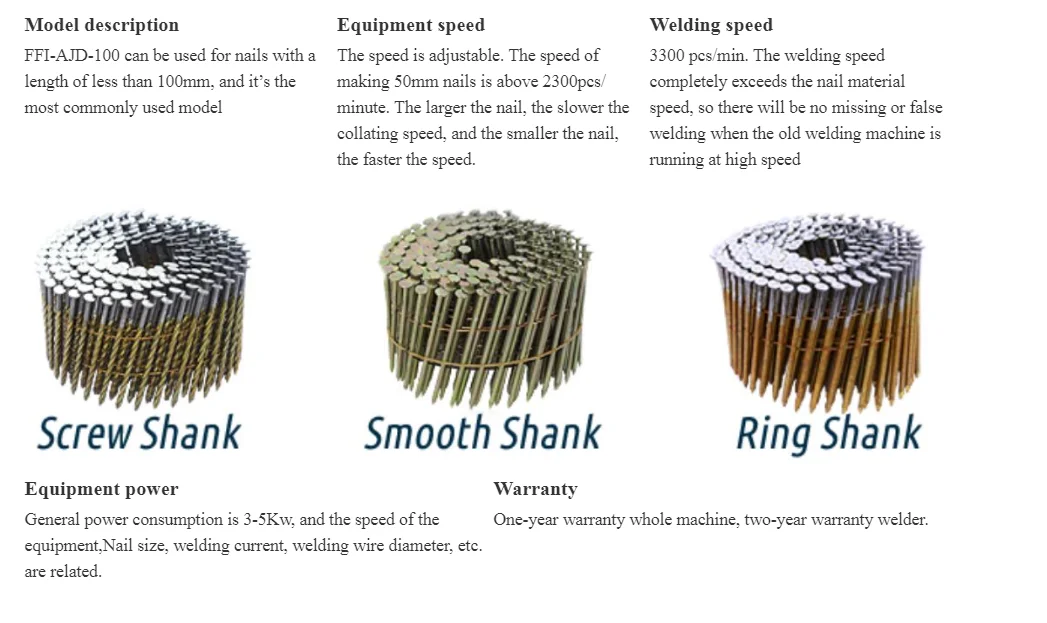

Finished Products

^{Touch Screen automatic umbrella pallet big head roofing coil wire nail making pallet arcade machine coil nails collator}

1.The coiled nails are automatically formed and binded with rubber bands, and the finished products are automatically produced and pushed to the finished product platform: The traditional operation of manual rubber banding is removed. To improve the previous models, the finished coiled nails must be manually caught in time, otherwise the coil nails will be broken and deformed , Which greatly reduces the work intensity of workers and the requirements for workers' skills and proficiency, so that improves production efficiency

2.Improved finished product platform: the platform can store about 60 finished coil nails, and the direction of the finished product can be adjusted.

3.New improved welding base: No need to adjust the height of the welding base with different sizes of welding wheels (for example: do 19-37 welding position nails, the height of the welding base does not need to be adjusted), reducing welding waste and technical requirements.

4.New patented coil nail cutting technology: the probability of continuous cutting after simple debugging is less than 1/10 of the ordinary typical,reducing the waste rate.
5.Improve automatic operation: Added protection for welding wire used up or burnt, protection for coiled nails that are not cut off, and protection for rubber bands are used up on automatic rubber binding mechanism . And display its position on the touch screen.

FAQ

Touch Screen automatic umbrella pallet big head roofing coil wire nail making pallet arcade machine coil nails collator

Q: Are you trading company or manufacturer ?
A: We are factory. We are warmly welcome clients from worldwide to visit our factory and cooperate with us
Q: Do you do OEM?
A:Yes
Q: I know nothing about the import, can you help me?
A: This will not be a problem. If you do not know how to import, our cooperated freight forwarder will help you to import. You only have to pay a small money to them and they will take careof everything. It is very easy and simple.
Q: What should i do if we feel hard to use the machine?
A: If you need ,at any time, we can send our engineers to your factory for training, debugging machine and maintenance.
Operating Instruction&Maintenance Manual attached with the machine.we will send you the solution by email or phone within 24 hours,When we receive your service repuest.
We can send you video for learning
Q:If the parts was broken, how about the solution?
A: 1)Non-artificial damage parts, within warranty period, can be provided free of charge
2)Custom-made parts with detailed drawing can be provided

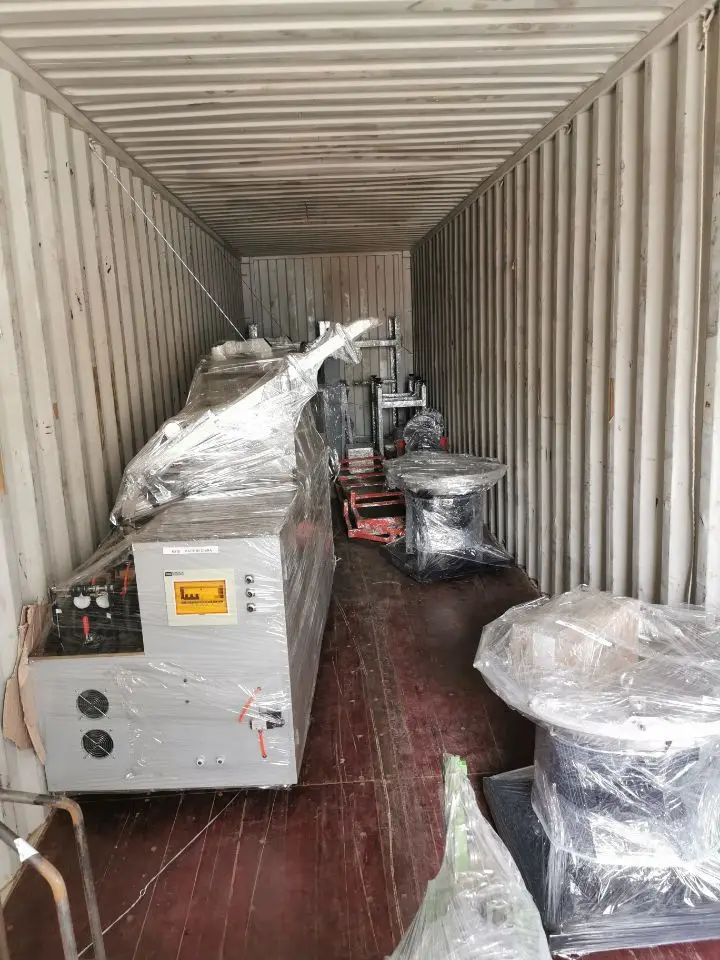

Product packaging
