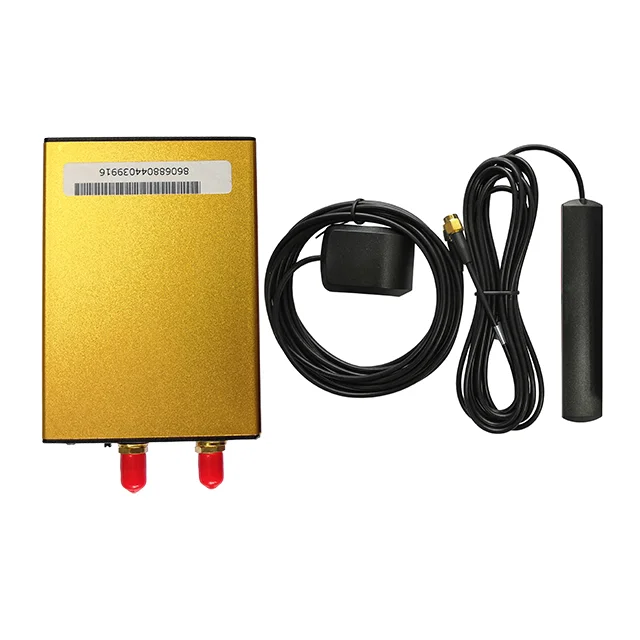

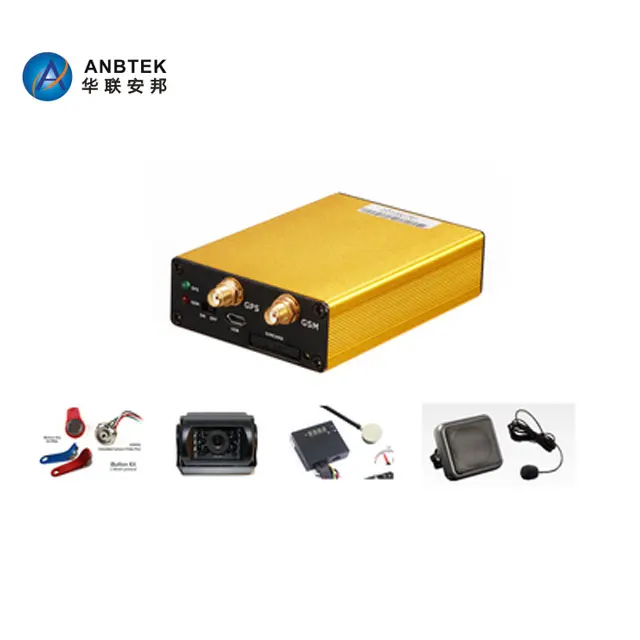

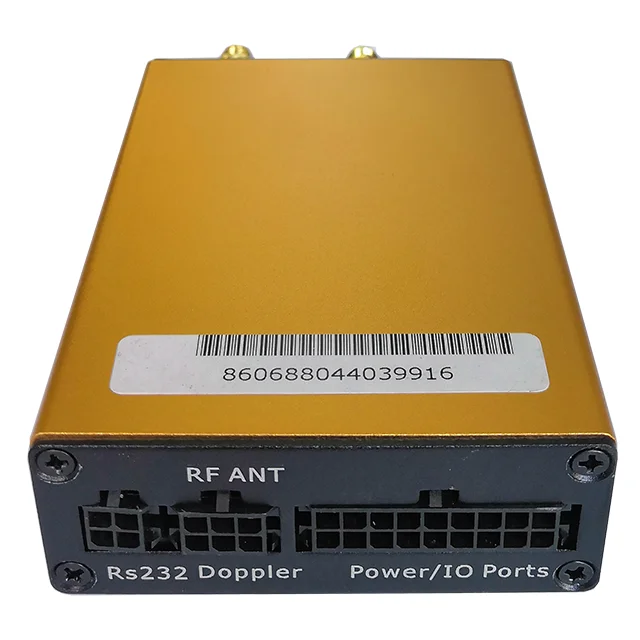

Gps трекер tk107 с предупреждением о превышении скорости зуммером и датчиком топлива камерой AS201E

Сохранить в закладки 1600379886730:


Цена:54,00 $ - 55,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Speeding warning gps tracker tk107 with over speed buzzer and fuel sensor and camera AS201E





Product Description


 1.Features and Specifications












































































 Item Name



 Description



 GSM/CDMA Module



 QUECTEL M35



 GSM Frequency



 850/900/1800/1900MHz



 GPS Receiver



  Skylab GPS Receiver (Sirf III chip)



 MCU Processor



 ARM7 STM103FRCT6



 Internal Memory



 4MB(20000 Waypoints + Events)



 Input Port



 Ignition, Door, Panic, Charger Control, Microphone



 Output Port



 Buzzer, Immobilizer, Speaker, Door Central lock



 Backup Battery



 650mAH/4.2V



 LED Indicator



 Red: GSM; Green: GPS



 Working Power Range



 9-36V DC/1.8A



 Consumption



 Deep Sleep: <5mAh; Simple Sleep: < 30mAh; Standby:45-80mAh



 Working Temp.



 -25~+60



 Unit Size



 90*53*23mm



 Weight



 0.6Kg



Arm/Disarm



  By Remote Control / SMS / GPRS



 Data Transmit



 SMS/GPRS Communication









2. Description:

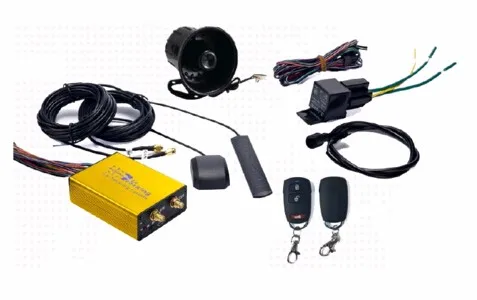

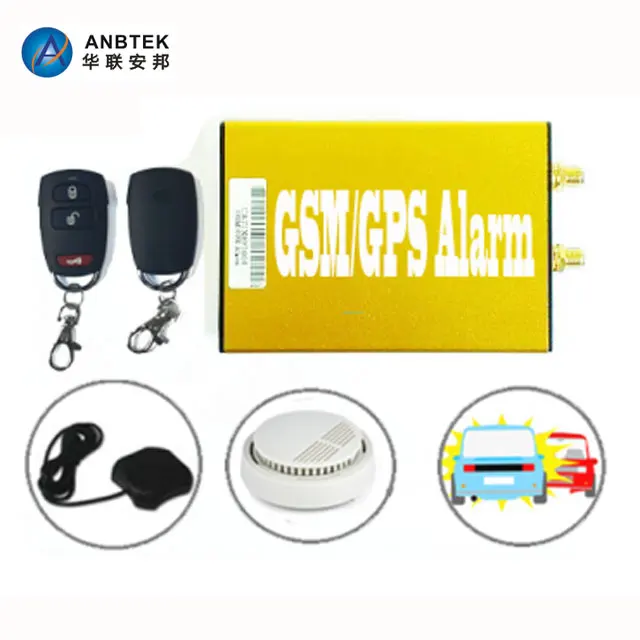

AS201E is a Powerful GSM/GPRS/GPS alarm tracking kits with applications for motor-homes, Boats/Yacht and other motorized machinery.





It is equipped with Quad Bands GSM/GPRS module, Hi-sensitivity GPS receiver and 3D Accelerometer. AS201 also can be connected with wireless/wired sensors (total 5 defense zone defined) for different security protection purpose.





The unique features like Daily Mileage/Running hours SMS reports, One-press call center function and 3Accidents Acceleration Data LogBox bring no matter for product re-seller or system integrators an excellent security solution.





 3.Data Report:


- Ignition On/Off


- Given time interval base


- Time, Direction, Ignition status, Mileage, Battery level,Door Status,RFID,iButton,Camera,Fuel sensor





4.Alarms Report:


- Door Open Alarm


- Ignition On Alarm


- Shock Alarm


- Accident Alarm


- Speed Over Alarm


- Power Disconnection Alarm


- Vehicle Battery Low


- Panic Help


- GEO Area In/Out


- Prohibit driving time Alarm
- Idle Alert
- Harsh Acceleration
- Harsh Breaking





5.Remote Control Commands:


- Poll real time position


- Setup IP/Port, Device ID, Data report time interval


- Setup allow driving time period


- Stop engine / release startup


- Voice Listen-in authorization for once





6. Applications:


- Motor-homes


- Luxury Yachts


- Motorized car/Vehicles/Trucks


AS201 Applications.jpg

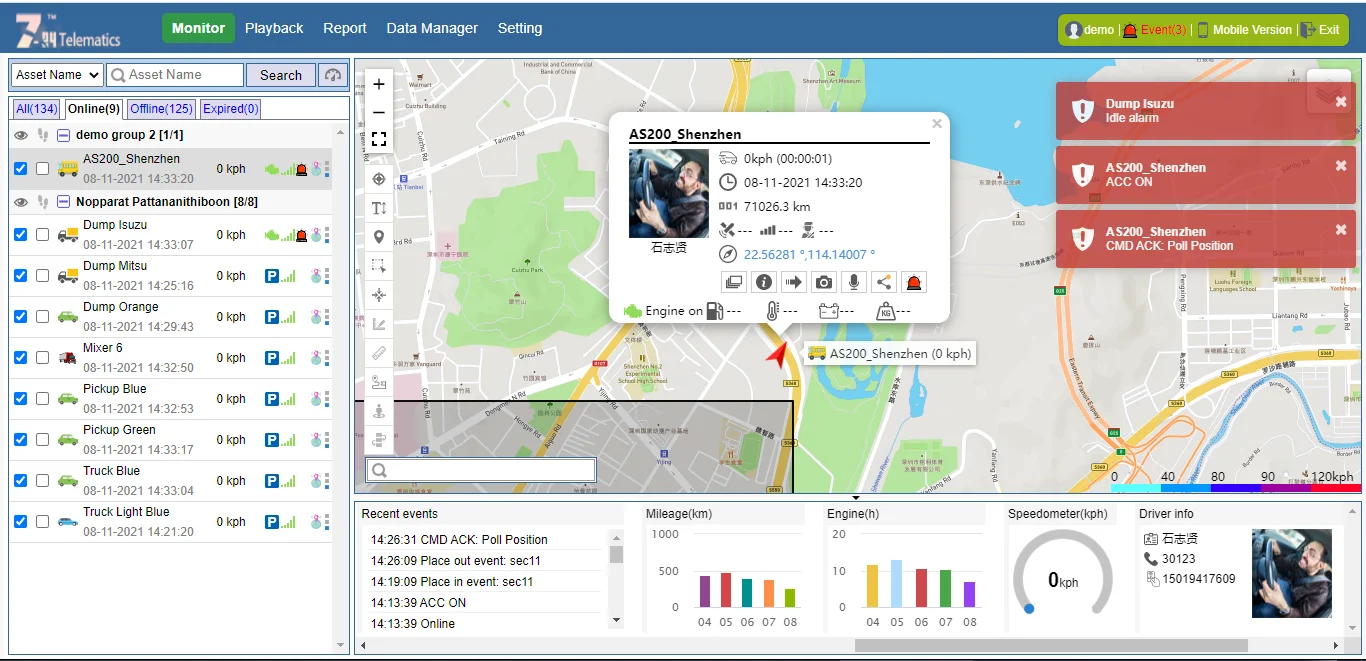

7. Tracking platform software:

www.7-24telematics.com
Login name: demo

password:123456


web

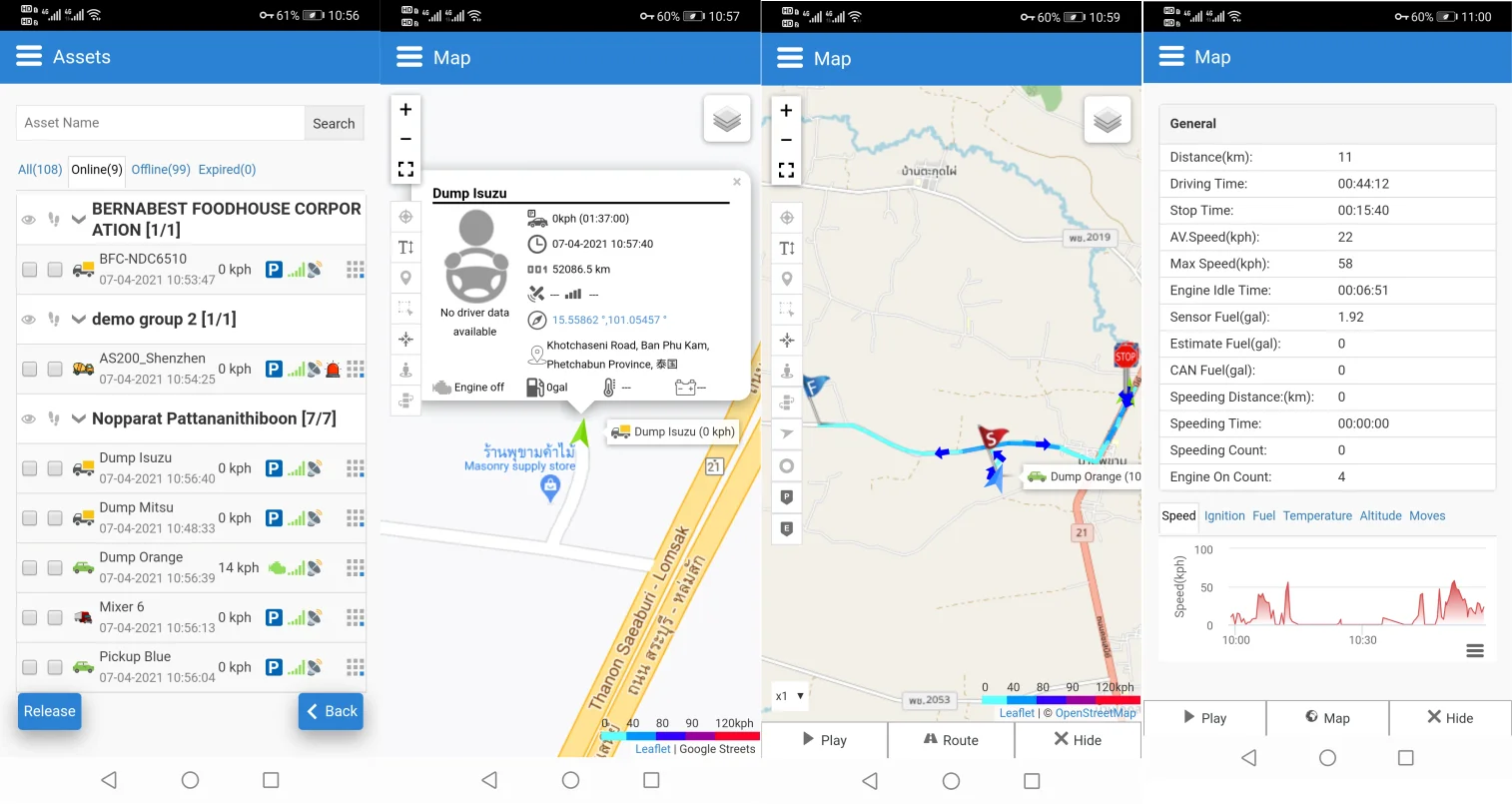

8. Android and iOS mini GPS tracker apps


app









Packaging & Shipping

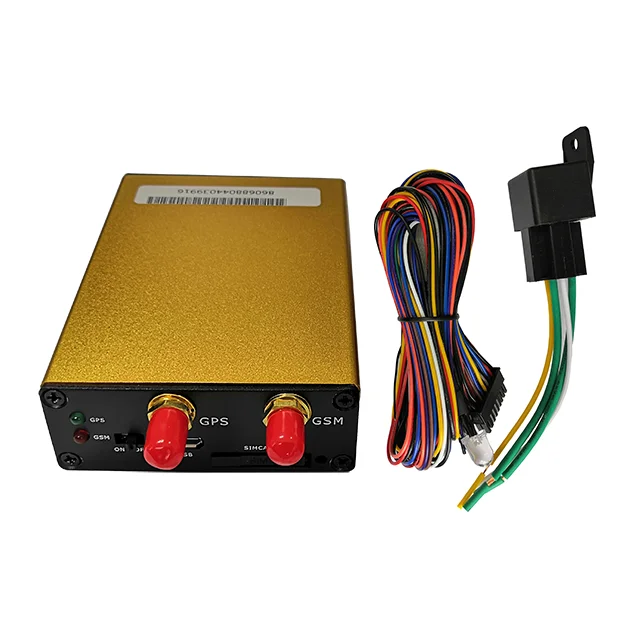

 Standard Package Contents:




1) AS201E Box x 1PC


2) GSM/GPS Antenna x 1PC for each


3) Microphone x 1PC


4) SOS button x 1PC


5) 18Pin Wire harness x 1PC


6) Cut-Off relay x 1PC

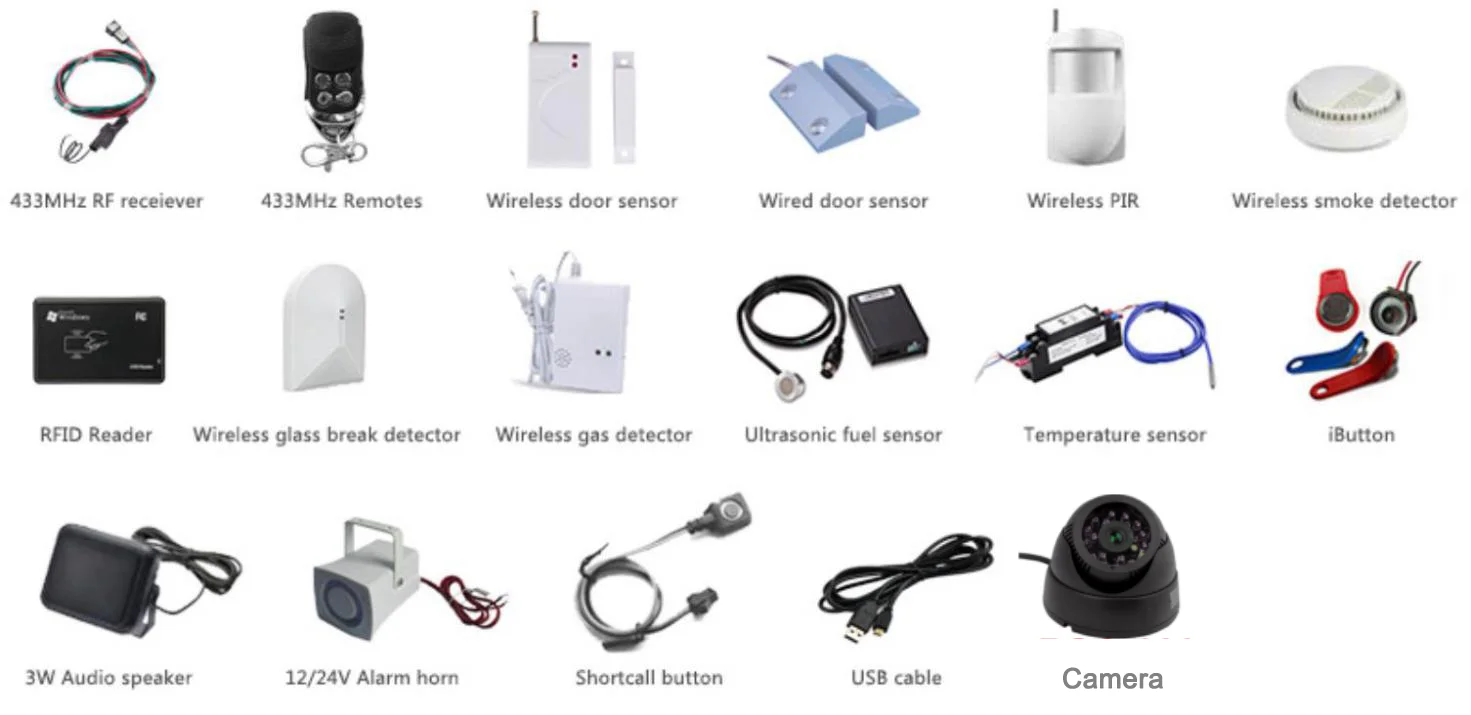

Optional Accessories:


 AS201E-accessory






Our Services


Warranty




1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
