Product Presentation

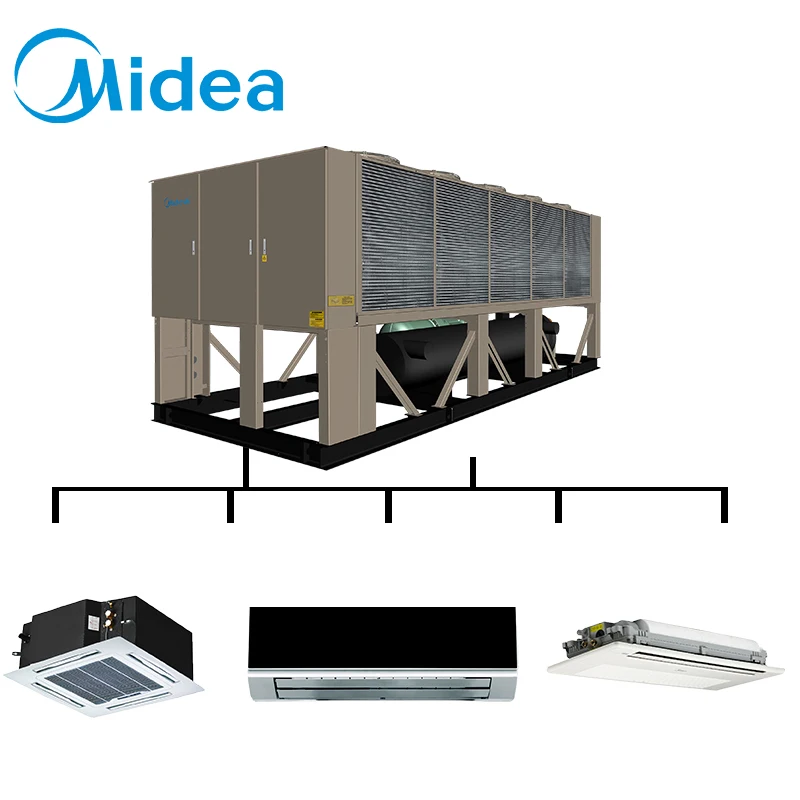

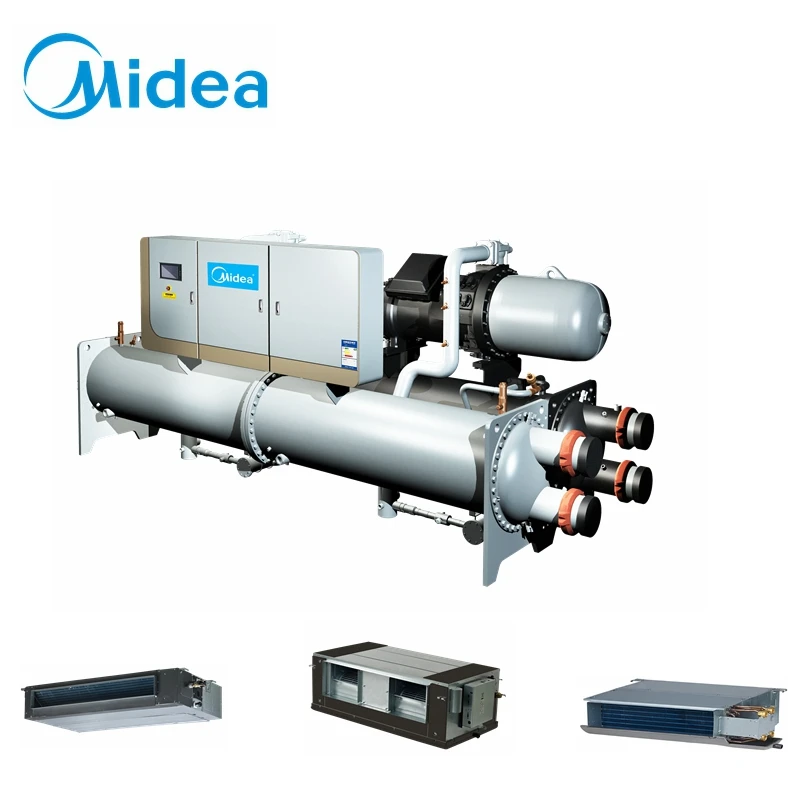

Midea HVAC Building Technologies Heat Pump for small to large buildings

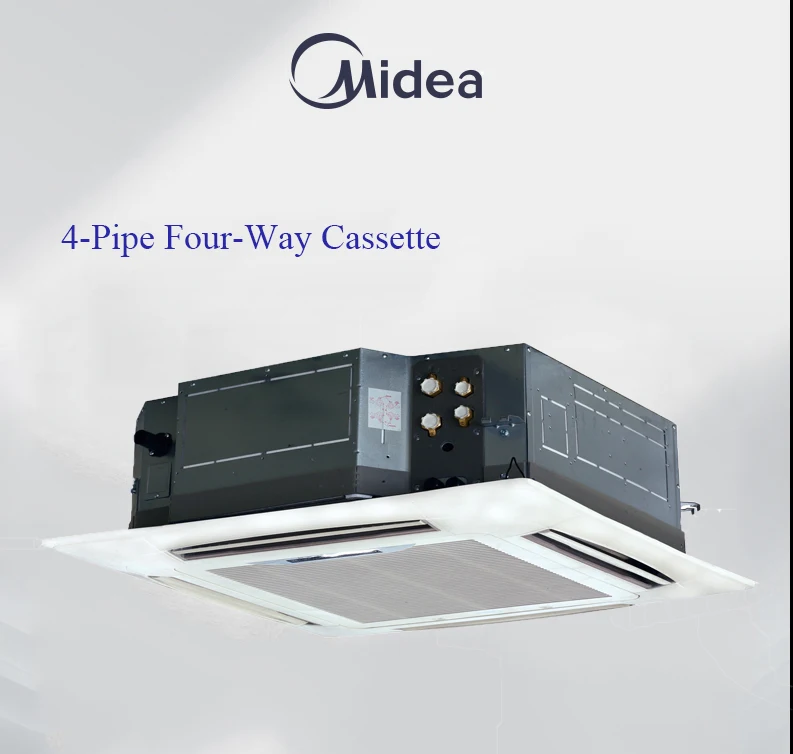

Fan coil units Four-Way Cassette
Midea fan coil units are divided into ceiling exposed type, ceiling concealed type, wall-mounted type and floor-standing type according to their structure, design and installation method. The air volume ranges from 150CFM to 2200CFM
(255m3 /h~3740m3 /h). It is a highly versatile product suitable for hospitals, office buildings, hotels, airports and
various other applications
(255m3 /h~3740m3 /h). It is a highly versatile product suitable for hospitals, office buildings, hotels, airports and
various other applications
Why Choose Us
1.Experience
Over 50-years Experience in Air
Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.
2.Professional design
We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design
scheme.
3.Professional selectoion
According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.
4.Providing One-Stop Solution of HVAC System
We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.
5.Technical Support
We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.
6.After-sales service
We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.
Product Line
Produc name | Fan coil units AC/DC 2-Pipe/4Pipe Four-Way Cassette | ||||||
Type | 2-Pipe 4-Way Cassette | 4-Pipe 4-Way Cassette | |||||
Power supply | 220-240V/1Ph/50Hz | 220-240V/1Ph/50Hz | |||||
Air flow(H/M/L) | 720-2550m³/h 420-1500CFM | 690-1480m³/h 410-1004CFM | |||||
Heating capacity | 5.32-17.6Kw | 5.07-12.62Kw | |||||
Cooling capacity | 1.68-5.09Kw | 3.64-10.58Kw | |||||
Ciol row | 2/3 | 2/3 | |||||

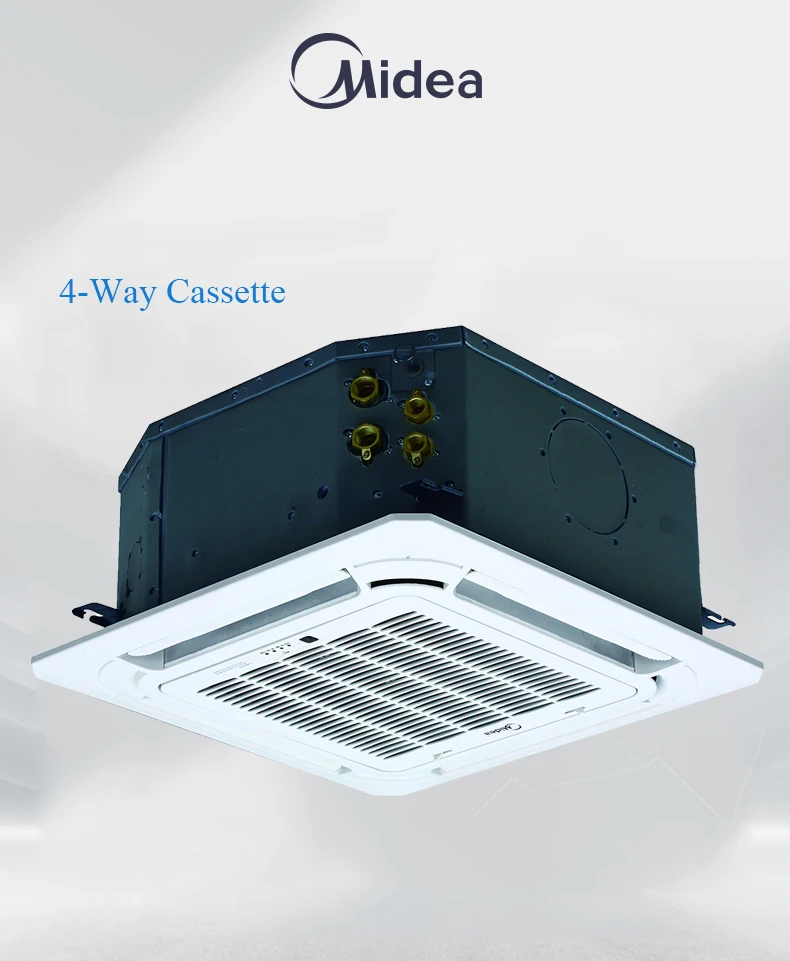

Four-way Cassette
---360° air flow for immediate, equal distribution of wider-angle cooling and heating, ideal for standard ceilings.
Features
---4-way air supply panel as standard, new 360°air supply panel is optional.
---Fresh air intake, also supply to side room.
---Built-in PCB and drain pump with pump head-750mm.
---Remote controller with LED display is standard, wired controller is optional.
---Safety grill for safety maintenance.
---Optional extended drainage pan for protecting your ceiling better.
---Compatible with 0-10V control function.
---Available for 2/4 pipe system
---EAH is optional (for 2-Pipe 4-Way Cassette)
---Fresh air intake, also supply to side room.
---Built-in PCB and drain pump with pump head-750mm.
---Remote controller with LED display is standard, wired controller is optional.
---Safety grill for safety maintenance.
---Optional extended drainage pan for protecting your ceiling better.
---Compatible with 0-10V control function.
---Available for 2/4 pipe system
---EAH is optional (for 2-Pipe 4-Way Cassette)
1.Stylish Panel with Large Airflow Outlet
---4-way air supply panel is standard for 4-way cassette. 360° air supply panel is standard for compact 4-way cassette.
2.NEW 360° panel
---New design, round air flow path ensures uniform air flow and temperature distribution.
Individual louver control
---The Individual louver control can control the motors
separately, making it possible to control all four louvers
independently.
separately, making it possible to control all four louvers
independently.
---Versions for normal size.
The height of models 600 to 750 is just 230mm whilst models 850 to 1500 is 300mm, making the Four-way Cassette ideal for standard ceilings.
The height of models 600 to 750 is just 230mm whilst models 850 to 1500 is 300mm, making the Four-way Cassette ideal for standard ceilings.
4.Auto restart
In the event of a sudden power failure during operation,unit
restarts automatically and the unit will operate based on the
previous setting (operating mode, temperature setting and
fan speed).
restarts automatically and the unit will operate based on the
previous setting (operating mode, temperature setting and
fan speed).
---A drain pump with a 750mm pump head is fitted as standard, simplifying installation of the drain piping.
5.Fresh Air Intake
---A reserved outside air intake port allows outdoor air to be induced directly into the unit, negating the need for a
separate ventilation system.
separate ventilation system.
---Knock out hole is available int the unit.
---Accessories such as booster fan must be supplied on field and installed.
---Accessories such as booster fan must be supplied on field and installed.
6.Control solutions
---The fan coil units can be connected to Midea central control lers through the customized XYE port, also can be connected to Modbus gateway through the customized PQE port with Modbus RTU protocol.
7.Certifications and Authorization
IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
How to get a quick quotation?
Information needed Midea Group's management system before prepare quotation details for you.
1.Project name :building name or building type, such as ××× office project, residential house project etc.
2.Project accurate address;
3.Your company contact information ＆ address；
4.Please provide product list or engineer drawing with product type marked.
5.When you expect to process purchase ＆ logistics for this project?
6.Is it tender project or not? Because tender project you may need our authorization letter.
Product packaging
We will use cartons and wooden cases to protect your goods from shock and try our best to ensure that your goods will not be damaged during transportation.
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Midea Product Show

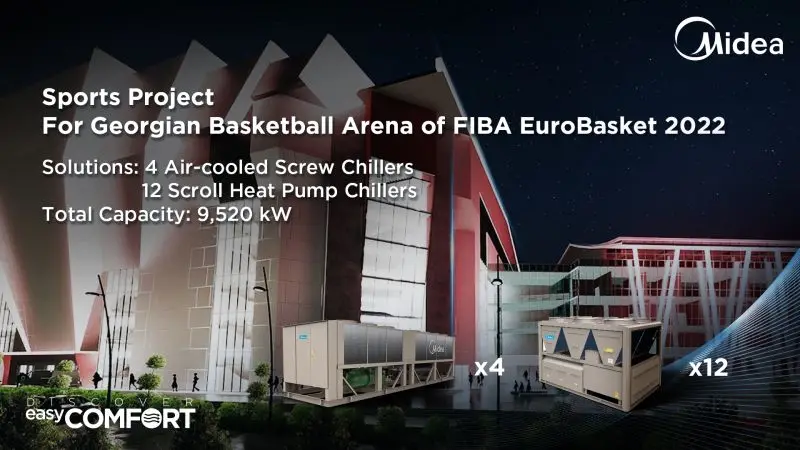

We have a lot of successful project experience, you can trust to give the project to us.
Company Profile
Contact US
Похожие товары
Вогнутая стержень, шэньчжэньский поставщик печатная плата, электронное реле из T90 реле 30A CMP7-S-5V-C(6 футов) самых лучших брендов, включая реле
(Силовые) T90S5D12-24
14,11 $ - 16,93 $
T90 реле 30A SLA-09V-SL-A- (4 фута)
T90 реле 30A SLA-24V-SL-A- (4 фута)
QIANJI Online Shop China High Current 40A Mini Power PCB Relay T90 (JQX-15F)

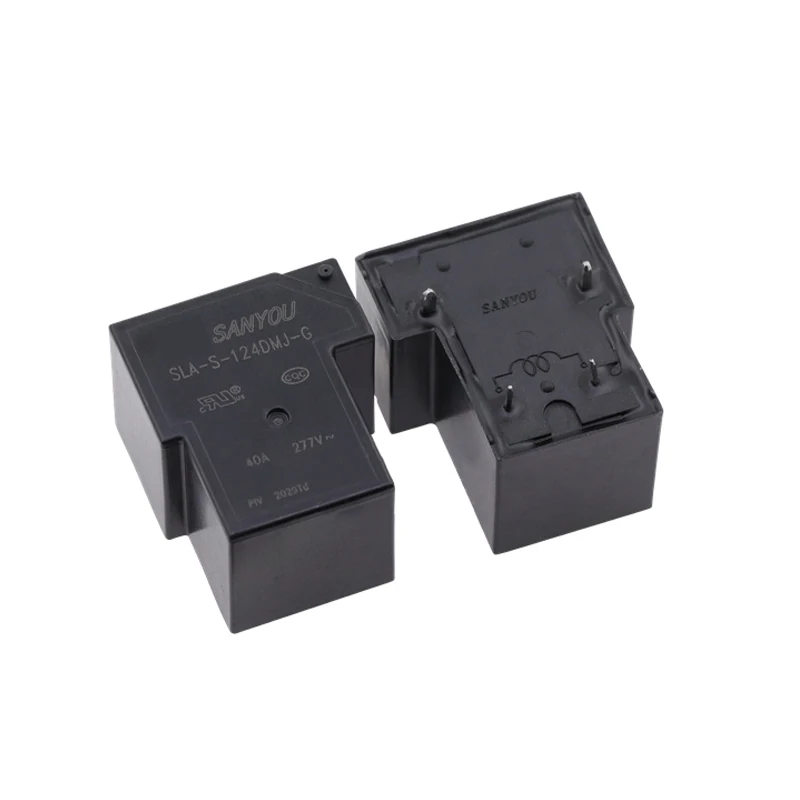

T90 реле SLA-S-124DMJ-G 40A вместо того, чтобы HF165FD-G-24-HY1STF
