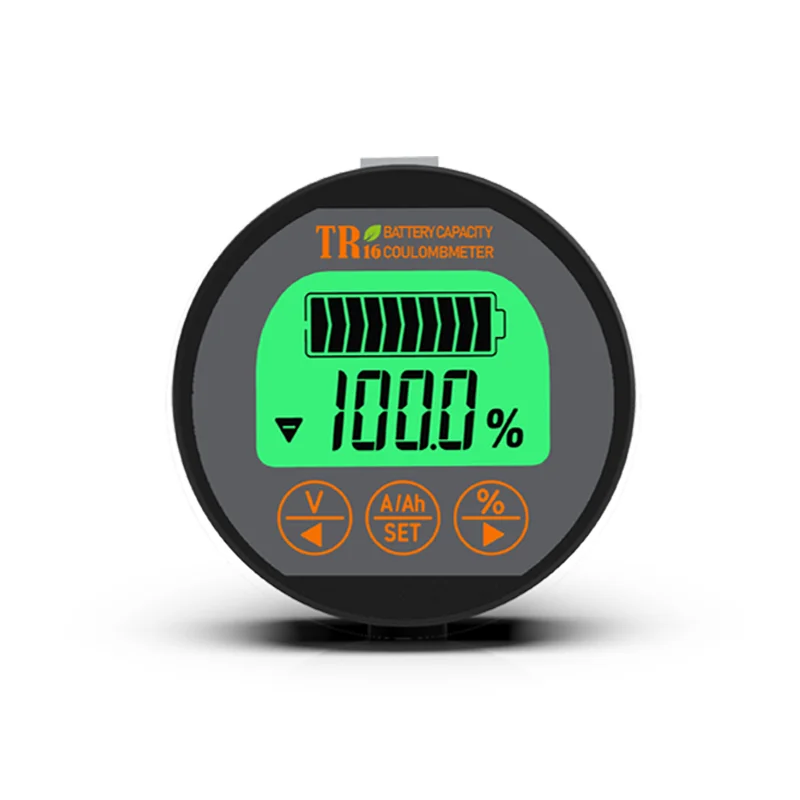

     TR16 is a kind of high precision current type battery capacity tester, which can test the voltage, current and capacity of battery to help users know the state of battery in time. TR16 have memory function. It is suitable for mobile and portable equipments、e-bike、balance cars、cleaning machines、instruments、ups and so on.

          Note:This product contains 100A sampler and 0.5 m shielded cable( default 0.5m, 1m, 2m, 3m, 4m, 5m, 8m, 10m can select,Please contact us in advance). The price is according to the length.

     TR16 is suitable for lithium battery, lithium iron phosphate battery, lead-acid battery and nickel-metal hydride battery which working voltage is from 8V to 100V.

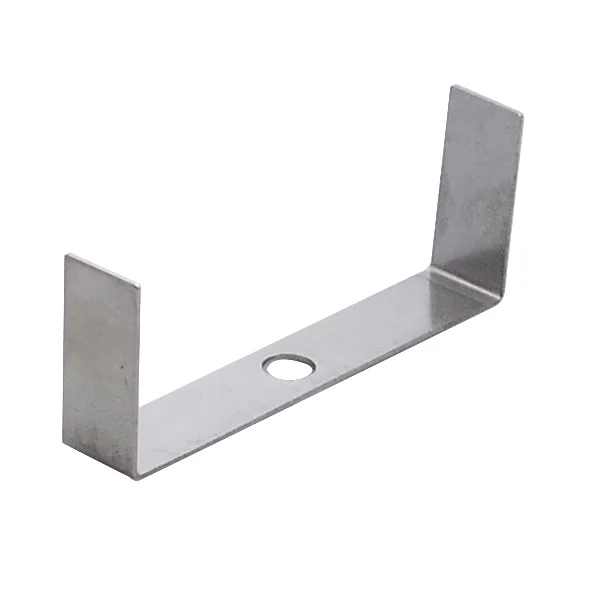

      First，open a round holes of 54.5mm on the panel of the equipment. Then install the coulometer from the front of the panel. Finally，tighten the bracket on the back. As shown below:

     We need a shielded wire and a ordinary wire (0.3-0.75 mm²).One end of the ordinary wire connects to positive of battery, another end connects to B+ of sampler (any one is ok). The B- of sampler connects to B- of battery. P- of sampler connect to P- of output. Finally connect sampler to coulometer by the shielded wire.(Notice: The diagram is not equal proportion)

Connection diagram of 100A sampler

      Attention: Please connect as shown strictly. The sampler must be connected to the negative circuit, it is forbidden to connect to the positive circuit. If you want to extend the shielded wire, you must use 4 lines of same specification.

      Shanghai Baiway electronic CO., LTD was founded in 2009. Our company has been focused on the production, design and development of battery applications for years, have rich experience.

      The company has a strong development of technical strength, and constantly introduce new products to meet the needs of various customers. Shanghai Baiway electronics Co., integrity, strength and quality of products recognized by the industry. Welcome friends from all walks of life come to visit, guidance and business negotiation.

Our products have been unanimously confirmed by users and established a good long-term cooperation relationship.

From the time the order is established, the order information is transferred to the warehouse, the warehouse starts to pick according to the order information, (usually in stock, large batch orders are determined in advance for the delivery cycle), and then the electricity is turned on for product inspection, and after the test, the packaging is started and the box is sealed. The goods will be delivered to your hands through logistics.

      Packing: Each packed in sealing bag, bag size: 15*15*5cm, weight: 2

80g.
      Delivery: We can send goods off by sea, land, air and post according to you need.
      Receiving: Please make sure the goods are in good condition before sign for.Please contact us if you have any question about the products.
