Прямые продажи с завода турбина для природного цифрового расходомера газа расходомер Turbin цена
- Категория: >>>
- Поставщик: Henan Nuande Trading Co. Ltd.
Сохранить в закладки 1600380565719:
Описание и отзывы
Характеристики

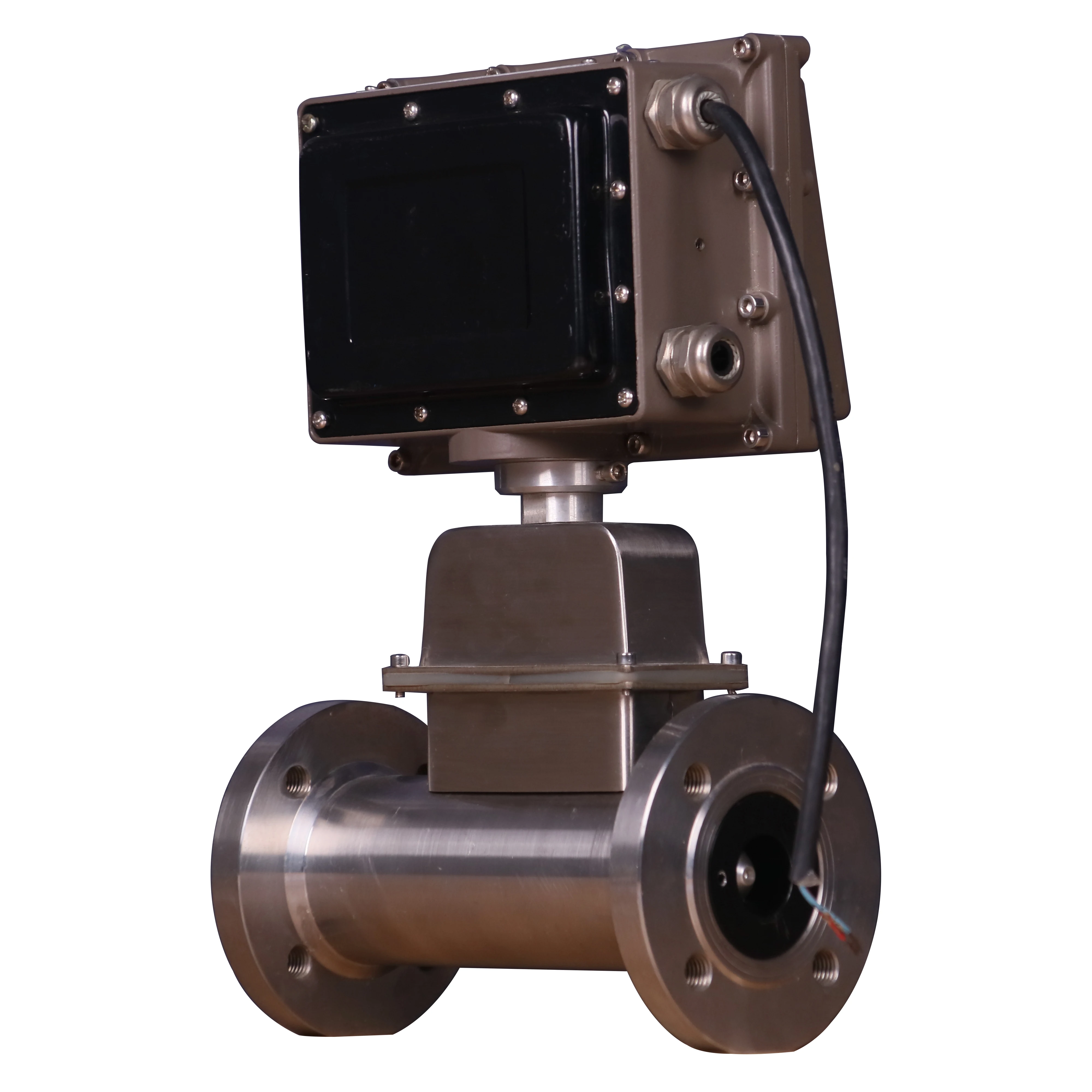

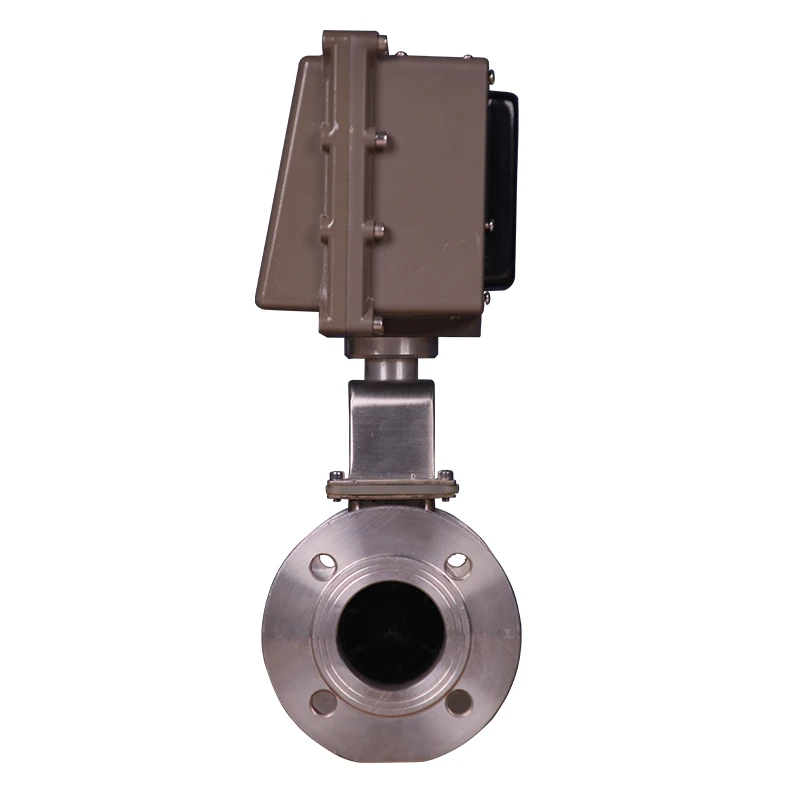

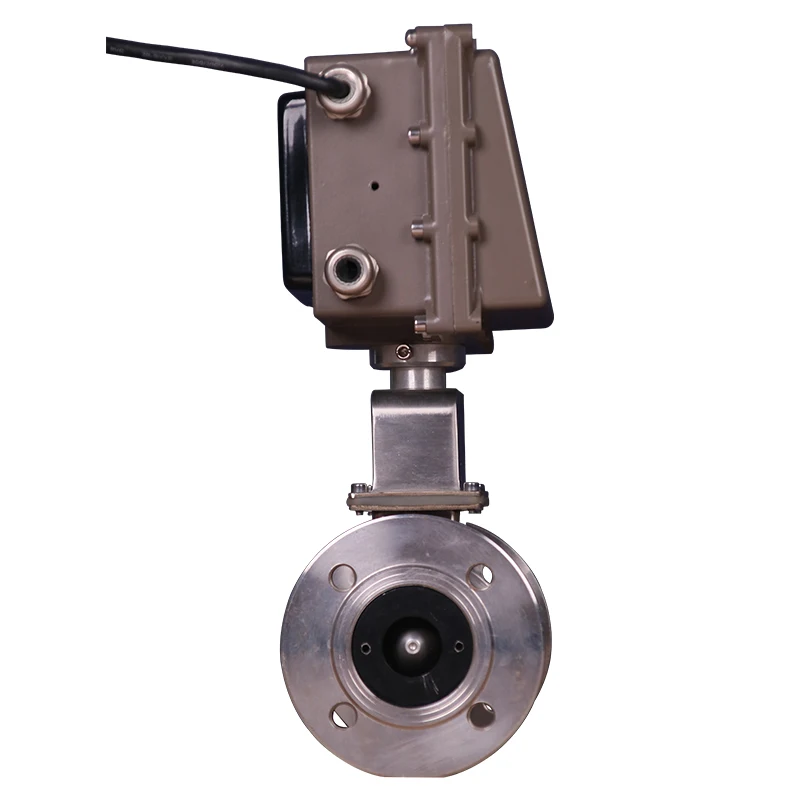

LWGQ series gas turbine flowmeter is a new generation of high precision and high reliability gas precision metering instrument integrating temperature, pressure, flow sensor and intelligent flow totalizer, which is developed by absorbing the advanced technology of flow instruments at home and abroad, through optimized design and integrating the theories of gas mechanics, hydrodynamics and electromagnetism, It has excellent low-pressure and high-pressure metering performance, a variety of signal output modes and low sensitivity to fluid disturbance. It is widely applicable to the metering of natural gas, coal to gas, liquefied gas, light hydrocarbon gas and other gases.
1. high accuracy,good reproducibility, small pressure loss and good seismic performance.
2. Adopting high quality bearings,small friction resistance,good sealing performance.
3. It integrates microprocessor，flow sensor，high accuracy temperature and pressure sensor，it’s directly used to measure the gas flow ,temperature and pressure,and automatically to carry out flow tracking compensation and compression factor correction.
4.Low power consumption,available internal battery power supply,but also external power supply.
Specification model | Nominal diameter DN(mm) | Flow range (m3/h) | Maximum pressure loss (kPa) | Starting flow (m3/h) | Installation method |
LWQA-25 | 25 | 2.5-25 | 1 | Flange (thread) | |
LWQB-25 | 4-40 | 2 | Flange (thread) | ||
LWQA-40 | 40 | 5-50 | 1.8 | Flange (thread) | |
LWQA-50 | 50 | 6-65 | 0.7 | 2.5 | Flange |
LWQB-50 | 10-100 | 0.7 | 2.5 | Flange | |
LWQA-80 | 80 | 13-250 | 0.3 | 6 | Flange |
LWQB-80 | 20-400 | 0.8 | 6 | Flange | |
LWQA-100 | 100 | 20-400 | 0.2 | 8 | Flange |
LWQB-100 | 36-650 | 0.5 | 8 | Flange | |
LWQA-125 | 125 | 35-700 | 0.5 | 12 | Flange |
LWQA-150 | 150 | 32-650 | 0.4 | 15 | Flange |
LWQB-150 | 50-1000 | 1.7 | 15 | Flange | |
LWQA-200 | 200 | 80-1600 | 0.2 | 35 | Flange |
LWQB-200 | 130-2500 | 0.9 | 35 | Flange | |
LWQA-250 | 250 | 130-2500 | 0.2 | 40 | Flange |
LWQB-250 | 200-4000 | 0.5 | 50 | Flange | |
LWQA-300 | 300 | 300-6000 | 1.5 | 50 | Flange |
Our instruments and meters have many kinds and a wide range of applications. The products serve petroleum, chemical industry, medicine, metallurgy, food, heating, water supply, environmental protection engineering, municipal engineering, etc
Installation precautions
1. It can be installed horizontally or vertically
2. The front and rear straight pipe sections are flowmeter front end ≥ 10dn and rear end 5dn
3. During measurement, ensure that the pipeline medium is full.
2. The front and rear straight pipe sections are flowmeter front end ≥ 10dn and rear end 5dn
3. During measurement, ensure that the pipeline medium is full.
We conduct surface treatment for each instrument after calibration to ensure its clean appearance.
Our packing methods include carton packing and wooden case packing, which will be filled with foam and other protective measures against bumps.
Our packing methods include carton packing and wooden case packing, which will be filled with foam and other protective measures against bumps.
We also have other series of flow meters. More suitable flow meters can be selected for different sites
Henan Wende Trading Co., Ltd. focuses on instruments in industrial engineering. The main products are electromagnetic flowmeter,vortex flowmeter, turbine flowmeter, ultrasonic flowmeter, open channel flowmeter, throttling device, etc. By providing high-quality products and one-stop services, the products are widely used in environmental protection, chemical industry,papermaking, textile, municipal water supply, farmland irrigation and other industries. We have a professional technical team and flowmeter calibration device.
We have many qualifications, such as ISO, CE, patents and so on
We actively participate in various industry exhibitions, communicate warmly with customers and exchange experience and technology with peers.
1. Who are we?
We are an instrument company, focusing on the production, sales and after-sales service of instruments.
2. How do we guarantee the quality?
Always provide pre production samples before mass production;
Always carry out final inspection before shipment;
3. Do you support OEM?
Yes, we support it
4. Why should you buy from us instead of from other suppliers?
We strictly control the production process. Each flowmeter is calibrated on the verification device. Each flowmeter will not leave the factory until it is qualified.
We are an instrument company, focusing on the production, sales and after-sales service of instruments.
2. How do we guarantee the quality?
Always provide pre production samples before mass production;
Always carry out final inspection before shipment;
3. Do you support OEM?
Yes, we support it
4. Why should you buy from us instead of from other suppliers?
We strictly control the production process. Each flowmeter is calibrated on the verification device. Each flowmeter will not leave the factory until it is qualified.
Похожие товары
Ремонтная стойка для велосипеда, домашняя портативная Рабочая стойка для велосипеда, стойка для горного велосипеда, держатель для хранения, подставка для ремонта велосипеда
25,00 $ - 31,00 $
Новинка 2021, Детские деревянные игрушки, двор, игральные кости, игрушки для детей
5,85 $ - 5,99 $
S2 H4 COB чип 24 Вт белая светодиодная фара 6500k лучевая лампа передняя
Датчик Мутности модуль для посудомоечной машины
Автомобильный турбо-интеркулер, шланг масляного радиатора для Mitsubishi Montero для L200 Triton 2008-2018 1505A850

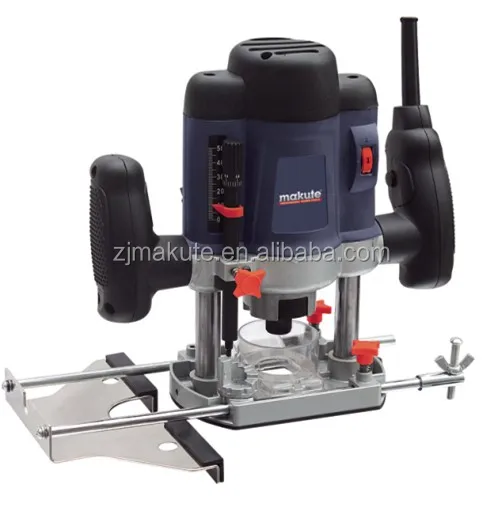

MAKUTE 1200 Вт 8 мм бетонный электрический маршрутизатор ER003
