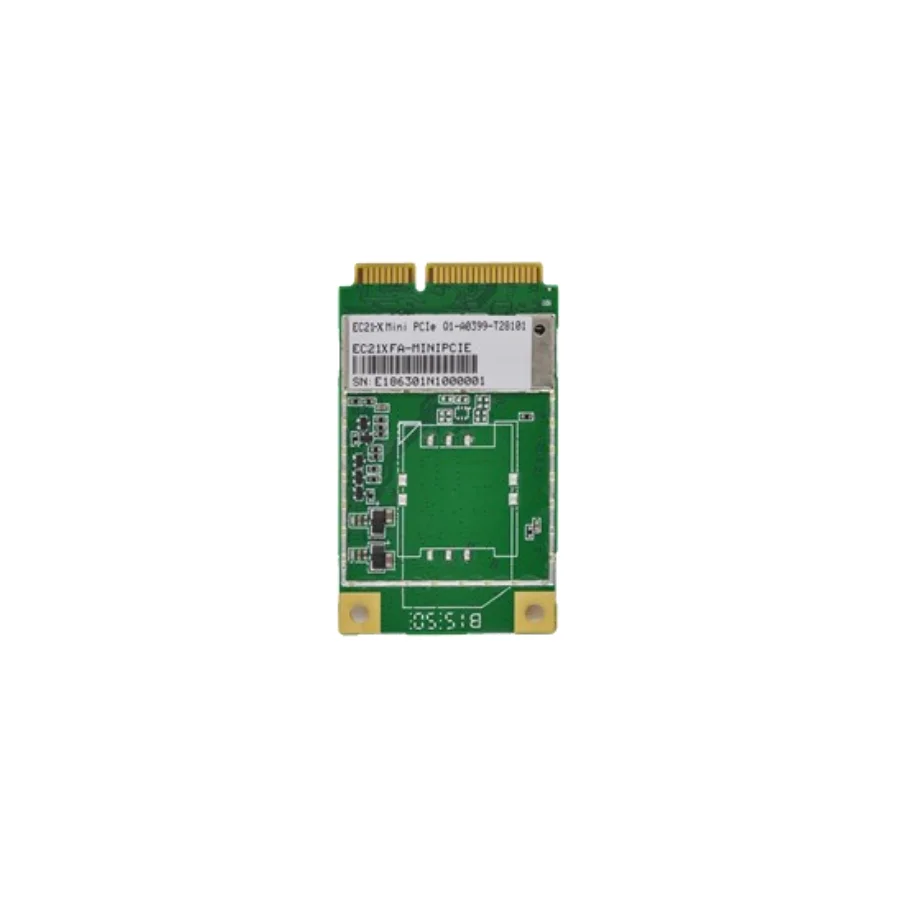

Worldwide LTE UMTS/HSPA( ) and GSM/GPRS/EDGE coverage EC21 E Mini PCIe Package 4g sim card module
- Категория: >>>
- Поставщик: Suzhou Tianhoo Communication Technology Co. Ltd.
Сохранить в закладки 1600380586503:
Описание и отзывы
Характеристики
Product Description
Brand Name | Quectel |
Chipset | 9x07 |
Application | 4G Application industrial PDA digital signage, industrial PDA, and digital signage |
Product name | EC21-E |
USB DriversUSB | Windows 7/8/8.1/10, Linux and Android |

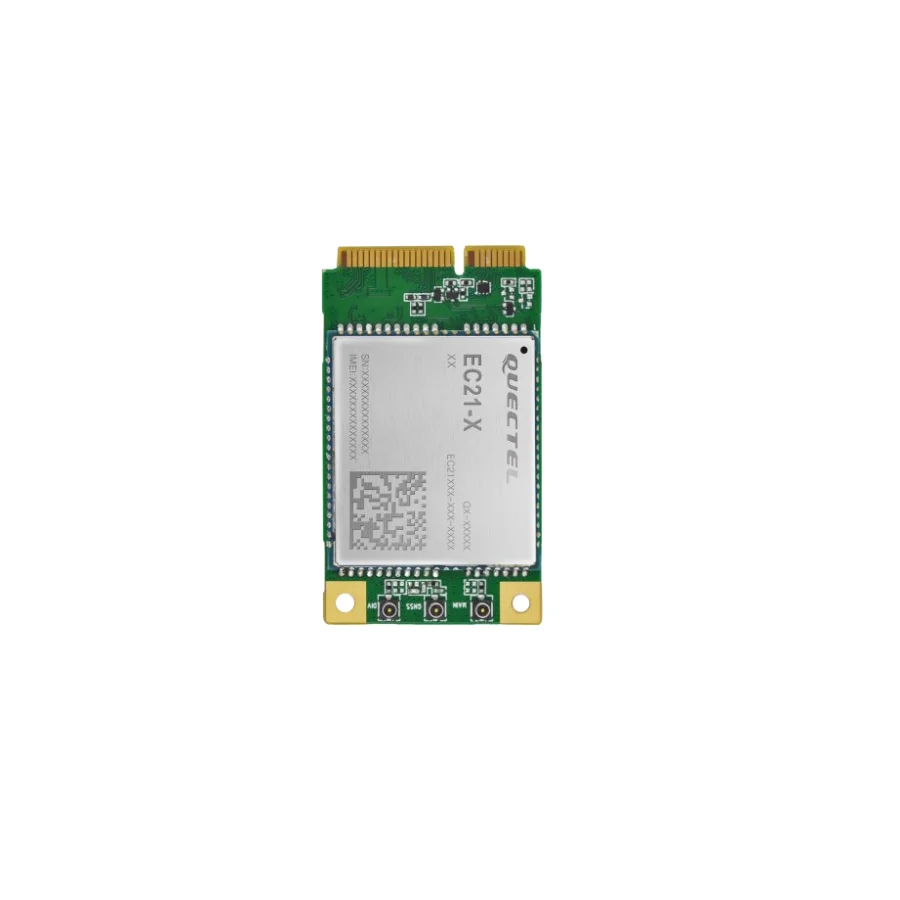

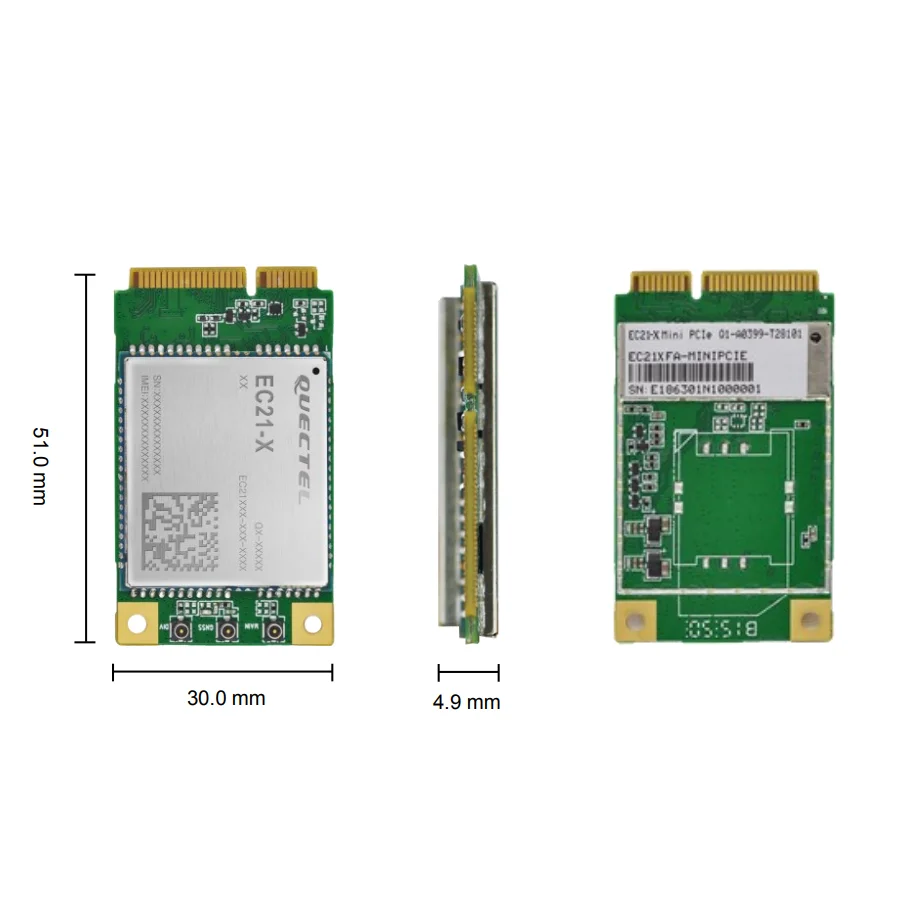

Quectel EC21 Mini PCIe is a series of LTE category 1 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). Specially optimized for M2M and IoT applications, it features cost-effective, low-power LTE connectivity, and delivers M2M-optimized speeds of 10Mbps downlink and 5Mbps uplink. These make it ideal for numerous IoT applications that are not reliant on high speed connectivity but still require the longevity and reliability of LTE networks. EC21 series Mini PCIe contains 10 variants: EC21-A Mini PCIe, EC21-V Mini PCIe, EC21-AUT Mini PCIe, EC21-AU Mini PCIe, EC21-AUX Mini PCIe, EC21-E Mini PCIe, EC21-EU Mini PCIe, EC21-EUX Mini PCIe, EC21-KL Mini PCIe and EC21-J Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can easily migrate from LTE to 2G or 3G network.
EC21 series Mini PCIe supports Qualcomm®IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as smart metering, tracking and tracing, fleet management, wearable devices, smart home gateways, digital signs, and even drones.
Model | Frequency band | Region |
EC21-A | LTE-FDD:B2/B4/B12 LTE-TDD:- WCDMA:B2/B4/B5 GSM/EDGE:- | North America |
EC21-V | LTE-FDD:B4/B13 LTE-TDD:- WCDMA:- GSM/EDGE:- | America Verizon |
EC21-AUT | LTE-FDD:B1/B3/B5/B7/B28 LTE-TDD:- WCDMA:B1/B5 GSM/EDGE:- | Australia |
EC21-AU | LTE-FDDB1/B2/B3/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B1/B2/B5/B8 GSM/EDGE:B2/B3/B5/B8 | Australia/New Zealand/ Latin America |
EC21-AUX | LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B1/B2/B4/B5/B8 GSM/EDGE:B2/B3/B5/B8 | Australia/New Zealand/ Latin America |
EC21-E | LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD:- WCDMA:B1/B5/B8 GSM/EDGE:B3/B8 | EMEA/Thailand/India |
EC21-EU | LTE-FDD:B1/B3/B7/B8/B20/B28A LTE-TDD:- WCDMA:B1/B8 GSM/EDGE:B3/B8 | EMEA/Thailand |
EC21-EUX | LTE-FDD:B1/B3/B7/B8/B20/B28A LTE-TDD:- WCDMA:B1/B8 GSM/EDGE:B3/B8 | EMEA/Thailand |
EC21-KL | LTE-FDD:B1/B3/B5/B7/B8 LTE-TDD:- WCDMA:- GSM/EDGE:- | Korea |
EC21-J | LTE-FDD:B1/B3/B8/B18/B19/B26 LTE-TDD:- WCDMA:- GSM/EDGE:- | Japan |
More Products

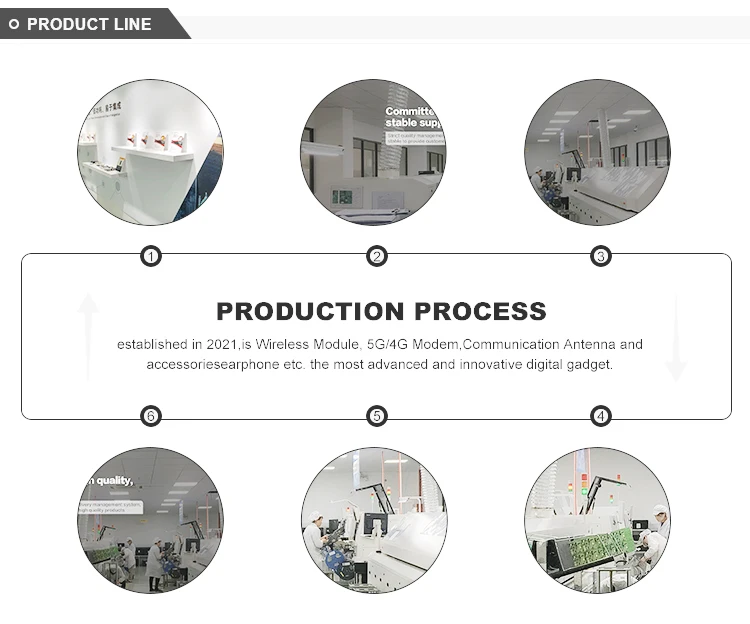

Production line
Company Profile
Company Profile：
1.Suzhou Tianhoo Communication Technology Co., Ltd. established in 2021,is Wireless Module, 5G/4G Modem,Communication Antenna and accessoriesearphone etc. the most advanced and innovative digital gadget.2.We have exported many countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc
3.tianhoo is a global supplier of cellular IoT modules and antennas: we are committed to connect devices and people to networks and services,
powering digital innovation and helping to build a smarter world. Our products help make life more efficient, convenient,and secure.
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best technical team of Wireless Module.
5) Smooth communication
Company Advantage
1.We have an experienced R & D team to support product customization and development;
2.We have a professional sales and after-sales team;
3.Our products have a wide coverage and reliable quality;
2.We have a professional sales and after-sales team;
3.Our products have a wide coverage and reliable quality;
Certifications
Exhibition
Product packaging
FAQ
Q1.Why choose Linkall.Iot?
A. High quality of service: OEM and ODM services; reply within 24 hours; all our products meet international quality standards, and have seven years of software and hardware development experience.
Q2. If the products can't work after receiving it,what should I do?
A.We will replace new items for you at once and then we make the judgement for the issue.
Q3.Do you accept ODM design?
A.Yes,we do.We can design according to your requirement,For details, please consult customer service
Q4.What payment terms you accept?
A.We accept Paypal, T/T, Alibaba Trade Assuarce, Western Union, Wechat, Alipay, in Cash (RMB or USD)
A. High quality of service: OEM and ODM services; reply within 24 hours; all our products meet international quality standards, and have seven years of software and hardware development experience.
Q2. If the products can't work after receiving it,what should I do?
A.We will replace new items for you at once and then we make the judgement for the issue.
Q3.Do you accept ODM design?
A.Yes,we do.We can design according to your requirement,For details, please consult customer service
Q4.What payment terms you accept?
A.We accept Paypal, T/T, Alibaba Trade Assuarce, Western Union, Wechat, Alipay, in Cash (RMB or USD)
