Product Show
Factory Price Grease Distributor Block Grease Dispenser Automatic Progressive Distributor |
Dear Customer : Bulk order give you best price !! Inquire me ! Thank you visiting our website. We try to provide the best service and the perfect products to all customers. We have been making for lubrication products 10 years.we have our own factory ,can customized item you need (we supply oem service ) .our main products are automatic lubrication pump, electric lubrication pump, pneumatic lubrication pump, manual lubrication pump, grease pump,progressive distributor, quantitative distributor, pipe connector, metering unit and so on . Welcome to send us inquiry,we will do our best to answer and solve your problems you may meet. You can click the pic to view our new products and exhibition plan. Thank you for your support, enjoy your shopping! BestRegards , Had Team |
Product Parameter
Progressive Divider Valves MVB
The MVB series progressive distributor is designed for small-size progressive lubrication systems. They are a cost efficient solution for supplying multiple lubrication points with relatively small volumes of oil and grease. The MVB series can be used with machine tools, processing machinery, presses, textile, printing and packaging machinery.
1 Oil Outlet :
MVB Standard Flow : 0.17ml
2 Distribution principle
The plunger sleeve is connected through the oil hole to establish pressure. As long as there is pressure to allow the lubricant to enter the oil mouth, the distributor will run continuously in a progressive manner and fill with a constant displacement.
3 Alarm
Once the supplied pressure lubricant stops, all of the plungers in the dispenser will also stop moving. Therefore, by operating a specific indicator to observe the movement of an oil discharge plunger, the operation of the entire distributor can be monitored. In the event of a blockage, an alarm can be issued.
4 Oil Outlet
The plunger which closest to the oil inlet ,discharges the lubricant oil first from the farthest oil outlet , and the other plungers in the valve body discharge the quantitative lubricant through the next oil outlet.
MVB Standard Flow : 0.17ml
2 Distribution principle
The plunger sleeve is connected through the oil hole to establish pressure. As long as there is pressure to allow the lubricant to enter the oil mouth, the distributor will run continuously in a progressive manner and fill with a constant displacement.
3 Alarm
Once the supplied pressure lubricant stops, all of the plungers in the dispenser will also stop moving. Therefore, by operating a specific indicator to observe the movement of an oil discharge plunger, the operation of the entire distributor can be monitored. In the event of a blockage, an alarm can be issued.
4 Oil Outlet
The plunger which closest to the oil inlet ,discharges the lubricant oil first from the farthest oil outlet , and the other plungers in the valve body discharge the quantitative lubricant through the next oil outlet.

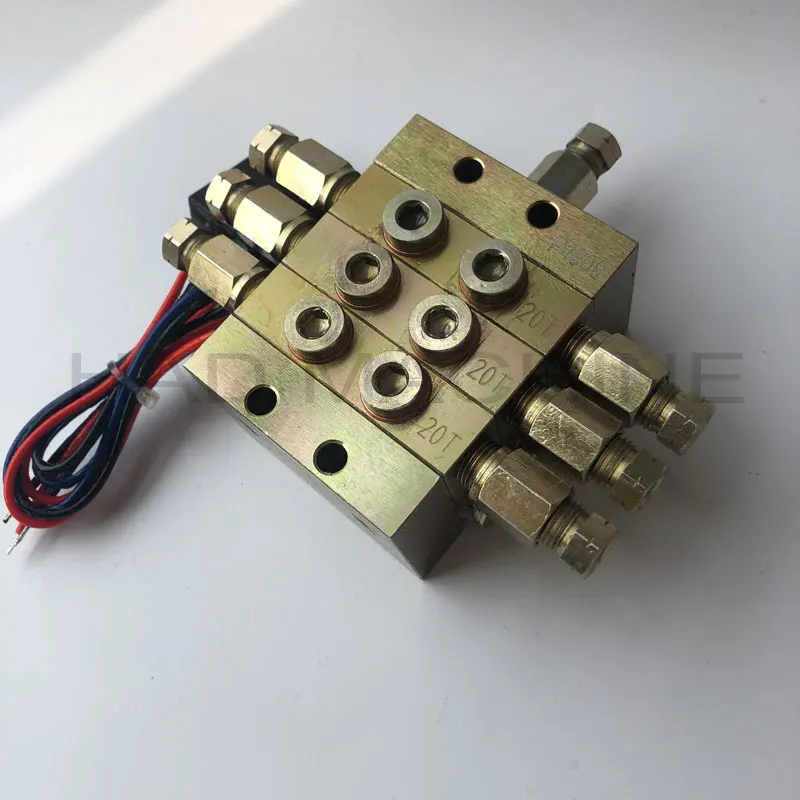

MVB Type Grease Distributor
Max work pressure: 30 MPa( Up to 300 BAR working pressure
Flow Delivery: 0.17ml/cyc
Lubricant viscosity (under standard temperature): oil≥N68, grease: Use media: (NLGI)#000,#00,#0,#1,#2
Lubricant viscosity (under standard temperature): oil≥N68, grease: Use media: (NLGI)#000,#00,#0,#1,#2
Work temperature:-20°C~+60°C
Number of outlets Max: 22 pcs
Easy to monitor, configurable cycle indicator rod
PLEASE INQUIRE ME AND ASK CATALOGUE FROM ME . WE HERE CAN GIVE YOU GOOD PRICE AND EXCELLENT QUALTITY !! INQUIRE US !!

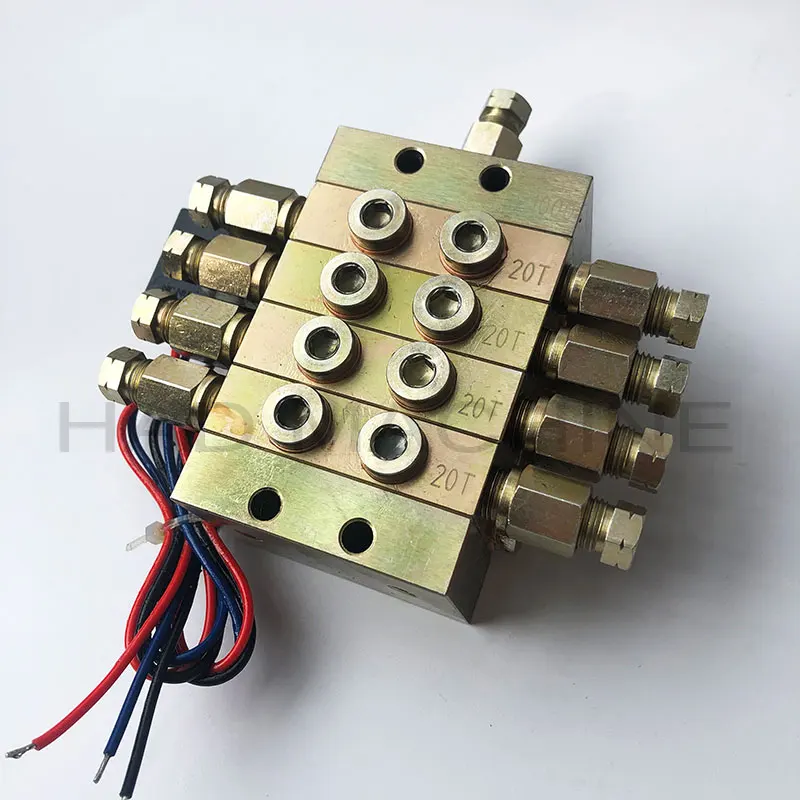

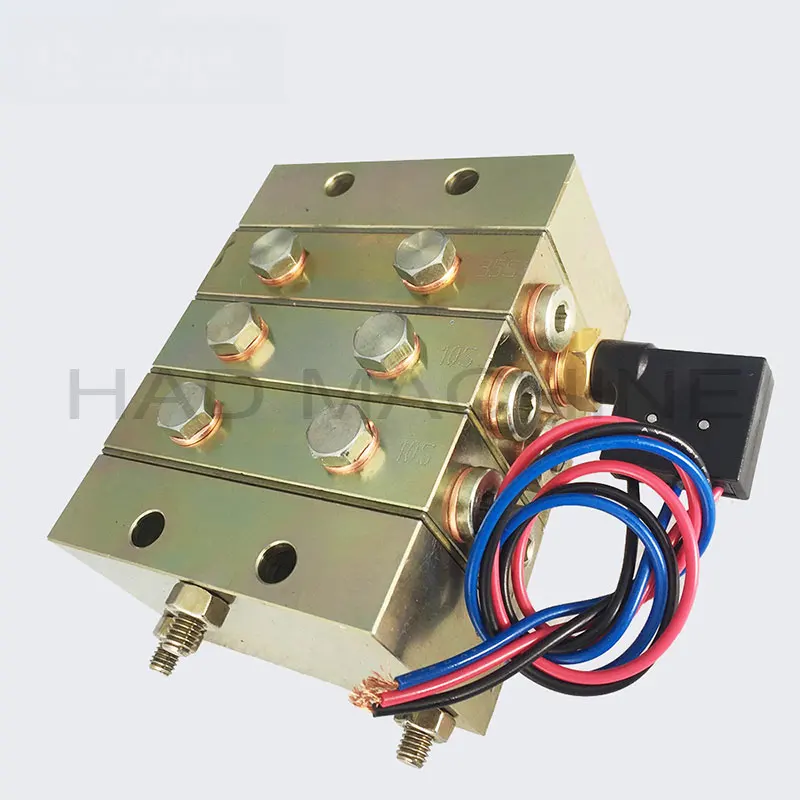

Progressive Divider Valves 1000/2000/3000
1000,2000,3000 series progressive grease distributor is an advanced design and reasonable structural oil distributor; Can be used in high pressure and wide temperature change conditions. It can be combined with electric and pneumatic pumps to form a single line lubrication system. It is used as a female distributor for various large machine tools and port of equipment , or for large single-line lubrication systems.
A standard set of dispensers consists of a "firt chip"+a piece of "tail chip" + 3-10 piece. It can provides 3-20 lubrication
points for lubrication.
Double outlet working chip, (after size use T to indicate the double outlet), there are two oil outlets, at the two ends of the working chip; Note that for the double outlet working chip, can not Block any oil outlet, which will affect its normal operation and damage the distributor .
Single grease outlet working chip (after the specification value of ,use S to indicate the single grease outlet), there is an oil outlet, which can be any of end of the working piece, and the other end of the outlet oil needs to be blocked.
A standard set of dispensers consists of a "firt chip"+a piece of "tail chip" + 3-10 piece. It can provides 3-20 lubrication
points for lubrication.
Double outlet working chip, (after size use T to indicate the double outlet), there are two oil outlets, at the two ends of the working chip; Note that for the double outlet working chip, can not Block any oil outlet, which will affect its normal operation and damage the distributor .
Single grease outlet working chip (after the specification value of ,use S to indicate the single grease outlet), there is an oil outlet, which can be any of end of the working piece, and the other end of the outlet oil needs to be blocked.
1000 Type Grease Distributor
Max work pressure: 16 MPa,but can bear 25Mpa
Flow Delivery: 0.08ml/cyc ~ 0.48ml/cyc
Lubricant viscosity (under standard temperature): oil≥N68,grease: NLGI 000#~2# Work temperature:-20°C~+60°C
Flow Delivery: 0.08ml/cyc ~ 0.48ml/cyc
Lubricant viscosity (under standard temperature): oil≥N68,grease: NLGI 000#~2# Work temperature:-20°C~+60°C
Max work frequency(with stem):60cyc/min Max work frequency (without stem):200cyc/min
Manifold number:3~8
Tubing: Outlet: Φ6mm length: 0.5~2.5m
,Inlet: Φ6mm length:1.2~3.5m
Manifold number:3~8
Tubing: Outlet: Φ6mm length: 0.5~2.5m
,Inlet: Φ6mm length:1.2~3.5m
2000 Type Grease Distributor
Max work pressure: 25 MPa,
Flow Delivery: 0.16ml/cyc ~ 1.12ml/cyc
Lubricant viscosity (under standard temperature): oil≥N68,grease: NLGI 000#~2# Work temperature:-20°C~+60°C
Flow Delivery: 0.16ml/cyc ~ 1.12ml/cyc
Lubricant viscosity (under standard temperature): oil≥N68,grease: NLGI 000#~2# Work temperature:-20°C~+60°C
Max work frequency(with stem):60cyc/min Max work frequency (without stem):200cyc/min
Manifold number:3~10
Tubing:
Outlet: Φ6mm length: 1.2~3.5m
Inlet: Φ8mm length:1.5~4.5m Manifold Material: carbon steel
Manifold number:3~10
Tubing:
Outlet: Φ6mm length: 1.2~3.5m
Inlet: Φ8mm length:1.5~4.5m Manifold Material: carbon steel
2000 Type Grease Distributor
Max work pressure: 25 MPa,
Flow Delivery: 0.4ml/cyc ~ 4.8ml/cyc
Lubricant viscosity (under standard temperature): oil≥N68,grease: NLGI 000#~2# Work temperature:-20°C~+60°C
Flow Delivery: 0.4ml/cyc ~ 4.8ml/cyc
Lubricant viscosity (under standard temperature): oil≥N68,grease: NLGI 000#~2# Work temperature:-20°C~+60°C
Max work frequency(with stem):60cyc/min
Max work frequency (without stem):200cyc/min
Manifold number:3~10
Tubing: Outlet: Φ8mm length: 1.5~4.5m
Inlet: Φ10mm length:1.8~5.5m Manifold Material: carbon steel
Manifold number:3~10
Tubing: Outlet: Φ8mm length: 1.5~4.5m
Inlet: Φ10mm length:1.8~5.5m Manifold Material: carbon steel
Related Products
Application Case
Company Profile
ABOUT US |
About us : Our company offers every type of lubrication system, ranging from manual models to complex systems, fully automated andcentralised that run on oil and grease. Our products are used in all industrial systems, vehicular systems and several otherfields such as mining, railway, machine tools, paper industries, wind energy and marine equipment. The lubrication systems at our disposal are distinguished as: Progressive Lubrication It is the most reliable and comprehensive system offered by us to measure grease and oil with actual control on operation. The 3 types of progressive metering can be combined with automatic or manual pumps or powered directly from a single point in the system. Suitable for industrial machinery and the vehicle sector. Volumetric lubrication Consisting of manual or automatic pumps combined with volumetric metering valves, the volumetric lubrication system can measure oil or grease. Normally installed in industrial machinery, it also allows for lubrication in systems with several points. You can control pump operation and circuit integrity. Resistive Lubrication It is the basic system that can dispense only oil and, combined with manual or automatic pumps, the DPT resistive metering units allow for continuous or intermittent lubrication depending on the metering and type of supply. Particularly suitable for agricultural overhead contact lines and small systems. Main products : automatic lubrication pump, electric lubrication pump, pneumatic lubrication pump, manual lubrication pump, grease pump, progressive distributor, quantitative distributor, pipe connector, metering unit, high pressure nylon hose, high pressure pipe etc. Products are widely used : in robot, cutting machine tools, forging machine, plastic machine, CNC machine tools, construction machinery, vehicles, metallurgical machinery, textile machinery, printing machinery, woodworking machinery, chemical machinery, mining machinery and other industrial machinery. Our customer : We mainly exported to Russia ,Brazil ,Australia, Thailand,South korea and so on. Our team : If you interesting in our lubrication products , please let us know. We will be pleased to give you a quotation according your detailed specifications in short time . If you have technical help ,Our expert engineering team also will ready to serve you for consultation and feedback . We can provide you professional technical info about products in time. Products control : Each product is carefully made with strictly controller and testing , it will make you satisfied. We trust that only to provide you the best quality, we will feel confident. High production costs but low prices for our long-term cooperation. Our attitude : In order to build long-term friendly relationship. We all significantly promise: same excellent, better selling price; exact selling price, better quality. We are looking forward to your visit to our company and hope we can cooperate for a long time ! |
Our Certification
✔ 2 factories ,over 100 workers ,over 100 products .
✔ The company have fast delivery .
✔ More than 10 years of industrial production experience .
✔Our main products are grease distributor, grease pump, pump element ,etc.
✔ Our customer service staff is from multilanguage talented persons, more intimately serve for oversea's clients.
✔ Our customer service staff is from multilanguage talented persons, more intimately serve for oversea's clients.
Packaging And Shipping
FAQ
Factory supply will more easy for you !
☛1. Free samples
We offer free samples for your quality inspection with your courier number for shipping.
☛2. OEM & ODM service
We are a professional OEM manufacturer, welcome to send us designs for sampling.
We also have the the technic staffs and we can provide more free designes for choosing.
☛3. Small orders
We accept small order to all customers ,we accept trial order, to show our products to customers.
☛4. Free sampling
We refund/reduce the sample fees for any order placed, which is consistent with our MOQ.
☛5. Easy payment
We accept payment in many ways such as T/T, L/C, PayPal, Western Union, and MoneyGram.
☛6. Quick response
7x12h online service team ,making quick response to customers.Factory supply will more easy for you !
☛7. Quick delivery
We will have fast delviery 7-15days delivery is possible .
☛8. Trade assurance
We have joined in the trade assurance system to secure our customers.
☛9.Would you be willing to sign a non-disclosure agreement so that I further decide to work with you ?
Yes. Of course. We would like to sign and keep our customers profits and secrets. Without customers permission, we never show customers design to public.
☛1. Free samples
We offer free samples for your quality inspection with your courier number for shipping.
☛2. OEM & ODM service
We are a professional OEM manufacturer, welcome to send us designs for sampling.
We also have the the technic staffs and we can provide more free designes for choosing.
☛3. Small orders
We accept small order to all customers ,we accept trial order, to show our products to customers.
☛4. Free sampling
We refund/reduce the sample fees for any order placed, which is consistent with our MOQ.
☛5. Easy payment
We accept payment in many ways such as T/T, L/C, PayPal, Western Union, and MoneyGram.
☛6. Quick response
7x12h online service team ,making quick response to customers.Factory supply will more easy for you !
☛7. Quick delivery
We will have fast delviery 7-15days delivery is possible .
☛8. Trade assurance
We have joined in the trade assurance system to secure our customers.
☛9.Would you be willing to sign a non-disclosure agreement so that I further decide to work with you ?
Yes. Of course. We would like to sign and keep our customers profits and secrets. Without customers permission, we never show customers design to public.
Похожие товары
Оптовая продажа, вагинальный подтягивающий гель для инфекции дрожжей
0,24 $ - 0,31 $
Оптовая цена от производителя 1000 Вт 1500 Вт CNC машина для лазерной резки металла с Автоматической Смазкой
Оптовая продажа с завода, Электрический автоматический контроллер PLC, гидравлический смазочный шестеренчатый масляный насос для ЧПУ/токарного станка
Оптовая продажа, Малый масляный насос низкого давления, автоматический масляный насос с управлением PLC, токарный станок с ЧПУ, смазочный насос для токарного станка
кольца синхронизатора zf для deawoo автобус
Высококачественный R3-48 5x20 предохранитель в линейном держателе предохранителя

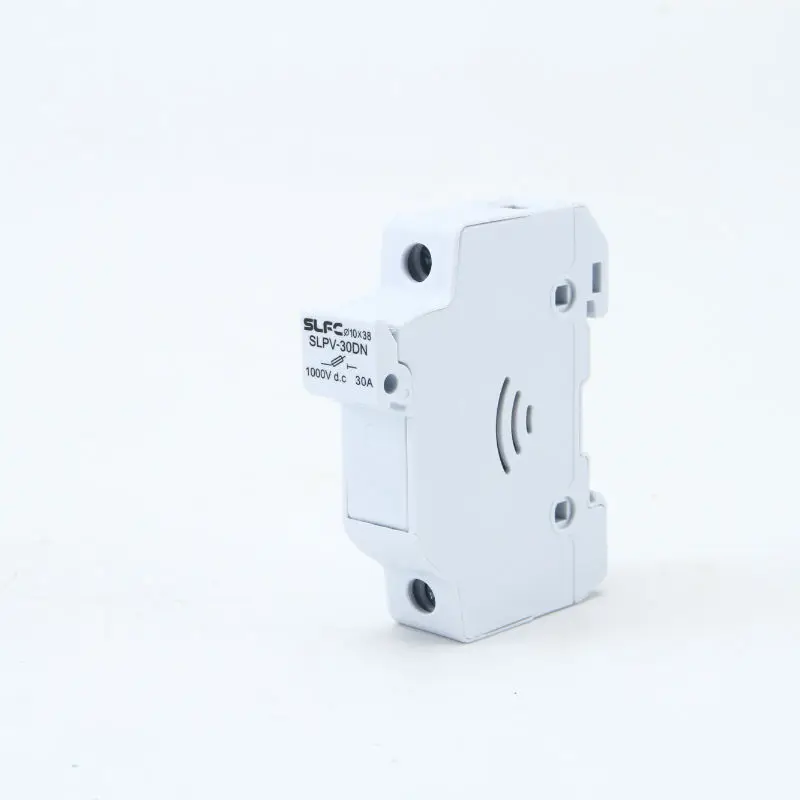

Патрон предохранителя солнечной батареи 1000Vdc 10x38
