1050 большой размер упаковочной коробки automaticstripping удаления отходов высечки стикер машины LH 1050ES
- Категория: >>>
- Поставщик: Wenzhou Longhua Machinery Co. Ltd.
Сохранить в закладки 1600382406135:
Описание и отзывы
Характеристики
Detail Product Description
__________________________________

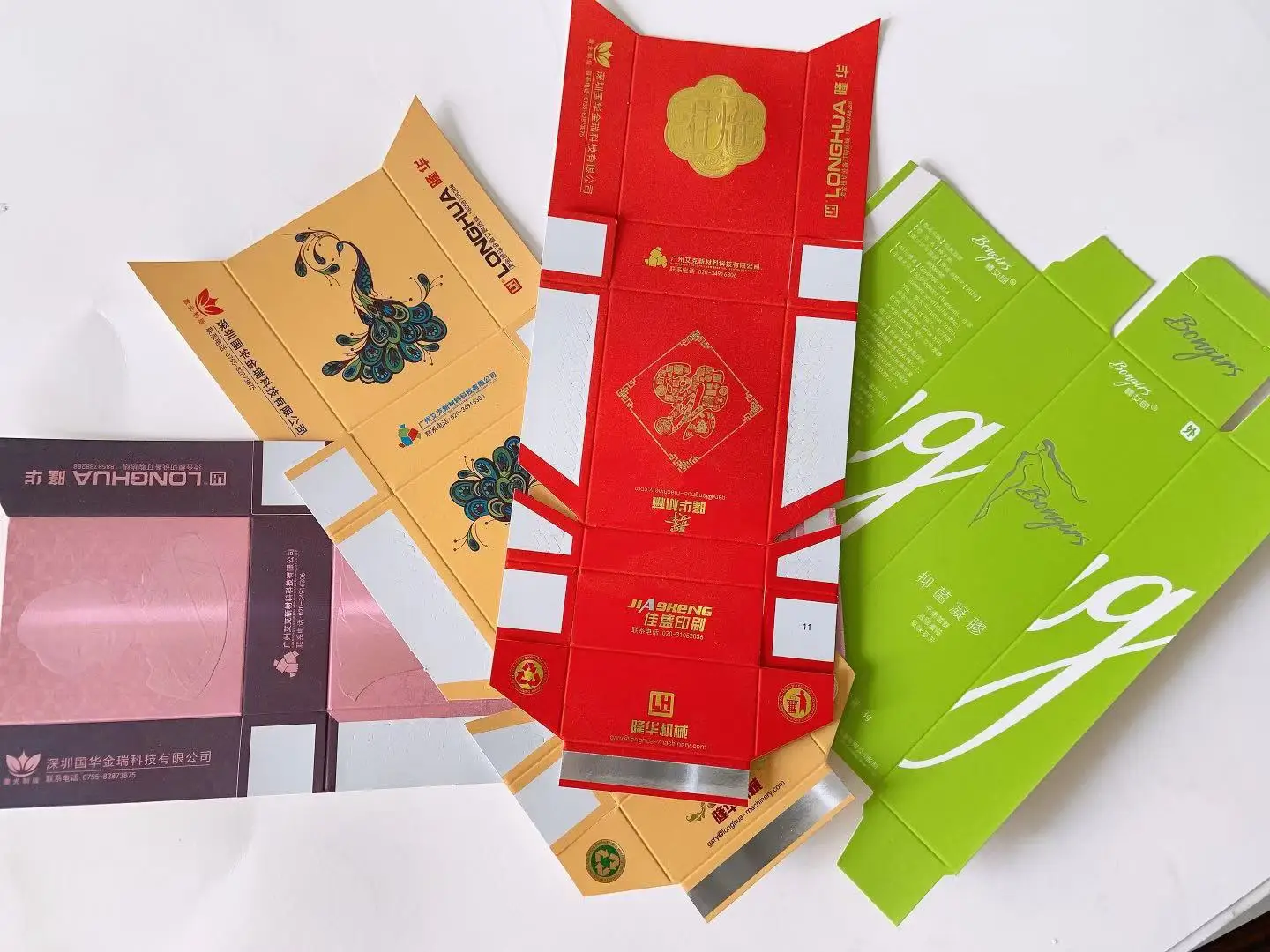

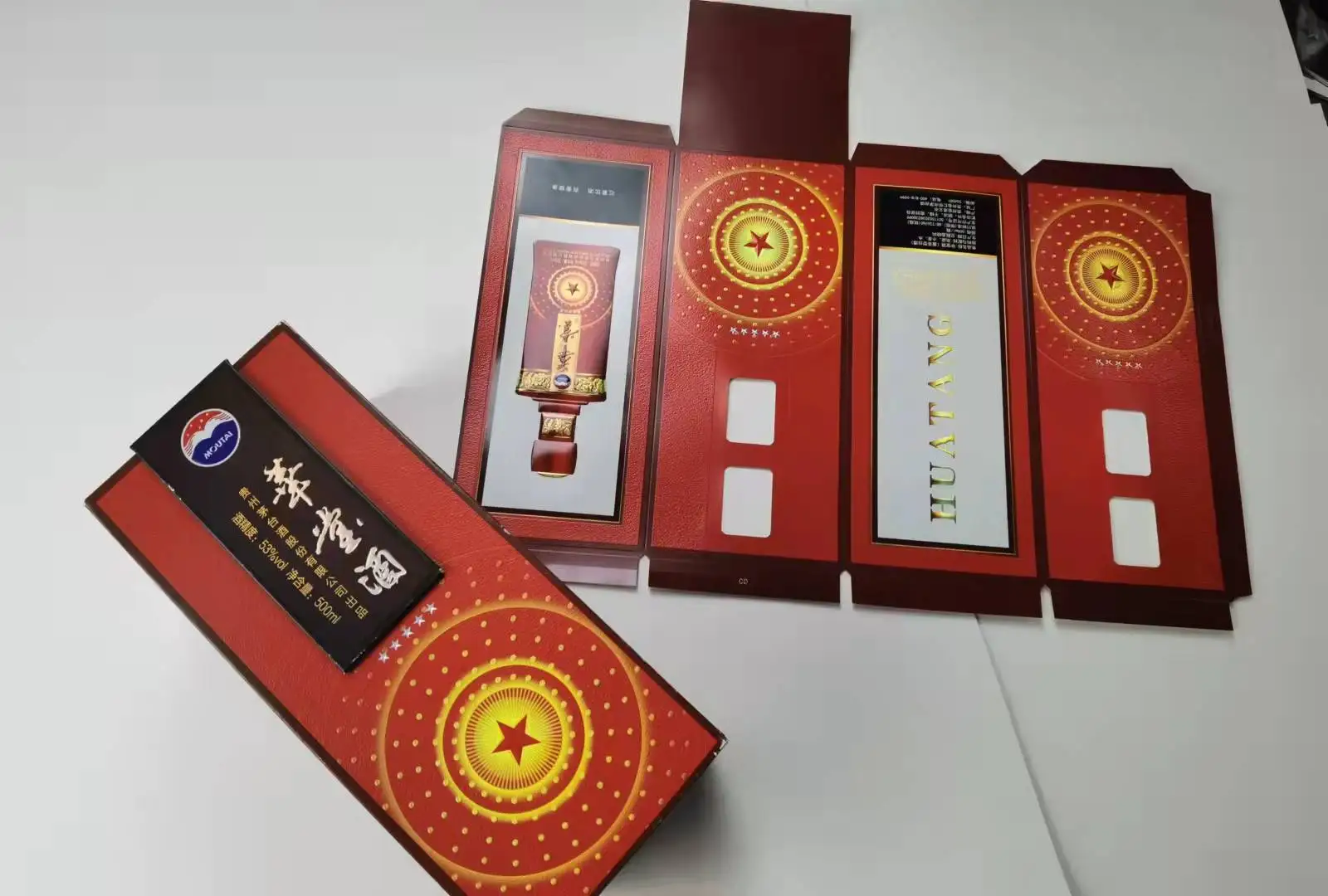

1. Automatic Striping and Die Cutting Machine is designed for die cutting/ creasing/stripping. It suits for more than 60-2000 G/M2 paper, cardboard,.and thichness below 4mm corrugated paper, pasting paper, laminating paper and so on.
2. The machine includes 4 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, stripping and collecting work cycle automatically.
3. Four Sides Stripping, remove almost all the waste, get final product very clearly.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scrath. The groove hold more oil so that runs more smoothly and keep a long time high precision.
Machine Information
__________________________________
Machine Parameters
__________________________________
| Model number | LH-1050ES |
| Max. Sheet size | 1050X750mm |
| Min. Sheet size | 400X360mm |
| Max. Cutting size | 1040X720mm |
| Inner chase size | 1080X745mm |
| Die cutting steel plate size | 1080X736mm |
| Feed material | 80~2000G/M 2 cardboard, corrugated board thickness ≤4mm |
| Cutting pressure | 300Ton |
| Min. Grabbing-sheet width | 9.0mm |
| Max, cutting speed | 7500Sheets/hr |
| Total power | 20KW |
| Machine weight | 16.8Ton |
| Machine dimension(L x W x H) | 7400X4200X2100mm |
Company Information
__________________________________
After-sales Service
__________________________________
Packaging & Shipping
__________________________________
Why choice us
______________________________________

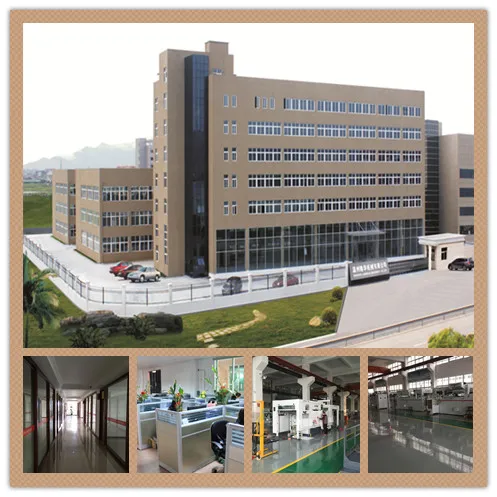

1.About the company
Wenzhou Longhua Machinery Co.,Ltd has a excellent reputation domestic and oversea, has exported to Europe,Africa ,America and Southeast Asia ,and so on, due to our high level quality and intimate service.
The staffes of Longhua are creative,innovate,goodness,laborious,and capable,all of these excellent personalities make Longhua develop and expend maket rapidly.
2.About the machine
Die cutting machine,foil stamping machine and embossing machine ,the classics of Longhua,which are in the industry leading level .
we have product these machines for tens of thousands times,so we have a skillful technology ,and 100% ensure the quality of machines.
3.About the sevice
We provide one year after-sales sevice, including install,debug and the training. We are alway ready whenever customers need us,and so pleasant to make friends with our clients.
FAQ
______________________________________
Q1: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q2: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to
purchaser's factory, all travel cost paid by purchaser.
Q3: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or
accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, please
contact us and we will reply you through product's photos and videos to make every detail clear.
______________________________________
Q1: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q2: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to
purchaser's factory, all travel cost paid by purchaser.
Q3: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or
accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, please
contact us and we will reply you through product's photos and videos to make every detail clear.
Q4:What is your payment?
T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
Похожие товары

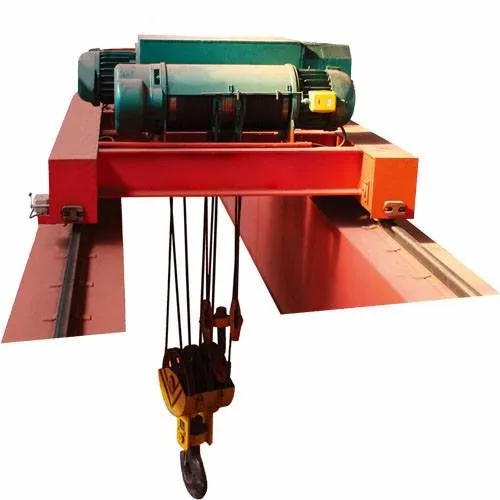

Двухбалочный Электрический мостовой кран 10/20/30 тонн для подъема каменной древесины

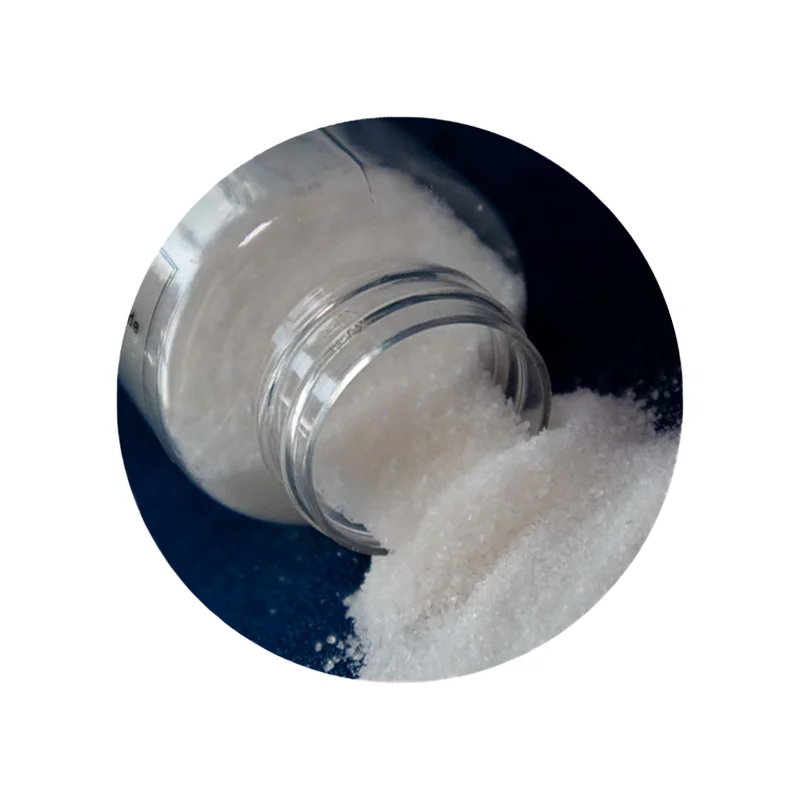

Cas no 9003-5-8 apam сахар налко химикаты для обработки воды
100 100% abaya бамбуковое волокно, дешевый шарф из пашмины, пашмины

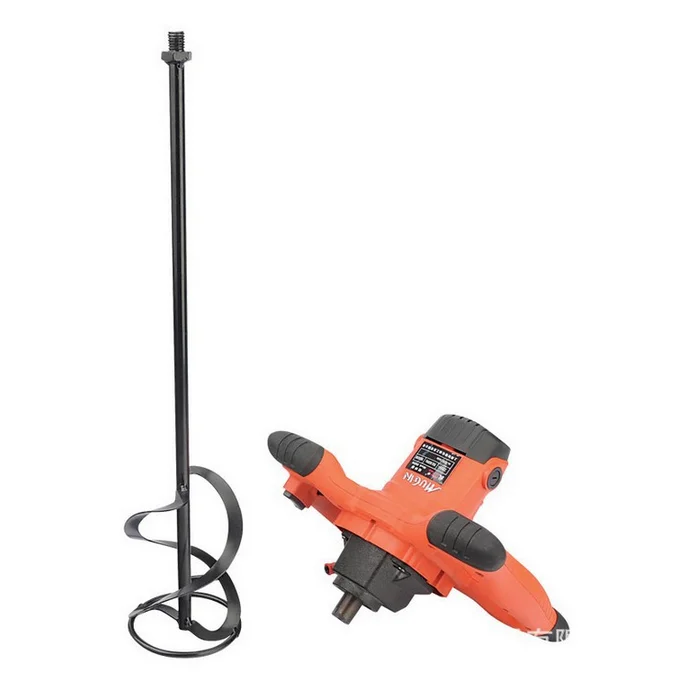

Электрическая Мешалка высокого качества, промышленная электрическая лабораторная Жидкостная мешалка для продажи
810,00 $ - 890,00 $

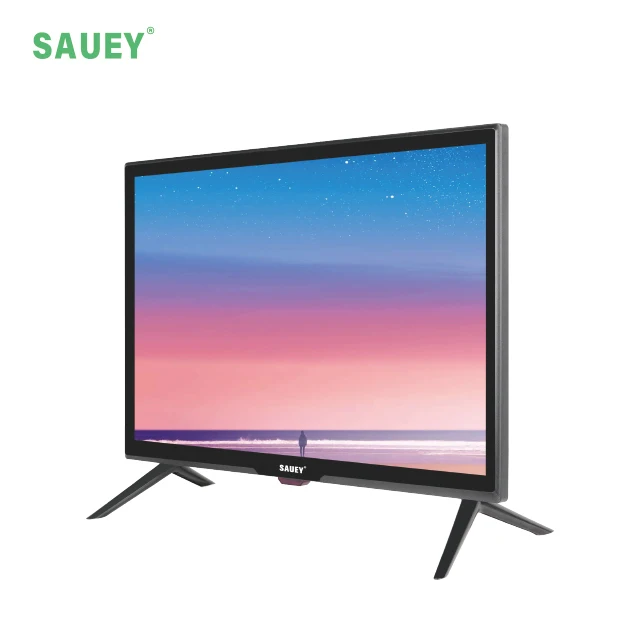

Высококачественный 3d светодиодный Телевизор с поддержкой нескольких языков, опционально 23,6 дюймов, семейный смарт-телевизор 4k
56,00 $ - 58,00 $
Оптовая продажа по заводской цене, полиэтиленовый пакет Usps, почтовые сумки с принтом, водонепроницаемые конверты для почтовой отправки
0,11 $ - 0,143 $

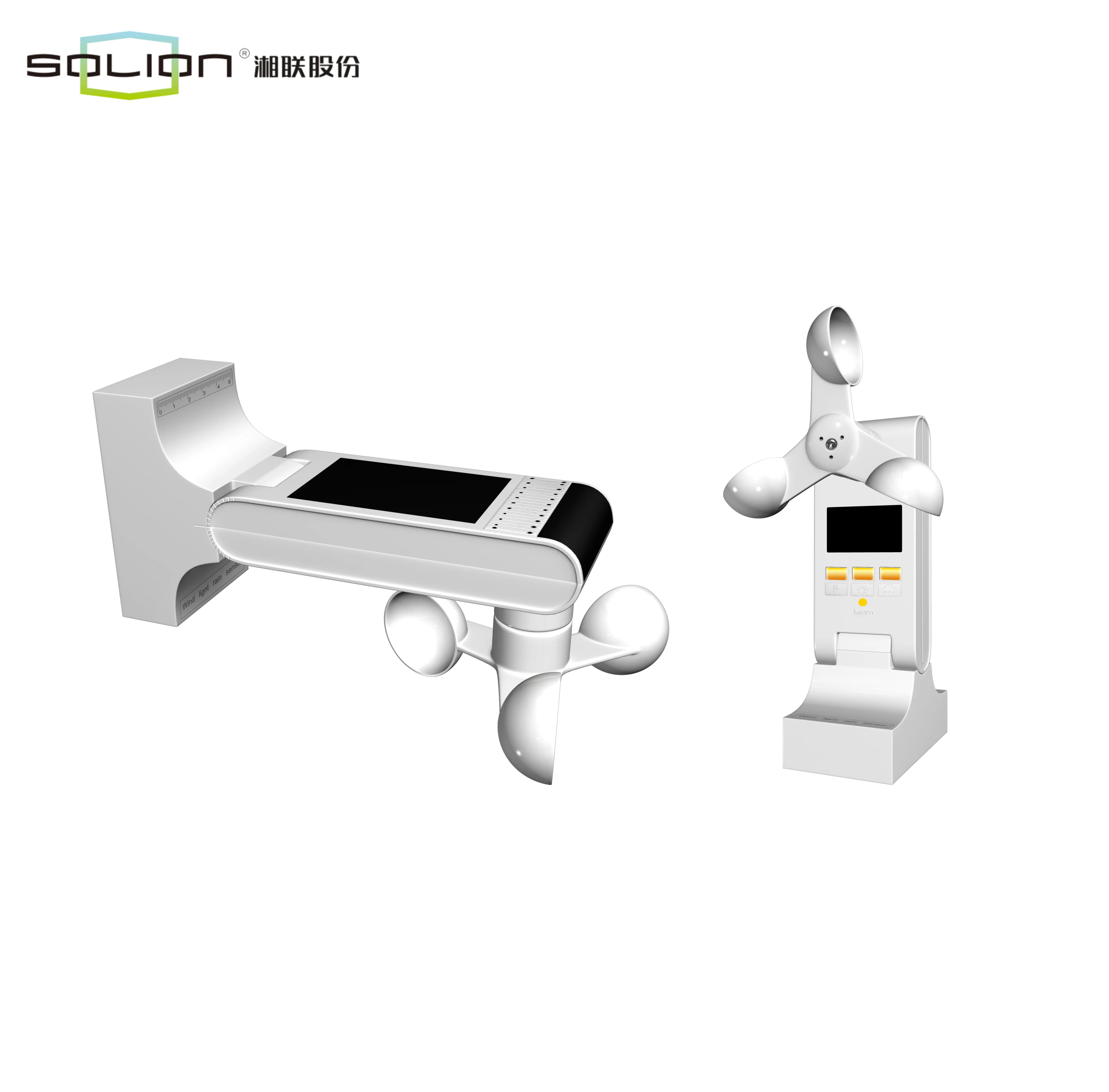

Shinilion дешевый пластиковый 3 чашки открытый аналоговый 4-20 мА Выход Датчик скорости ветра Анемометр с CE
