Product main parameters | |
Name model (P/N) | BS-1348L |
Standard Test Conditions (TEST | 2.1 Temperature range: —20℃~+45℃,5%~95%RH 2.2 Relative humidity: —20℃~+65℃,5%~60%RH 2.3 PERATION CYCLE: ON:OFF=0.5S:2S(Allow For 60s Hours Of Continuous Electricity ED20%) |
Facies | no damage, cracks, rust, surface stains |
Electrical characteristics (ELECTRICAL) | 4.1 Working voltage: customization 4.2 Potence: 15mm:≥600gf 4.3 Insulation resistance: DC500V, ≥50MΩ (between coil and skeleton) 4.4 High voltage: DC700V 50/60Hz-1 sec, leakage current up to 1 mA (between coil and case |
life (biometry | 500,000 times or more in normal use. |

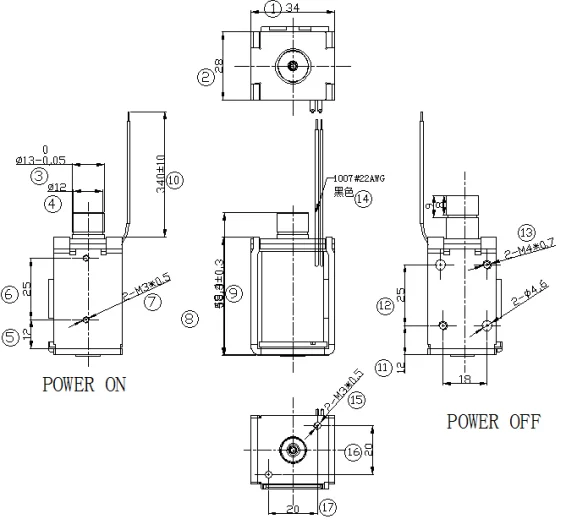

Product drawings:

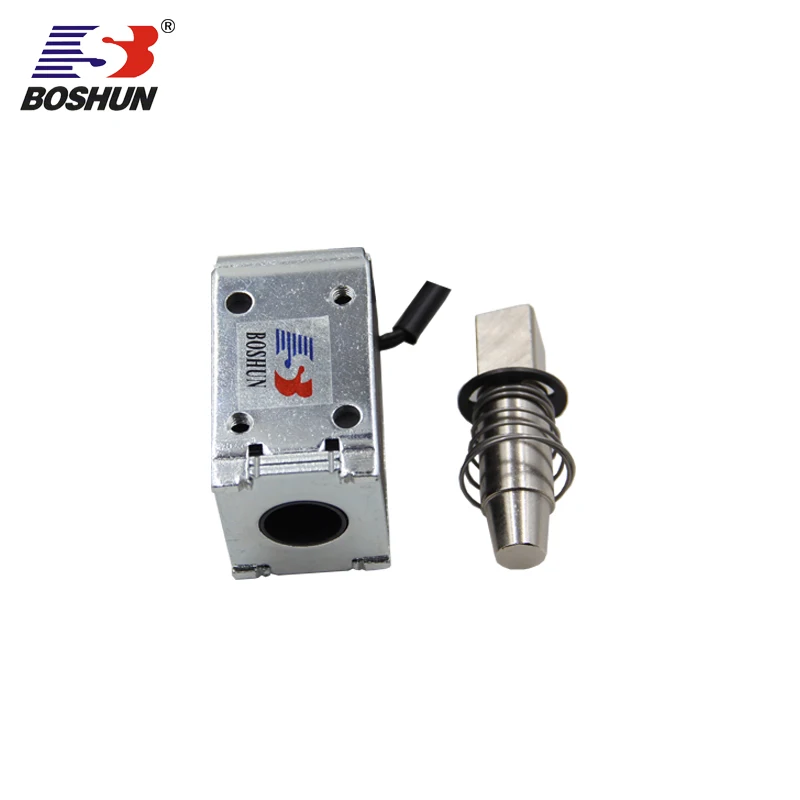

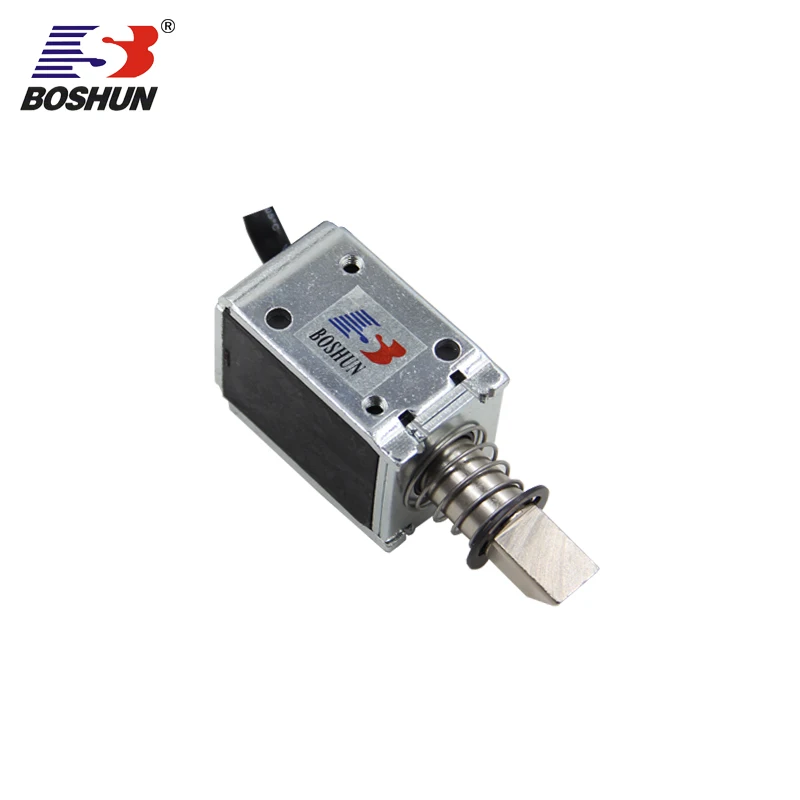

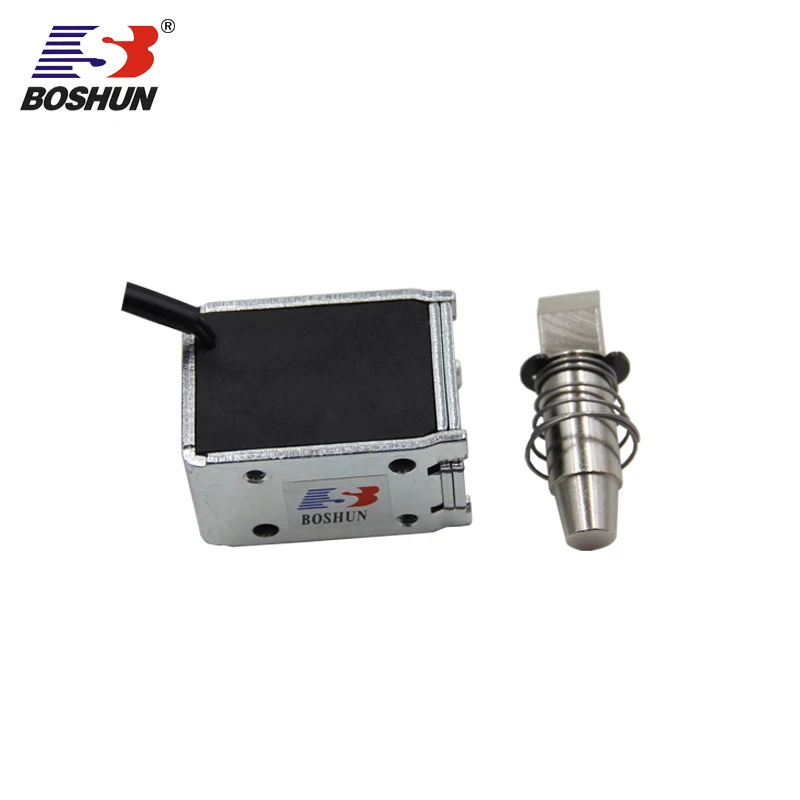

The intelligent door lock electromagnet BS-1037L-29 is an electromagnet developed and produced by Dongguan Boshun electromagnet manufacturer. This smart door lock electromagnet is used on the intelligent door lock. It has the advantages of structure modification and parameter adjustment.
Dongguan Boshun electromagnet manufacturers are produced according to ISO-TS16949 quality management system, and the key tooling is fully inspected on the production line to ensure that the shipment yield rate is fully up to standard.
BS-0520L | BS-0520L | BS-0520L | BS-0520L |
BS-0854L | BS-0854L | BS-1037L | BS-1037L |
BS-1348L | BS-1348L | BS-6147L | BS-6656L |
BS-7267L |
|
