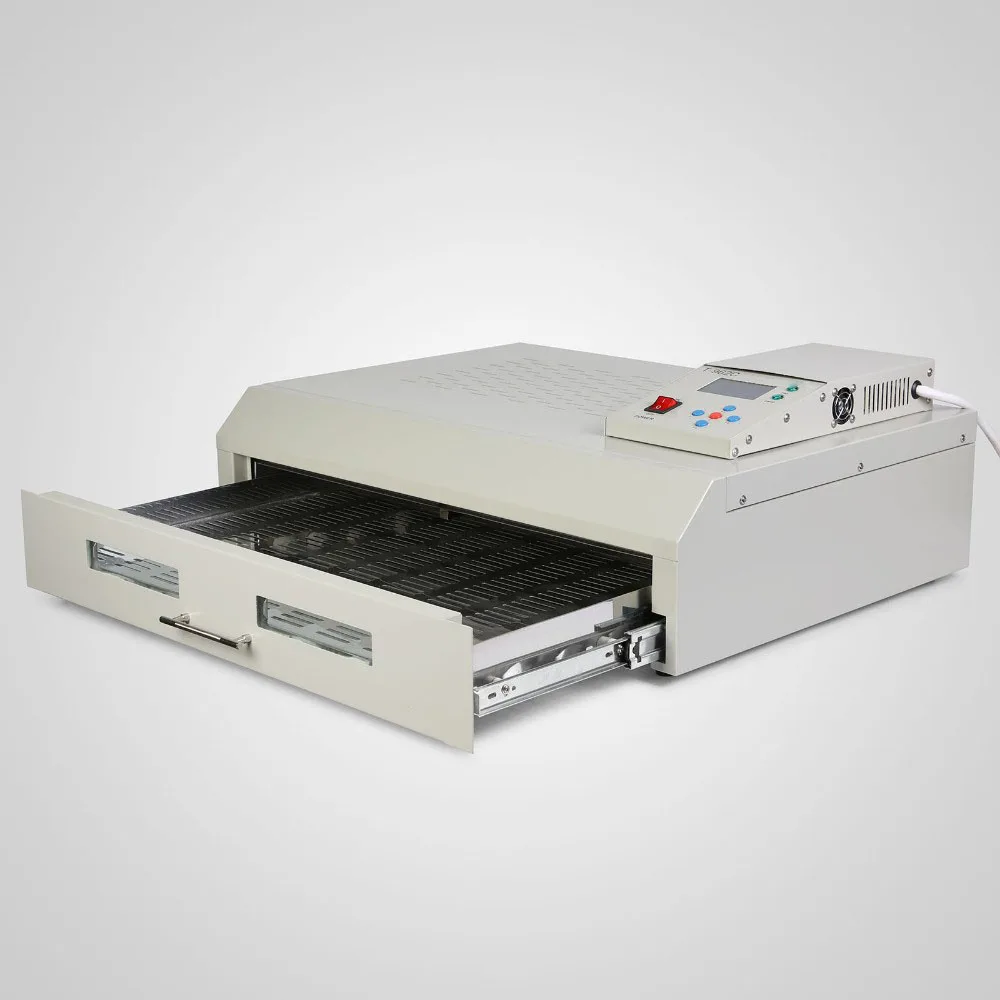

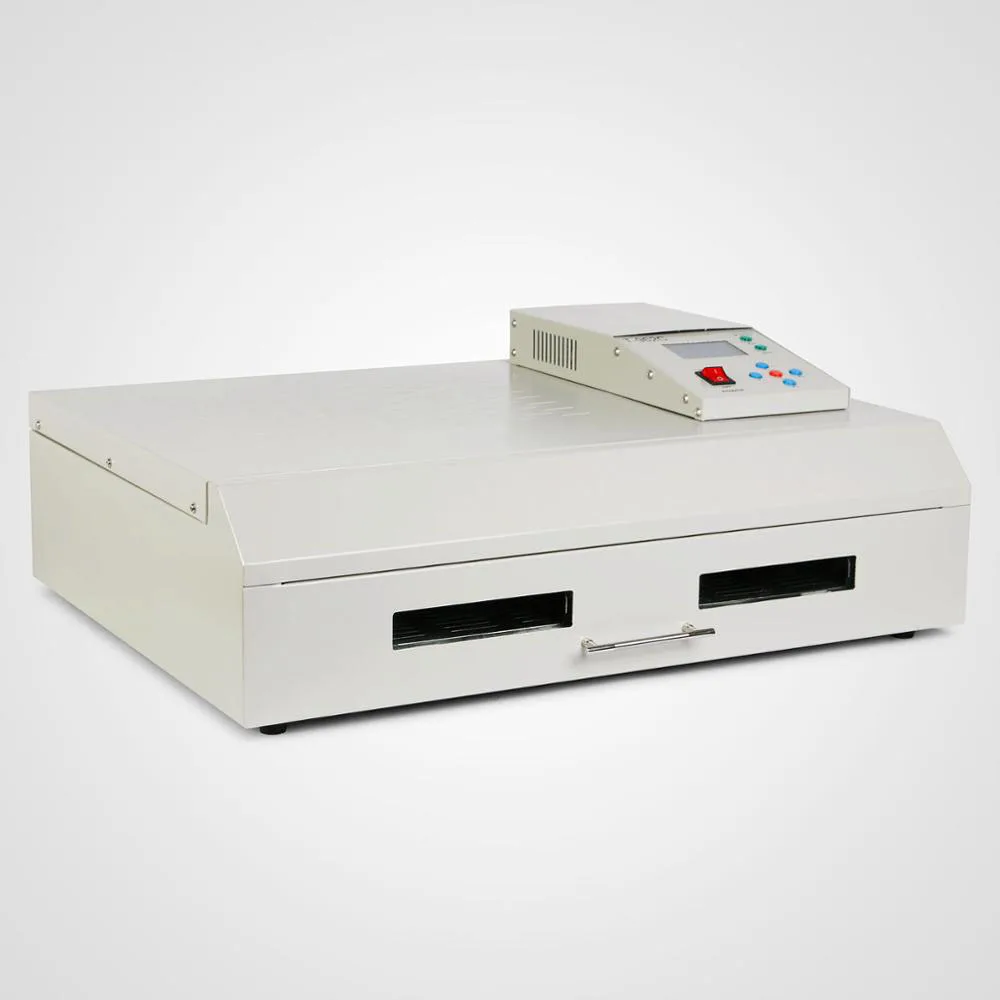

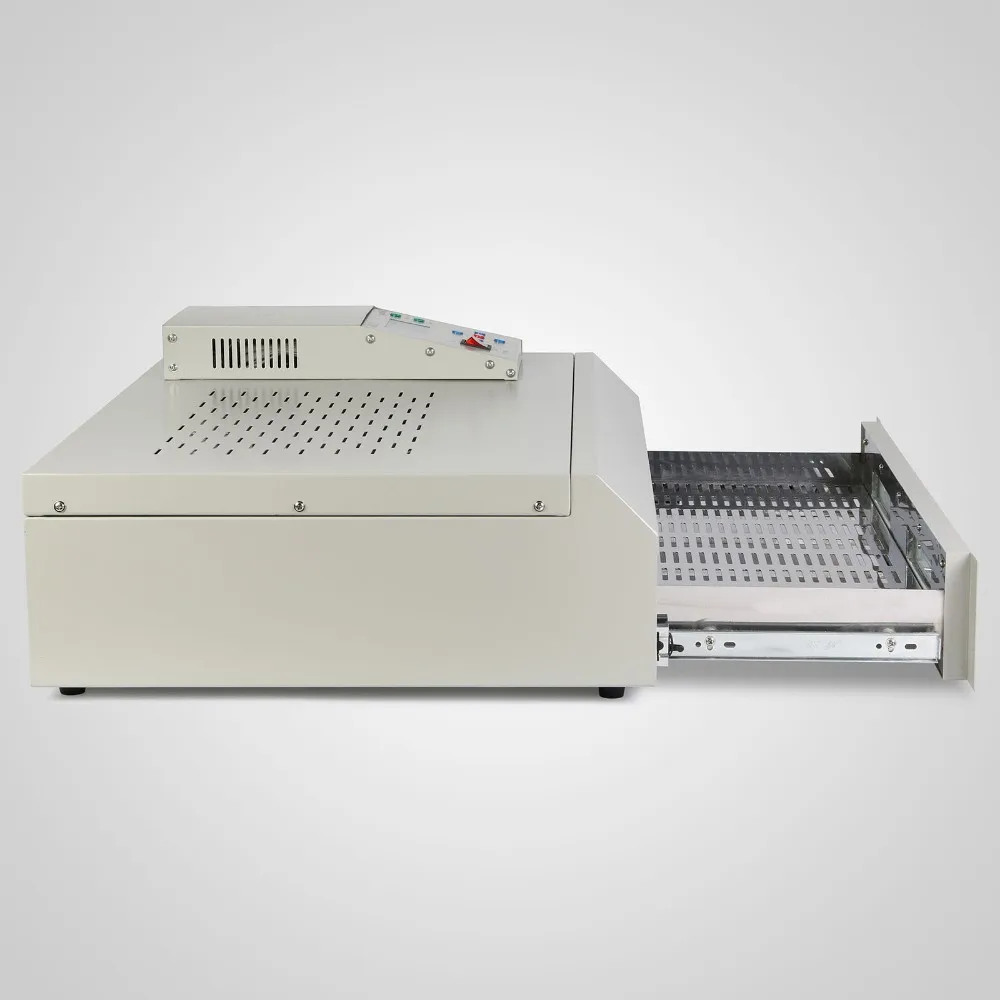

HECAN T-962C lead-free BGA Desktop Infrared Reflow Oven
for PCB,SMT,SMD,LED Light soldering
8 wave for lead or lead-free solder paste
8 wave for lead or lead-free solder paste
Description
1, The product uses high-speed stability of the master MCU, with advanced intelligent temperature measurement and control technology, temperature measurement, temperature control fine.
2, The product has a temperature correction compensation function, reducing the use of the machine environment requirements, so that the machine in the temperature changes in the environment to maintain a stable temperature measurement quality.
3, The product has a constant temperature timer function, so that the machine to maintain a constant temperature environment to meet the diverse needs of users.
4, The product is equipped with PC-side control software, heating curve editing management and other operations have been simplified.
5, The product is equipped with the control software provides a variety of curve input, to facilitate the setting of a variety of curves.
6, The control software original graphics curve display module, real-time dynamic display curve, to achieve WYSIWYG, the abstract figures will be displayed to the user intuitively.
7, Control software to provide a variety of solder paste data, users can set the curve for reference.
2, The product has a temperature correction compensation function, reducing the use of the machine environment requirements, so that the machine in the temperature changes in the environment to maintain a stable temperature measurement quality.
3, The product has a constant temperature timer function, so that the machine to maintain a constant temperature environment to meet the diverse needs of users.
4, The product is equipped with PC-side control software, heating curve editing management and other operations have been simplified.
5, The product is equipped with the control software provides a variety of curve input, to facilitate the setting of a variety of curves.
6, The control software original graphics curve display module, real-time dynamic display curve, to achieve WYSIWYG, the abstract figures will be displayed to the user intuitively.
7, Control software to provide a variety of solder paste data, users can set the curve for reference.
Features
(1) large infrared soldering area: 400*600mm
(2) Eight soldering temperature waves
Parameters of eight soldering waves are predefined and the entire soldering process can
completed automatically from Preheat, Soak and Reflow through to cool down.
(3) Special heat up and temperature equalization with all designs
Uses up to 2800 Watts of energy efficient Infrared heating and air circulation to re-flow solder.
(4) Ergonomic design, practical and easily operated
(5) Large number of available functions
The T962C can solder single and double sides PCB boards,
for example CHIP, SOP, PLCC, QFP, BGA etc.
(2) Eight soldering temperature waves
Parameters of eight soldering waves are predefined and the entire soldering process can
completed automatically from Preheat, Soak and Reflow through to cool down.
(3) Special heat up and temperature equalization with all designs
Uses up to 2800 Watts of energy efficient Infrared heating and air circulation to re-flow solder.
(4) Ergonomic design, practical and easily operated
(5) Large number of available functions
The T962C can solder single and double sides PCB boards,
for example CHIP, SOP, PLCC, QFP, BGA etc.
Specification | |||||
Temperature wave | 8 Waves inside machine | Can meet most of soldering technology | |||
Connect computer | Change or edit special waves | ||||
Constant temperature function | Room temperature -280 ℃ | ||||
Voltage and power | Voltage | 110V/220V | |||
power | 2800w | ||||
Current | 10A | ||||
Mode of Heating | Infrared heating | Infrared heating | |||
Soldering area | 400*600mm | ||||
Cycle time | 1～8 min | ||||
Dimensions | 684X504X225mm | ||||
Package size | 780X600X330mm | ||||
Net weight | 28kg | ||||
Gross weight | 30kg | ||||
Machine Parts
Name: reflow oven chips
Original: China
High performance chip
Original: China
High performance chip
Name: infrared lamps
Original: China
China top quality heater, stably heating
Original: China
China top quality heater, stably heating
Machine Parts

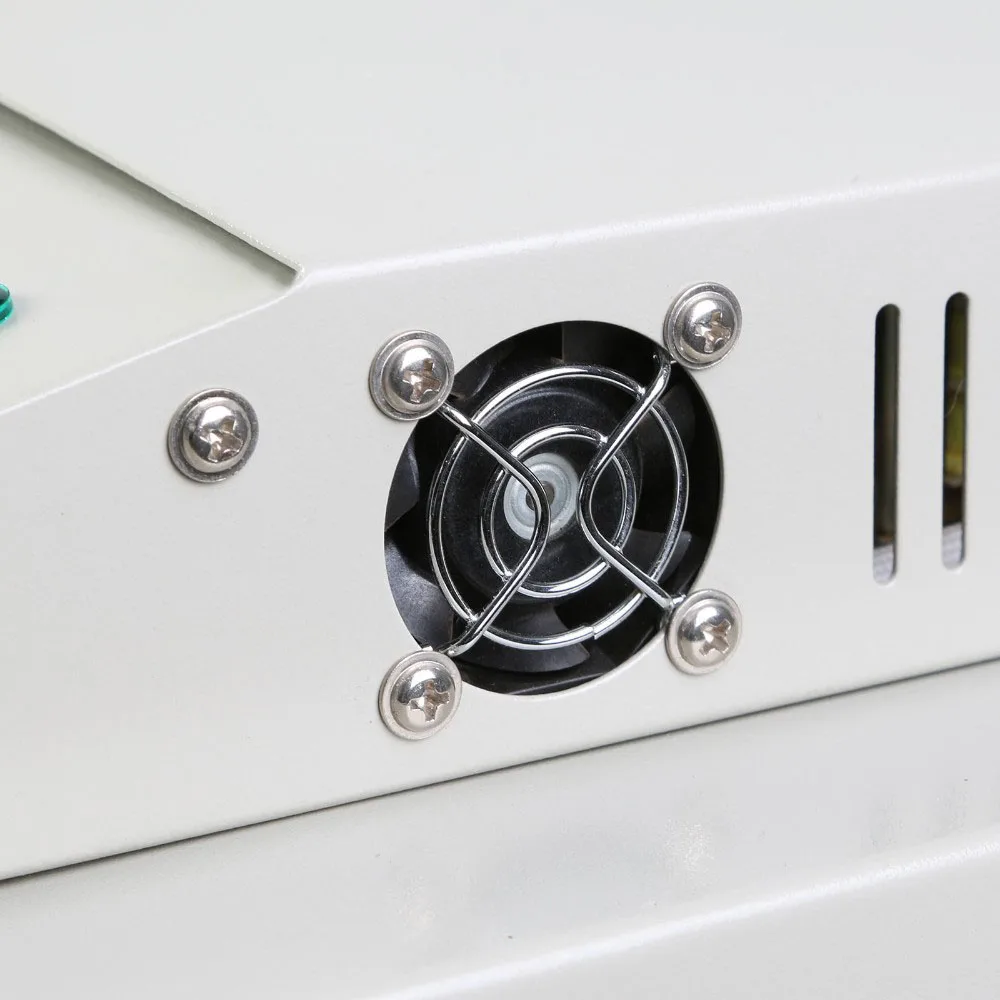

Name: Cooling fan
Original:China
Strong power for cooling, make the temperature wave runing in good condition.
Original:China
Strong power for cooling, make the temperature wave runing in good condition.
Name: watching window
Original: China
watching clear and keeping the warm in good condition.
Original: China
watching clear and keeping the warm in good condition.
Model | Soldering size | Power | Temperature range |
T-962 | 180*235MM | 800W | 0-280℃ |
T-962A | 300*320MM | 1500W | 0-280℃ |
T-962A+ | 370*450MM | 2300W | 0-300℃ |
T-962C | 400*600MM | 2800W | 0-280℃ |
Packaging
Size:
T-962: 38 (L) * 24 (W) * 38 (H) cm
T-962A: 51 (L) * 45 (W) * 33(H) cm
T-962A+: 60 (L) * 56 (W) * 33(H) cm
T-962C: 76 (L) * 60 (W) * 35 (H) cm
T-962A+: 60 (L) * 56 (W) * 33(H) cm
T-962C: 76 (L) * 60 (W) * 35 (H) cm
Weight:
T-962: 7kg
T-962A: 15kg
T-962A+: 18kg
T-962C: 27kg
T-962A+: 18kg
T-962C: 27kg
Packaging Details:
Export carton wrapped in plastic film
FAQ
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual, the user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation
Q:Are machines can meet software update?
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual, the user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation
Q:Are machines can meet software update?
A:YES, we will update machine and will send you at first time
Q：Do you have any operation videos to watch?
A：We provide customers with special operation videos. If you don't understand anything, you can contact us and will arrange engineers to shoot the specified videos.
Q: What kind of maintenance is needed?
A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we will support this oil)
Service
If you wanna know more, feel free to contact me directly
Mail/Skype：smtmachines@hcpnp.com
Tel/Wechat/WhatsApp：+8618367786556/+8615858886852
Q: What kind of maintenance is needed?
A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we will support this oil)
Service
If you wanna know more, feel free to contact me directly
Mail/Skype：smtmachines@hcpnp.com
Tel/Wechat/WhatsApp：+8618367786556/+8615858886852
Похожие товары
BGA, специальная разборная микросхема, оплавляющие пайки, удаляющие электронные компоненты, машина для печи smt оплавления
281 933,34 ₽
HECAN Mini SMT духовка T962 настольная духовка с 1 зоной нагрева

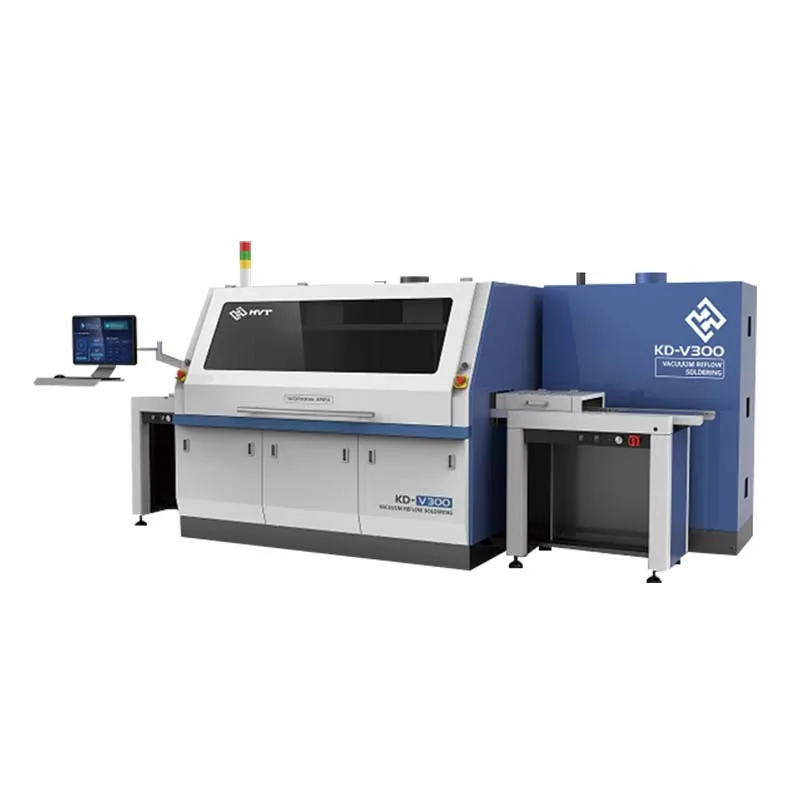

Экспериментальный Тип хорошего качества KD-V20 ИК нагревательная вакуумная оплавильная Печь вакуумная эвтектическая печь оплавильная печь для электронных продуктов
