Высокоэффективный универсальный измельчитель WF для чеснока перца Чили порошка молотковая дробилка кешью арахиса
- Категория: >>>
- Поставщик: Jiangyin Wantong Pharmaceutical& Chemical Machinery Co. Ltd.
Сохранить в закладки 1600383587862:
Описание и отзывы
Характеристики
WF high efficient universal garlic pepper chilli powder grinding machine cashew peanut hammer mill crusher
Products Description
WF UNIVERSAL PULVERIZER
This machine is mainly used in chemical industry, medicine (TCM),food, spices, resin powder, besmear powder etc, It has the features of high capacity and easy maintenance.
Working Principle
This WF garlic sugar pepper grain tobacco herb flower vegetable crushing grinding machine grinder for food adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow which produced when crushing, crushing fineness can be decided by different sieves.
The unit make the materials crushed by the impact & grind function of the relative motion between active and fixed fluted discs, and impact between the materials. Smashed materials enter into the capture bag by rotating centrifugal force function, the dust filtered and recycled by dust collector through a bag filter box. This machine designed according to GMP standard and wholly made of stainless steel materials, has no flying dust during production. It can improve the utilization rate of material and reduce cost of enterprise, and has reached the international advanced level at present.
The unit make the materials crushed by the impact & grind function of the relative motion between active and fixed fluted discs, and impact between the materials. Smashed materials enter into the capture bag by rotating centrifugal force function, the dust filtered and recycled by dust collector through a bag filter box. This machine designed according to GMP standard and wholly made of stainless steel materials, has no flying dust during production. It can improve the utilization rate of material and reduce cost of enterprise, and has reached the international advanced level at present.
Product Paramenters
Model | Capacity (kg) | Feed size(mm) | Output size(mesh) | Total power(kw) | Main speed(r/min) | Dimension (mm) | Weight (kg) |
WF-20B | 20-150 | <6 | 12-120 | 4 | ~4500 | 550*600*1250 | 250 |
WF-30B | 50-300 | <10 | 5.5 | ~3800 | 600*750*1450 | 320 | |
WF-40B | 100-400 | <12 | 7.5 | ~3400 | 750*900*1600 | 450 | |
WF-50B | 200-500 | <15 | 11 | ~2900 | 850*900*1850 | 580 | |
WF-60B | 300-600 | <15 | 22 | ~2400 | 950*1000*1850 | 600 | |
WF-80B | 500-1200 | <15 | 37 | ~2200 | 2400*1100*2000 | 1000 |

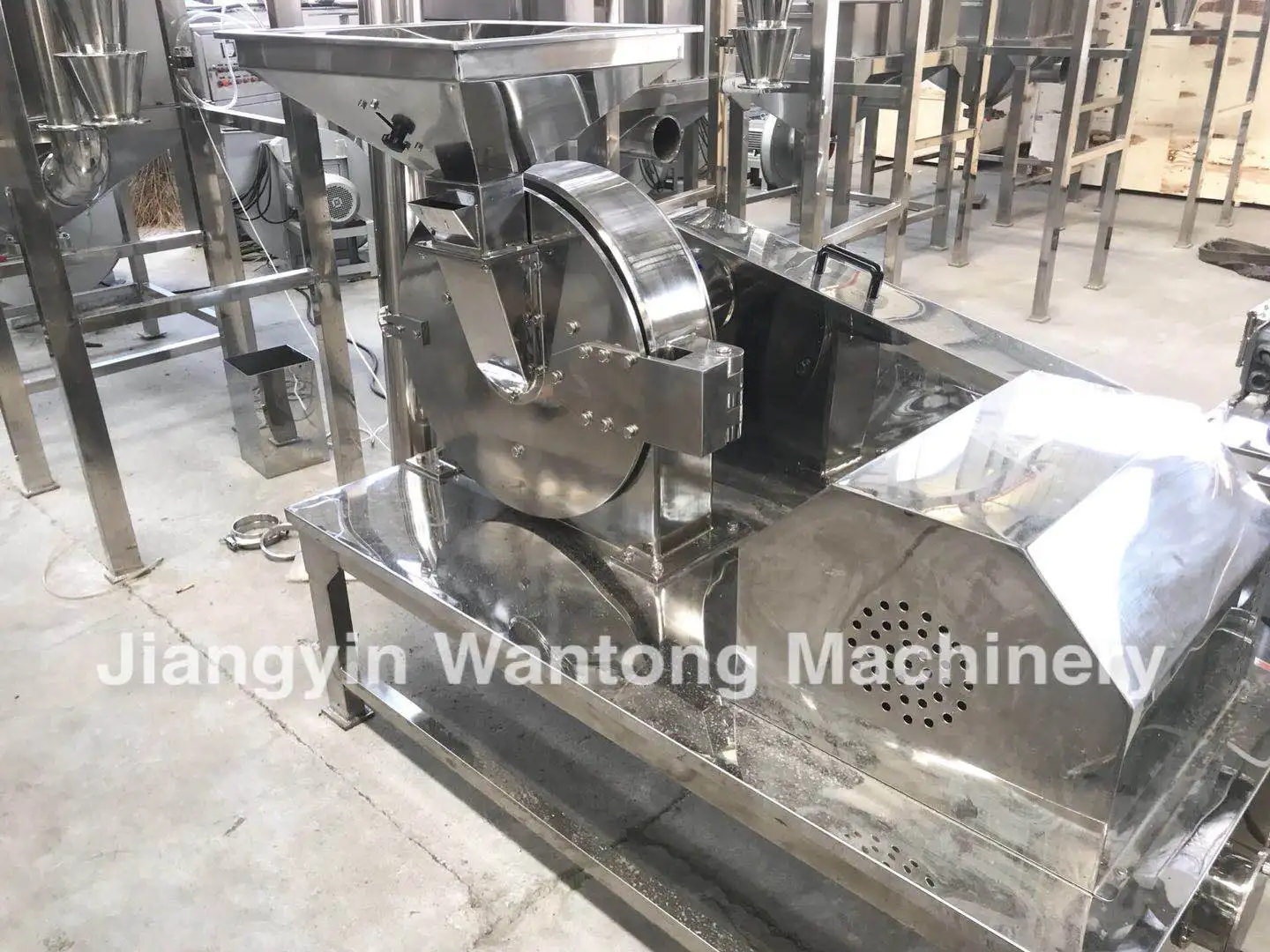

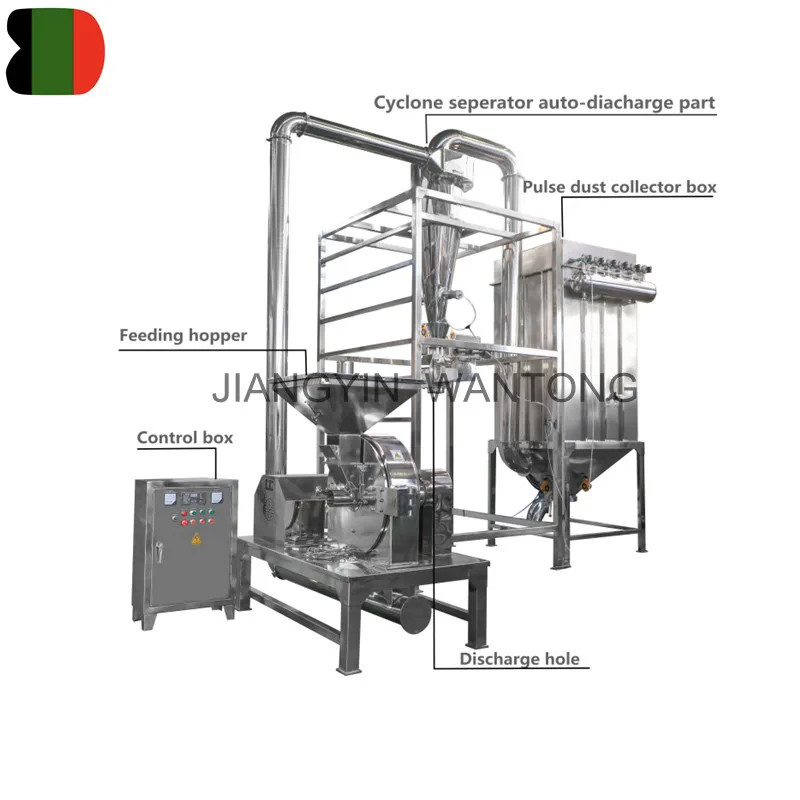

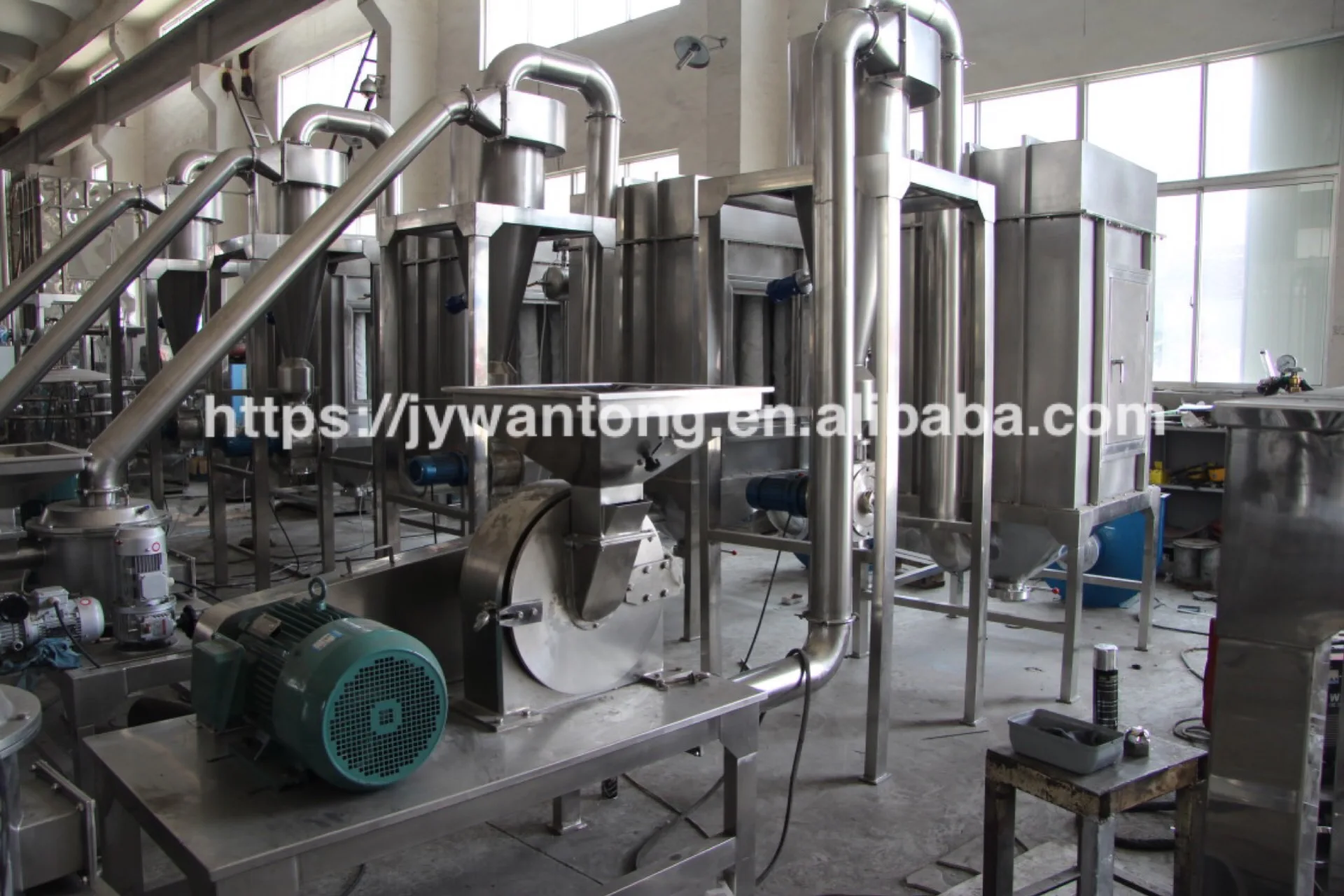

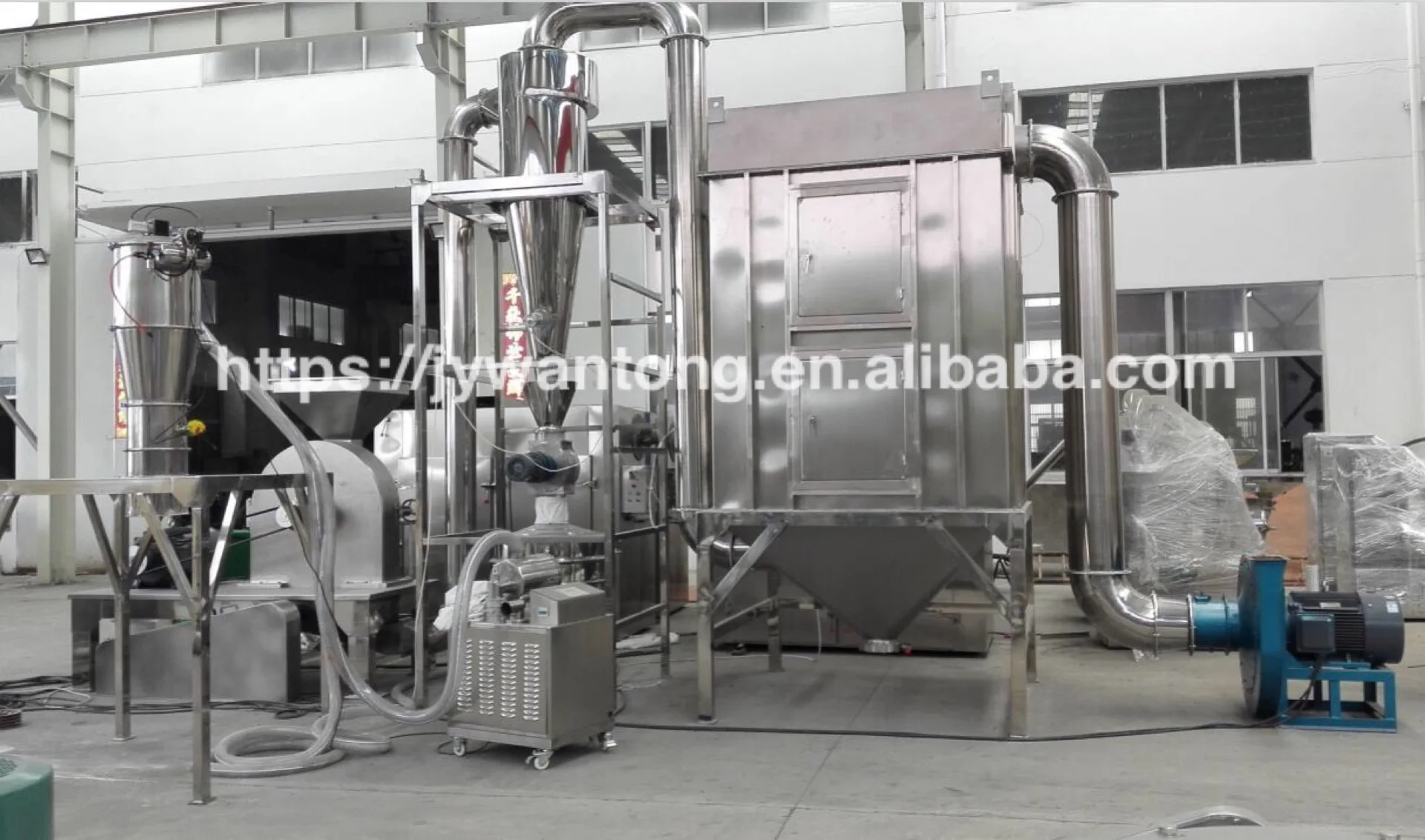

Details Images
Company Profile
Dear customers, our company is a professional manufacturing factory in grinding, mixing, drying, granulator, sifter machine and conveyor SE type powder line machinery in Wuxi city, Jiangsu province. Widely used in chemical, pharmaceutical, foodstuff industries, etc. All the time we have enough products in stock, we are glad to invite you visit our factory.
Certifications
Product packaging
After Sales Service
1.Technical document
All labels on machines and lay-out drawings, Electrical diagram, User Manual, will be in English. WANTONG should send all necessary files to the buyer since the third week since project execution. All documents in hard copies should be also shipped with machines together.
2. Arrangement for inspection, installation and testing work
a. After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
b. WANTONG will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
c. The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
d. Engineer will give free training lessons to labors in buyer’s factory.
3. Quantity and quality guarantee
a． Quantity/Quality Discrepancy to destination port during transportation:
In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. WANTONG will be responsible for any discrepancy of the goods caused by shipping company and other transportation organization and/or post office.
b． Guarantee period and after-sales services:
12 months since date of bill of lading
If the malfunctions are caused by your incorrect operations, WANTONG will provide the buyer spare parts at cost price.
c． Long-term service:
WANTONG will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
All labels on machines and lay-out drawings, Electrical diagram, User Manual, will be in English. WANTONG should send all necessary files to the buyer since the third week since project execution. All documents in hard copies should be also shipped with machines together.
2. Arrangement for inspection, installation and testing work
a. After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
b. WANTONG will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
c. The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
d. Engineer will give free training lessons to labors in buyer’s factory.
3. Quantity and quality guarantee
a． Quantity/Quality Discrepancy to destination port during transportation:
In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. WANTONG will be responsible for any discrepancy of the goods caused by shipping company and other transportation organization and/or post office.
b． Guarantee period and after-sales services:
12 months since date of bill of lading
If the malfunctions are caused by your incorrect operations, WANTONG will provide the buyer spare parts at cost price.
c． Long-term service:
WANTONG will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
FAQ
ARE YOU REAL FACTORY OR TRADING COMPANY?
YES ! We are real and most reliable factory here. Welcome you visit us anytime! After compare , you will know we are most expert and big factory here!!
WHAT MACHINE YOUR COMPANY HAVE? CAN CUSTOMIZED MACHINE UPON MY NEEDS?
Yes, we also produce CRUSHER, GRINDER, MIXER, DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quotation.
CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE
YES ! Our company have build more than 20years now, we also can recommend you other machine supplier which we don't sale , like packing machine, filling machine, etc !!
HOW TO VISIT YOUR COMPANY?
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call us anytime you arrive Wuxi, i will go to pick you.
WHAT'S YOUR BEFORE & AFTER SERVICE ?
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
WHAT'S YOUR SHIPPING ITEM PROCESS?
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .
If your need , we can help you do custom clearance .
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: Machine will be finished in about 25 workdays after payment.
HOW ABOUT YOUR PAYMENT TERM?
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine
CONTACT US
PLEASE LET US BE MORE HONEST, THEN ANY QUESTION WILL BE REPLYED 100%SINCERELY AND VERY EFFCIENTLY BY CONTACTING ME.
Contact way in my company website https://jywantong.en.alibaba.com contact us page.
===>CONACT ME NOW FOR new and live videos/photos, talk to u in the VIDEO CALL !
YES ! We are real and most reliable factory here. Welcome you visit us anytime! After compare , you will know we are most expert and big factory here!!
WHAT MACHINE YOUR COMPANY HAVE? CAN CUSTOMIZED MACHINE UPON MY NEEDS?
Yes, we also produce CRUSHER, GRINDER, MIXER, DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quotation.
CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE
YES ! Our company have build more than 20years now, we also can recommend you other machine supplier which we don't sale , like packing machine, filling machine, etc !!
HOW TO VISIT YOUR COMPANY?
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call us anytime you arrive Wuxi, i will go to pick you.
WHAT'S YOUR BEFORE & AFTER SERVICE ?
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
WHAT'S YOUR SHIPPING ITEM PROCESS?
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .
If your need , we can help you do custom clearance .
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: Machine will be finished in about 25 workdays after payment.
HOW ABOUT YOUR PAYMENT TERM?
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine
CONTACT US
PLEASE LET US BE MORE HONEST, THEN ANY QUESTION WILL BE REPLYED 100%SINCERELY AND VERY EFFCIENTLY BY CONTACTING ME.
Contact way in my company website https://jywantong.en.alibaba.com contact us page.
===>CONACT ME NOW FOR new and live videos/photos, talk to u in the VIDEO CALL !
STILL ON LOOKING FOR GOOD AND REAL MANUFACTURER IN CHINA?
MAY I INVITE YOU VISIT US?
WF high efficient universal garlic pepper chilli powder grinding machine cashew peanut hammer mill crushe WF high efficient universal garlic pepper chilli powder grinding machine cashew peanut hammer mill crusher WF high efficient universal garlic pepper chilli powder grinding machine cashew peanut hammer mill crusher WF high efficient universal garlic pepper chilli powder grinding machine cashew peanut hammer mill crusherr
Похожие товары

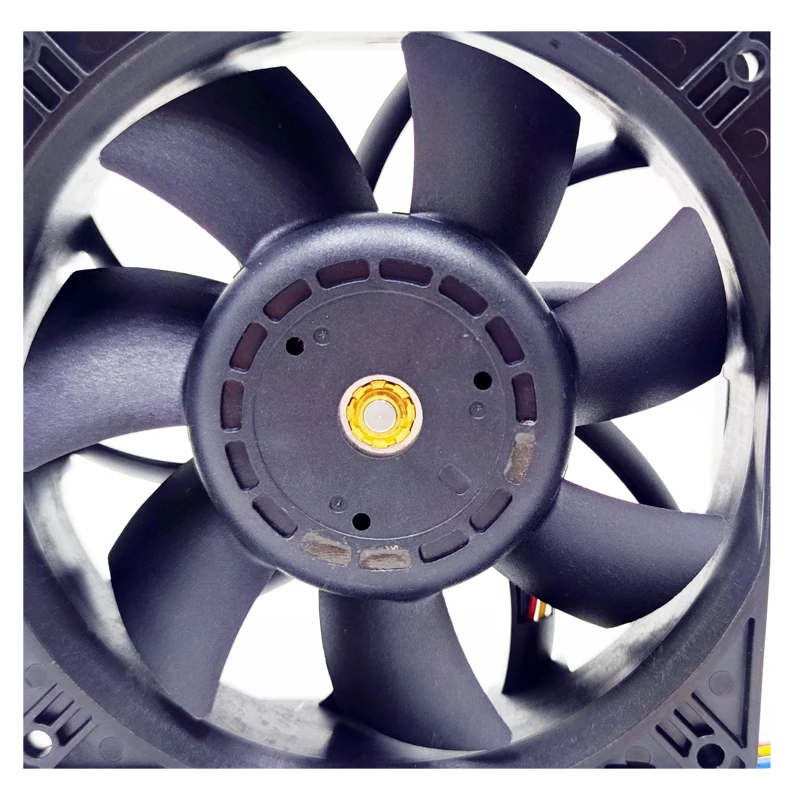

Высококачественные Осевые вентиляторы с шарикоподшипником, вентилятор охлаждения постоянного тока 120x38, бесщеточный осевой вытяжной вентилятор мм
6,52 $ - 7,12 $
Рекламный Оранжевый Резиновый баскетбол
G3F/G3FD серии SSD G3FD-X03SN твердотельные реле постоянного
12,10 $ - 15,50 $

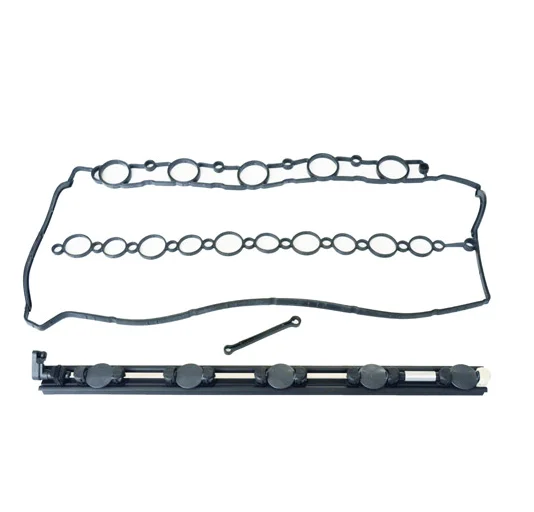

Комплект для ремонта клапана дроссельной заслонки Swirl для VOLVO D5 V70 S60 XC90 XC70 C70 30777650

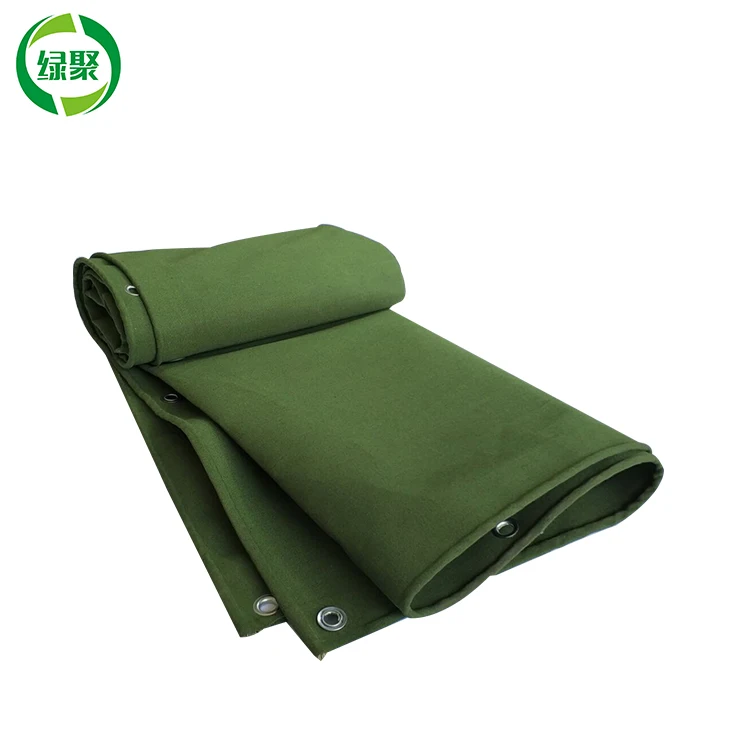

Водонепроницаемая Брезентовая накидка для грузовика 400 г/м2
1,03 $ - 1,19 $

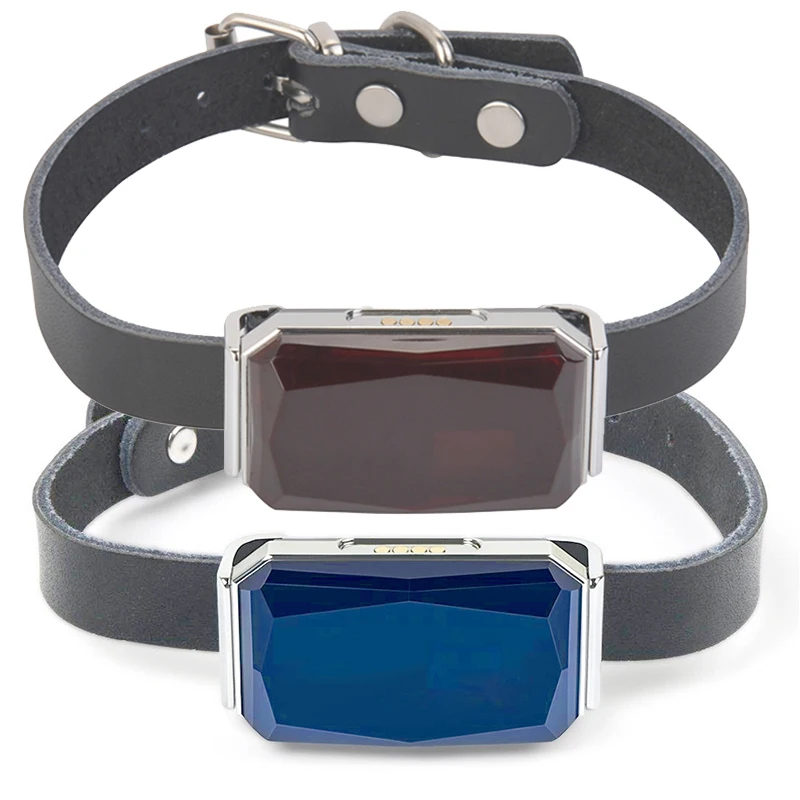

Изготовленным на заказ логосом Водонепроницаемый GPS трекер для собак/кошек/животное, GSM GPRS Wi-Fi и LBS для домашних животных анти-потерянный GPS устройства слежения с бесплатным приложением
14,50 $ - 19,90 $

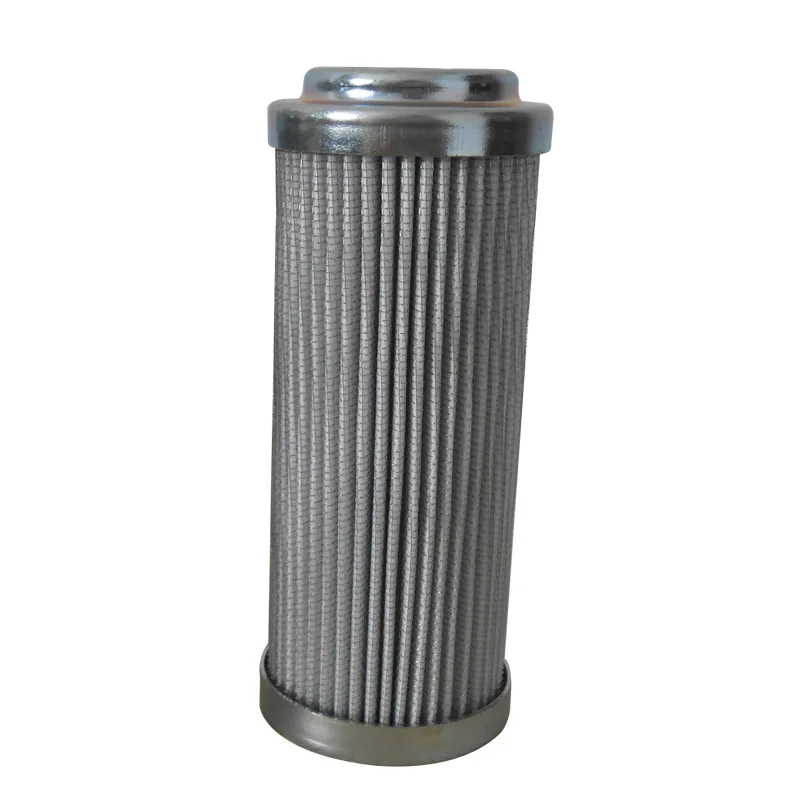

Фильтр для замены масляного фильтра HC9020FDT4H
