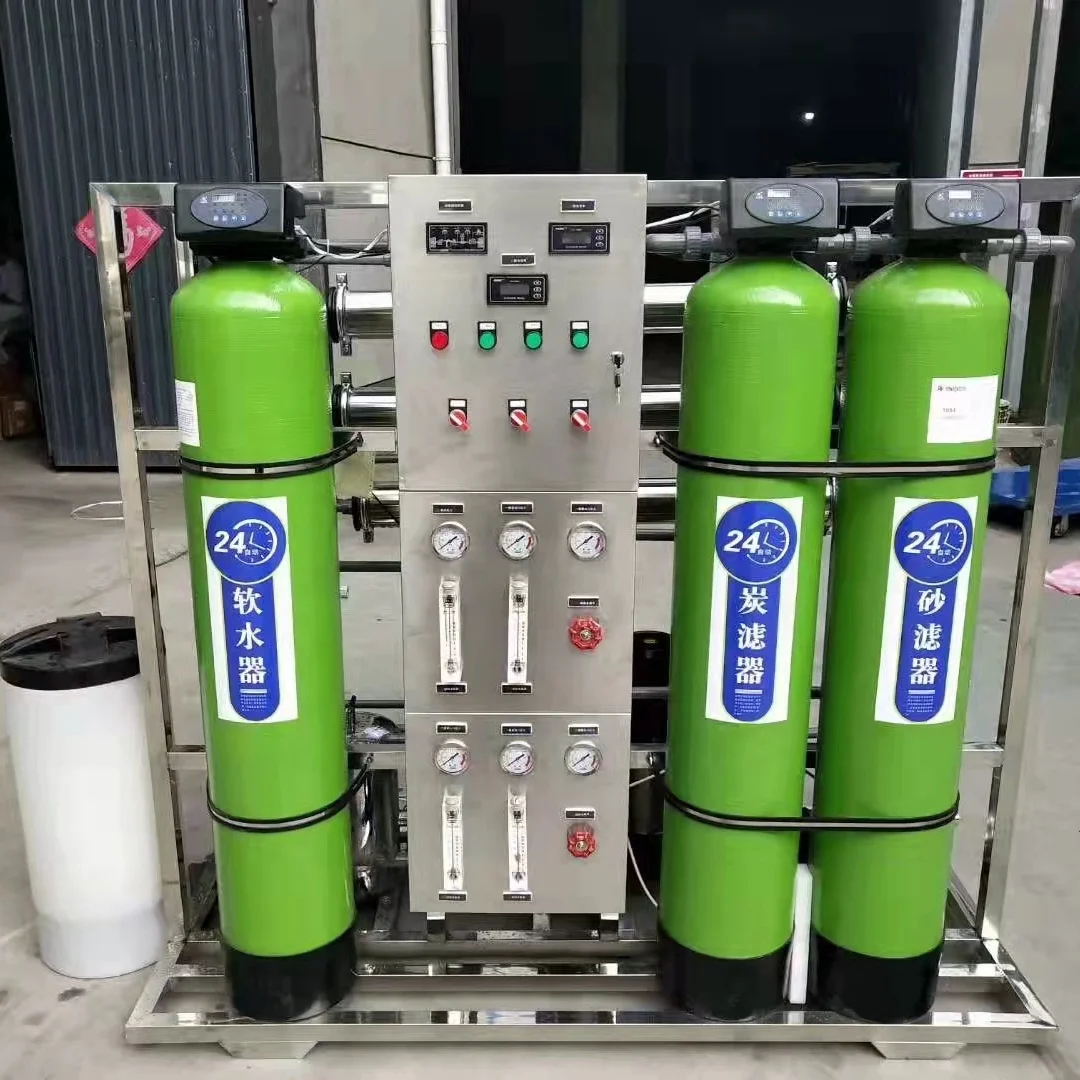

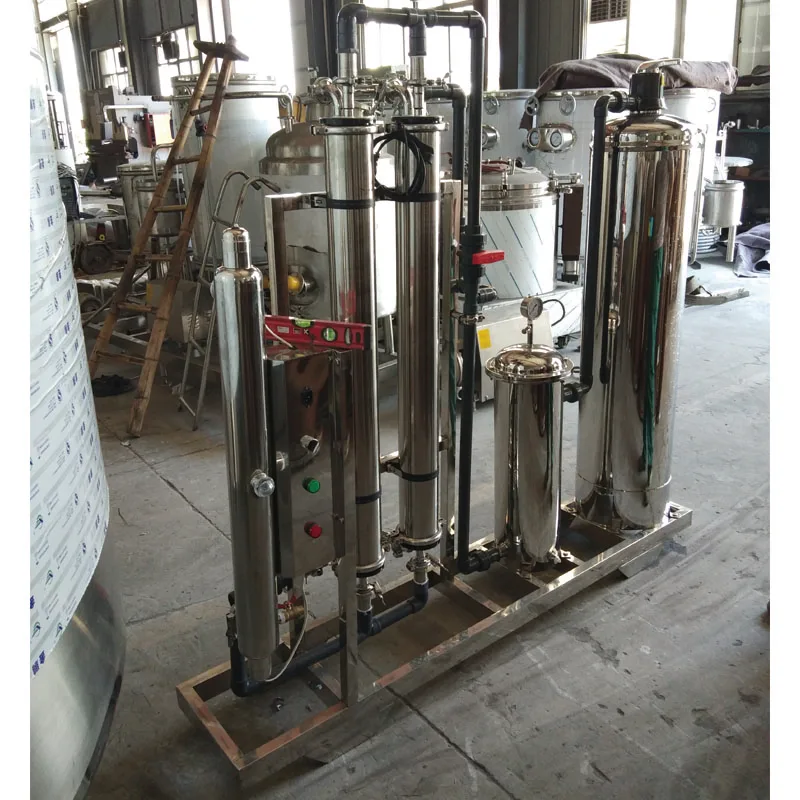

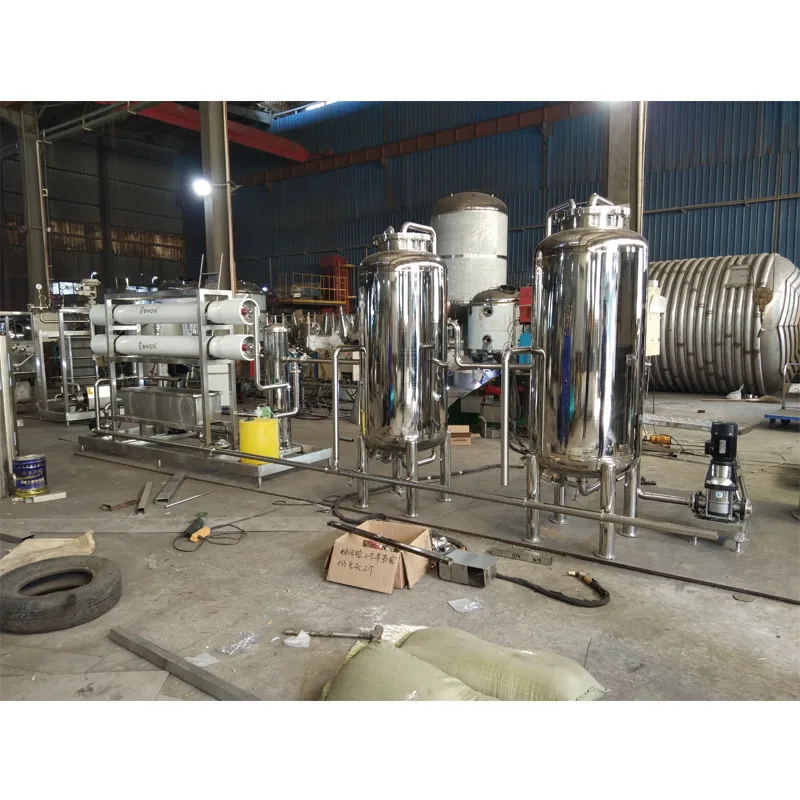

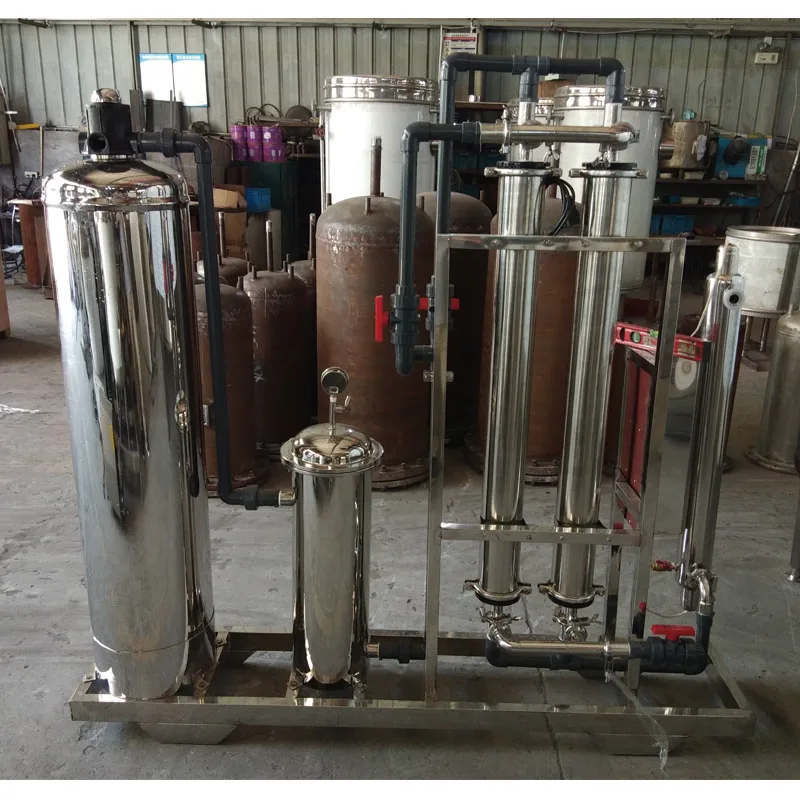

ro water treatment plant

ro water treatment plant uses mechanical filter & active carbon as pre-filtration, which will effectively remove the suspend substance, sand particle, organic colloid,organic colloid, organic compound, odor and odd Cl2 etc; And a softener will be used to exchange the Ca or Mg hydronium from the water; Finally the RO membrane will act as pre-desalination filter, to remove large majority of dissolved salt, bacterium etc; and use ozone sterilization system and ozone fresh keeper to assure the water quality to reach our drinking water requirement.

Working Process:

Raw water tank, raw water pump, booster pump, quartz sand filter, activated carbon filter, softener, mineral dosing unit, safeguard precision filter, high-pressure pump, first-stage reverse osmosis, RO membrane American Dow, with UV sterilizer. RO water storage tank, ozone generator, gas water mixer, pure water storage tank, filling machine.

Machines:
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

Water flow meter:100L/H-9000L/H (Water temperature:25℃)

Raw water source:Bore whole, river, well, mountain spring, lake, etc

Raw water pump/booster pump:Nanfang, Grundfos

Filter media:Quartz sand filter, active carbon filter, security filter( PP filter)

RO Membrane:Filmtec Dow

Pls provide:

1. Please tell us the production capacity of the ro system (100L/h,250L/h, 1000L/h,2000L/h,3000L/h...) you need.

2. Source water(tap water, well water, borehole water etc.) and application of output pure water from the ro system.

We will make a plan and quotation for the ro system immediately as your requirements.
