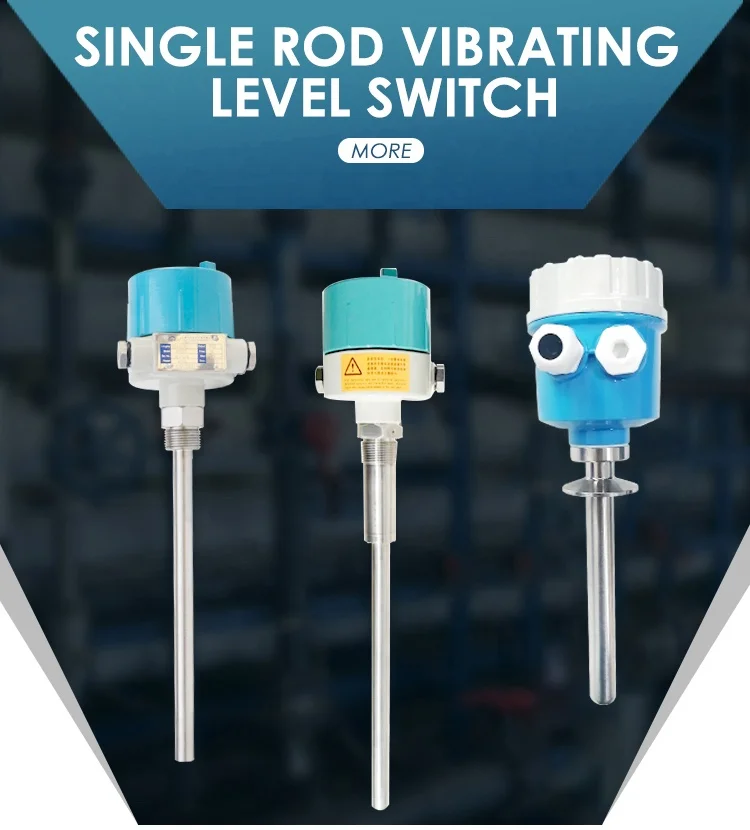

Одностержневой вибрирующий переключатель уровня для измерения твердого порошка
- Категория: Height Measuring Instruments >>>
- Поставщик: Shandong Aipuxin Automation Instrument Co. Ltd.
Сохранить в закладки 1600383958420:
Описание и отзывы
Характеристики
Products Description
Single rod vibrating horizontal controller is caused by the resonance of piezoelectric crystal vibration, when subjected to material damping, amplitude sharply reduced and frequency and phase changes significantly, these changes will be detected by the internal electronic circuit, after processing, converted into switching signal output.
Technical parameter | ||
Medium temperature range | -20℃～80℃ | |
Ambient temperature | -20℃～80℃ | |
Environment humidity | ≤95%RH | |
Measured medium | liquid, powder or granular solid | |
Density of measured medium | Solid ≥0.1g/cm3 Liquid≥0.7g/cm3 | |
Measured solid particle size | ≤10mm | |
Maximum liquid viscosity | ＜1000mm2/s | |
The angle of repose of the measured medium | ≥200 | |
Pressure range | ≤1MPa | |
Shell material | Die-cast aluminum alloy | |
Fork body material | 1Cr18Ni9Ti | |
Enclosure rating | IP65 | |
Connection method | 1″NPT thread; flange (user selected) | |
Electrical parameters | ||
Supply voltage | DC24V；AC220V 50HZ | |
Output signal | Relay output: 5A 220V AC 3A 24V DC | |
Power consumption | ≤2W | |
Tuning fork vibration frequency | 300±50Hz | |
Switch signal action time | 1-60S | |

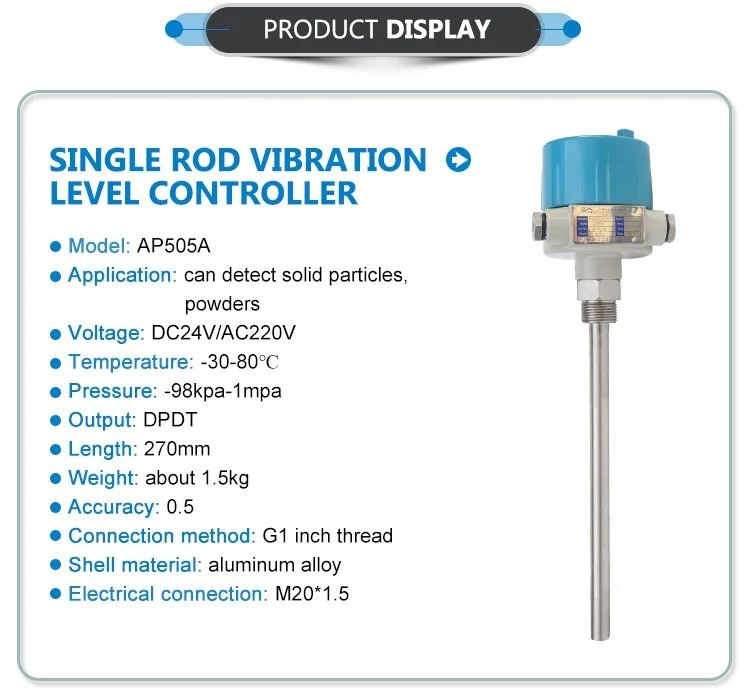

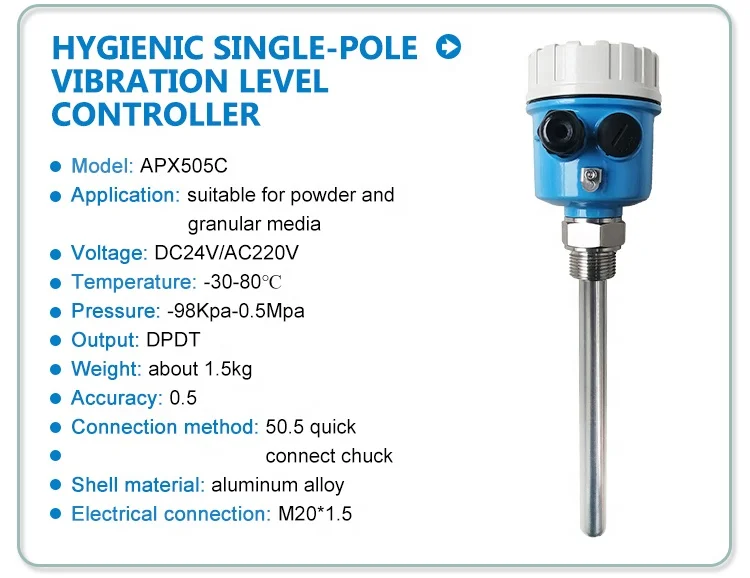

Product Display

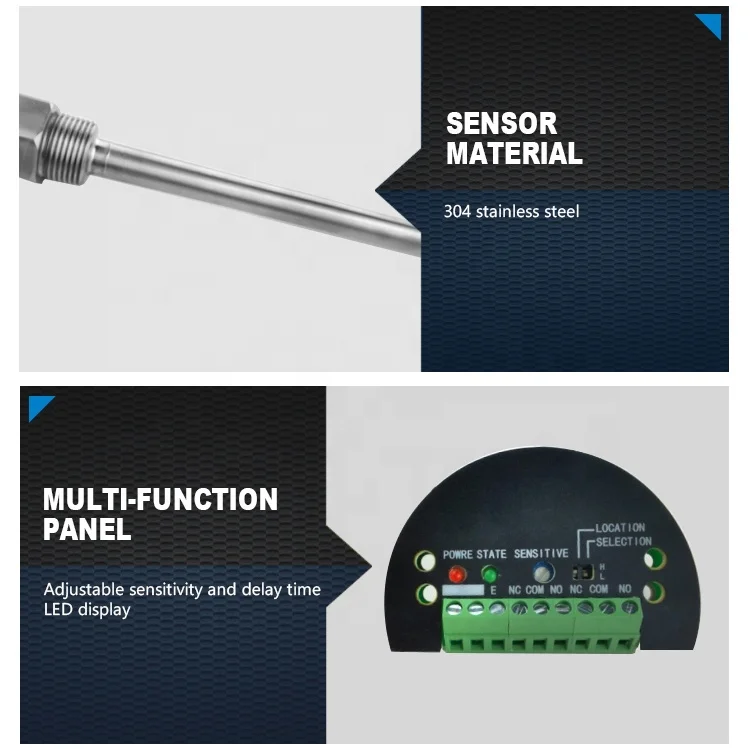

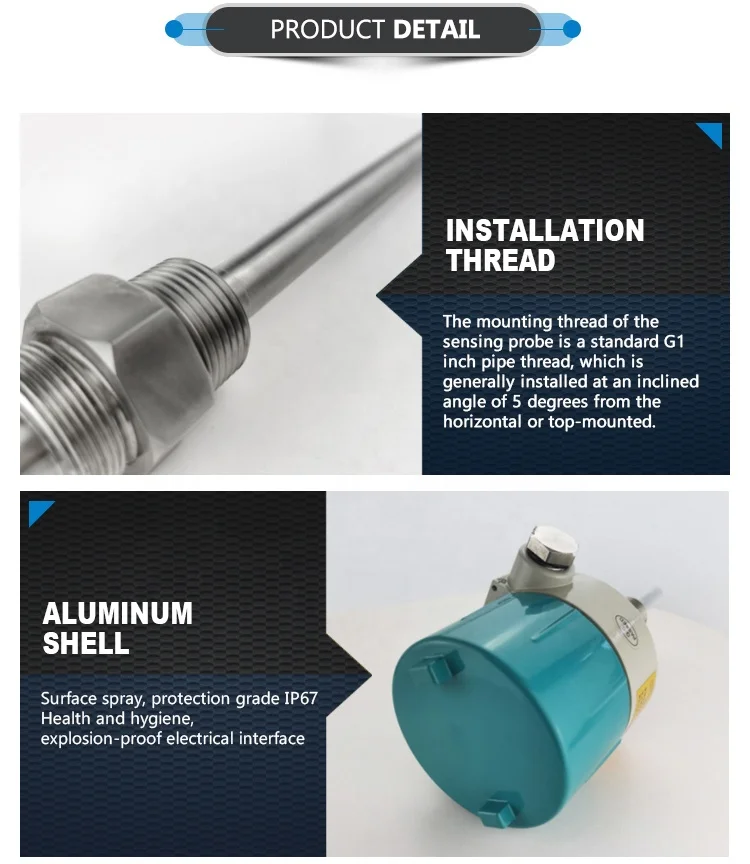

Details Images
Packaging & Shipping
Company Profile
Jining aipuxin automation instrument co., LTD is a domestic emerging automation enterprise specialized in the development, design and production of material level instrument products. In recent years, it has been conducting academic discussions and research projects with relevant research institutions at home and abroad. At present, the international advanced technology, combined with the market demand, has developed a series of tuning fork level switch, radio frequency capacitor level switch, magnetostrictive level meter, radio frequency capacitance level meter, microwave material level switch, radar level meter, tuning fork density meter and other products, product performance has reached or close to the domestic advanced level.The company's products are mainly for dealers and end users all over the country, suitable for all kinds of modern industrial enterprises. With the core value of "quality first, service with heart" over the years, apletter has met the needs of customers, shaped the good reputation of the enterprise and promoted the sustainable development of the enterprise and the continuous growth of the team through professional technology and unremitting efforts. At the same time, a perfect after-sales service system has been established, which can quickly solve the problems encountered by partners and terminal operators when using the products. We believe that through our continuous efforts and pursuit, epson will continue to develop and grow.The company's products in the continuous innovation, upgrading, has passed the ISO9001 quality system recognition, SIL safety certification, explosion-proof certification. Research, development, design, production are strictly in accordance with international standards, each link has strict operating procedures, to ensure that different products in different industries demand.
FAQ
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Похожие товары

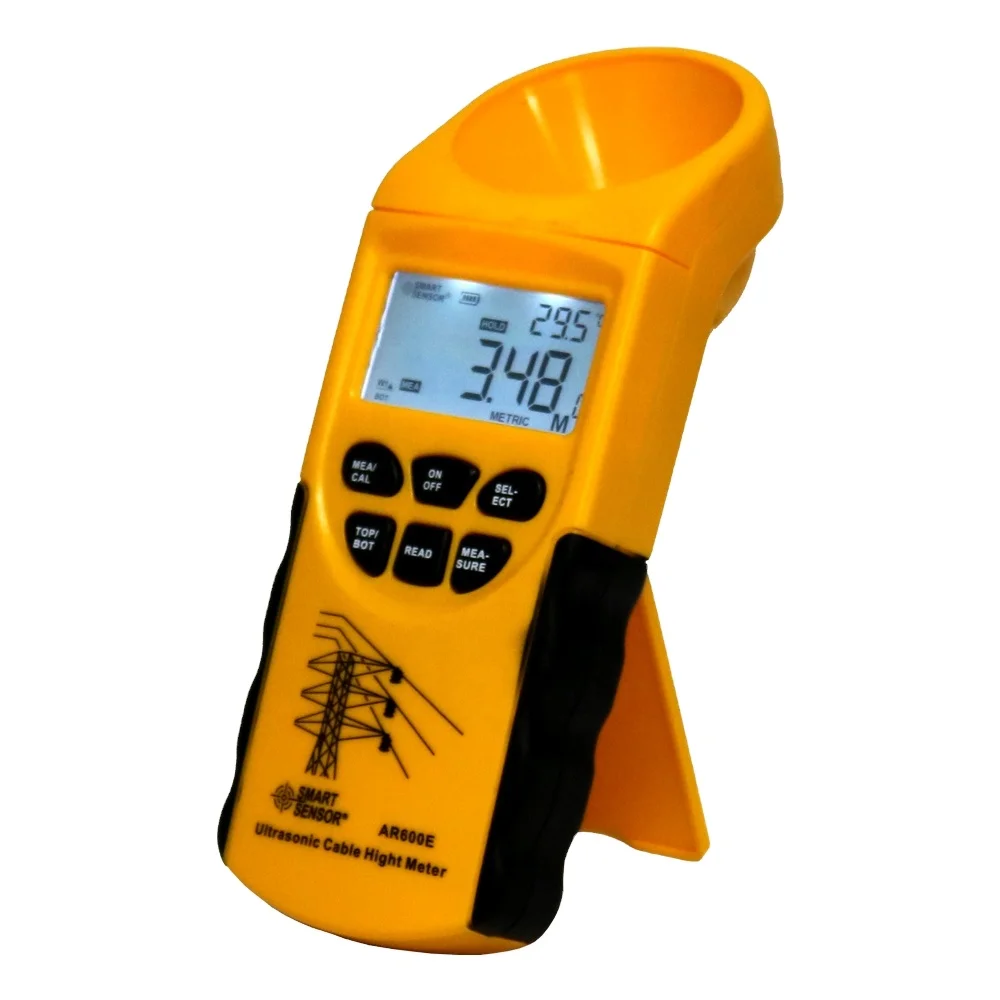

Новое поступление, ультразвуковая машина для измерения высоты и веса AR600E, цифровой измеритель высоты, Ультразвуковой кабель, измеритель высоты
