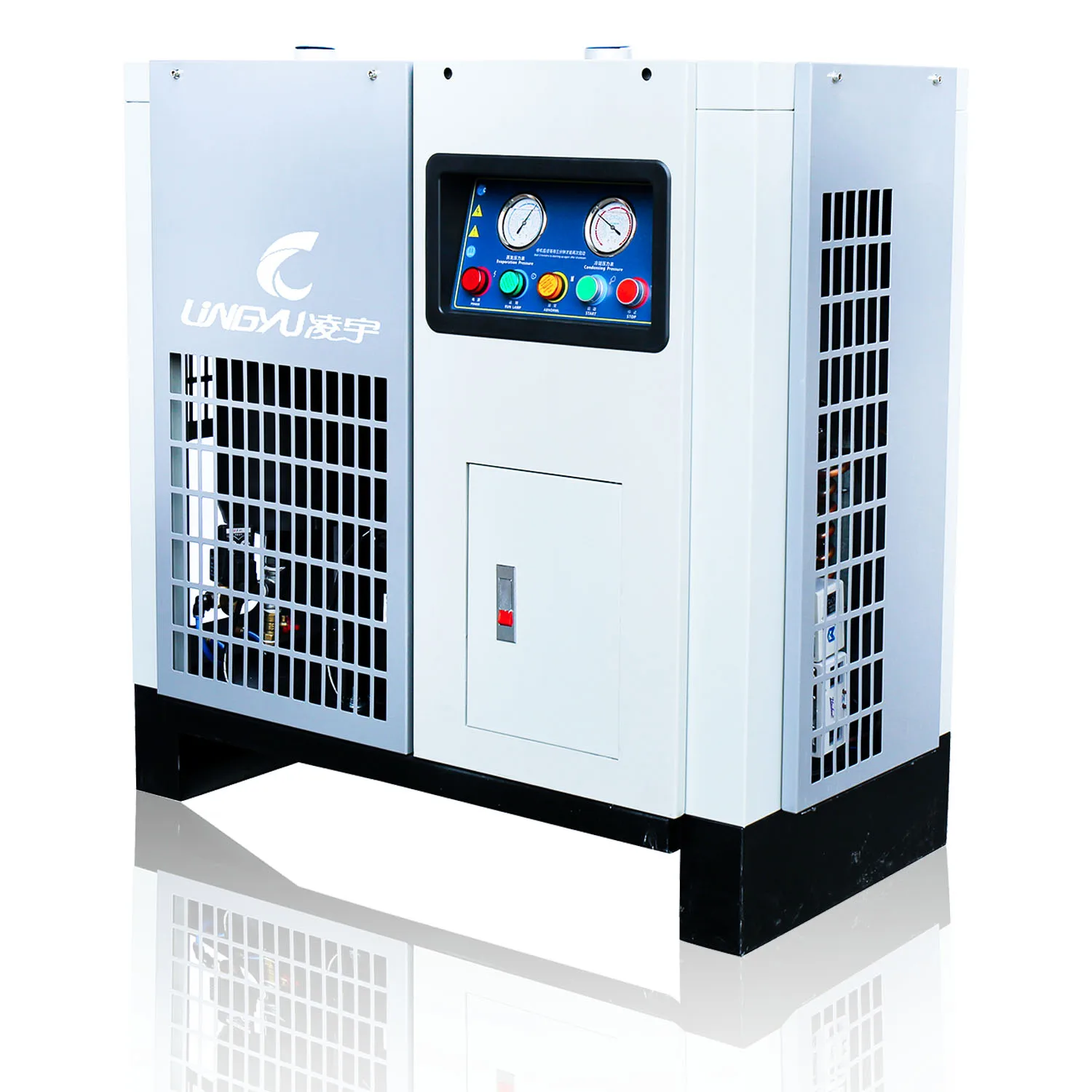

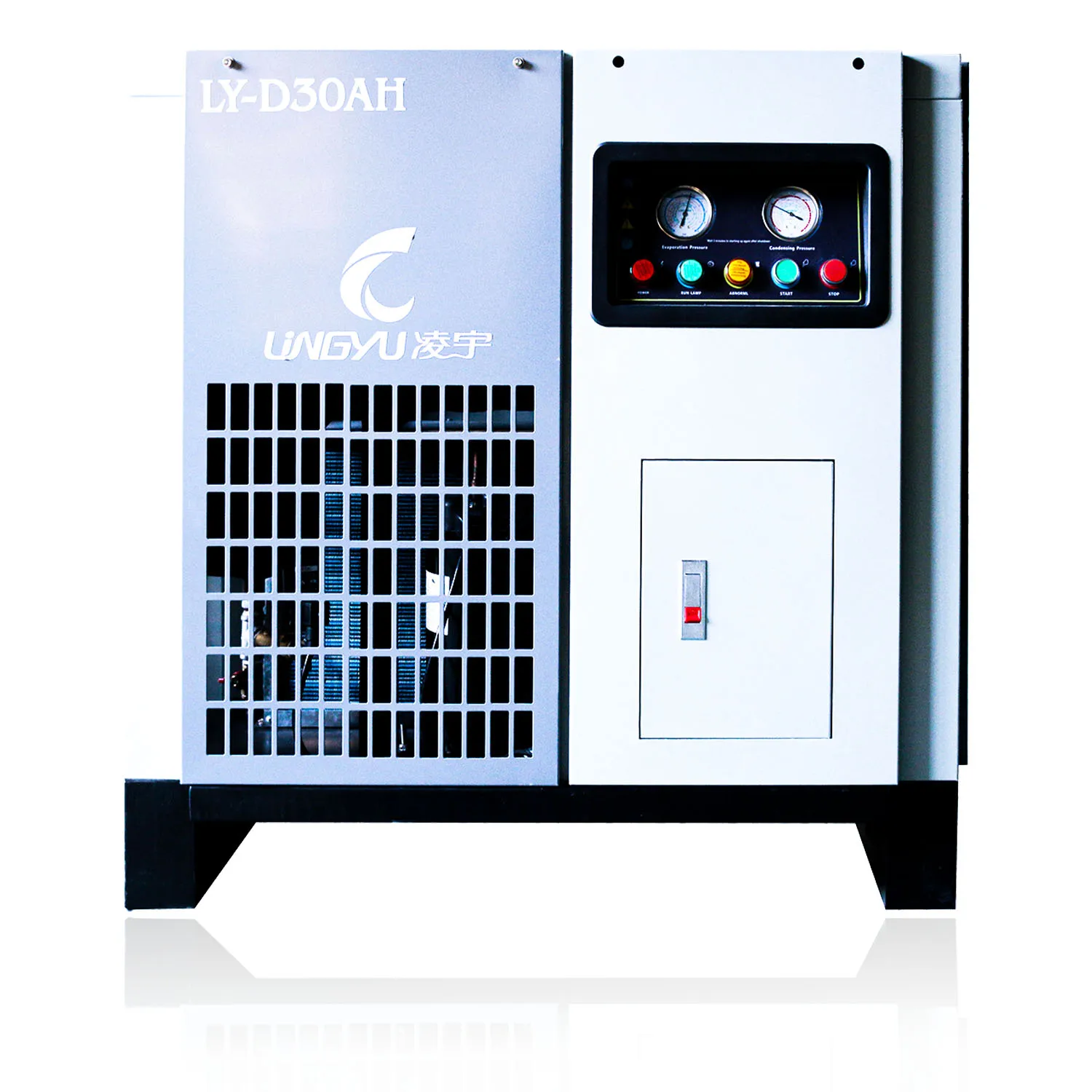

Lingyu бренд 20 HP холодильная сушилка для сжатого воздуха Высокоэффективная велосипедная с винтовым воздушным компрессором 15 кВт

Сохранить в закладки 1600384093752:


Цена:600,00 $ - 700,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Lingyu Brand 20 HP Refrigerated Compressed Air Dryer High-efficiency Cycling 15KW Screw Air Compressor Dryer














Technical Parameters


 installation










































Product name



Compressor air dryer



Application gases



Compressed air / non-corrosive air



Inlet air flow



Std.3.8 Nm3 /Min |228Nm3 /Hr



Inlet air pressure



Std.7 bar | Min 6 bar Max:10 bar



Inlet air temperature



Std.50 ℃ | Max:80℃



Working environment temperature



Std.32 ℃ |Min 2℃ Max:45℃



Outlet air dew point



+2℃~10℃

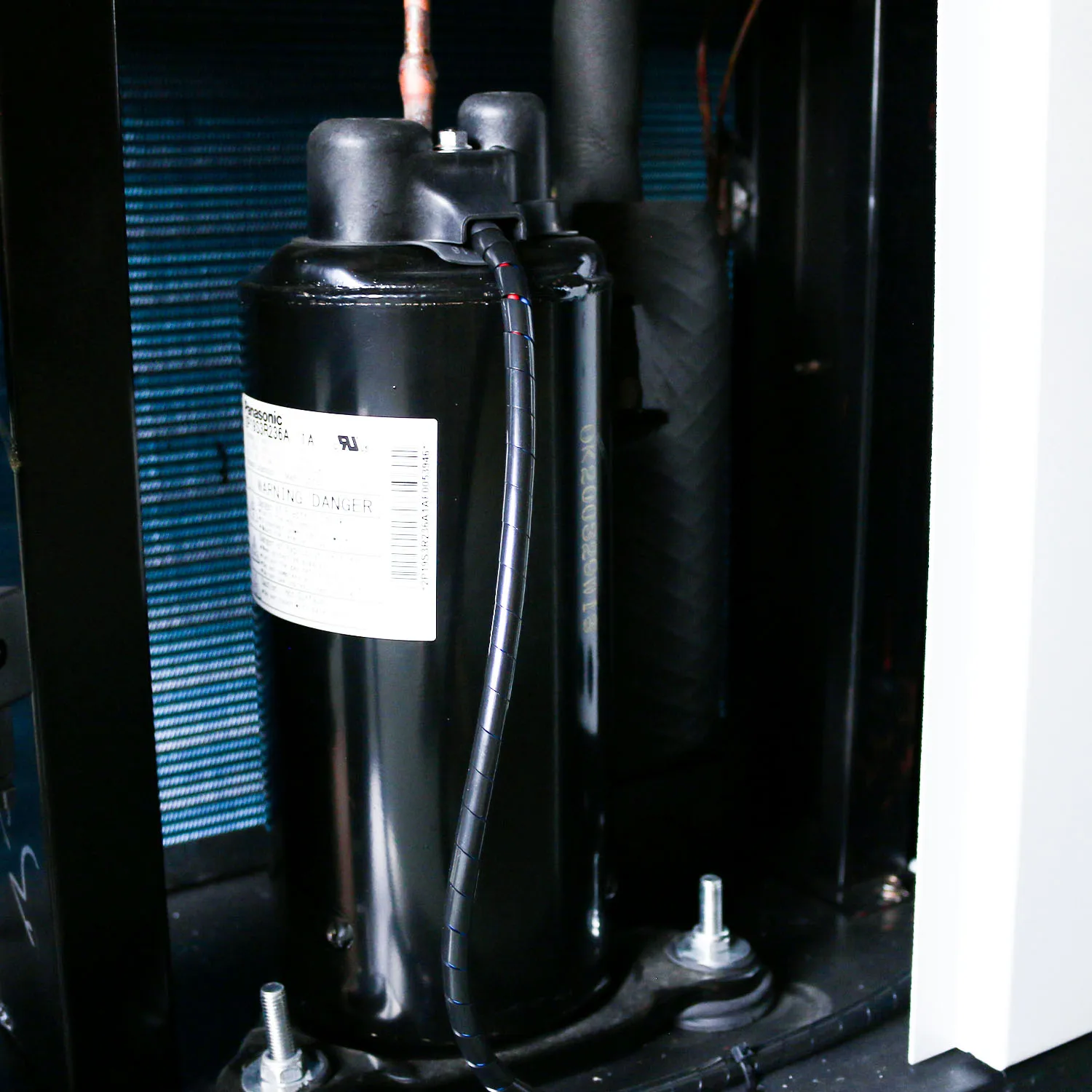

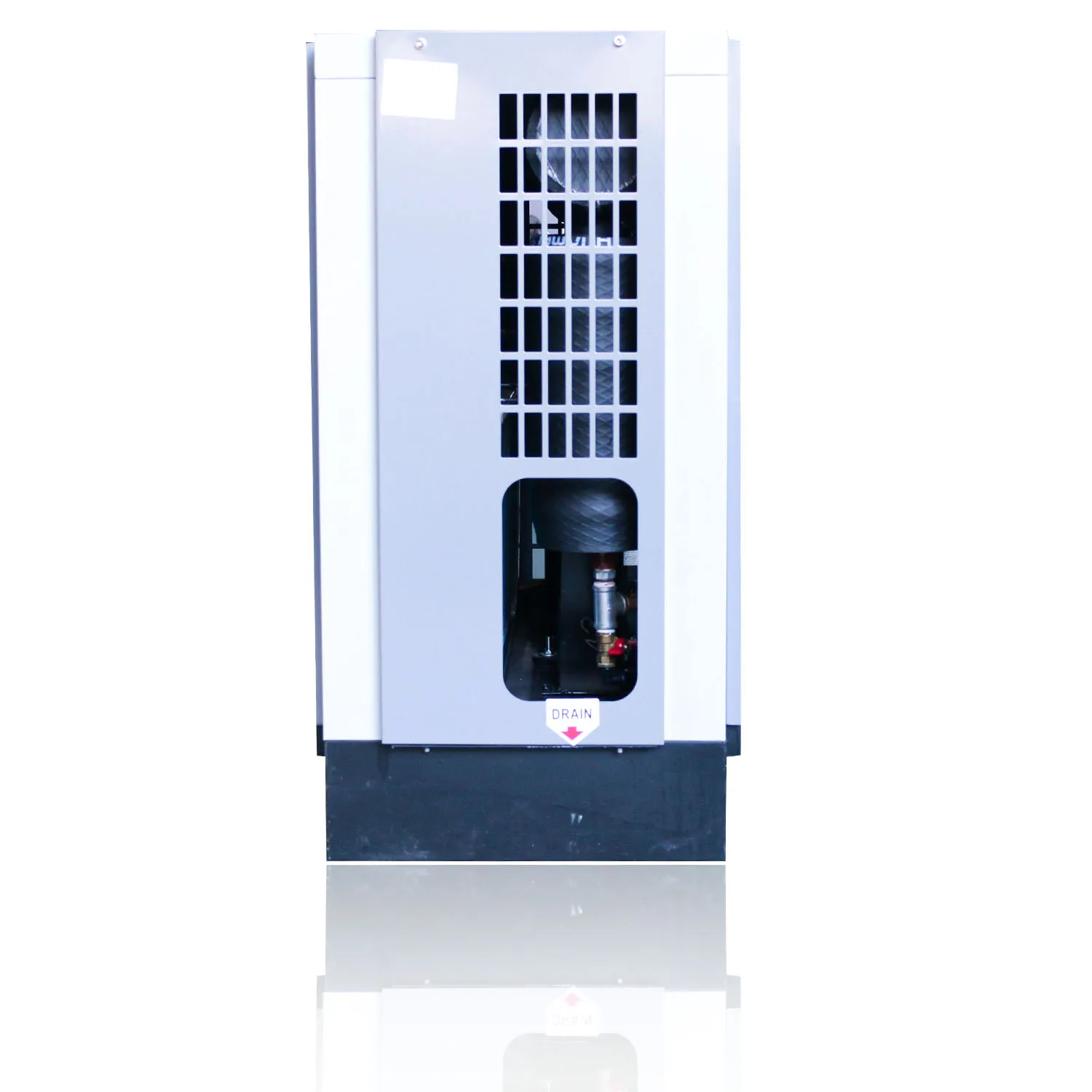

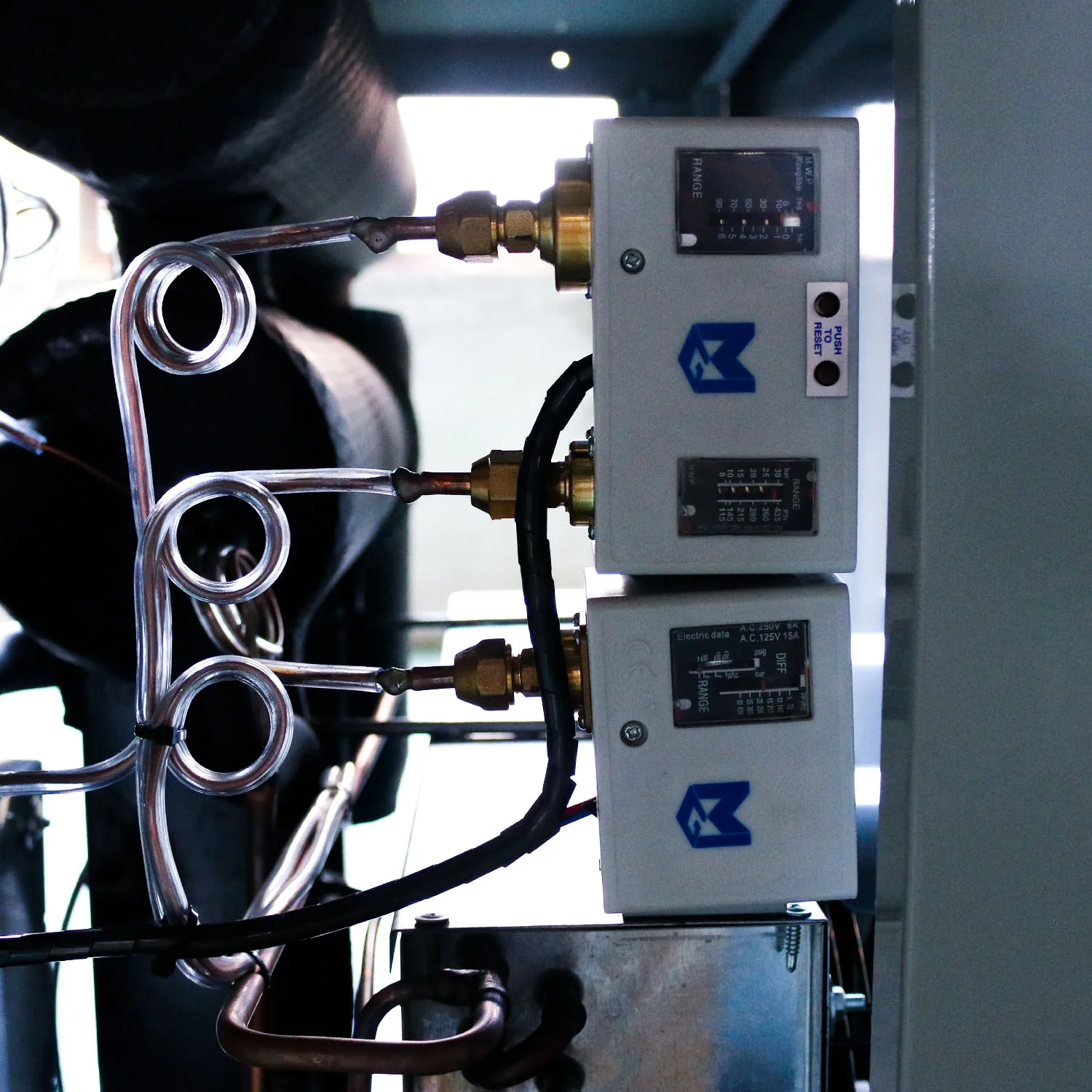

Air Dryer Details















Working Principle


The Compressor air dryer uses the principle of refrigeration to reduce the temperature of the compressed air, so that thewater vapor in the compressed air is supersaturated at low temperature and cold condensed into liquid water beads, and then thecondensed water (including some oil and dust) is separated from the compressed air by means of air-water separation and discharged out of the machine through the drainer, so as to obtain the dry compressed air.




 ah












Air Dryer Cases
















Company Information





Zhongshan Lingyu Machinery Co., Ltd (hereinafter referred to as Lingyu), founded in 2009, is a modern new national high-tech enterprise integrating R & D, manufacturing, sales and service. Compressed air purification equipment as the core product, the company has formed five series of products and systematic solutions for different industries, scales and applications, such as petroleum, chemical industry, electric power, food, health care, biopharmaceutical, manufacturing and processing, textile industry, and is the most influential complete set of compressed air purification solution service provider in China.





With an excellent management team and a senior technical R & D team composed of refrigeration technology experts, Lingyu have tacit cooperation in product design, R & D and promotion, deeply understand the meaning of " Supported by technology, driven by value ", "Quality and service" run through every detail of the company's operation and management, and won the trust and support of customers widely. The growing process of Zhongshan Lingyu is the process of serving customers and growing up with customers. We try our best to do everything well and meet every challenge with confidence.


















Lingyu Certificates













FAQ





Q1: Are you a factory or a trading company?
A1: We are factory. And we can export machines oversea.





Q2: Can you accept OEM customization?
A2: Yes. We can put your logo onto the air dryer machine, and also customize according to your specific requirements.





Q3: Can you also produce high pressure air dryer?
A3: Sure. We also manufacture high pressure compressor air dryer.





Q4: What material of your compressed air dryer?
A4: Most regular dryer machines are carbon steel. Of course, we also produce stainless steel materials for food, pharmaticals industries. In addition, the material of the modular desiccant dryer is 6063-T5 aluminum alloy.





Q5: How about your after-sale?
A5: Because we have rich experience and technologies in this field, we can supply effective technical support for our customers. And if quality problem, we can send the spare parts to you.
