Высокоскоростной резак CK6136 токарный станок с ЧПУ револьверный центр инструментов
- Категория: >>>
- Поставщик: Nadun Machinery Manufacture Co. Ltd.
Сохранить в закладки 1600384128213:
Описание и отзывы
Характеристики
Product Description
Uses
The machine tool is automatically controlled by numerical control system to turn various inner
holes, excircles, conical surfaces, circular arc surfaces and threads, especially suitable for coarse and fine machining of small
and medium-sized shaft and disc parts, and has the advantages of high automation, simple programming and high precision.
holes, excircles, conical surfaces, circular arc surfaces and threads, especially suitable for coarse and fine machining of small
and medium-sized shaft and disc parts, and has the advantages of high automation, simple programming and high precision.
Specification
SPECIFICATIONS | CK6136 | |
Max.swingoverbed | Φ360 | |
Max.swing over CROSS slide | Φ180 | |
Max.processing length | 750/1000/1500 | |
X/Zaxis；tra-1 | X:240 Z:750/1000/1500 | |
Spindle transmission type | not have | |
spindle speed steep | Stepless | |
Spindle speed | 50-2000 | |
spindle nose | A2-6 | |
spindle bore | 52 | |
spindle hole front taper | MT5 | |
Spindle moter | 5.5 | |
Chuck size | 200 | |
Ball screw dia and pitch | 2006/4008 | |
VZ axis feed motor torque | 4/6 | |
VZ Rapid traverse | X:6 Z:8 | |
X/Zaxis rEpeatabilitlr | ±0.005 | |
Processing accuracy | IT6/IT7 | |
Workpiece surface roughness | Ral.6 | |
Tailstock quill dia | 60 | |
Quill traverse | 130 | |
Quill taper | MT4 | |
Tool post type | 4-position electric tool holder | |
Cutting tool shape size | 20*20 | |
Guide form | Single Hill + flat rail | |
Total power apacity | 10 | |
Machine dimension (LxWxH) | 2500/2400/2900*1500*1650 | |
Net.weight(about) | 1800 |
Products Description
Features:
1. CNC system is adopted, with high precision and guide rail width of 360mm.
2. Independent spindle, variable frequency stepless
speed regulation(Manual two-speed change can be customized).
speed regulation(Manual two-speed change can be customized).
3. The diameter of the through hole is 52mm, which can be selected
from 65mm and 82mm, and the maximum diameter is 82mm.
from 65mm and 82mm, and the maximum diameter is 82mm.
4. The chuck comes standard with 200mm and optional with 250mm..
5. Equipped with four-station electric tool rest with Morse No.4 tailstock.
6. Split lathe bed with spindle motor of 5.5kw.
7. Optional configuration: spring chuck, hydraulic chuck, automatic feeding device and knife rest.
5. Equipped with four-station electric tool rest with Morse No.4 tailstock.
6. Split lathe bed with spindle motor of 5.5kw.
7. Optional configuration: spring chuck, hydraulic chuck, automatic feeding device and knife rest.
Company Profile
Customer Photos
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to Domestic Market(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Hydraulic Press Machine,Power Punching Press Machine,Shearing Machine,CNC Lathe Machine,Laser Cutting Machine
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2017,sell to Domestic Market(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Hydraulic Press Machine,Power Punching Press Machine,Shearing Machine,CNC Lathe Machine,Laser Cutting Machine
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
3 оси ЧПУ окраску кровать токарный станок с ЧПУ FANUC универсальный токарный станок
750,00 $ - 800,00 $

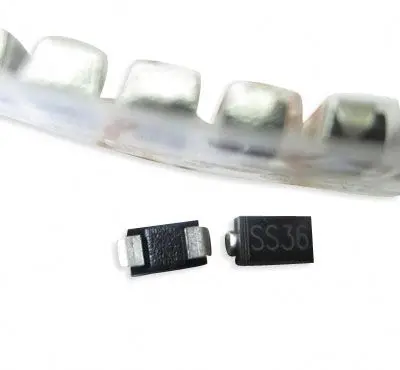

SMD диод Шоттки SS36 SMA DO-214AC 60V 3A
Оптовая продажа с фабрики, чехлы для Iphone 11 12 13 Por Max, чехол из ТПУ и поликарбоната, чехол для мобильного телефона с полным покрытием 360
1,22 $

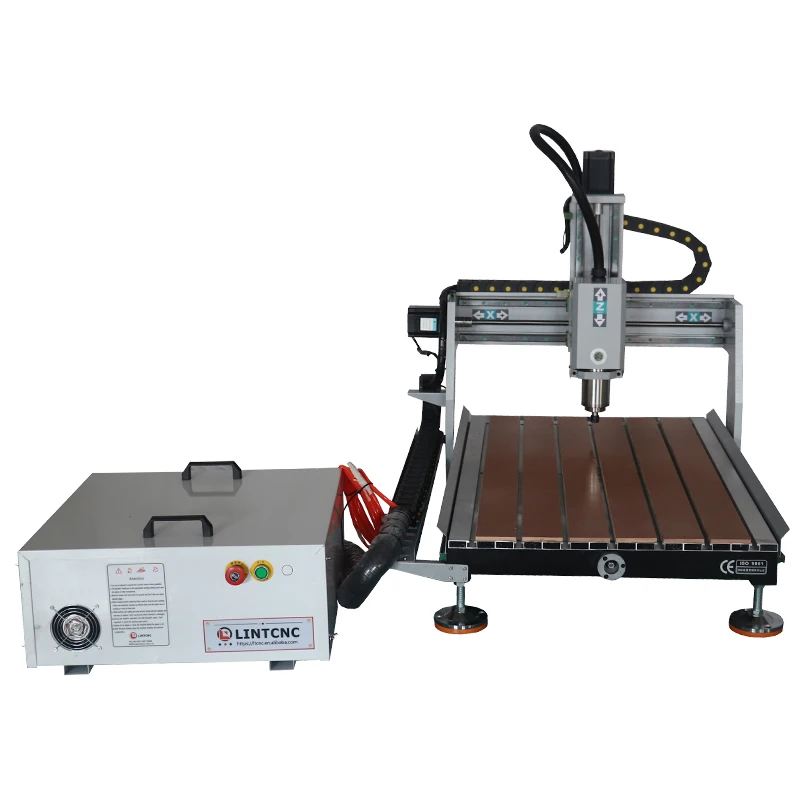

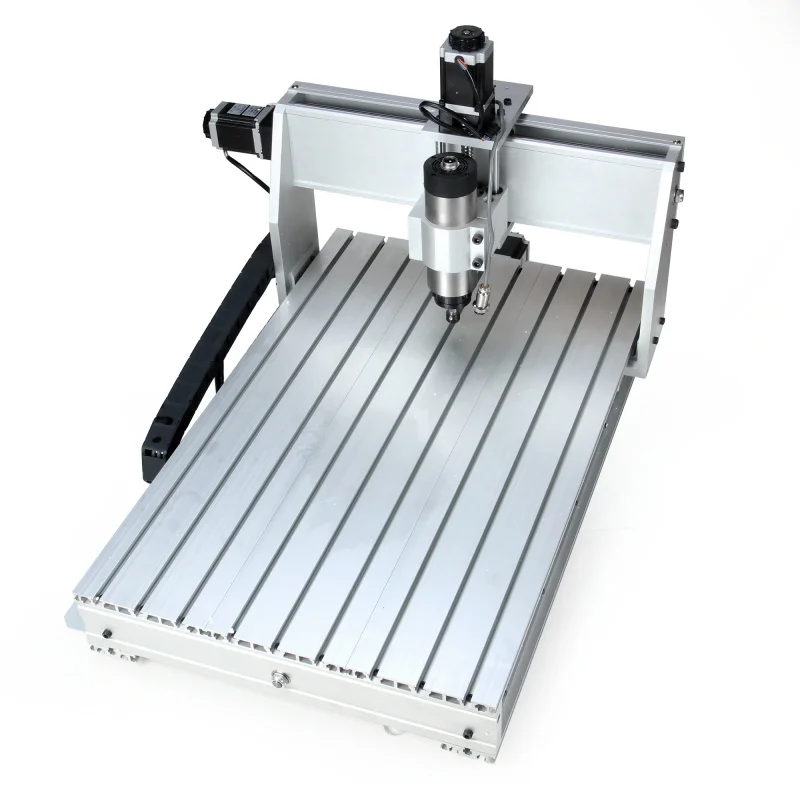

ЧПУ 6040 Маршрутизатор/3 оси кВт ЧПУ гравировальный станок по дереву по низкой цене
