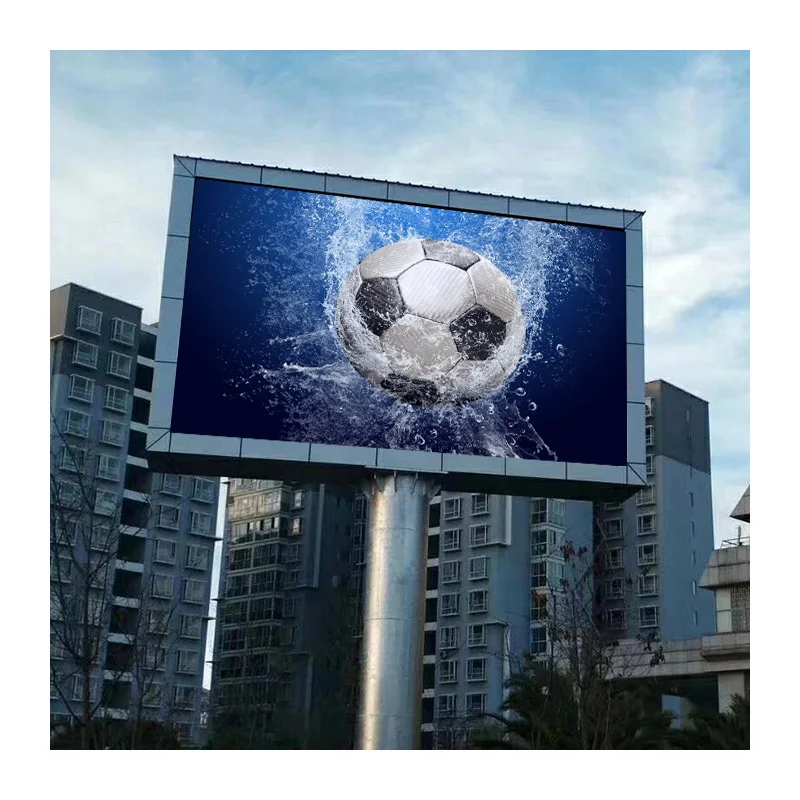

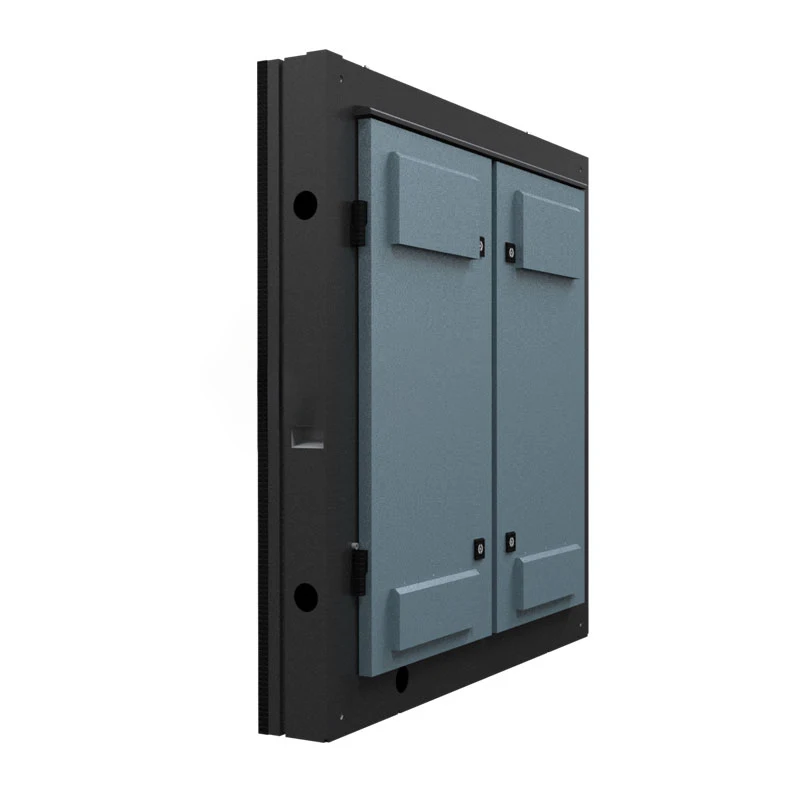

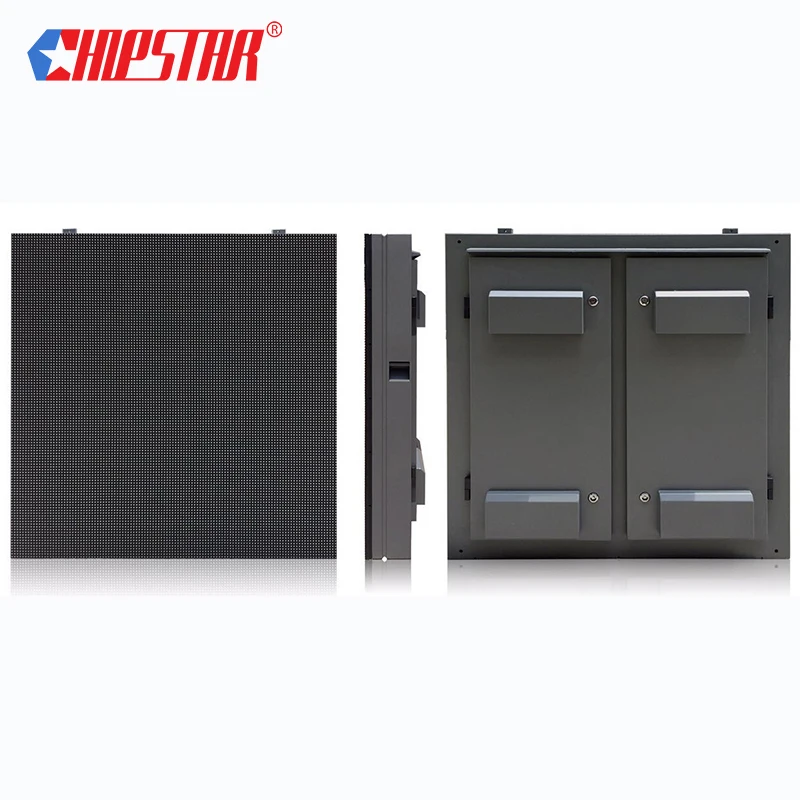

Наружный полноцветный цифровой знак светодиодный водонепроницаемый рекламный экран высокая яркость щит дисплей P6

Наружный полноцветный цифровой знак светодиодный водонепроницаемый рекламный экран высокая яркость щит дисплей P6

Категория: >>>
Поставщик: Chipstar LED Co. Ltd.

Цена:460,00 $ - 550,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Application

Specification

Module Number	PH5	PH6	PH8	PH10
Pixel Pitch	5mm	6mm	8mm	10 mm
Physical Density	40000 pixels/m2	27777 pixels/m2	15625 pixels/m2	10000 pixels/m2
Led Arrangement	3 in 1SMD	3 in 1 SMD	3 in 1 SMD	3 in 1 SMD
Module Resolution	64*32 pixels	32*32 pixels	40*20pixels	32*16 pixels
Module Dimensions	320*160mm	192*192mm	320*160 mm	320*160mm
Cabinet Resolution	192*192 pixels	160*160 pixels	120*120 pixels	96*96 pixels

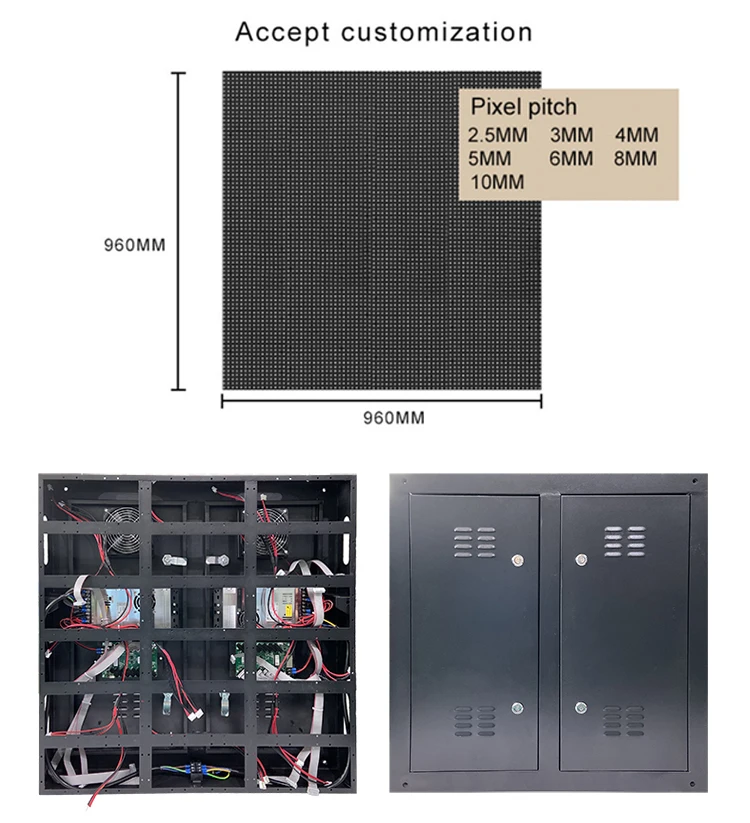

Cabinet Dimensions	960*960 mm	960*960 mm	960*960 mm	960*960 mm
Cabinet Weight	45kg	45kg	45kg	45kg
Brightness	5000 nits	5000 nits	5000 nits	6500 nits
Max Power Consumption	730w/m²	746w/m²	684w/m²	488w/m²
Ave Power Consumption	244w/m²	248w/m²	228w/m²	162w/m²
Viewing Angle	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)
Operating Power source	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz
Operating Temperature	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃
Refresh Rate	1920Hz	1920Hz	1920Hz	1920Hz
IP Rating	IP65	IP65	IP65	IP65
Signal Input Source	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Certificate	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE

Project Cases

Company Profile

Chipstar LED Co., Ltd. specialized in manufacturing indoor and outdoor high-definition full-color LED display.

Our products has passed CE, ETL, FCC, CCC and RoHS ceritificate. Reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.

Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Russia, Canada, Singapore, Japan, etc.

Why Choose Us

Packing &Delivery

Packaging and Shipment.

According to the different packing patternsof different, we offer carton box, wooden case, flight case packing

Shipping Method:

by Express (DHL/FEDEX/UPS etc) door to door

by ocean (cheap method) to sea port

by air to airport

Pls inform airport name and seaport name if you want we check the shipping cost for you!

FAQ

Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.

Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.

Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.

Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.

Q5:What about the warranty?
A:Two year warranty.
