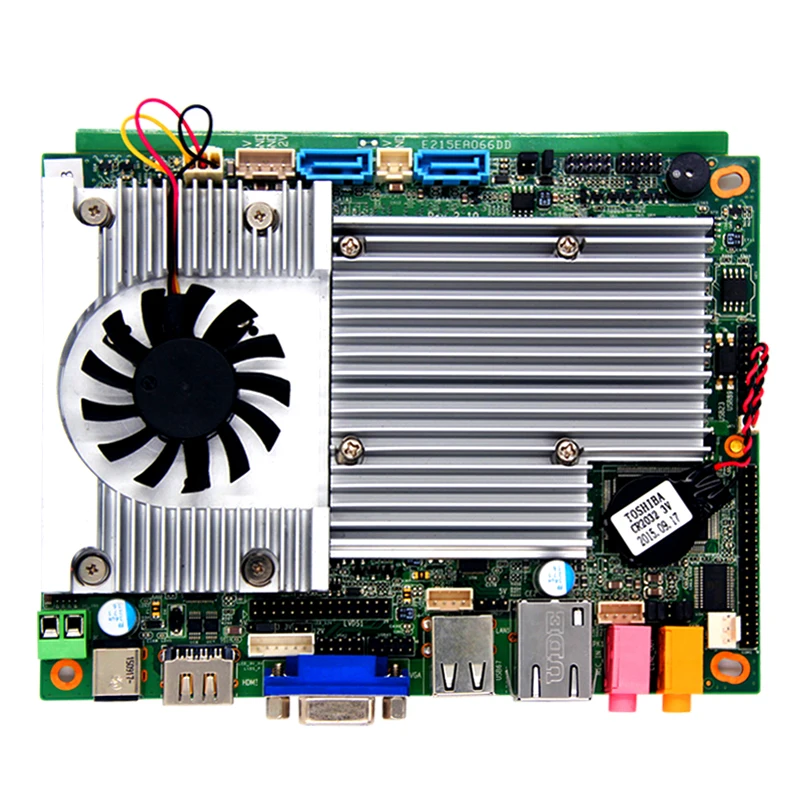

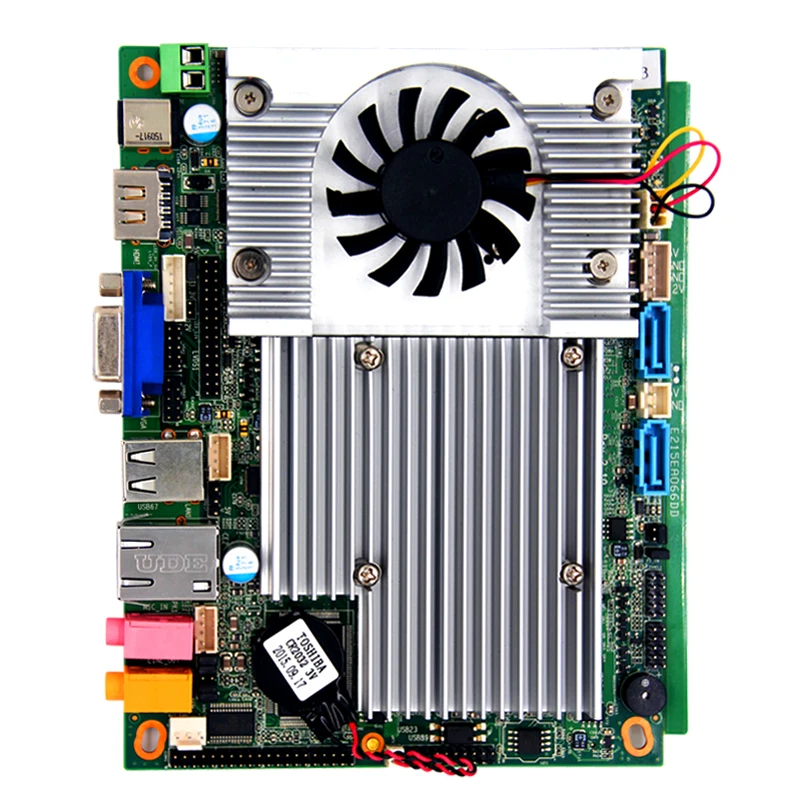

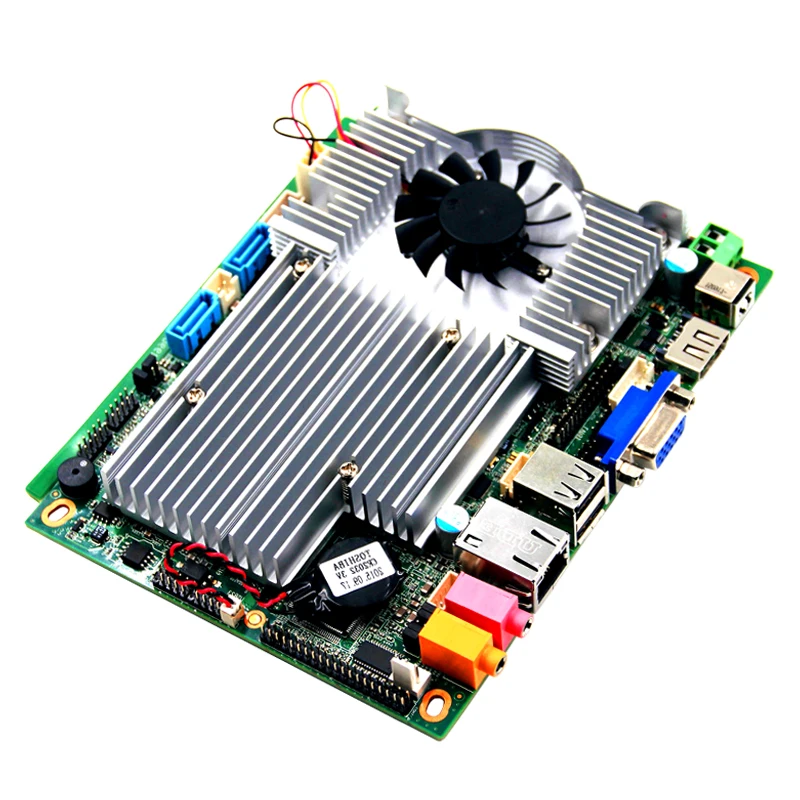

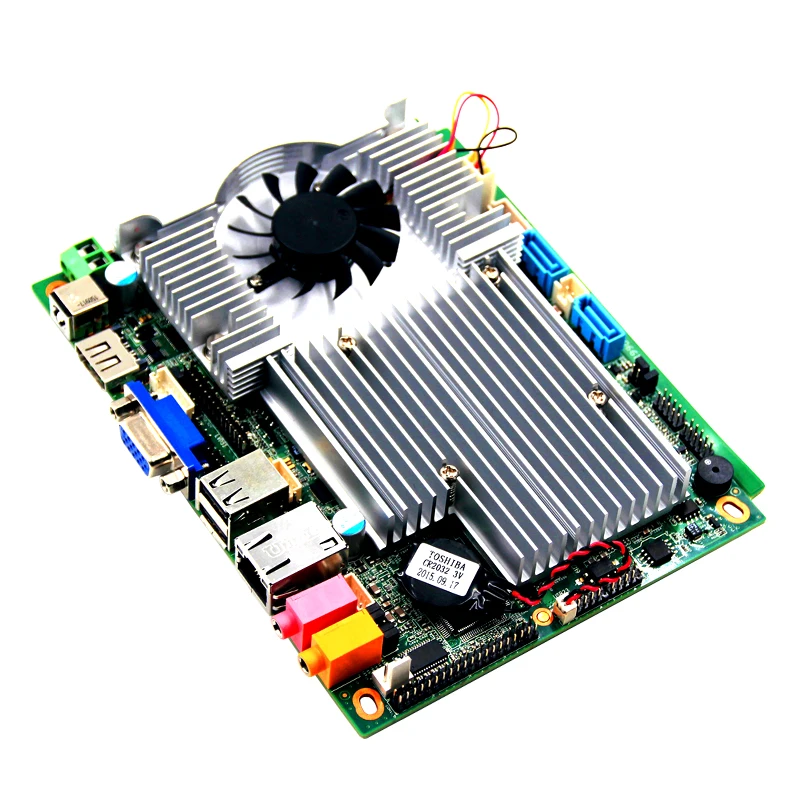

Заводская Встроенная Материнская плата для промышленного ПК материнская DDR3 Чипсет с Intel
- Категория: >>>
- Поставщик: Chengqin Precision Science And Technologies (shenzhen) Co. Ltd.
Сохранить в закладки 1600384584751:
Описание и отзывы
Характеристики
Products Description
Specification
Processor | CPU | Intel® Core2 Duo P7550/7450/7350 |
CPU package | BGA/PGA | |
Chipsets | Intel® GM45/47 series | |
BIOS | EFI BIOS | |
RAM | Technical architecture | Single channel 1066/1333/1600 MHZ |
Volume | 1 DDR3 RAM slot，Max support 8GB RAM (T7100 support 2G only) | |
Video | graphic controller | Intel GM45 GMA Integrated X4500MHD |
Dual LVDS | Onboard 18/24bit Single Channel LVDS connector | |
VGA | VGA max support 1920 x 1200 | |
HDMI | HDMI max support 1920x1200 | |
Dual display | LVDS + VGA,LVDS+HDMI,HDMI+VGA;Synchronous or asynchronous display | |

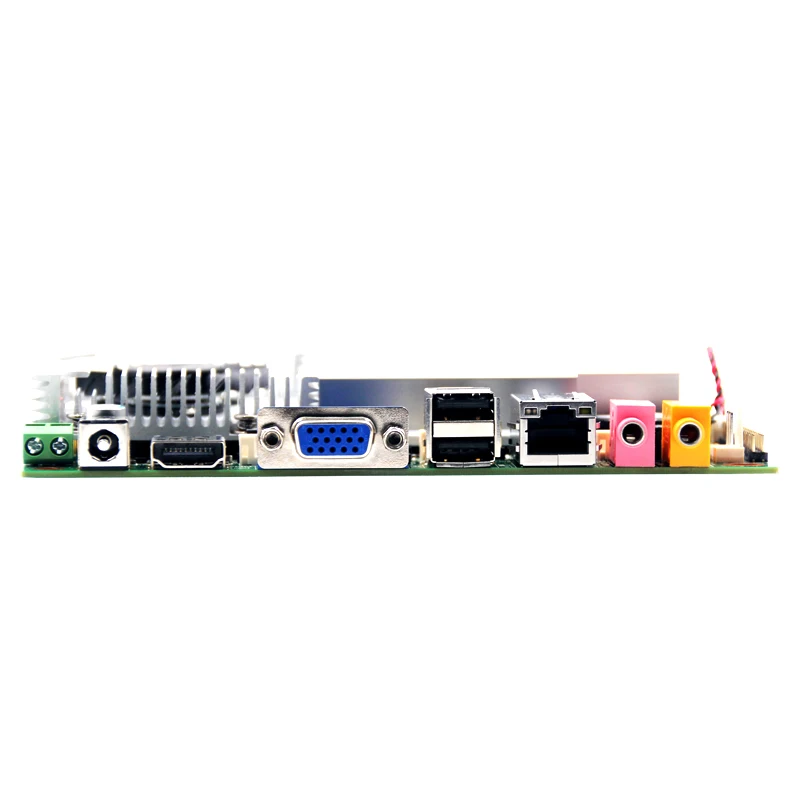

I/O | rear panel I/O | 1*VGA,2*RS232,1*LAN,2*USB,1*MIC-IN/LINE-OUT |
Network | controller | 1*RTL8111E-VL 10/100/1000Mbps Gigabit Ethernet LAN |
AUDIO | controller | Onboard Realtek HD ALC662 chipset (line-in,line-out,Mic) |
Super I/O | controller | W83627HG-AW |
hardware monitor | watchdog timers | Level 255 timer |
Cooler | Aluminum fan heater | |
input/output port | USB | 8*USB2.0,max support +5V/1A |
COM | 3*RS-232, 1*485( with PS/2 Integrated ） | |
PS/2 | 1*PS/2 pin port | |
GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
Expansion Sockets | Mini-PCle | 1*Mini-PCIe slot |
SMBUS | ||
storage | SATA | 2 standard Sata-II,max transmission speed 3GB/S |
M-SATA | 1*mini sata socket, Support SANDISK protocol, max transmission speed 3GB/S | |
Power Supply | Power type | Single-input DC Power supply DC 12V +/-5% |
Power Consumption | 25W | |
Temperature environment | Working Temperature | 20℃ ~ +60℃ |
Storage Temperature | -40℃ ~ +85℃ | |
Operating Humidity | 0% ~ 90% (non-condensing) | |
Storage Humidity | 0% ~ 90% (non-condensing) | |
Size/Weight | 154.8 x 117.4 mm/0.5KG | |
Certification | CE,ROSH,FCC |
Company Profile
Chengqin Precision Science And Technologies(Shenzhen) Co.,Ltd
Chengqin Precision Science And Technologies(Shenzhen) Co.,Ltd is a collection of various types of industrial motherboards and embedded products,research, development,production, sales and service as one of the national high-tech enterprises of industry specific computer products.Products related to industrial CPU card,embedded industrial motherboard, industrial chassis, integrated workstation.The tablet computer industry (PPC), network safety of machinery system,Disk array, passive backplane,Industrial power and industrial computer accessories and other products.
Company products are widely used in industrial automation,communication equipment, power equipment, network security,intelligent transportation, video surveillance, health care,military / aerospace equipment, self-service terminal,storage device, digital signage, on-board computer,3C applications and many other fields.
Relying on strong R & D and technical strength, complete and flexible product manufacturing capabity,outstanding quality management and brand advantage,marketing and technical services network.The company's market share increased year by year.Not only is Intel embedded and communications Alliance (ECA) members,Microsoft embedded partner,it is also one of the 2008 Beijing Olympic Games, World Expo, Shanghai, one of the construction of the embedded computer providers.
As the first state-level high-tech enterprises,the company's vision is to become the industry leader in the field of computer industry".Since its inception, it has been dedicated to the development of the national industry dedicated computer industry.Not only provides advanced technical solutions,excellent quality products, perfect customer service,strive to build China's most reliable industry dedicated computer products"
Company products are widely used in industrial automation,communication equipment, power equipment, network security,intelligent transportation, video surveillance, health care,military / aerospace equipment, self-service terminal,storage device, digital signage, on-board computer,3C applications and many other fields.
Relying on strong R & D and technical strength, complete and flexible product manufacturing capabity,outstanding quality management and brand advantage,marketing and technical services network.The company's market share increased year by year.Not only is Intel embedded and communications Alliance (ECA) members,Microsoft embedded partner,it is also one of the 2008 Beijing Olympic Games, World Expo, Shanghai, one of the construction of the embedded computer providers.
As the first state-level high-tech enterprises,the company's vision is to become the industry leader in the field of computer industry".Since its inception, it has been dedicated to the development of the national industry dedicated computer industry.Not only provides advanced technical solutions,excellent quality products, perfect customer service,strive to build China's most reliable industry dedicated computer products"
Sample Room

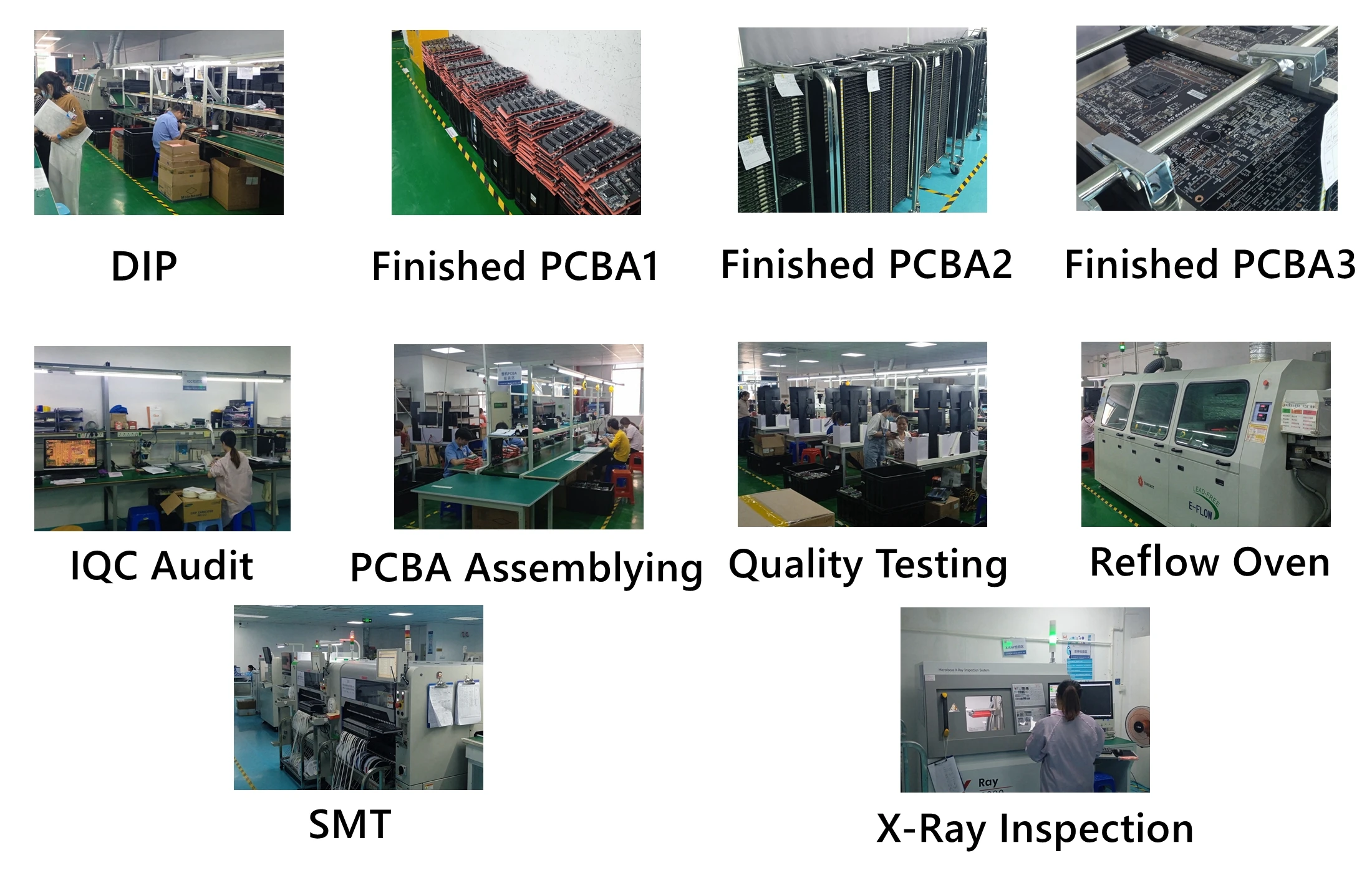

Production Process
Certifications
Express shipping
FAQ
Q1: What company do we belong to?
A1: We are a manufacturer and a trader.
Q2: How long is our delivery time?
A2: This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.
Q3: How to order?
A3: Please mail your order or request to us, and tell us the following information: shipping details, including company name, address, person, phone number, quantity.
Q4: How many discounts are available for ordering products?
A4: As long as you provide us with your demand, we will give you the best price.
A1: We are a manufacturer and a trader.
Q2: How long is our delivery time?
A2: This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.
Q3: How to order?
A3: Please mail your order or request to us, and tell us the following information: shipping details, including company name, address, person, phone number, quantity.
Q4: How many discounts are available for ordering products?
A4: As long as you provide us with your demand, we will give you the best price.
