Lifepo4 аккумулятор хранения энергии 32700 12V 12 8 V 150Ah объект соглашения о качестве предоставляемых услуг замена
- Категория: >>>
- Поставщик: MYD New Energy Technology Limited
Сохранить в закладки 1600385805242:
Описание и отзывы
Характеристики
Typical choice
Main batteries: IFR32700, IFR26650, IFR22650 ,customized
Voltage: 6V~12V customized
Capacity: 6Ah~300Ah customized
Output:38Wh~3.84KW to customize more power
Select the battery cell, the voltage and output of the energy storage system can be customized according to requirements
Voltage: 6V~12V customized
Capacity: 6Ah~300Ah customized
Output:38Wh~3.84KW to customize more power
Select the battery cell, the voltage and output of the energy storage system can be customized according to requirements
Electrical Characteristics | Nominal Voltage | 12.8V100Ah LiFePO4 Battery Pack |
Nominal Capacity | 100Ah@0.2C | |
Energy | 1280Wh | |
Internal Resistance | ≤45mΩ | |
Cycle Life | More than 2000 cycles @ 0.2C, 100% DOD, 70% capacity retention rate | |
Self Discharge | Under the condition of 25℃, ≤3.5% per month | |
Standard Charging | Max.Charging Voltage | 14.8V |
Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and at constant voltage of 14.6V until the current drops to 0.02C5A | |
Charging Current | 20A | |
Max.Charging Current | 50A | |
Standard Discharging | Discharging Current | 20A |
Max. Continuous Current | 100A | |
Max.Pulse Current | 200A(<3S） | |
Discharging Cut-off Voltage | 10V | |
Operating Condition | Charge Temperature | 0℃ ~45℃@60±25% Relative Humidity |
Discharge Temperature | -20℃ ~60℃@60±25% Relative Humidity | |
Storage Temperature | -20℃ ~45℃@60±25% Relative Humidity | |
Water Dust Resistance | IP56 | |

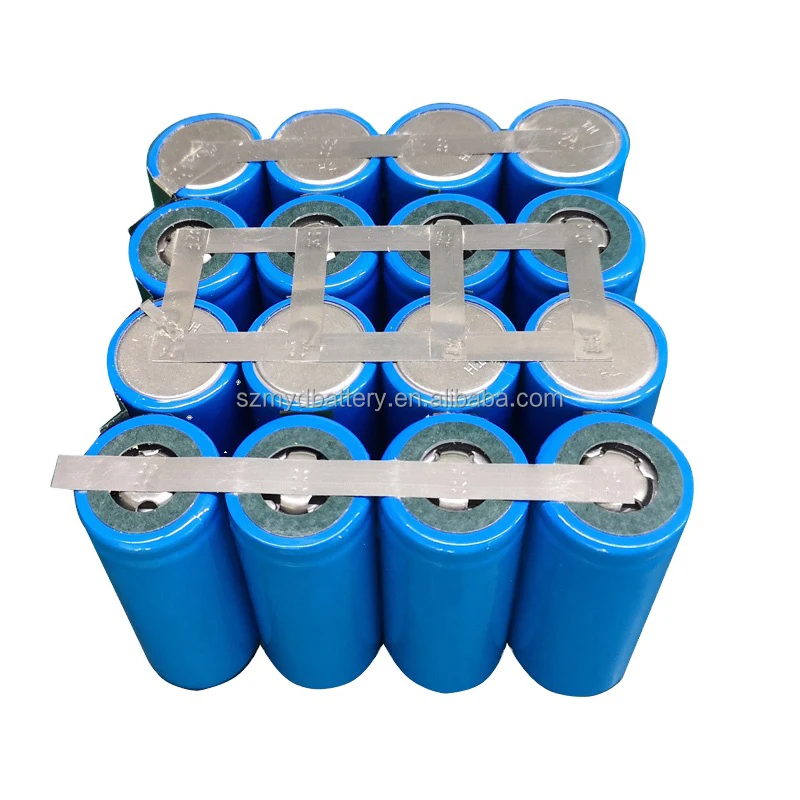

Structure | Cell & Format | IFR32700 N60, 4S17P |
Casing | ABS | |
Dimension(L*W*H*TH) | 328*172*215*220mm | |
Weight | 13.1KG | |
Terminal | M8 |

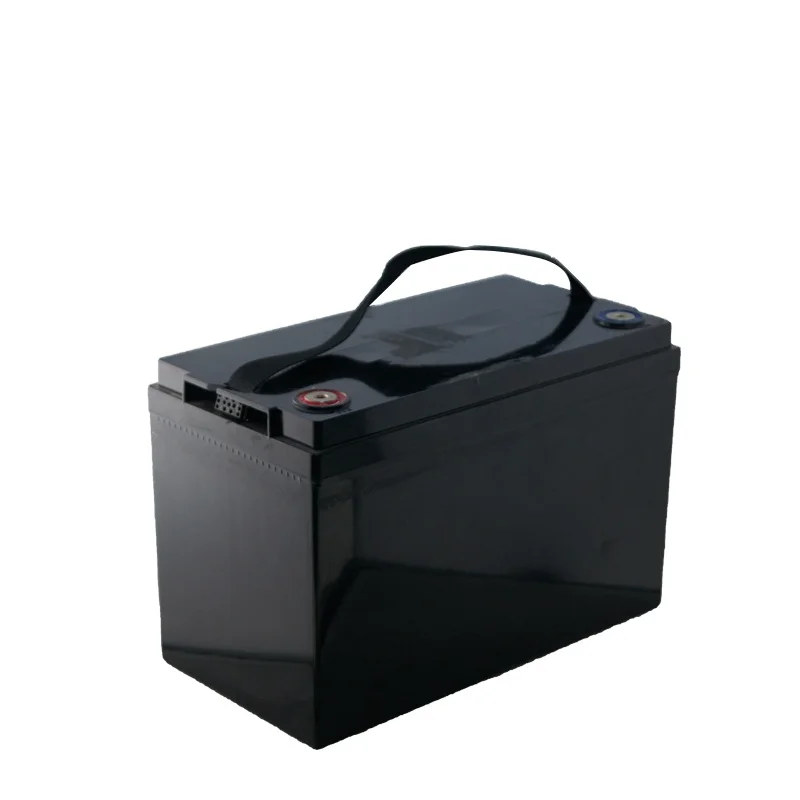

LiFepo4 Battery Pack for Sealed Lead Acid replacement |
Features:
* Grade A cells to make sure batteries in high and full capacity, long life cycle
* Extremely safe and stable chemistry: BMS or PCB built inside to protect the battery over charge and discharge, over current and over temperature, internal cell balancing.
* Batteries can be customized according to customer requirements, such as voltage, capacity.
* Maintenance-free and no acid or water for maintenance in usage
* Wide operating temperature: High temperature resistance(-20~60 degrees Celsius).
* Steady performance: High power output, low self-discharge rate, less than 3% monthly.
* No memory effects and highly efficient charge: It can be recharged anytime, no reduction of the capacity.
* Green product: Environment friendly, clean and green energy, no pollution on our environment.
* Lighter weight: about 40%~50% of the weight of a comparable lead acid battery.
* Replacement for Sealed Lead Acid battery, ready for installation.
* >2000 cycles @0.2C, Charge/discharge at 100% DOD, end of life 70% capacity, efficient & long-lasting up to 7000+ cycles.
* Extremely safe and stable chemistry: BMS or PCB built inside to protect the battery over charge and discharge, over current and over temperature, internal cell balancing.
* Batteries can be customized according to customer requirements, such as voltage, capacity.
* Maintenance-free and no acid or water for maintenance in usage
* Wide operating temperature: High temperature resistance(-20~60 degrees Celsius).
* Steady performance: High power output, low self-discharge rate, less than 3% monthly.
* No memory effects and highly efficient charge: It can be recharged anytime, no reduction of the capacity.
* Green product: Environment friendly, clean and green energy, no pollution on our environment.
* Lighter weight: about 40%~50% of the weight of a comparable lead acid battery.
* Replacement for Sealed Lead Acid battery, ready for installation.
* >2000 cycles @0.2C, Charge/discharge at 100% DOD, end of life 70% capacity, efficient & long-lasting up to 7000+ cycles.
Company Profile
1. MYD established in 2007, with rich researching & manufacturing experience on new energy rechargeable batteries 2. We specialized in Lithium ion battery cathode and magnet material, rechargeable Lithium ion battery cell, customized battery pack
3. Main product includes: LiFePO4 battery, Li-ion battery, Li-polymer battery, and Nimh/Nicd battery
4. Our company can offer customize service from battery cell to finished battery pack
5. Factory improves own Quality Assurance System according to ISO9001:2015 strictly, in order to guarantee the products’ quality
FAQ
1. How about the quality&warranty time?
All Lifepo4 products provided 24 months waranty. Welcome to purchase via Alibaba Trade Assurance.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How about the lead time?
For sample, it needs about 7-10days, for official order, it needs 20-25days.
4. How long of the shipping time?
It always need 3-10 days by express such as DHL and UPS, 15-50 days by China Post , 20-35 days by sea.
5. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided.
All Lifepo4 products provided 24 months waranty. Welcome to purchase via Alibaba Trade Assurance.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How about the lead time?
For sample, it needs about 7-10days, for official order, it needs 20-25days.
4. How long of the shipping time?
It always need 3-10 days by express such as DHL and UPS, 15-50 days by China Post , 20-35 days by sea.
5. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided.
