High Quality Pick Place Machine Chip Mounter HC-DU400 With 4 Heads+64 Feeders+6 Cameras
20mm High components can be mounted

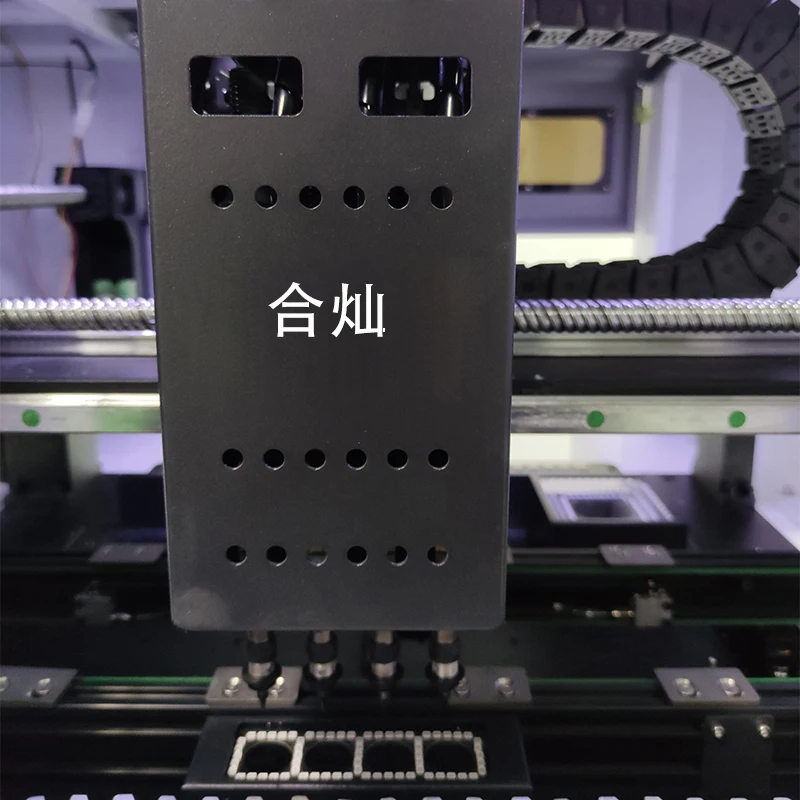

Simultaneous recognition and picking with four heads
Three-stage entry，automatic connection from left to right，automatic PCB
We are original manufacturer
supply 100% original product and good price
for PCB,SMT,SMD,LED Line
Feature
1.Precise vision system:More quickly identify components and reduce mounting errors,Positioning Accuracy is 0.01mm
2.Main configuration:Vertical type + PCB auto delivery + 4 Heads + 64 feeders + imported servo motor + imported high-speed DSP drive + 6 cameras + Taiwan TBI guide rail + Screw Guide
3.Component:0201,0402, 0603, 0805, 1206, diode, audio, SOT, QFP... etc. Within 40*40mm and the pin distance≥0.3mm and BGA.
4.Powerful software system:our engineers are from Intel.study on optimization problem and solving method of load balancing in a SMT line. the engineer's design idea for low volume SMT assembly system is described.
2.Main configuration:Vertical type + PCB auto delivery + 4 Heads + 64 feeders + imported servo motor + imported high-speed DSP drive + 6 cameras + Taiwan TBI guide rail + Screw Guide
3.Component:0201,0402, 0603, 0805, 1206, diode, audio, SOT, QFP... etc. Within 40*40mm and the pin distance≥0.3mm and BGA.
4.Powerful software system:our engineers are from Intel.study on optimization problem and solving method of load balancing in a SMT line. the engineer's design idea for low volume SMT assembly system is described.

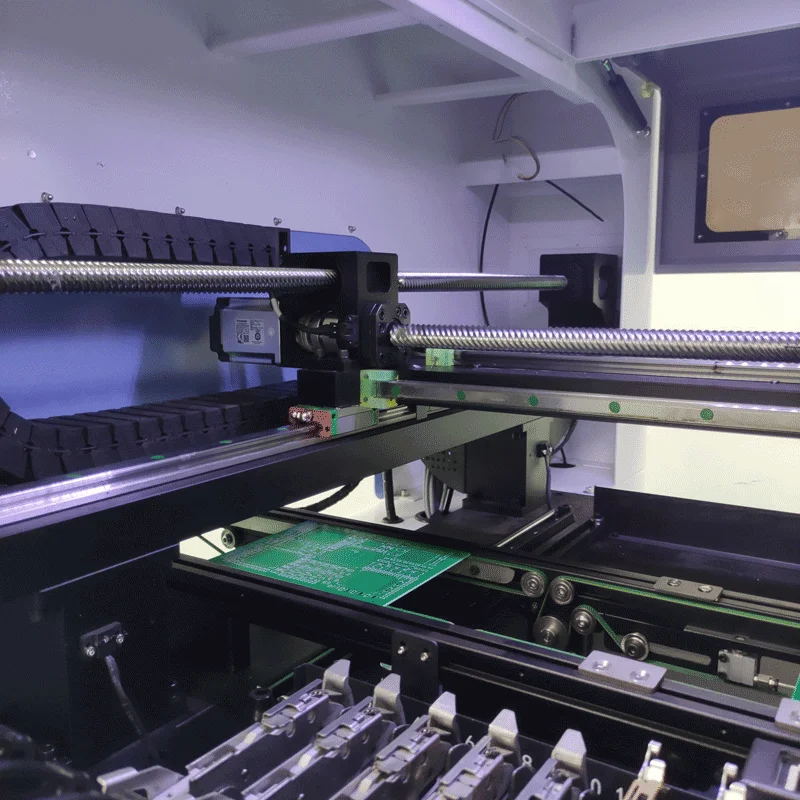

5.Precision Ball Screw and Linear Motion Guide:The use of imported precision ball screw and linear motion guide,will bring long term maintenance-free operation, high accuracy and noise-free running ,improves the machine performance effectively.Guarantee the mounting accuracy of 0201-0402,QFN QFP and BGA.Achieve high stability of 24-hour continuous work with out downtime,considerably improving the productivity.
Specification | ||
Model | DU400 | |
Number of placement heads | 4(high-accuracy) | |
Number of feeder positions | 64(subject to 8mm feeder) | |
Number of cameras | 6 Mark camera----------------1 Fast recognition camera--4 High-precision camera----1 | |
Number of trays | Support up to 48 | |
Positioning accuracy | 0.01mm | |
Repeated Mounting Accuracy | 0.025mm | |
Applicable Components | resistor/capacitor/chip/lamp bead etc. | |
Supported Maximum Area of PCB | 510*450mm | |
Feeders | electric, pneumatic，vibration feeder,IC tray etc | |
Range of Mounting Speed | 7000-9000cph | |
Maximum Height of Applicable Components | ≤20mm | |
Recognition Methods | Simultaneous recognition and picking with four heads | |
Driver | Imported high-speed DSP driver | |
XYZ drive guide rail | Taiwan Shangyin high-precision heavy-duty linear guide rail | |
Applicable mounting range | Suitable for 0201, 0402, 0603, 0805, 1206, diode, triode, SOT, and QFP, BGA, etc.with lead pitch ≥0.3mm (pin center distance 0.5mm) | |
PCB entry mode | Three-stage entry automatic connection from left to right,automatic PCB | |
Programming method | Automatic programming after manually importing files of PCB coordinates | |
Intelligent alarm | Automatic correction, automatic replacement, shortage alarm | |
Suction nozzle vacuum source | Japan CKD contains a high-speed vacuum generator with vacuum destruction | |
Drive mode | 2040 grinding screw to ensure motor life and mounting efficiency. | |
X / Y operation mode | Intelligent curve acceleration and deceler | |
Range of Angle for Components | 士180° | |
MARK point positioning | Fully automatic (the MARK point can be set arbitrarily) | |
Operating system | Based on windows xp, win7, software of machine independently developed by OURSELF | |
Visual display | 17-inch industrial control display ratio 4: 3 resolution 1280x1024 | |
Power supply | 220/110V 50/60Hz | |
Average power | 600W | |
Compressed air | 0.5-0.6Mpa | |
Minimum exhaust volume of the air supply source | 80-120L / min, the volume is more than 60L | |
Air source quality requirements | Oil water filter;≥60L,dust filter and air pressure stabilizer etc | |
Product weight | 580KG | |
Three-section track automatic conveying board
Automatic board in and out system, higher mounting efficiency, automatic PCB board transfer and positioning
Automatic optimization of feeders' installation positions tackles the problem of tedious mannual distribution perfectly
Intelligent optimization makes the troublesome distribution of multiple components' feeding more efficient and logical, compared with the traditional manual method.
Automatic optimization of nozzles' installation sequence
Select nozzle models intelligently according to BOM, and update the position number of corresponding nozzle in the program synchronously.

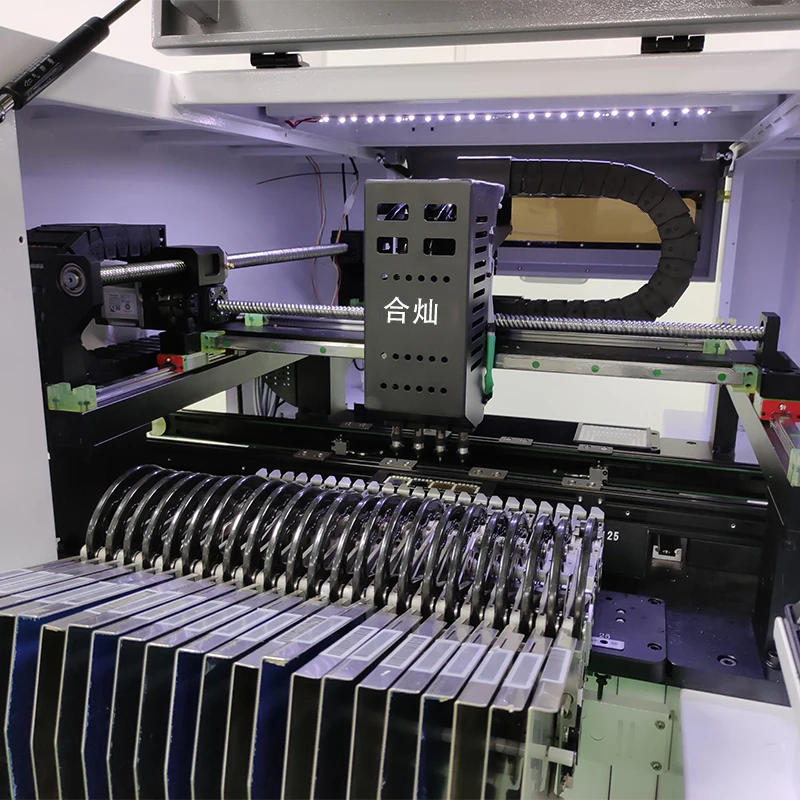

Concurrent picking with multiple heads,which maximize the efficiency of picking
The seamless connection between feeding and picking is achieved by the one-click optimization implemented by intelligent algorithms.
Automatic calibration of feeder picking coordinates
The meaning of this function: It can save 30% programming time costs and greatly improve efficiency by fast,efficient and accurate one-click operation.
Full automatic layout of the shortest path for mounting
Using the system's intelligent algorithm, HuaweiGuochuang mounting system can help you make it with just one click instead of conducting tests and distributing the complex and massive layout by hand.
Three-stage entry
In order to save time costs as much as possible and realize high energy efficiency, we divide the entry process into three stages including waiting stage, mounting stage and exiting stage for finished products.
Area name

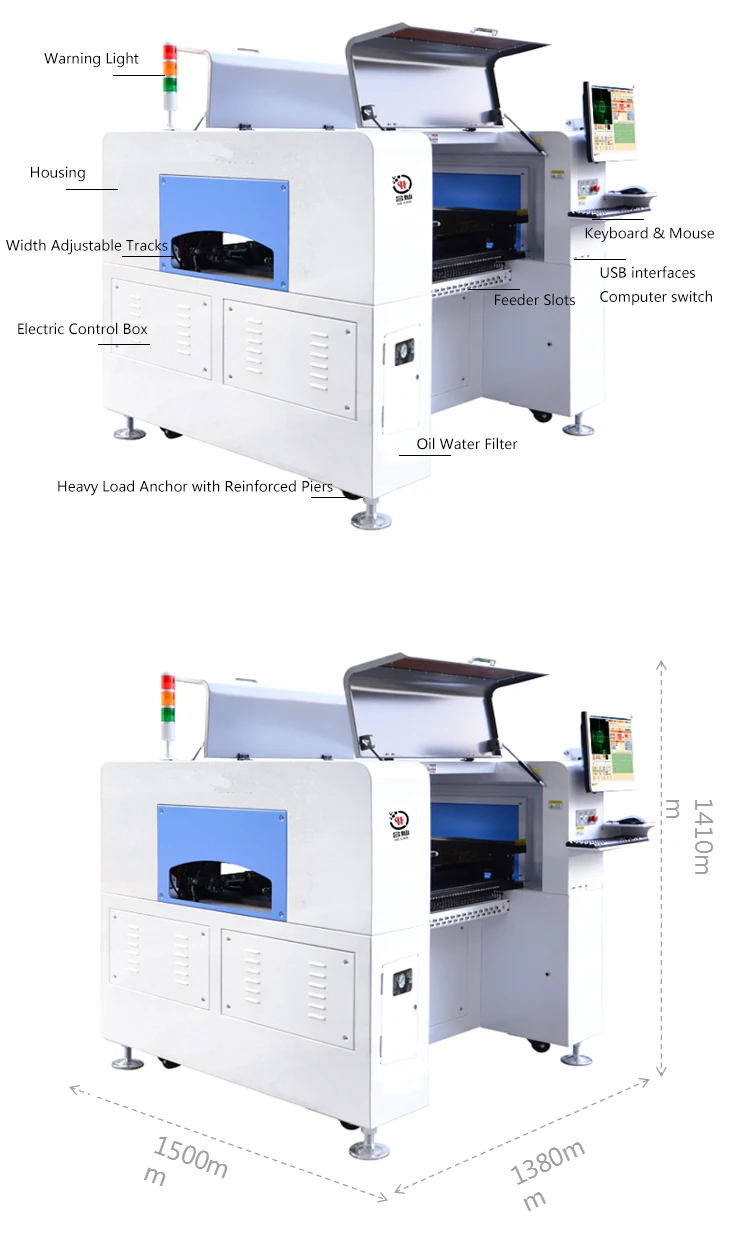

1.Housing 2.Placement Heads 3.Pneumatic Support Bar 4.Safety shield 5.Flexible Silent Cable Carrier 6.Feeder Slots 7.Servo Motor of Y Axis 8.Ground Ball Screw of Y Axis 9.Servo Motor of X Axis 10.Linear Motion Guide of Y Axis 11.Linear Motion Guide of X Axis 12.Ground ball screw of X axis 13. 5MP HD Camera 14.1MP Fast HD Camera 15.Waiting Area 16. Mounting Area 17. Exiting Area
Industrial Computer
17-inch display,keyboard amd mouse.
User-friendly OS already installed,supports WinXP / Win7, vision programming and PCB file importing etc.
User-friendly OS already installed,supports WinXP / Win7, vision programming and PCB file importing etc.
High Durable Cable Carrier and Flexible Cable
Use the same type of cable carriers bearing up to 10 million constant motions as imported machines.
Igus flexible cables designed for industrial motion applicati-on,which can resist a range of dangerous conditions, like extre-me temperatures and oil, and can handle any type of motion, including horizontal, torsional or high speed, ensure the reliab-le connection of the electrical circuit in high-speed reciprocati-ng motion.
Igus flexible cables designed for industrial motion applicati-on,which can resist a range of dangerous conditions, like extre-me temperatures and oil, and can handle any type of motion, including horizontal, torsional or high speed, ensure the reliab-le connection of the electrical circuit in high-speed reciprocati-ng motion.

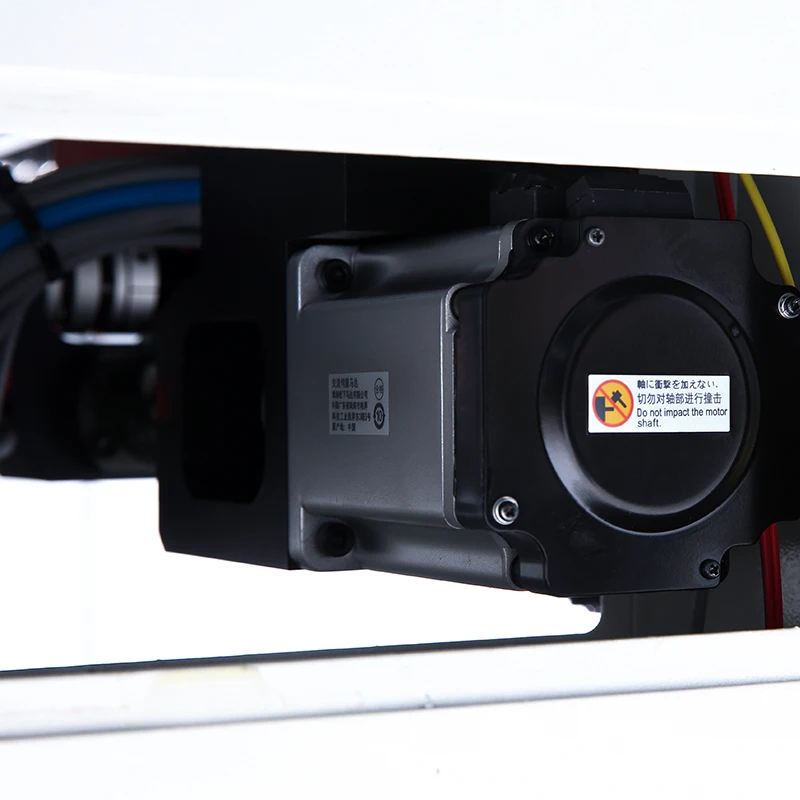

Imported Servo Motor
High precision, strong stability
promise mounting stably all the time
Screw Guider
High precision Quick speed
Workshop
Package
FAQ
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual, the user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training video and user manual, the user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation
A:YES, we will update machine and will send you at first time
Q：Do you have any operation videos to watch?
A：We provide customers with special operation videos. If you don't understand anything, you can contact us and will arrange engineers to shoot the specified videos.
Q: What kind of maintenance is needed?
A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we
will support this oil)
A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we
will support this oil)
Service
If you wanna know more, feel free to contact me directly
Mail/Skype：smtmachines@hcpnp.com
Tel/Wechat/WhatsApp：+8618367786556/+8615858886852
Mail/Skype：smtmachines@hcpnp.com
Tel/Wechat/WhatsApp：+8618367786556/+8615858886852
