Пружинный контактный Электрический высоковольтный проводящий пружинный катушечный осевой радиальный бериллиевый медный палец
- Категория: >>>
- Поставщик: Tianjin Lantoo International Trade Co. Ltd.Tianjin Ltd.
Сохранить в закладки 1600386798291:
Описание и отзывы
Характеристики
Specification
Product Name | Spring contact finger electric high voltage conductive canted coil spring axial radial spring beryllium copper contact finger spring |
Wire Diameter | 0.1 mm-3 mm |
Customizable | Customized springs can be produced by drawings, samples or specification |
Surface Treatment | Gold plated,Silver plated,Nickel plated,Tinning or at customers' request |
Application | Industry,Electrical,New energy,Medical treatment |
Certificate | ISO9001:2015 / ISO9001 / ROHS / IATF16949 |
MOQ | Any small trial order is welcomed |
Delivary Time | Normally 7-15 workdays or based on purchase quantity |
Payment Terms | 30% T/T deposit, 70% against copy of B/L |
Samples | Samples is free of charge |
Keywords | Manufacturer axial radial spring canted coil spring spring finger |
Product Description

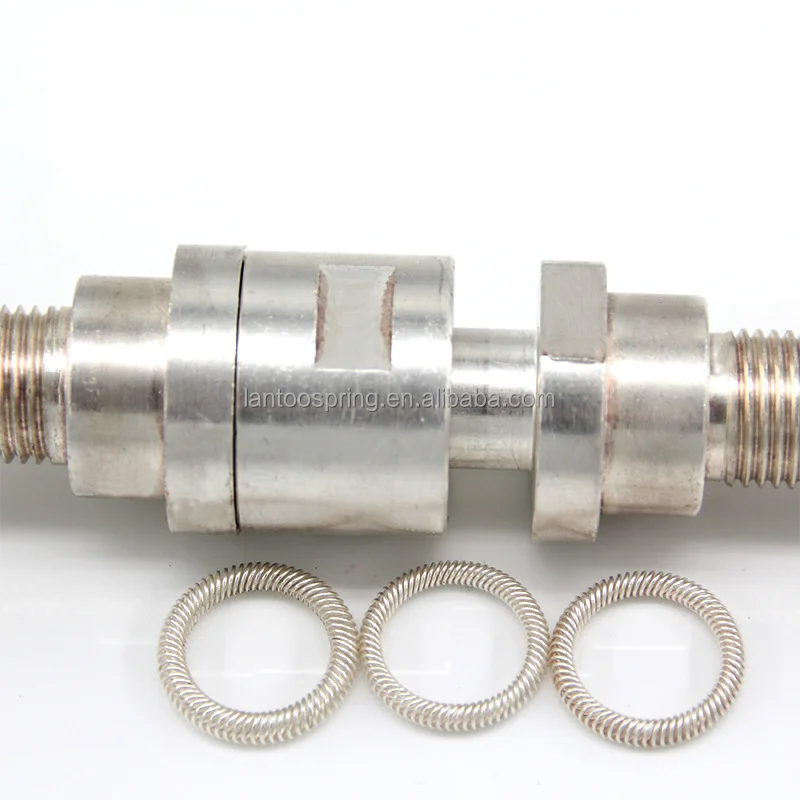

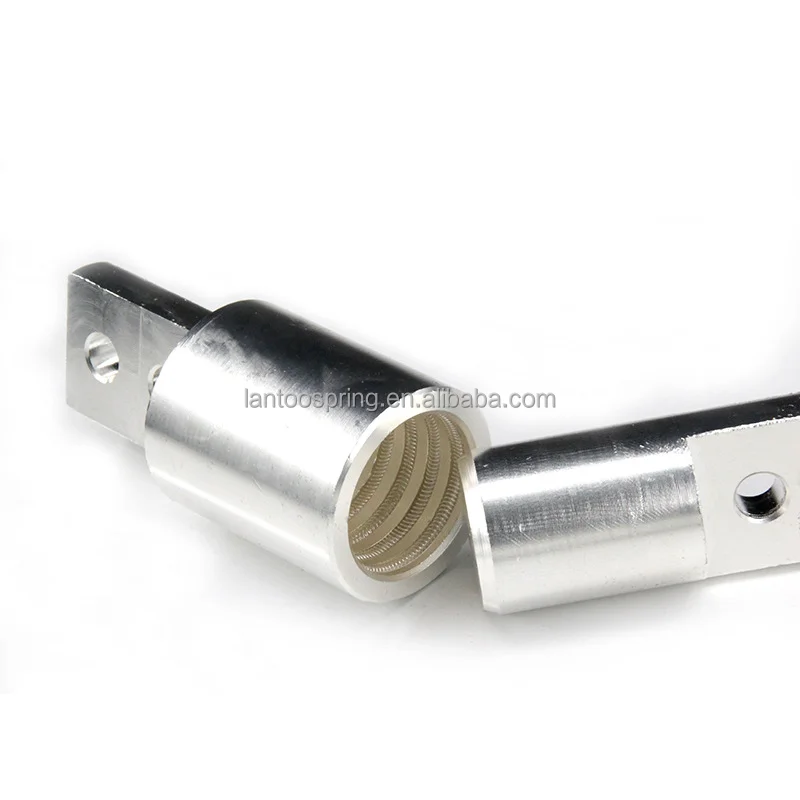

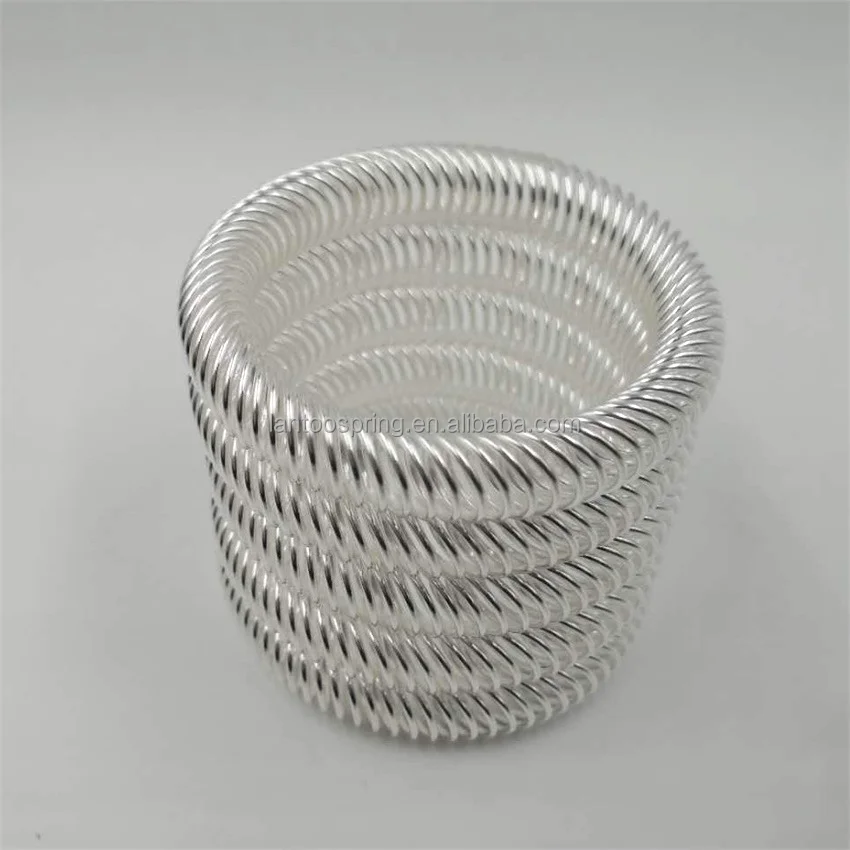

The canted coil spring
is also called spring contact finger, contact finger spring, and touch spring. The spring contact finger is a ring spring, which can transmit high current in a small space and can also be used as a pure mechanical connection. There are no restrictions on its use, and it is suitable for use in a variety of static or dynamic medium and high pressure environments. It can be used in the robotics industry, automotive industry, aerospace industry, petrochemical industry, medical industry, submarine industry, and so on. The wire coil is elliptical and inclined. When compressed, each coil will deform independently. No matter which part of the coil deforms, the entire spring will react to achieve the same load on each contact point. .
The size of the oblique coil contact finger and the independent number of coil turns make the spring suitable for various electrical contact designs, and use a larger contact point as the current-carrying capacity for electrical or EMI shielding. Each coil will independently compensate for contact and surface changes, which allows for wider tolerances between accessories. Multiple contact points increase conductivity, and its operating temperature is relatively low, so it has a longer service life. Spring finger technology is used for power contacts in various industries.
The size of the oblique coil contact finger and the independent number of coil turns make the spring suitable for various electrical contact designs, and use a larger contact point as the current-carrying capacity for electrical or EMI shielding. Each coil will independently compensate for contact and surface changes, which allows for wider tolerances between accessories. Multiple contact points increase conductivity, and its operating temperature is relatively low, so it has a longer service life. Spring finger technology is used for power contacts in various industries.

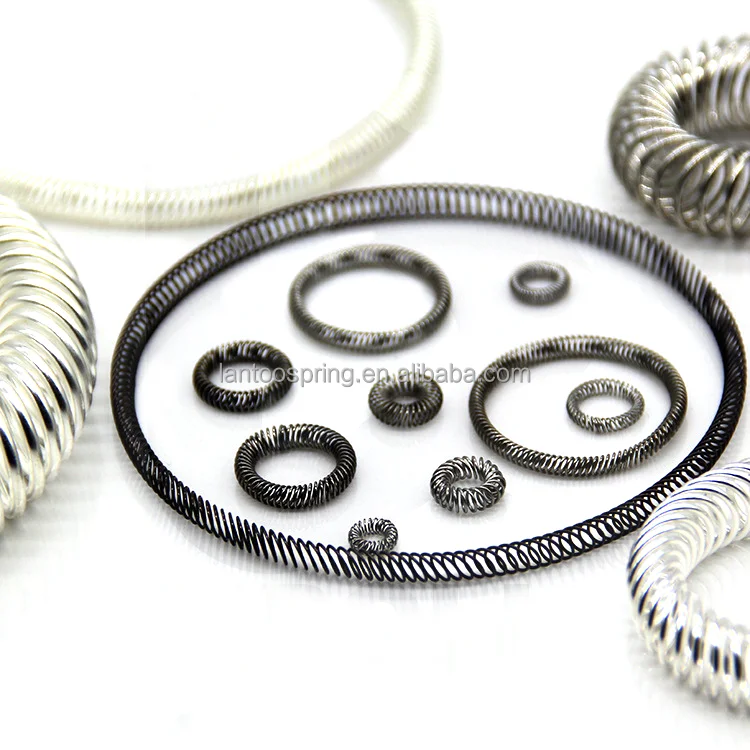

Lantoo Canted Coil Spring
1. Simple structure, small size, less materials, and low cost; it meets the requirements of small space and size in device design, and is suitable for compact design.
2. Multi-point contact, high concentration, can achieve almost lossless contact. Ensure large current carrying capacity; good electrical conductivity, high electrical and thermal stability.
3. The contact pressure of each contact point is not high, and it has good wear resistance.
4. The unique structure allows it to have a wide range of work;.
2. Multi-point contact, high concentration, can achieve almost lossless contact. Ensure large current carrying capacity; good electrical conductivity, high electrical and thermal stability.
3. The contact pressure of each contact point is not high, and it has good wear resistance.
4. The unique structure allows it to have a wide range of work;.
Part Number | Wire Size (mm) | Inside Diameter(mm) | Outside Diameter(mm) | H(mm) | W(mm) | Turns |
LT0238-0015-028 | 0.15 | 2.38+-0.08 | 4.08 | 0.85+-0.08 | 1.20+-0.08 | 28 |
LT0280-0015-034 | 0.15 | 2.80+-0.08 | 5.2 | 1.20+-0.08 | 1.40+-0.08 | 35 |
LT0300-0015-034 | 0.15 | 3.00+-0.08 | 4.8 | 0.85+-0.08 | 1.20+-0.08 | 35 |
LT0300-0015-036 | 0.15 | 3.00+-0.13 | 5.4 | 1.20+-0.08 | 1.40+-0.08 | 37 |
LT0360-0015-042 | 0.15 | 3.60+-0.13 | 6 | 1.20+-0.08 | 1.40+-0.08 | 43 |
LT0400-0015-046 | 0.15 | 4.00+-0.13 | 6.4 | 1.20+-0.08 | 1.40+-0.08 | 47 |
LT0450-0015-047 | 0.15 | 4.50+-0.13 | 6.5 | 1.00+-0.08 | 1.20+-0.08 | 48 |
LT0460-0015-052 | 0.15 | 4.60+-0.13 | 7 | 1.20+-0.08 | 1.40+-0.08 | 53 |
LT0480-0015-053 | 0.15 | 4.80+-0.13 | 7.2 | 1.20+-0.08 | 1.40+-0.08 | 54 |
LT0600-0015-064 | 0.15 | 6.00+-0.18 | 8.4 | 1.20+-0.08 | 1.40+-0.08 | 65 |
LT0800-0015-082 | 0.15 | 9.00+-0.18 | 10.4 | 1.20+-0.08 | 1.40+-0.08 | 83 |
LT0586-0020-053 | 0.2 | 5.86+-0.18 | 15.2 | 1.60+-0.08 | 1.80+-0.08 | 54 |
LT0600-0020-053 | 0.2 | 6.00+-0.18 | 9.2 | 1.60+-0.08 | 1.80+-0.08 | 54 |
LT0700-0020-057 | 0.2 | 7.00+-0.18 | 9.96 | 1.48+-0.08 | 1.60+-0.08 | 58 |
LT0720-0020-067 | 0.2 | 7.20+-0.18 | 10.4 | 1.60+-0.08 | 2.00+-0.08 | 68 |
LT0800-0020-068 | 0.2 | 8.00+-0.18 | 11.3 | 1.60+-0.08 | 1.80+-0.08 | 69 |
LT0910-0020-075 | 0.2 | 9.10+-0.18 | 12.3 | 1.60+-0.08 | 1.80+-0.08 | 76 |
LT1000-0020-081 | 0.2 | 10.00+-0.2 | 13.2 | 1.60+-0.08 | 1.80+-0.08 | 82 |
LT2000-0020-095 | 0.2 | 12.00+-0.2 | 15.2 | 1.60+-0.08 | 1.80+-0.08 | 96 |
LT1000-0025-068 | 0.25 | 10.00+-0.2 | 14 | 2+-0.08 | 2.3+-0.08 | 69 |
LT1100-0025-074 | 0.25 | 11.00+-0.2 | 15 | 2+-0.08 | 2.3+-0.08 | 75 |
LT1200-0025-080 | 0.25 | 12.00+-0.2 | 16 | 2+-0.08 | 2.3+-0.08 | 81 |
LT1300-0025-085 | 0.25 | 13.00+-0.25 | 17 | 2+-0.08 | 2.3+-0.08 | 86 |
LT1400-0025-092 | 0.25 | 14.00+-0.25 | 18 | 2+-0.08 | 2.3+-0.08 | 93 |
LT1500-0025-097 | 0.25 | 15.00+-0.25 | 19 | 2+-0.08 | 2.3+-0.08 | 98 |
LT2000-0025-125 | 0.25 | 20.00+-0.25 | 24 | 2+-0.08 | 2.3+-0.08 | 126 |
LT2200-0025-137 | 0.25 | 22.00+-0.25 | 26 | 2+-0.08 | 2.3+-0.08 | 138 |
LT1000-0030-060 | 0.3 | 10.00+-0.25 | 14.8 | 2.4+-0.08 | 2.7+-0.08 | 61 |
LT1200-030-070 | 0.3 | 12.00+-0.25 | 16.8 | 2.4+-0.08 | 2.7+-0.08 | 71 |
LT1400-030-079 | 0.3 | 14.00+-0.25 | 18.8 | 2.4+-0.08 | 2.7+-0.08 | 80 |
LT1500-0030-084 | 0.3 | 15.00+-0.25 | 19.8 | 2.4+-0.08 | 2.7+-0.08 | 85 |
LT1600-0030-090 | 0.3 | 16.00+-0.25 | 20.8 | 2.4+-0.08 | 2.7+-0.08 | 91 |
LT1700-0030-094 | 0.3 | 17.00+-0.25 | 21.8 | 2.4+-0.08 | 2.7+-0.08 | 95 |
LT1800-0030-098 | 0.3 | 18.00+-0.25 | 22.8 | 2.4+-0.08 | 2.7+-0.08 | 99 |
LT2000-0030-108 | 0.3 | 20.00+-0.25 | 24.8 | 2.4+-0.08 | 2.7+-0.08 | 109 |
LT3320-0030-175 | 0.3 | 33.20+-0.25 | 38 | 2.4+-0.08 | 2.7+-0.08 | 176 |
Recommend Products
Company Profile
Tianjin Lantoo International Trade Co.,Ltd.,
Founded in 2008, our company is a high-quality manufacturing enterprise integrating design, production, sales and service. Specialized in high precision hardware parts, springs, hose clamps, stamping components, We are offering OEM service for global customers, also can make designs to follow your ideas, product requirements.Committed to helping customers from all walks of life meet current and future social needs, in order to actively explore domestic and foreign markets, accelerate industrial upgrading and product structure adjustment, we have fully automatic spring coiling machines, spring grinding machines, tempering furnaces, quenching furnaces, and more than 10 sets of various advanced CNC machinery to meet the market's highest requirements for functions.
Packing & Delivery
FAQ
1. Are you factory or trading company?
We are spring factory in Tianjin.
2. What’s the MOQ?
It depend on the size and complexity of the process, usually MOQ is 10pcs for normal size.
3. What’s the payment term?
T/T 30% deposit and 70% balance against copy of BL.
4. What’s the delivery time?
Quantity≤1000-3000pcs, it takes 12-15 days.
Quantity≥3000-5000pcs, it takes 15-20 days.
5. What’s the payment method?
T/T, L/C, western union , paypal are all available.
6. Can i get one sample?
Yes, sample is free if amount not too much, you only afford the freight.
7. What information should i provide for quote?
Please send specification or drawing or samples if you have.And your special requirement, such as material, surface treatment,tolerance, quantity, package.
We are spring factory in Tianjin.
2. What’s the MOQ?
It depend on the size and complexity of the process, usually MOQ is 10pcs for normal size.
3. What’s the payment term?
T/T 30% deposit and 70% balance against copy of BL.
4. What’s the delivery time?
Quantity≤1000-3000pcs, it takes 12-15 days.
Quantity≥3000-5000pcs, it takes 15-20 days.
5. What’s the payment method?
T/T, L/C, western union , paypal are all available.
6. Can i get one sample?
Yes, sample is free if amount not too much, you only afford the freight.
7. What information should i provide for quote?
Please send specification or drawing or samples if you have.And your special requirement, such as material, surface treatment,tolerance, quantity, package.
8. How is your service
We will respond to you within 24 hours. We can manufacture nonstandard parts according to your drawings. And we offer best after sale service low price: The price of our products is reasonable and competitive than other manufactures.
We will respond to you within 24 hours. We can manufacture nonstandard parts according to your drawings. And we offer best after sale service low price: The price of our products is reasonable and competitive than other manufactures.
Contact Us
Похожие товары

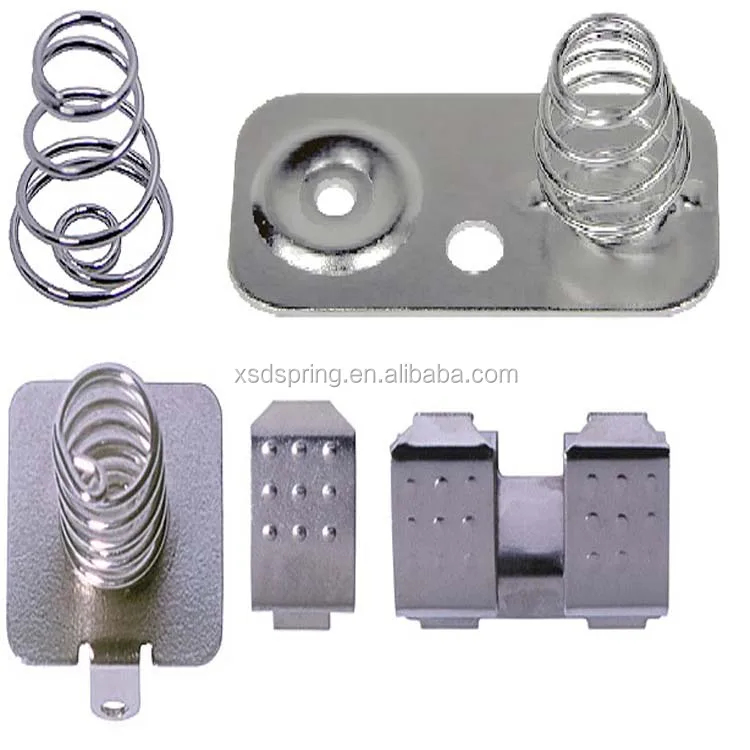

Настраиваемый 2 5 мм терминал дистанционного управления фонарик катушка Терминал Контакты Разъем металлический контактный аккумулятор пружина

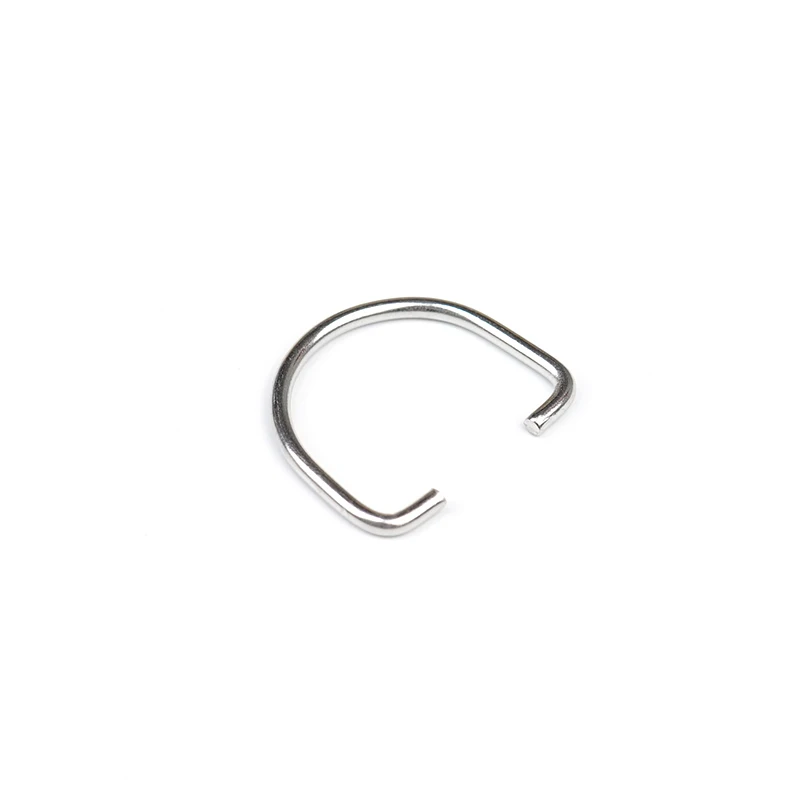

Производство Китай D-образное ручное кольцо OEM проволока формируя пружинную латунную нержавеющую сталь
0,01-0,15 $
OEM латунная проволока из нержавеющей стали штамповочный гвоздь
0,02-0,10 $
Спиологическая пружина для промышленного
11,00-12,50 $
Водонепроницаемый Кабельный разъем с пружинным покрытием PG кабельный контактом защитный высоковольтный
0,30-0,60 $
Подгонянный приводной вал углерода стали или нержавеющей
0,01-0,10 $

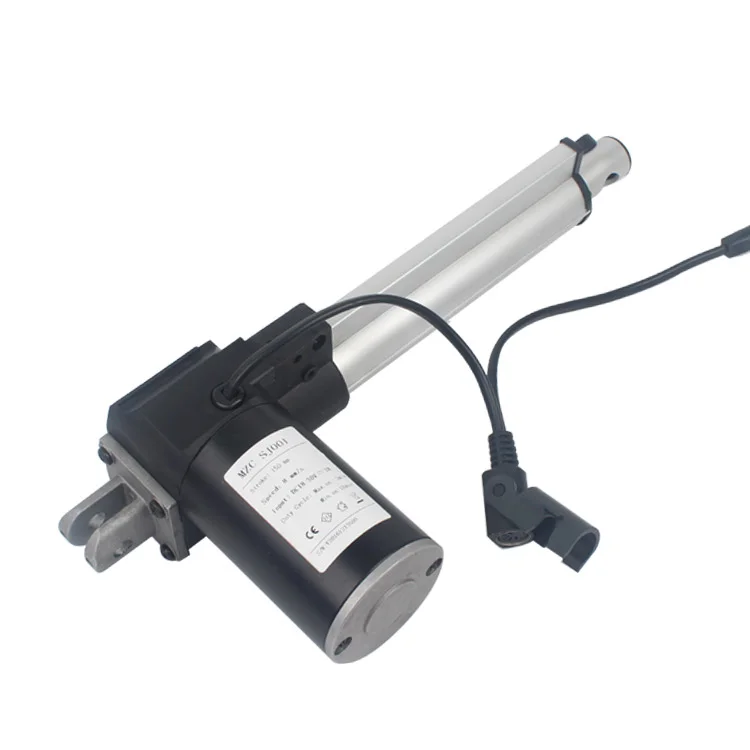

12/24V 20000N Heavy Duty солнечные панели трекер DC мотор с монтажным кронштейном электрический линейный привод
