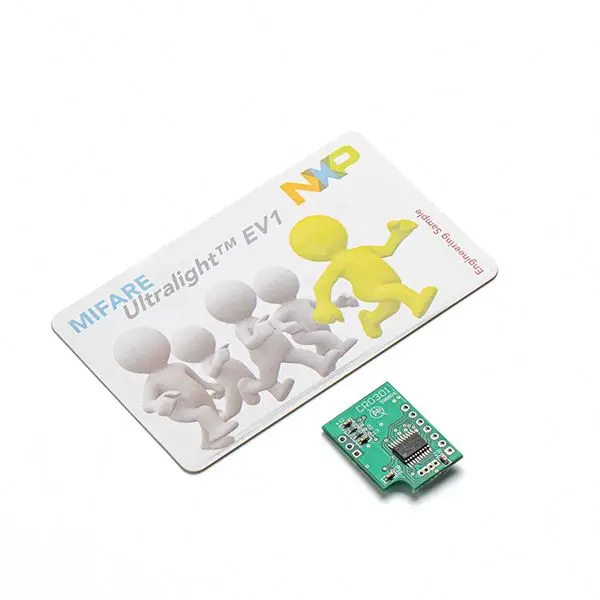

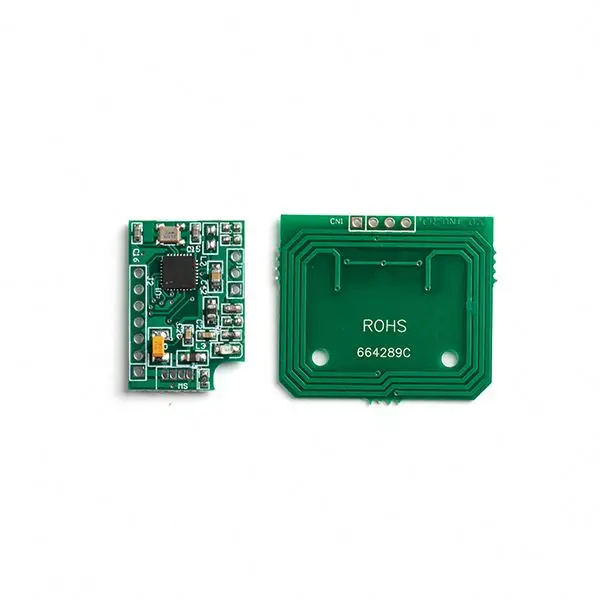

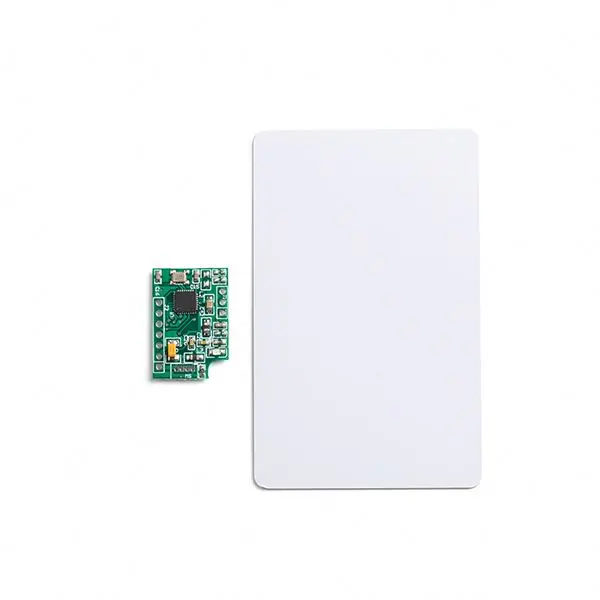

Сетевое устройство контроля доступа и времени посещаемости 26 7 мм * 18 2 6 3 6 В постоянного тока 13 56 м считыватель мини модуль считывания
- Категория: >>>
- Поставщик: Beijing ChinaReader Technology Co. Ltd.
Сохранить в закладки 1600388527120:
Описание и отзывы
Характеристики
Products Display
PRODUCT DESCRIPTION
Our company is a leading RFID (2.45G 13.56M 125K / 134.2K) ODM/OEM
supplier, designing and manufacturing RF antennas, contactless RFID
modules, especially in terms of RF antennas. ChinaReader is committed to
promoting the development of RFID technology. Our products mainly include
radio frequency cards, magnetic cards, smart cards, RFID readers, RFID
reader modules, The operating frequencies of the RFID development kit and
TYPE A/B products are 125KHZ, 134.2KHZ and 13. 56MHZ, respectively.
Application scopes
* e-Government
* Banking & Payment
* Access Control Time Attendance
* Network Security
* e-Purse & Loyalty
* Transportation
* Kiosk
* Intelligent Meters
* Banking & Payment
* Access Control Time Attendance
* Network Security
* e-Purse & Loyalty
* Transportation
* Kiosk
* Intelligent Meters

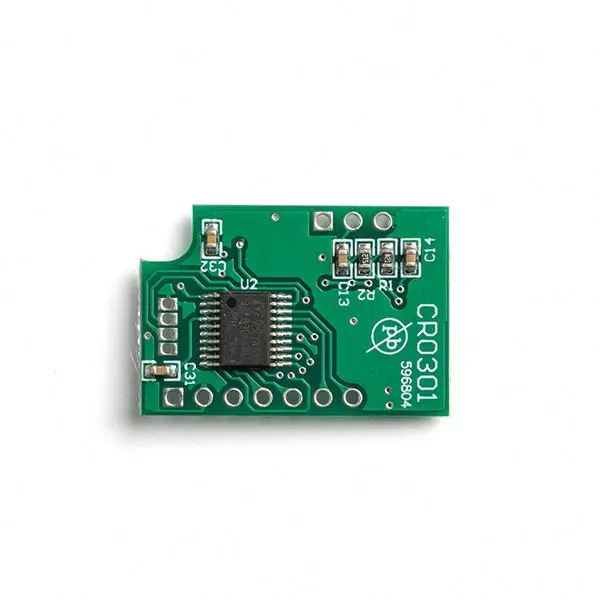

CR0301A Descripetion
Pin Description
Pin | Name | description |
1 | VCC | 2.5-3.6 v |
2 | GND | GND |
3 | Wake | Interrupt Wake signal |
4 | RXD | UART RXD |
5 | TXD | UART TXD |
6 | SCL | I2C SCL(CR030I2C) |
7 | SDA | I2C SDA(CR030I2C) |
A1 | Ant Tx | Antenna Tx |
A2 | Ant Rx | Antenna Rx |
A3 | Ant Gnd | Antenna GND |
Feature
Parameter | Min | Type | Max | Units |
voltage | 2.5 | 3.0 | 3.6 | V |
Current(Working) | 40 | 60 | ma | |
Current(Sleep) | <10 | microamp | ||
Initialization time | 50 | 200 | MS | |
Opertating temperature | －25 | ＋85 | ℃ | |
Storage temperature | －40 | ＋125 | ℃ |
Application Scene
ENTRANCE GUARD
KOLLER SYSTEM / HOTEL EL EVATOR
KOLLER SYSTEM / HOTEL EL EVATOR
BUS/CAMPUS CARD
TRANSPORTATION PAYMENT SYSTEM
TRANSPORTATION PAYMENT SYSTEM
MOBILE NFC PAYMENT
MOBIL E PHONE PAYMENT AND
OTHER NFC OCCASIONS
MOBIL E PHONE PAYMENT AND
OTHER NFC OCCASIONS
SMART WATER
ELECTRIC METER
SWIPE CARD PAYMENT CHARGING SYSTEM
ELECTRIC METER
SWIPE CARD PAYMENT CHARGING SYSTEM
Product Category
About Us
Company Profile
Beijing ChinaReader Technology Co., Ltd. is a leading RFID (2.45G 13.56M 125K/134.2K) ODM/OEM provider, designing and manufacturing RF antennas and contactless RFID modules. We have made our commitment of resource investment, especially in RF antennas. With more than 30 R&D employees, we utilize superior engineering resource.ChinaReader is devoted to RFID technology's promotion. Our products mainly include RF cards, Magcards, Smart cards, RFID readers, RFID reader modules, RFID development kits, and TYPEA/B products operated at 125KHZ, 134.2KHZ, and 13.56MHZ. All our products are ISO14443 and ISO155693 certified. We also can make special RFID reader module kits and RFID reader modules under the requirements of customers.

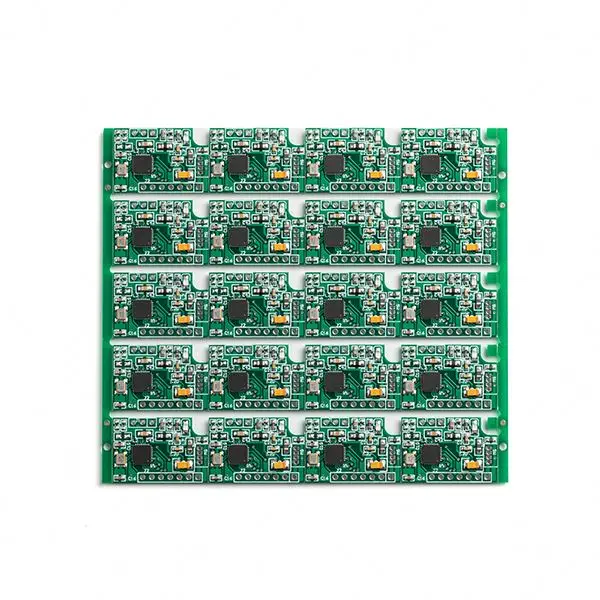

Prodution Runs
Certificate Show
All our products are ISO14443 and ISO155693 certified. We also can make special RFID
reader module kits and RF ID reader modules under the requirements of customers.
reader module kits and RF ID reader modules under the requirements of customers.
Logistics Package
PACKAGE AND TRANSPORTATION
Trading information
Trade Terms: EXW, FOB,CFR,CIF,FCA.
Payment terms: T/T,Paypal,Western,union,Casch,Escrow.
Delivery Time: 7-15 days for mass production, 2-3 days for samples.
Shipping: bulk order by sea, by air or by express delivery. Sample order by express delivery.
Trade Terms: EXW, FOB,CFR,CIF,FCA.
Payment terms: T/T,Paypal,Western,union,Casch,Escrow.
Delivery Time: 7-15 days for mass production, 2-3 days for samples.
Shipping: bulk order by sea, by air or by express delivery. Sample order by express delivery.
PACKAGE AND TRANSPORTATION
FAQ
Q:Do you offer OEM/ODM serive?
A:We have been offering OEM/ODMproduct to customers for many years, we have a large R&D group who can customize the hardware and software as your request.
Q:How can l order some samples?
A:Afetr confirming the module Nowth our salesyou can transfer the payment and we will send the samples to youWe can accept
T/Tpaypal and western union payment for samples,you can offer your shipment account to pick up the samples or prepay shipment cost
for us to arrange shipment.We always use DHL/FEDEX/UPS/TNT for the goods.
Q:Can you provide after sale technical support?
A:Yes,we have strong R&D group can provide after sale technical support service.
Q:How can l order some samples?
A:Afetr confirming the module Nowth our salesyou can transfer the payment and we will send the samples to youWe can accept
T/Tpaypal and western union payment for samples,you can offer your shipment account to pick up the samples or prepay shipment cost
for us to arrange shipment.We always use DHL/FEDEX/UPS/TNT for the goods.
Q:Can you provide after sale technical support?
A:Yes,we have strong R&D group can provide after sale technical support service.
Похожие товары

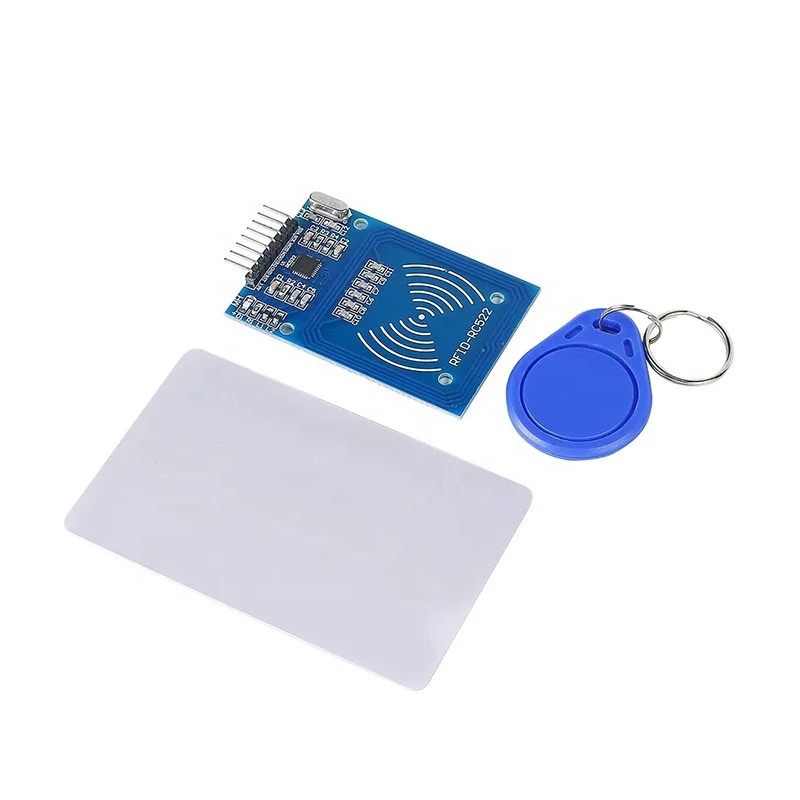

Комплект RFID Mifare RC522, модуль считывания RFID с белой картой S50 и кольцом для ключей для Arduino Raspberry Pi
2,31 $ - 2,64 $

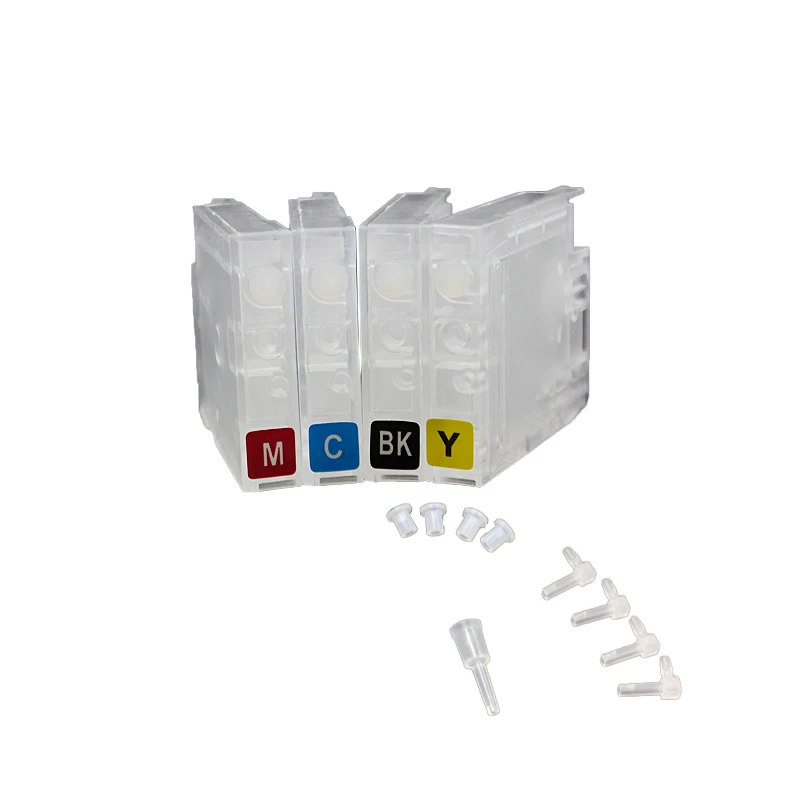

4 вида цветов пустой чернильный картридж ciss без чипа, совместимый с HP 711 для принтера HP DesignJet T120 T520
5,15 $ - 7,98 $
Подушка для отеля из микрофибры и полиэстера

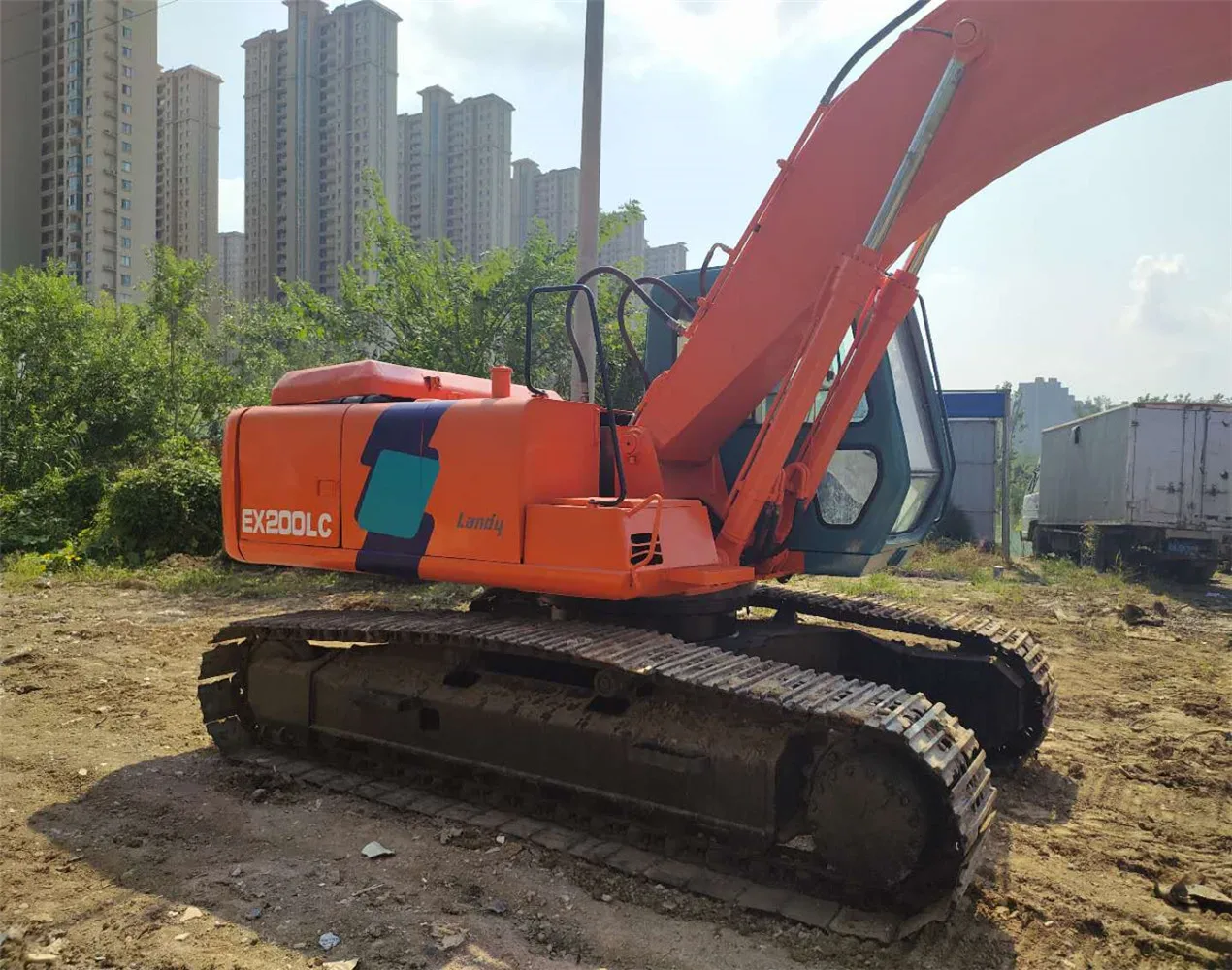

Б/у экскаватор Hitachi EX-200, экскаватор Hitachi, экскаваторная техника, электроэнергия и горная машина
15 800,00 $

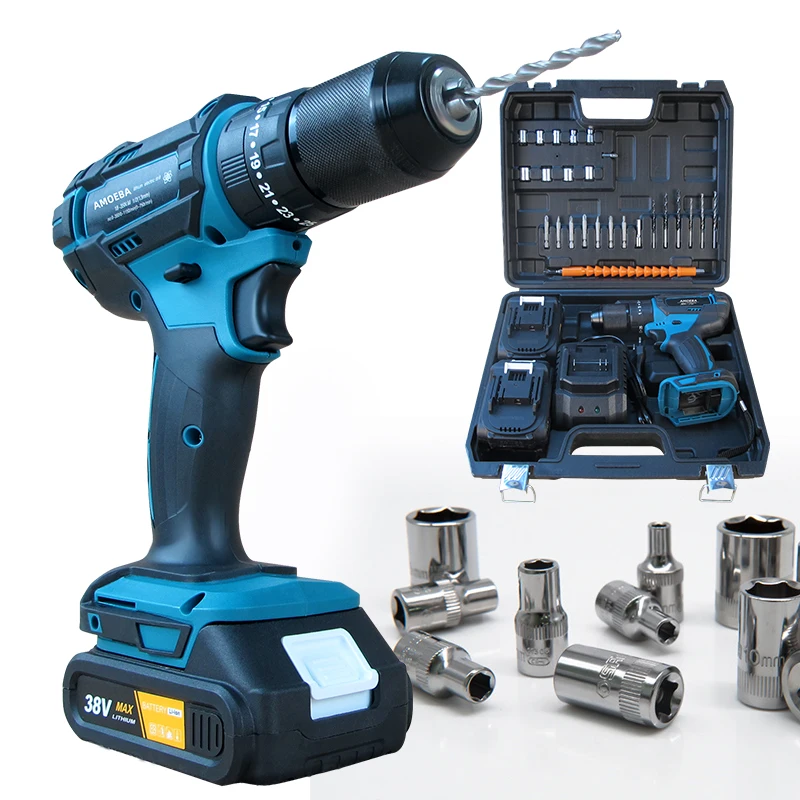

Новинка, ручные сверлильные станки, патрон 13 мм, 21 в, электрические дрели, электрическая портативная отвертка, сверлильные инструменты
8,50 $ - 12,00 $

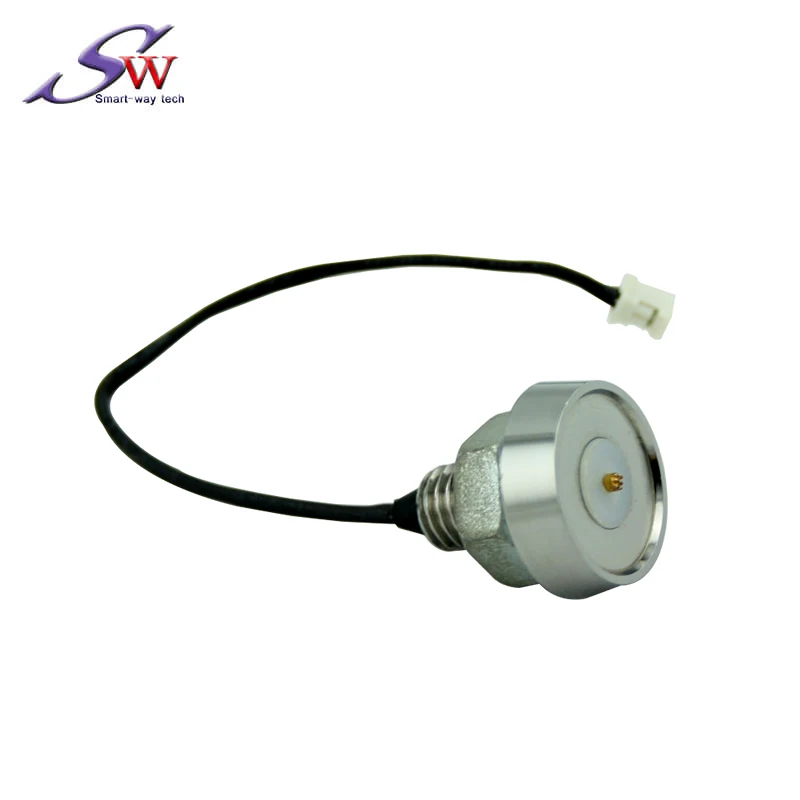

Магнитный датчик DS1990A TM1990A с железным кольцом, считывателем Ibutton для системы POS
2,60 $ - 3,50 $

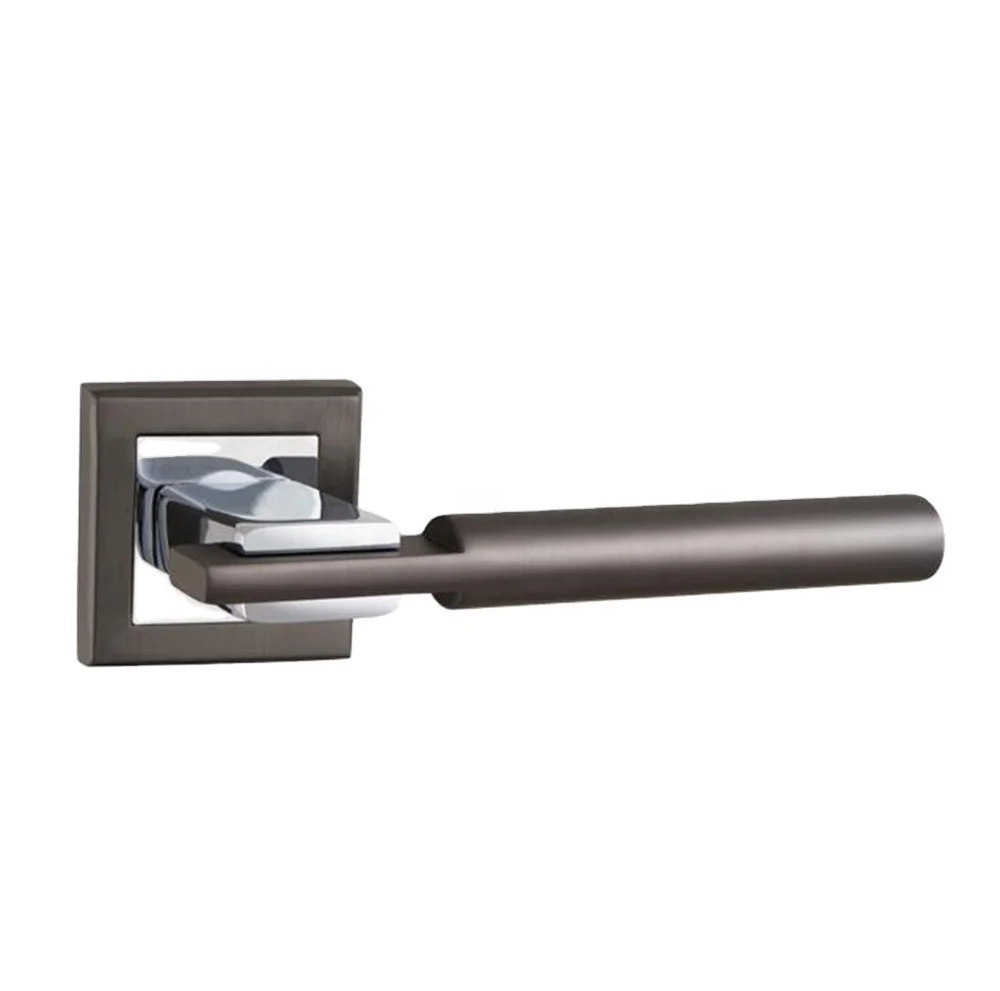

Дешевая цена, хорошее качество, алюминиевая дверная ручка
