Product Description

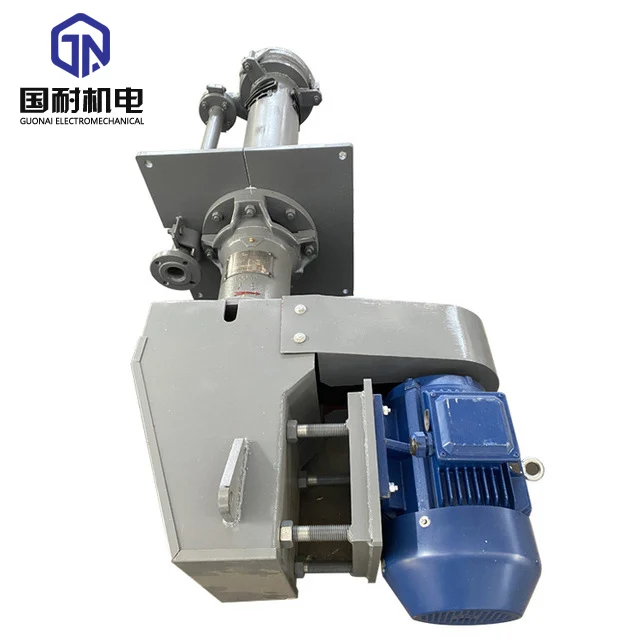

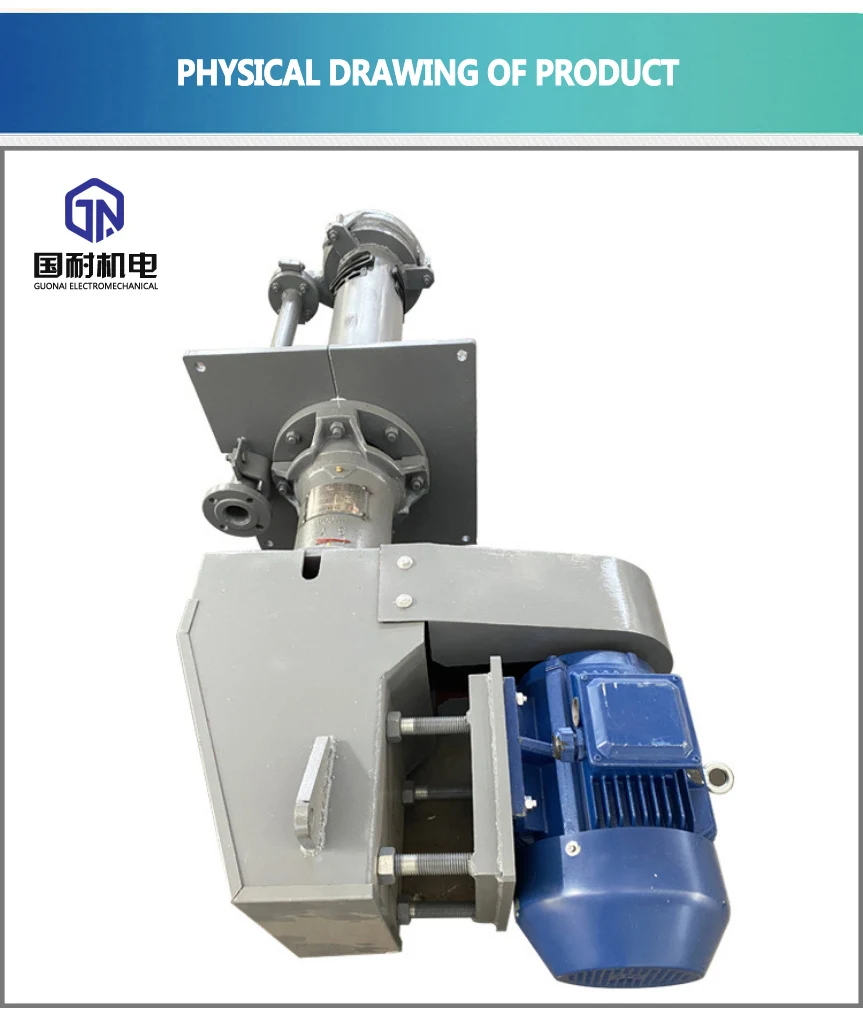

SP、SP(R)series submerged slurry pump

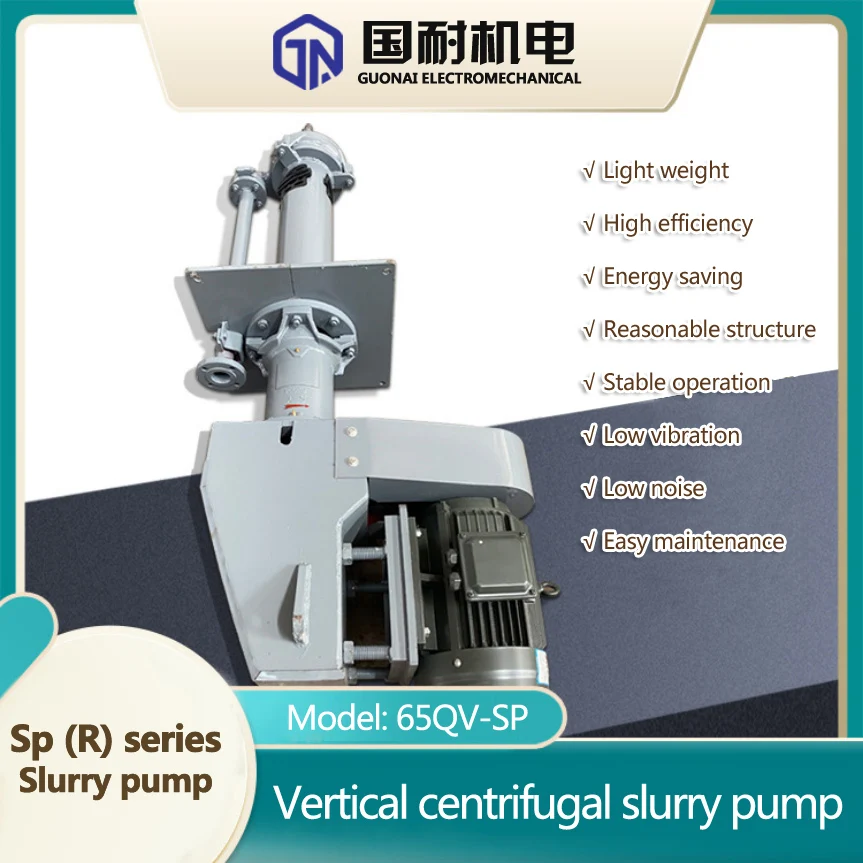

Model: 65QV-SPBrand: Guonai
Layout: Vertical
Material: High chromium alloyFlow: 23.4-111m 3/ H lift: 5-29.5m speed: 700-1500r / min

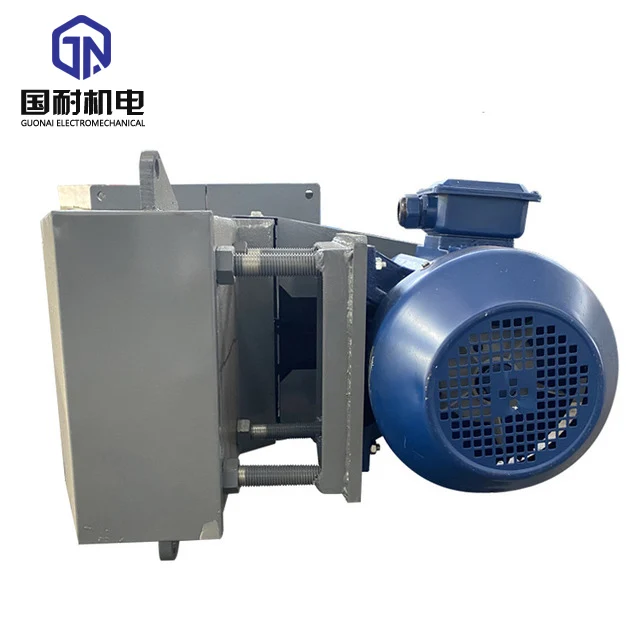

Transmission type: DC Direct drive, DB belt drive,.Product features:
SP and SP (R) submerged pumps are vertical centrifugal slurry pumps, which invade the liquid and are used to transport corrosive, coarse particles and high concentration slurry. It does not need shaft seal and shaft seal water, and can work normally under the condition of insufficient suction.The overflow parts of SP pump are made of metal.
This series of slurry pumps are innovative in hydraulic design and structural design. The flow passage parts are made of self-developed abrasion resistant high chromium alloy, which has the remarkable characteristics of high efficiency, energy saving, long service life, light weight, reasonable structure, stable operation, low vibration, low noise and convenient maintenance.
The submerged slurry pump is a single-stage, single suction cantilever structure. The hydraulic components of the pump are connected with a bearing seat, a support seat and a connecting pipe. The liquid is discharged from the liquid outlet pipe components. The impeller of the pump is a semi open impeller, and a mixing blade is set at the inlet extension of the impeller blade. The main feature of the pump is that the pump shaft at the submerged part has sufficient stiffness, and there is no bearing between the impeller and the pump shell, Without shaft seal, the medium containing large concentration of fixed particles can be transported. The length of the pump inserted into the liquid is between 800-2000. If necessary, it can be equipped with a suction pipe.
The parts of SP (R) pump invading into the liquid are lined with rubber, which is suitable for conveying abrasive slag slurry without edges and corners.The "L" letter in the model is an extended shaft series of submerged pumps, which can be applied to the working conditions with deep liquid level. This kind of pump adds the guide bearing structure on the basis of the standard, which has stable operation and wide application. However, flushing water shall be attached to the bearing.
Scope of application: SP series submerged slurry pump is widely used in electric power, metallurgy, coal, building materials, chemical industry and other industries. It is mainly used to transport abrasive, coarse particles and high concentration slurry. The weight concentration of solid-liquid mixture shall not exceed 45% of mortar and 60% of mineral slurry. The pump can be immersed in the pool or pit without shaft seal or shaft seal water.
Company Profile
Hebei Guonai Electromechanical Device Co., Ltd. has mature experiences for many years on research & manufacture and application of slurry pump.Meanwhile based on technology intruduction,the perfect product series has been developed which covers full rage for application.Among them,series AH, ZJ, ZGB, GH,SP series, etc. has wider usage especially.Through the apply in the industry such as mentallurgy,mine,electric factory and chemical industry etc,it has been proved that these products have advantages of reasonable construction,reliable operation and long service life etc.
The company has many years of practical experience in the development and application of slurry pumps. On the basis of introducing and absorbing foreign advanced technology, it has formed a series of products with better performance coverage. At present, the main product include a wide range of slurry pumps, desulphurization and denitrification FGD engineering special pumps, gravel pumps, dredging pumps, foam pumps, chemical pumps and newly developed PU rubber and more than ten varieties. Hundreds of models are widely used in mining, metallurgy, coal, electricity, flue gas desulfurization, dredging , irrigation, water conservancy, petroleum, chemical industry, municipal, environmental protection and sewage treatment and other industries.which are welcome in consumers.

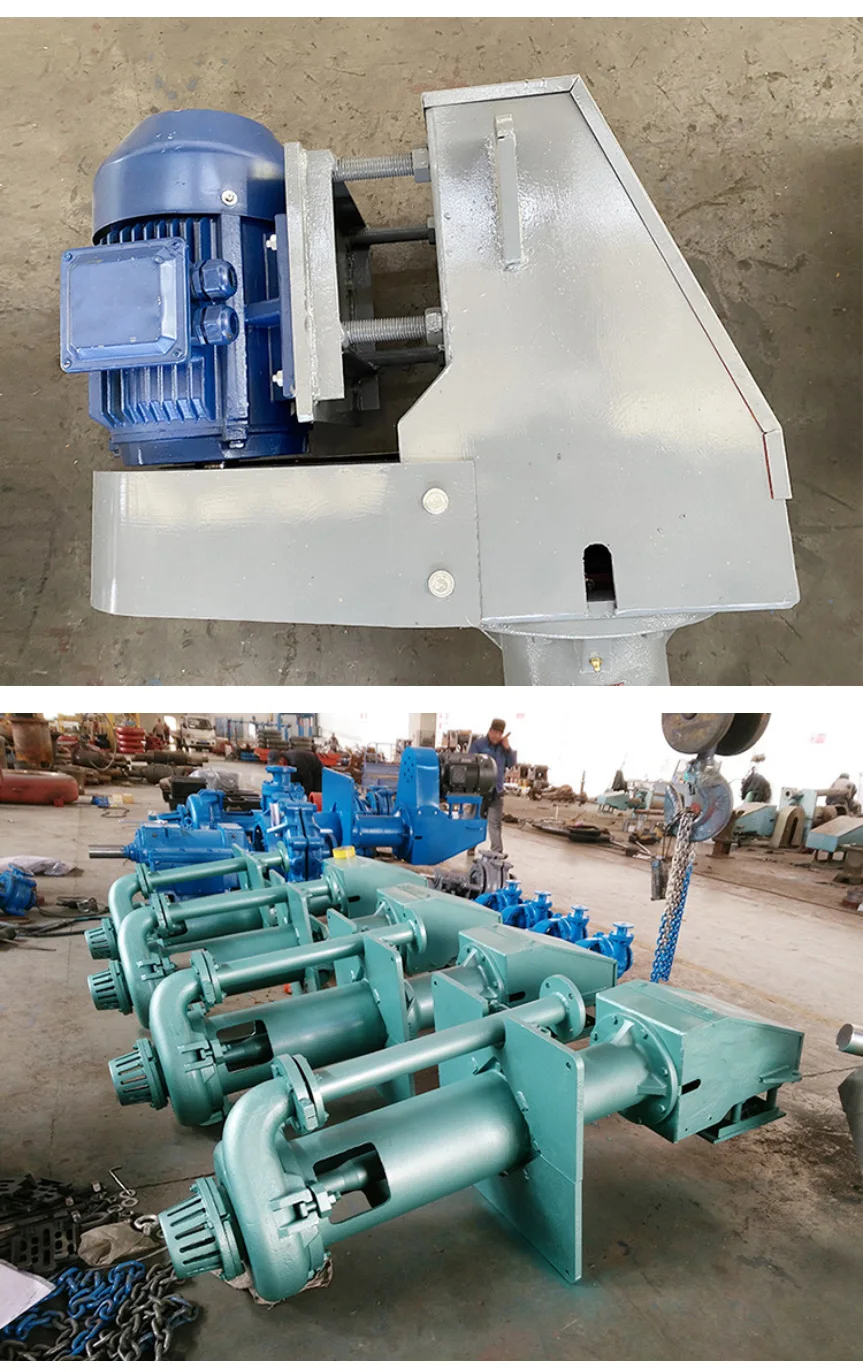

Customer Photos
Our Advantages
Related Products
Certifications
Packing & Delivery
FAQ
Q1. What is the advantage about your company? |
A1. Our company has professional team and professional production line. |
Q2. Why should I choose your products? |
A2. Our products are high quality and low price. |
Q3. Any other good service your company can provide? |
A3. Yes,we can provide good after-sale and fast delivery. |
Q4. How can I make order online? |
A4. Send email or message(whatsApp/ wechat) us.you can ask any question, after we confirm the detail, we can make order. |
Q5. Do you have MOQ limit? |
A5. The MOQ is 1 set. |
Q6. How about the delivery time? |
A6. Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity. |
Q7. What's your warranties? |
A7. 1 year after delivery. |
Q8. Can I buy parts separately? |
A8. Yes, all of the pump spare parts can buy separately. |
Похожие товары
ISansun производитель po-up window i19tws гарнитура беспроводная PK touch i12 i18 Спорт Новый
Самая популярная витая веревка, полипропиленовая веревка, лучшее качество по отличной цене
1,00 $ - 5,00 $

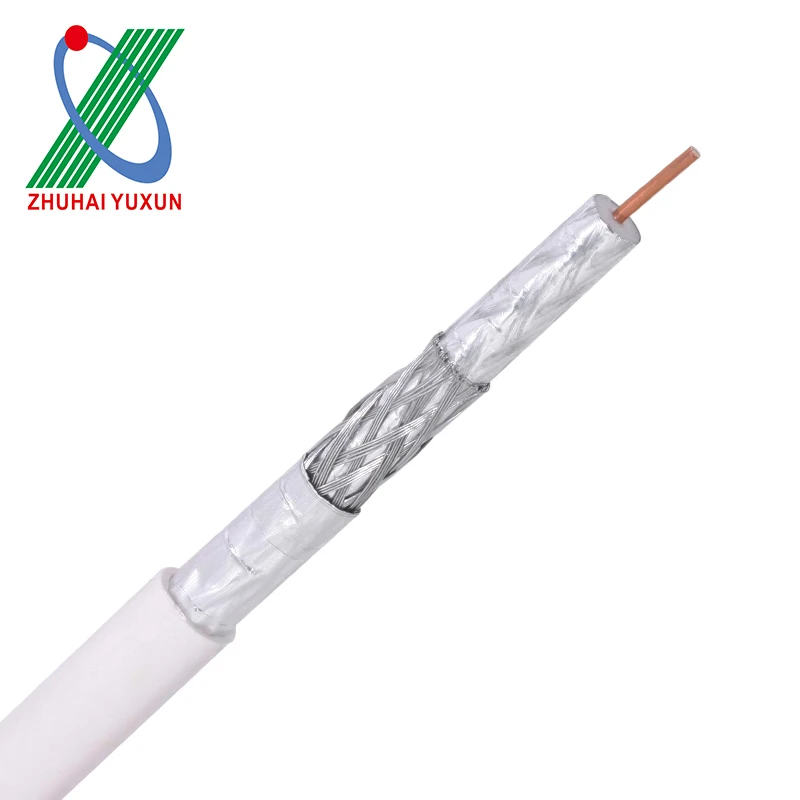

Матовый кабель RG6 CATV физически вспененный коаксиальный белый ПВХ провод стандартный ТВ-кабель 75
13,68 $ - 20,68 $
VASAGLE бесплатный образец, промышленная мебель на заказ, деревенский металлический каркас, обеденный стол, деревянный круглый обеденный стол
37,00 $ - 43,00 $

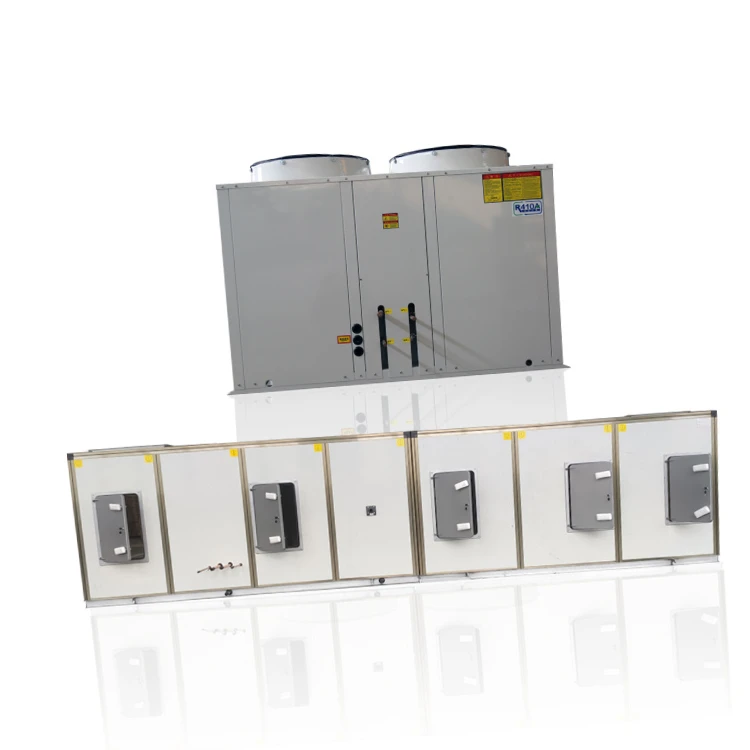

Взрывозащищенный блок для обработки воздуха или система Hvac, деталь для обработки воздуха
850,00 $ - 1 030,00 $
Коаксиальный кабель RG 6 двойной/Tri /Quad щит RG-6 для общения дистанционное управление наивысшей мощности и

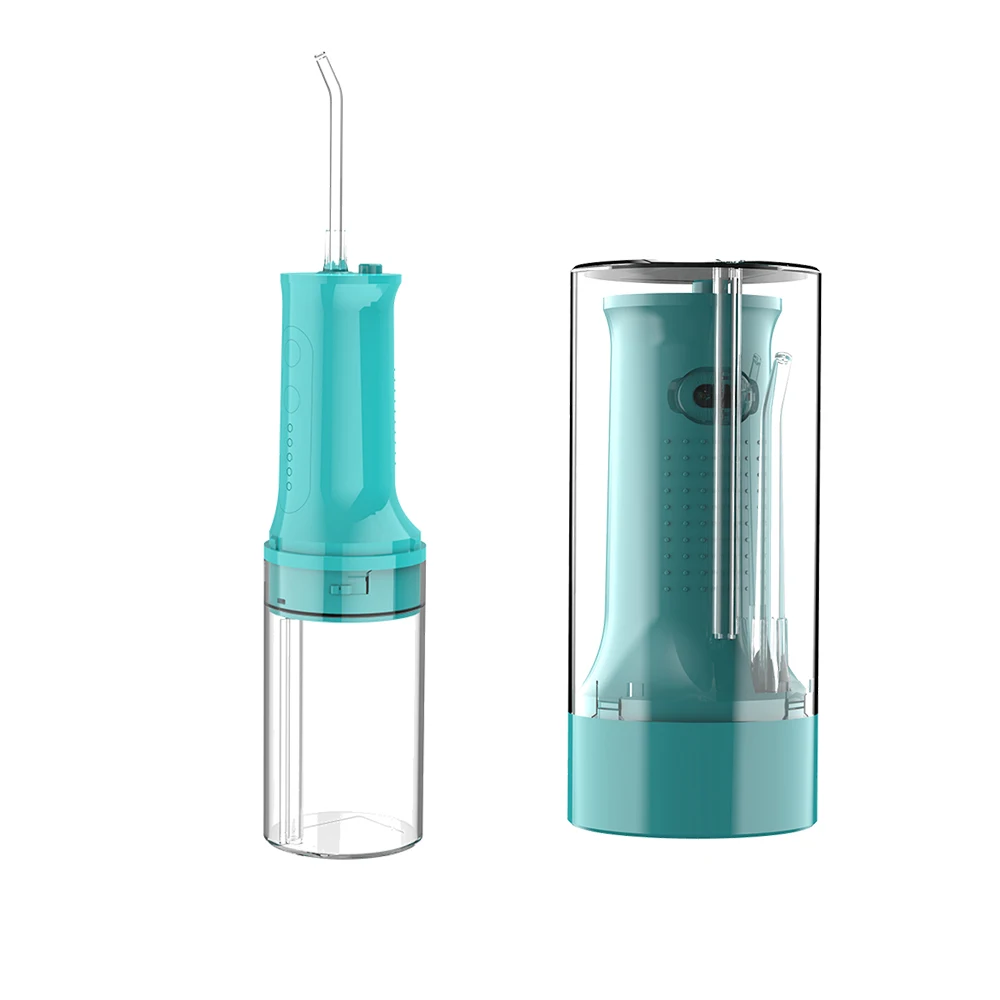

Стоматологическая нить ирригатор полости рта Вода Flosser портативный ирригатор Стоматологическая нить выбор ирригатор полости рта перезаряжаемые
