Машина для резки камня мостового типа машина гранитных блоков натурального

Машина для резки камня мостового типа машина гранитных блоков натурального

Категория: >>>
Поставщик: Quanzhou Hongxi Machinery Co. Ltd.

Цена:26 000,00 $ - 27 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

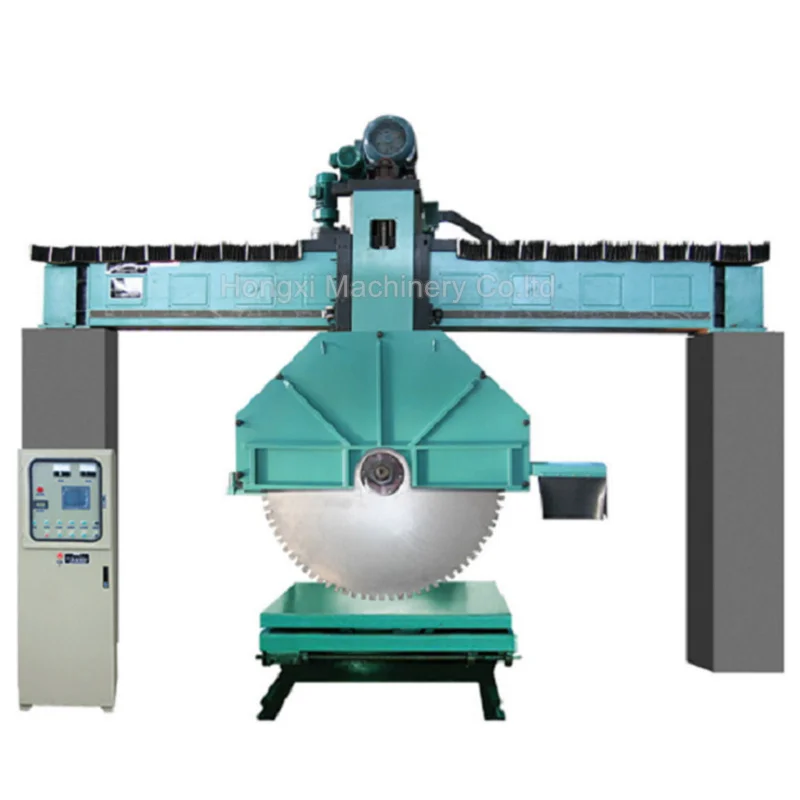

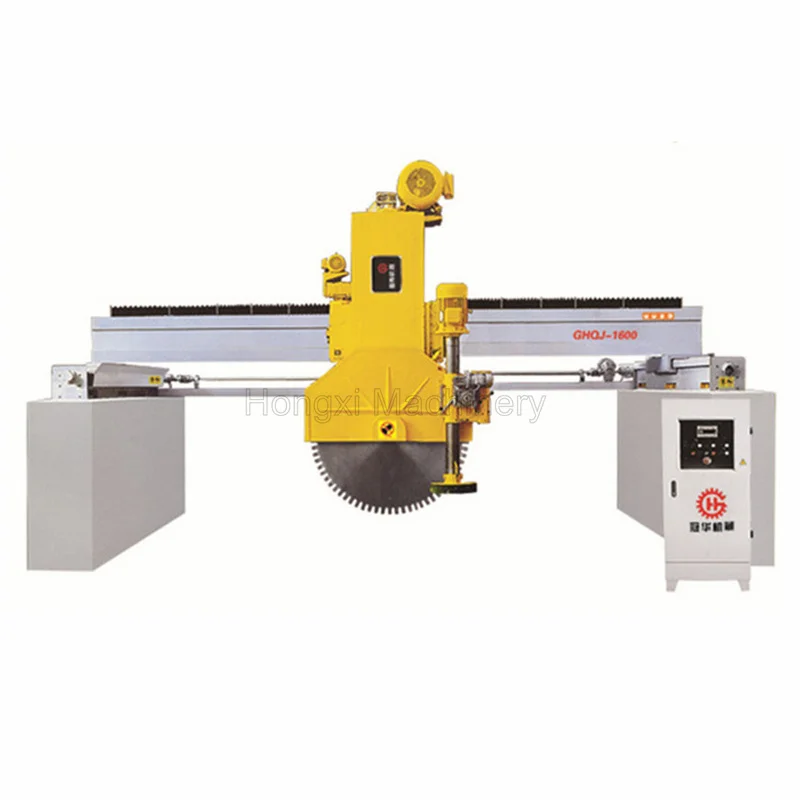

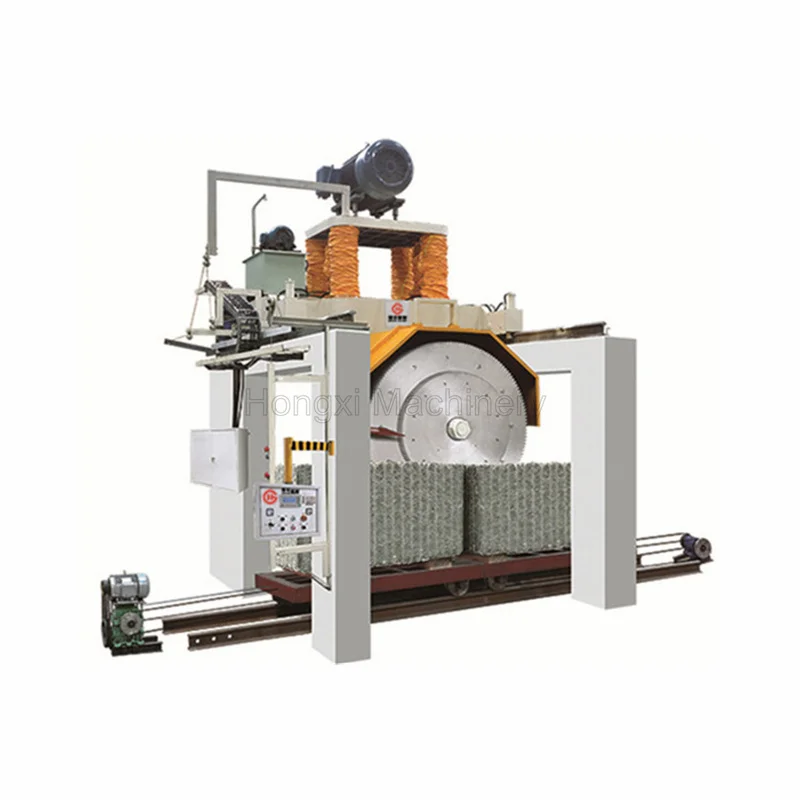

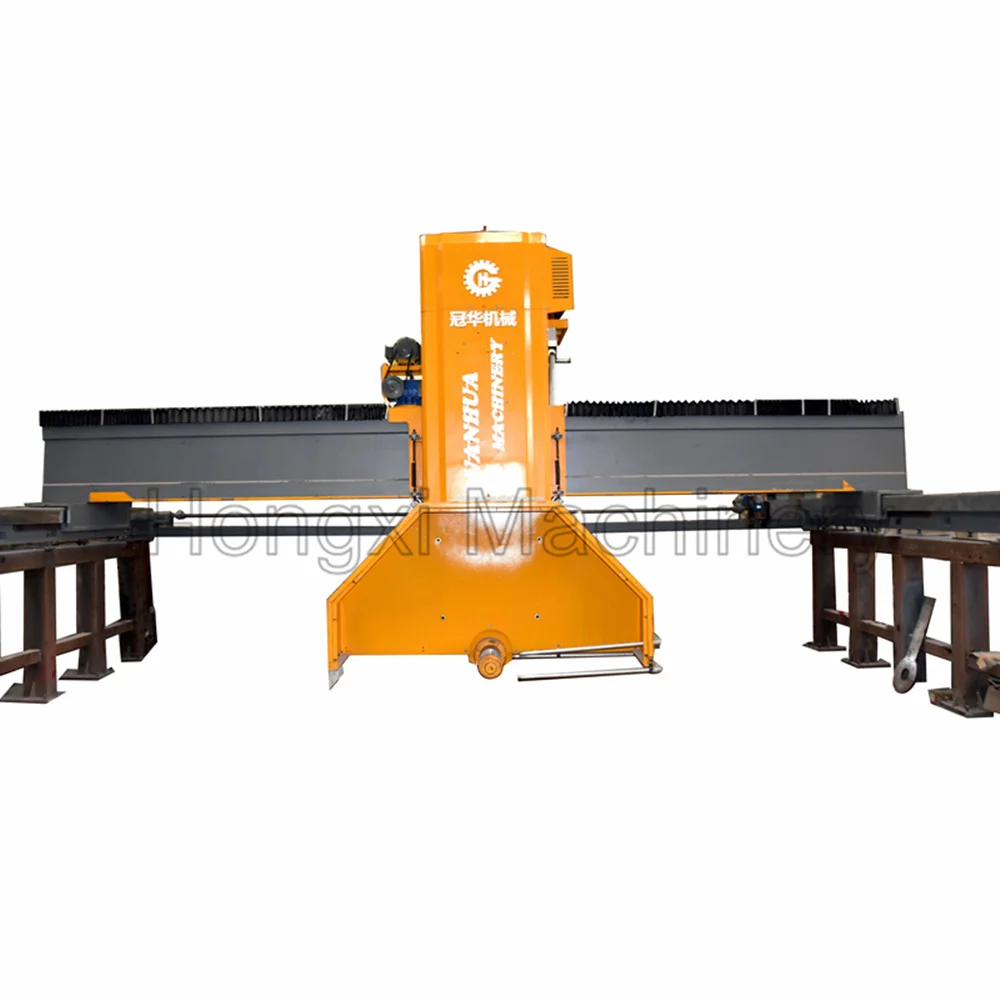

Rock cutting saws Granite Block Cutting Machine

1. Block cutting machine is suitable for cutting high value granite,marble and other block materials;cutting efficiency, high slicing precision, and flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite and marble block with high value and big size.

2. Bridge structure and logical control system ensure a stable performance;

3. Blade combinations in different diameters work simultaneously;

4. Complete with hydraulic lifting system (optional)The lifter moving up and down is driven 4 pillars by oil hydraulic pressure cylinder (or by lead screw).;(It has screw-rod lifting system and hydraulic lifting system for choice.)

5. Complete with oil-immersed guide rail for crossbeam and side beam; 6. working principle: The
machine blades moving in left and right direction is controlled variable-frequency drive (VFD) and the speed will be adjusted depend on the hardness of the stone; 7. Rotary table (optional); 8. The lead pillar is made of high quality solid round steed plated with hard chromiumand the diameter of one pillar reach 180mm, with automatic lubricating; 9. Blade combinations are flexibly decided according to specific customer need. 10. Beam length range can be adjusted according to sawing feeding length, customer range 6m to 9m.

PRODUCT SPECIFICATIONS

No	Product name	Rock cutting saws Granite Block Cutting Machine
1	Blade Diameter	1600-2500MM
2	Max.working dimension	3500*25000mm
3	Saw blade number	3-9slice
4	Movements itinerary(H)	1400mm
5	Gross power	55kw
6	Water consumption	16m³/h

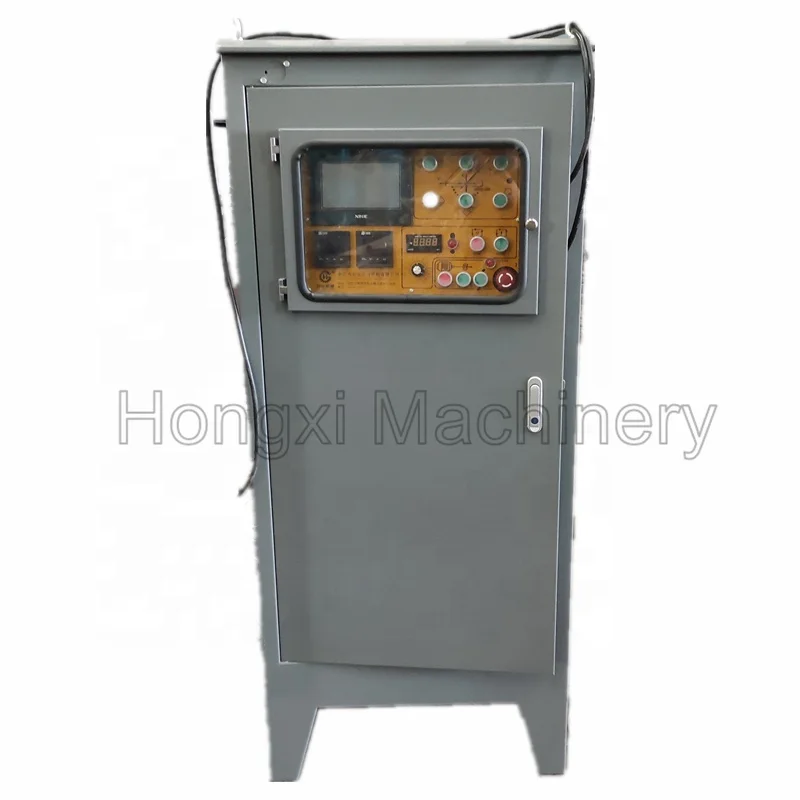

7	Control method	PLC control
8	Control Panel	Touch screen
