Встроенная система питания постоянного тока 220 В переменного 48 выпрямительная импульсная контроля источника
- Категория: >>>
- Поставщик: Shenzhen Bwitt Power Co. Ltd.
Сохранить в закладки 1600389519911:
Описание и отзывы
Характеристики
Products Description

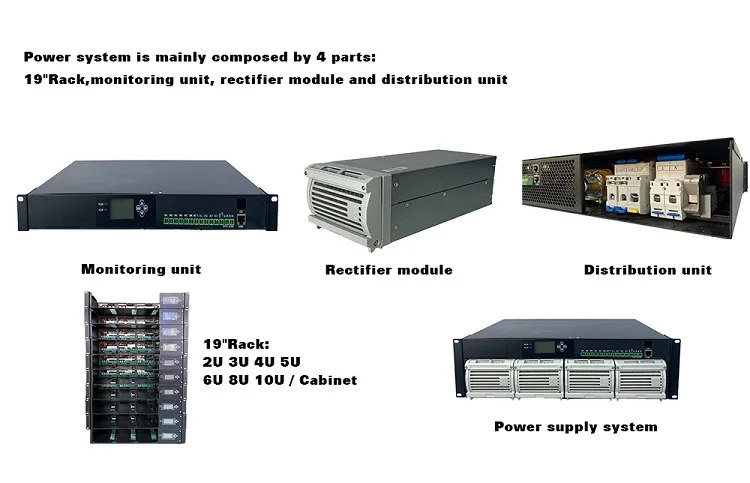

Embedded DC Power System is widely deployed in the Telecom/Industrial environment today. The system can be composed of one or more rectifier modules and monitoring modules. The power of the rectifier system can vary, depending on the number of rectifier modules. The system consists of power distribution units, rectifier modules) and monitoring modules. Configuration can be customized
Product name: | Embedded Dc Power System 220vac Dc 48 Volt Rectifier Switching Power Supply Monitoring System |
Switching Power Supply Monitoring System | |
48 Volt Rectifier | |
Telecom Rectifier | |
Rectifier Module | RCT-2000 3PCS |
Efficiency | 93.2% |
Power Capacity(Max) | 600W |
Input Current | 2.72A |
Input Protection (Recom) | 3.4A |
Height | 88mm(2RU) |
Width | 482mm(19 Inch) |
Depth | 320mm |
Weight | 15KG Appro. |
Classification | IP21 |
Product Parameter
Rectifier Technical Parameter：
* This part can design with your application parameter: modules configuration, circuit breaker installation, monitor display. Order whole DC power system cabinet also available.
Rectifier Module | Input Amps@Full load 110/220V | Output Current | Output Voltage | Weight | |
BR241800 | 10.9/ 8.18 | 60A, adjustable 1~60A | - 26.7Vdc, adjustable -21~ - 29Vdc | 2.3kgs | |
Model | Configuration | Size(W*D*H) | Weight | ||
BWT220/24-60AS | Single phase, 1800W@220V, 1200W@110V, 60 amp output 1 BR241800 module, monitor, BLVD, + busbar, 3 DC rail-mount terminal, 1 Battery rail-mount terminal, SNMP | 482mm*410mm*88mm | 15kgs | ||
BWT220/24-120AS | Single phase, 3600W@220V, 2400W@110V, 120 amp output 2 BR241800 module, monitor, BLVD, + busbar, 3 DC rail-mount terminal, 1 battery rail-mount terminal, SNMP | 482mm*410mm*88mm | 17.5kgs | ||
BWT220/24-180AS | Single phase, 5400W@220V, 3600W@110V, 180 amp output 3 BR241800 module, monitor, BLVD, LLVD, + busbar, 3 DC rail-mount terminal, 1 battery rail-mount terminal , SNMP | 482mm*410mm*88mm | 20kgs | ||
AC INPUT | DC OUTPUT | |||||
AC Con-fig. | 220Vac (L+N+PE) | Output Voltage | 42-58VDC 53.5Vdc nom. | |||
Input Voltage Range | 90Vac-290Vac | Output Current(Max) | 11A | |||
Frequency | 45-65Hz | Equ- charge(V) | 56.4V(42-58Vdc adjustable); | |||
THDi | ＜5%@ full load ＜10% @half load Rated input & Output Voltage | Float voltage(V) | 53.5V(42-58Vdc adjustable); | |||
Mains Connection | 16A@2P | Voltage Regulation | ≤±1% | |||
Current Sharing | ≤±5% | |||||
PF | 0.99@220VAC/10A, ≥0.98@220VAC/15A; | |||||
Ripple voltage | ≤200mV<0-20mHZ> | |||||
Output Accuracy(V)） | ≤0.6% | |||||
Load Breaker | 3*6A@1P | |||||
Battery Breaker | 1*16A@1P | |||||
BLVD | Yes | |||||
Shunt | Yes | |||||
Customize Range:
Regard as HF Switching Power Supply / rectifier. we can customize are as following
1. Input:：220VAC +/-15%, 50/60HZ
Input:：110VAC +/-15%, 50/60HZ
2. Output：24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A
Output：48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
Output：110VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：125VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Regard as HF Switching Power Supply / rectifier. we can customize are as following
1. Input:：220VAC +/-15%, 50/60HZ
Input:：110VAC +/-15%, 50/60HZ
2. Output：24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A
Output：48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
Output：110VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：125VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：220VDC, 10A/20A/30A/40A/60A/70A/100A/120A/150A
Monitor Control Parameter：
Digital Input | 6 DI | LCD display | Input/output voltage、Frequency、output current、Environment、Rate | |
Local Interface | Display, Menu Structure Key Pads, LED | Power status | City power、Output、Under voltage、overload voltage | |
Remote Monitor | TCP/IP,Rs485,SNMP (Optional),6 alarm Relays | Operating Temp. | -40 to +55°C (-40 to +131°F) | |
Battery Mid-Point | B-V2 /B-V1 | Storage temp | -40 to +70°C (-40 to +158°F) | |
User | 4 Group | Humidity | 5% to 95% RH non-condensing | |
intelligent Wake management | Yes | MTBF | > 10,0000 hours (Tambient : 25°C) | |
Battery Temp. Sensor | Yes | Historical Alarm Records | Up to 1000 Units | |
Temperature compensation | Yes | Altitude（M） | ≤3000m,1500～3000m, Rise every 100m, 1% | |
Battery Self-Test | Yes |
Details Images

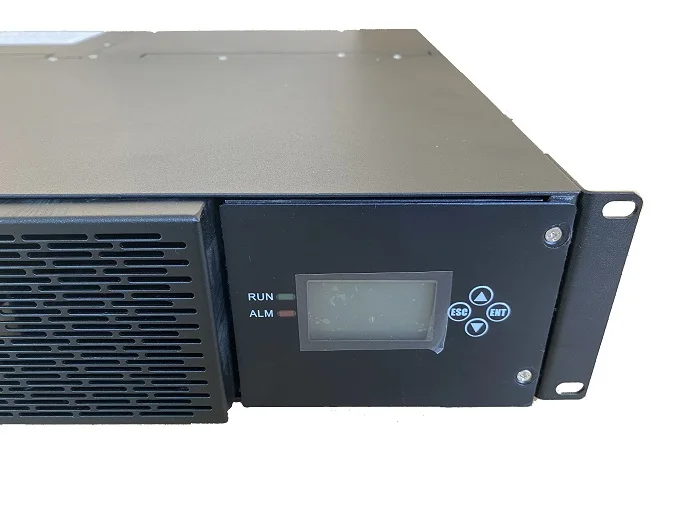

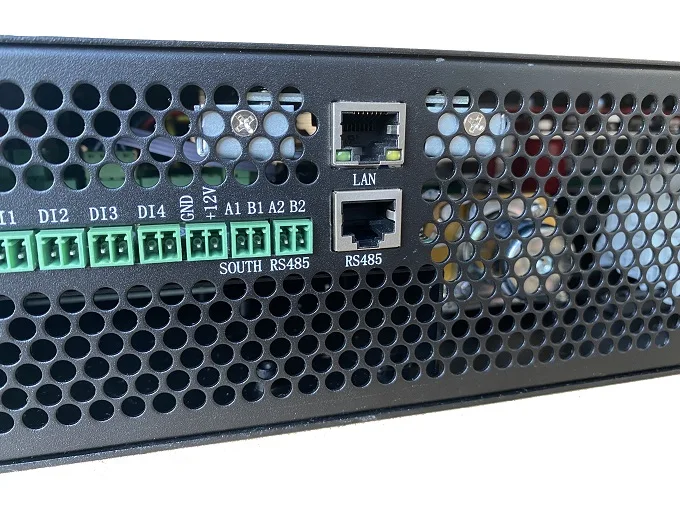

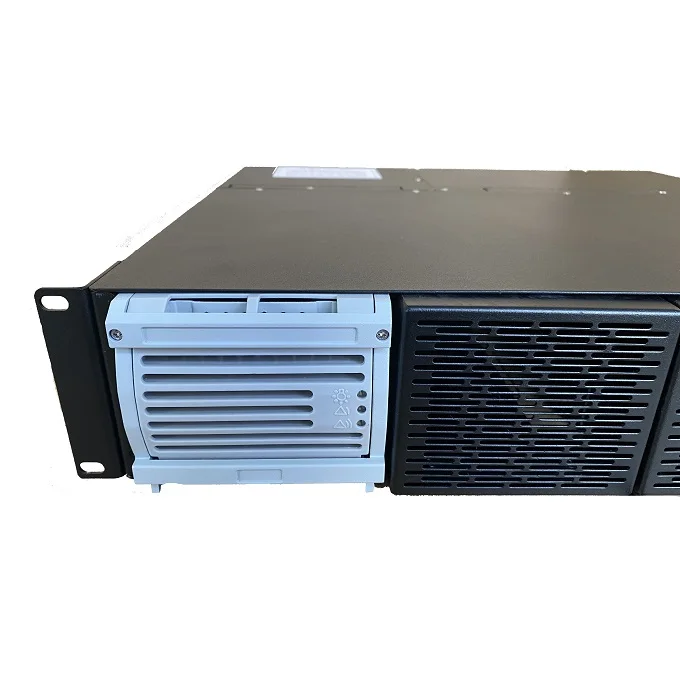

Appearance of AC/DC Distribution Frame：
Application of the AC/DC Distribution：
Applications Case
Product packaging
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
