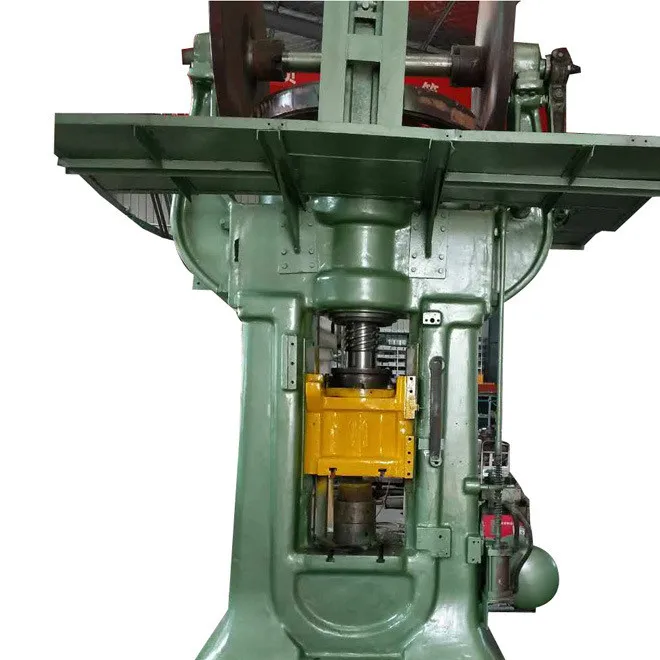

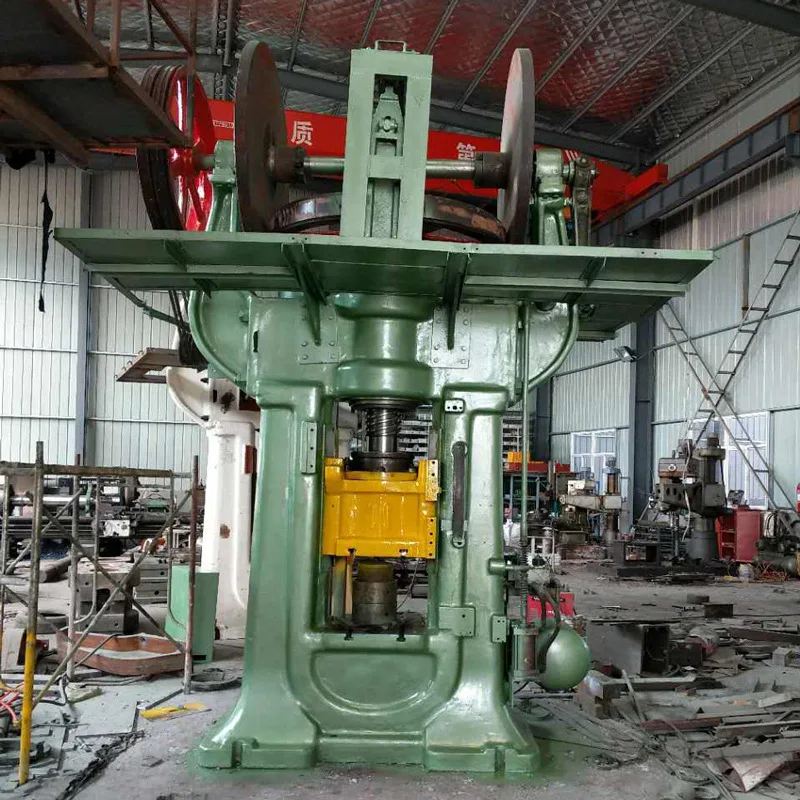

Series J53 friction screw press is suitable for die forging,extruding,cutting edge,bending of nonferrous and ferrous metal.The press,with simple in constructure,large energy,low noise,long life,safe and reliable in operation,convenient service etc,can be widely used in aviation,auto,tractor,tool manufacturing,texitile machinery industries etc.

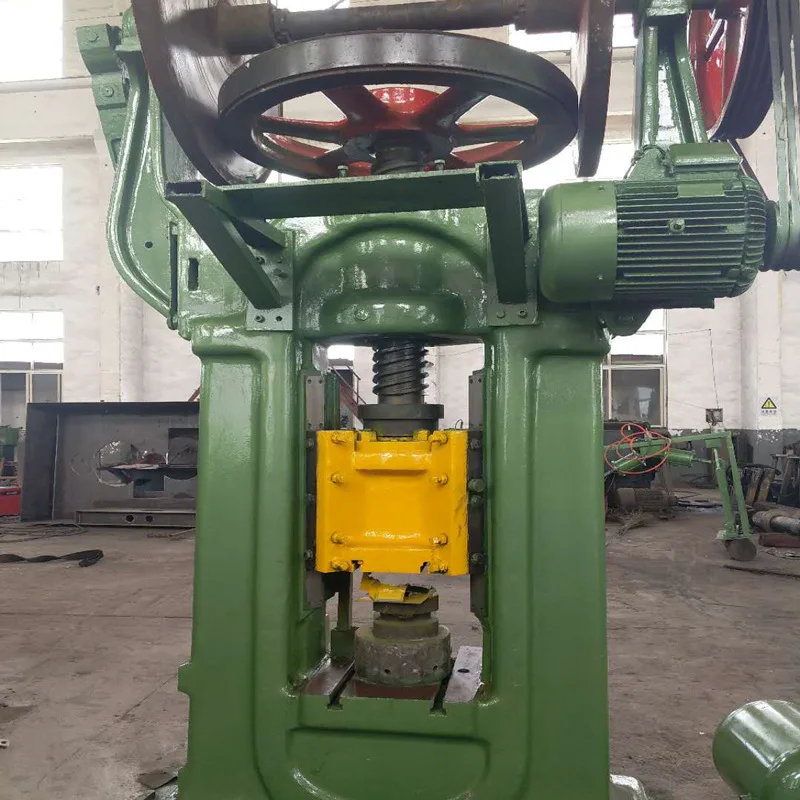

The friction press is driven by a roulette wheel and the friction wheel transmits force by the inertial rotating screw. It is characterized by; it is not restricted within the effective working range of the screw, the transmission pressure is large, and the working efficiency is moderate. The operation is not easy to control. Generally used for material correction; simple molding; die-casting cavity molding, etc.
Technical Prarmeters
Main parameters | Unit of measurement | Product specification model | ||||||||
JA53-63 | J53-100B | J53-100C | J53-160A | J53-160B | J53-160C | J53-300 | J53-300A | |||
Nominal pressure | KN | 630 | 1000 | 1000 | 1600 | 1600 | 1600 | 3000 | 3000 | |
Energy | KJ | 2.25 | 5 | 5 | 10 | 10 | 10 | 20 | 20 | |
Slide stroke | mm | 200 | 310 | 310 | 360 | 360 | 360 | 400 | 400 | |
Stroke per minute | min | 35 | 19 | 19 | 17 | 17 | 17 | 15 | 15 | |
Min closing height | mm | 315 | 320 | 320 | 260 | 260 | 260 | 300 | 300 | |
Thickness of bolster | mm | 80 | 100 | 100 | -- | -- | -- | -- | -- | |
Dimension of working table | F/B | mm | 315 | 500 | 500 | 560 | 560 | 560 | 650 | 650 |
L/R | mm | 270 | 450 | 450 | 510 | 510 | 510 | 570 | 570 | |
Bottom of slide | F/B | mm | 275 | 390 | 390 | 440 | 440 | 440 | 520 | 520 |
L/R | mm | 227 | 280 | 280 | 444 | 444 | 444 | 485 | 485 | |
Overall dimension | F/B | mm | 1010 | 1393 | 1870 | 1260 | 1505 | 2000 | 1603 | 1412 |
L/R | mm | 1141 | 1884 | 2450 | 2240 | 2240 | 2700 | 2690 | 2690 | |
H | mm | 2655 | 3755 | 3755 | 3730 | 3730 | 3730 | 4345 | 4345 | |
Motor power | KW | 5.5 | 7.5 | 7.5 | 11 | 11 | 11 | 22 | 22 | |
Weight | kg | 3640 | 6000 | 7000 | 8500 | 8860 | 9500 | 13500 | 13500 |

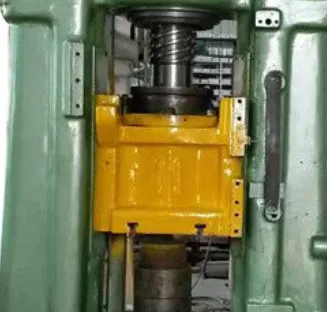

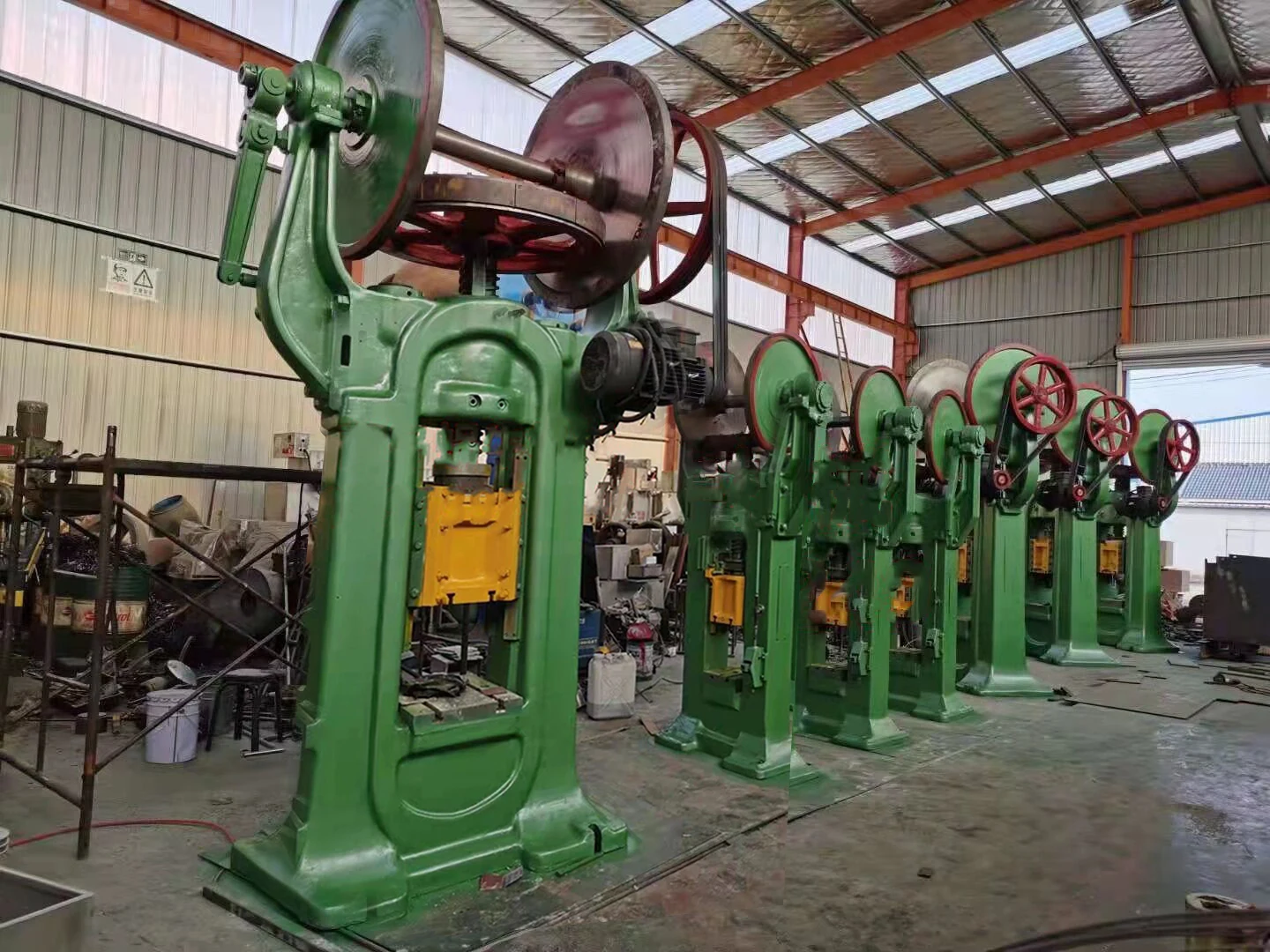

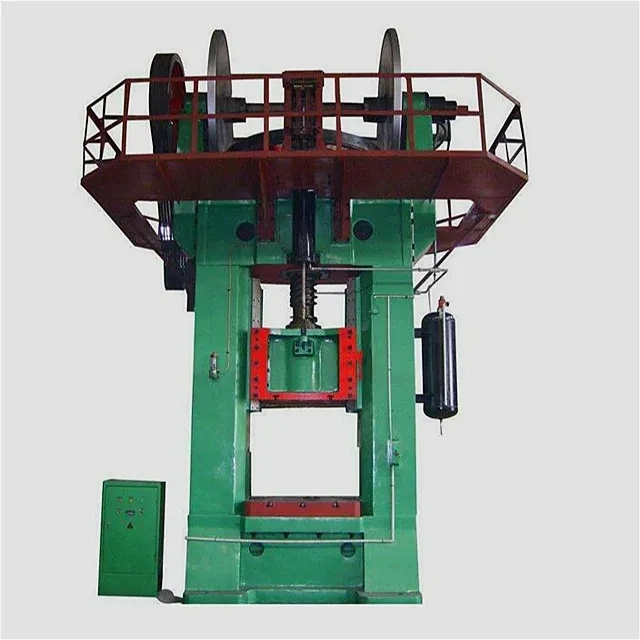

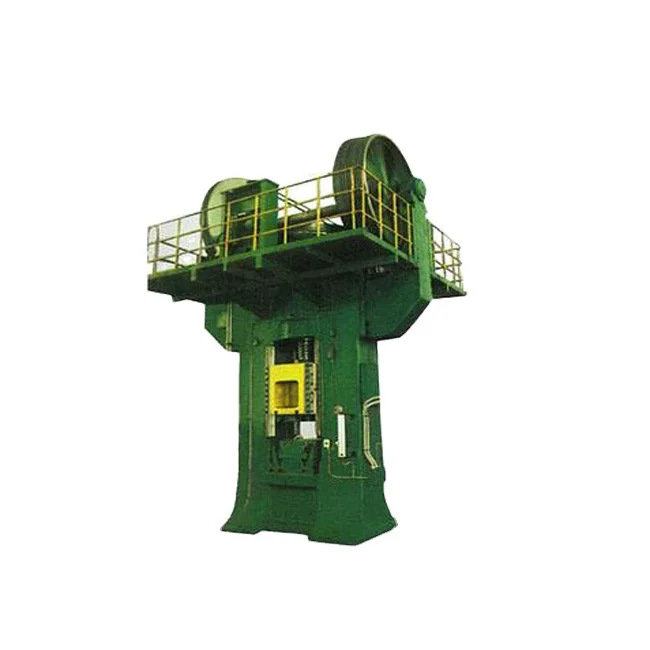

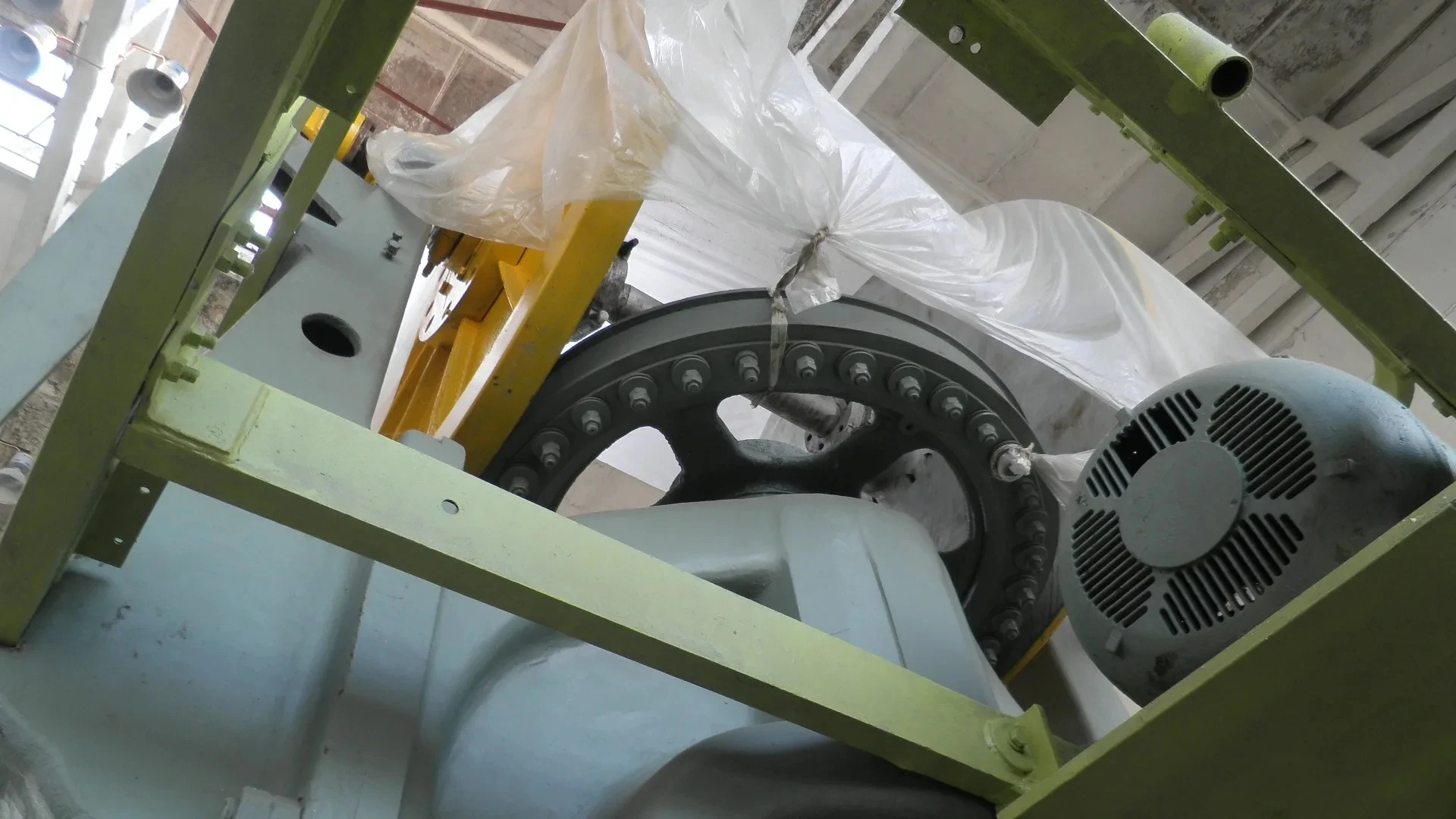

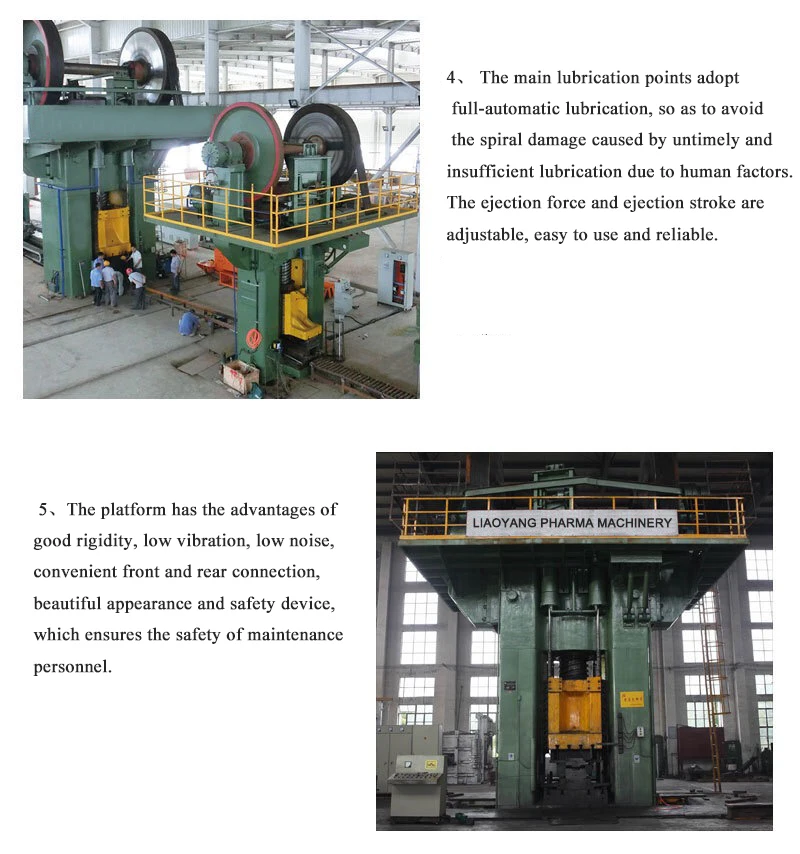

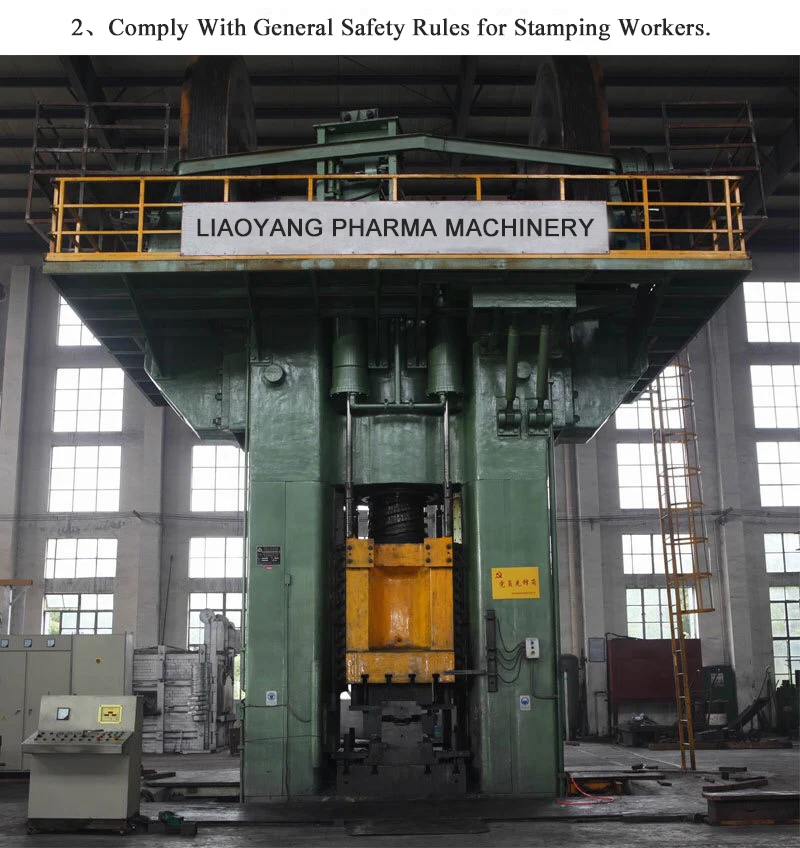

More Details Picture
Liaoyang Pharma Machinery Imp. & Exp. Co., Ltd. (LPMIE) was set up in 1992. After more than 30-year development, it has formed a group enterprise that mainly produces and sells chemical, food, packaging, and forging machinery, supplemented by light industrial products. The group has chemical machinery production factory, packaging machinery production factory, forging machinery factory, and sock industry production factory. LPMIE’s products have been best-selling nationwide and exported to the United States, Japan, South Korea, Sweden More than 70 countries and regions, including the Netherlands, Spain, Canada, Australia, Turkey, Thailand,Vietnam and India etc,with more than 800 products, including mixers, dryers, filling machines, tea packaging machines, centrifuges, glass lining equipment, forging machinery, etc. LPMIE has won the trust and love of customers with a complete range of products and excellent quality.
To manufacture high-quality products, an excellent team must be found first. LPMIE pay great attention to the introduction and cultivation of talents. We have successively recruited many excellent talents from both domestic and abroad to join the enterprise team, laying a solid foundation for the development and growth of the enterprise. With the joint efforts of these high-quality and skilled teams, LPMIE has successively provided complete sets of chemical and packaging production lines and turnkey projects for the United Arab Emirates, Romania, Nigeria, Georgia, Pakistan, Ethiopia and other countries. LPMIE's team has received great praise from customers.
In the future, LPMIE will continue to adhere to the management philosophy of "people-oriented and user first", strive to cultivate and build a high-quality talent team, rely on teamwork, forge ahead, create and innovate, and make due contributions to the development of the world economy and human health with first-class products and services.
