Overview




Comprehensive solutions  provider of laser industry
Excellent product and reasonable process contribute to better solutions. Accurate.ltd not only provides products and parts of the
whole laser industry, but also present a lot of potential solutions for the ultimate application.Accurate aims at building
continuous partnership for each of our partner and keep a win-win condition with our industry experienced engineers.


Rich product categories
We have a large number of products which covers fiber cutting, hand-held welding and laser parts.

Complete machine and parts are all available.

It depends on what you need and we would try our best to make a cost-effective and high-quality deliver.

Online support and video support are available by our experienced engineers.

Relevant guide and handbook are also prepared for better use.



Product description

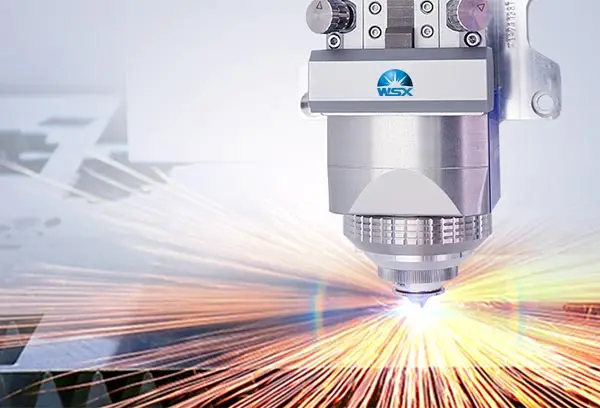

WSX cutting head for fiber laser cutting machine
The internal structure of the laser head is completely closed so it is free from the contamination of optical lenses, which is beneficial to the protection of lens.
The laser head is adjusted by two points alignment, and the focusing mechanism is driven by servo motor to automatically focus, which can significantly improve the efficiency of perforation.
The protective mirror structure adopts drawer type, which is convenient and simple to replace.
The sensor assembly adopts ceramic ring structure with low maintenance cost
It can be used for various lasers with QBH fiber connectors.




Different cutting heads can be selected according to different cutting requirements. Pipe, plane, or 3D cutting can be solved comprehensively.


Detailed Images






WSX NC3OE
Maximum air pressure
25Bar
Horizontal adjustment range
±1.5mm
Weight
5.5KG
Collimating focal length
75mm/100mm
Vertical focusing range
±8mm
Applicable power
≤3000W
Focal length
125mm/150mm/190mm
Effective luminous aperture
25mm


WSX cutting heads could match a lot of fiber laser generator like Raycus, MAX, IPG, which benefits the reduction of conversion cost. There potential products could be selected from various models, WSX has a large number of products.

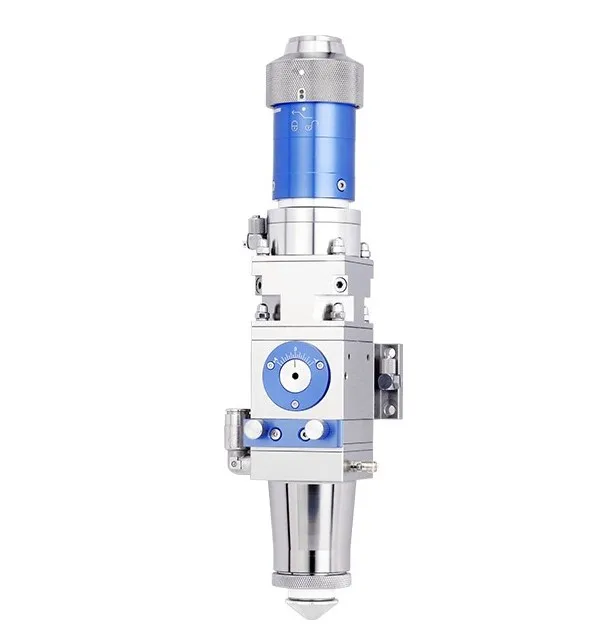

Auto focusing cutting head
The auto focus function can improve the efficiency to a greater extent in order to help the whole operation process be carried out better.
2.5D cutting head
DD motor is adopted to ensure the stability and accuracy of long-term operation, which is widely used in three-dimensional machining scenes.

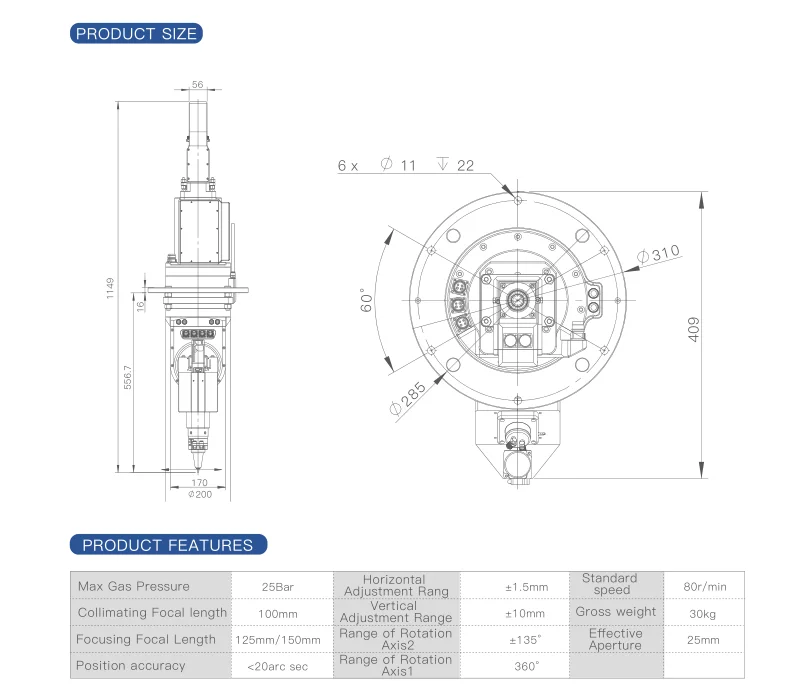

3D cutting head
It can be used for 3000W laser, connected with a variety of boards, and the large rotation axis ensures the cutting efficiency.


Related Products




Company Profile






Exhibition






FAQ


Q1: I knew nothing about this cutting head, what kind of model should I choose?
A1: Tell us your detail requirements or other existing by words, pictures or video. We will recommend you the suitable model with the reasonable price.
Q2: Who can help me transport the equipment?
A2: We can arrange the shipment for you. Just tell us which port is near to you, so that we can check the exactly freight
fee and shipping time for you.
Q3: When I got this install, but I don't know how to use it. What should I do?
A3: We have the instruction Book, Operational manual and Training Video inside the machine. We also can provide the training on line by free.
Q4: If some problems happen to this machine during warranty period, what should I do?
A4: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q5: How does your factory do regarding quality control?
A5: Quality is priority. We always pay great importance to quality control all over the way. All raw material we used are environmental-friendly. Skillful workers care every details in handling the producing and packing processes. Quality Control Department is specially responsible for quality checking in each process. And we have CE certification..
