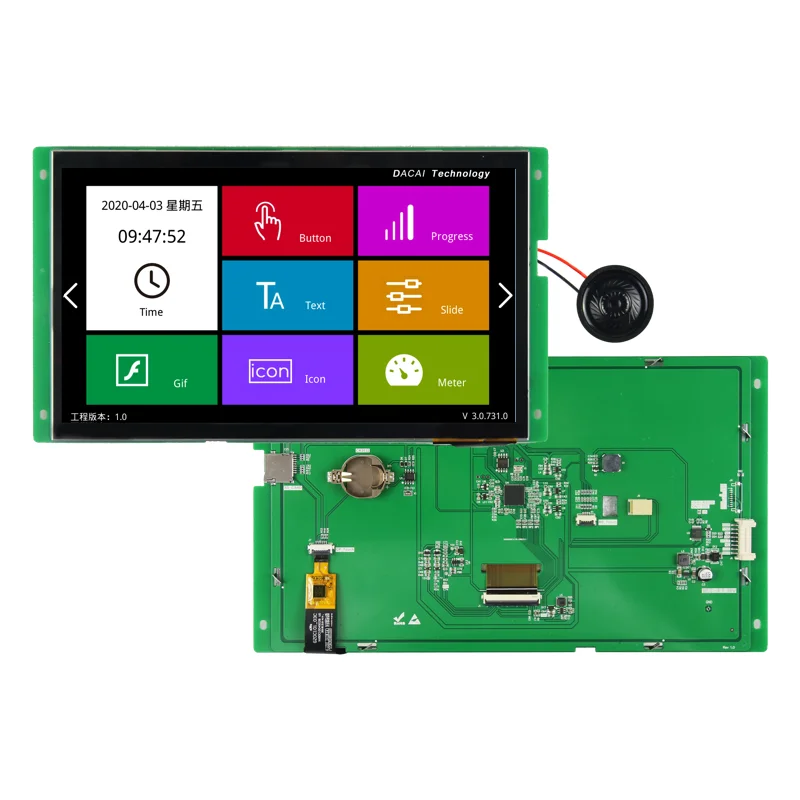

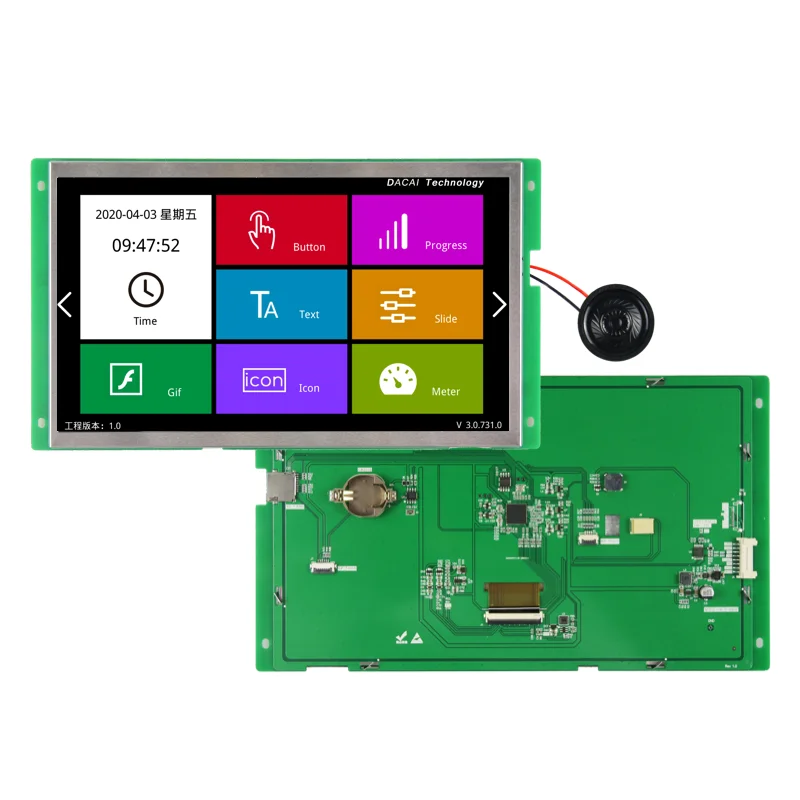

Последовательный экран DACAI 10 1 дюйма медицинский класс дюймовый сенсорный IPS 1024*600 ЖК дисплей 40pin lvds для планшетного ПК

Product Specification

Model Description

DC10600M101_1111_0T (RS232/TTL,resistive touch)

DC10600M101_1111_0C (RS232/TTL,capacitive touch)

DC10600M101_1111_0N (RS232/TTL,non-touch)

Product Series

Mseries,Medical grade

Core Processor

400M SOC processor

Operating System

No operating system (OS),can run once power on

Protocol Type

Default Dacai configuration instruction set, the host computer can be configured to run MODBUS RTU, XGUS protocol

Script language

LUA script, The screen can run user-written logic, protocol and algorithm functions

Size

10.1 inch

Resolution

1024*600

Installation Display

Support 0°/90°/180°/270°rotate display

Memory space

128Mbit

Font Library

Built-in vector font,edge anti-aliasing,including ASCII,GBK,GB2312 and UNICODE(Global language) libraries.Customized computer font display

Image Storage

Support JPEG,PNG (semi-transparent / full transparent) image,support for any size image storage. Accumulate to store about 115 full-screen images (calculated by size 120KB/frame,BMP format is not recommended).The image compression ratio is different,this value will float up and down.

Color

65K color,16-bit RGB

Voltage

4.5-30V

Power Consumption

Darkest backlight non-speaker:0.8W

Darkest backlight with speaker:1.8W

Brightest backlight non-speaker: 2.6W

Brightest backlight with speaker:3.6W

Communicate Interface

RS232/TTL( Factory default 232 level, short circuit J5 is TTL level )

Communicate Baudrate

1200~921600bps,typical baud rate:115200bps

Interface Specification

Default HY2.0-8P, FPC1.0-10P is optional.

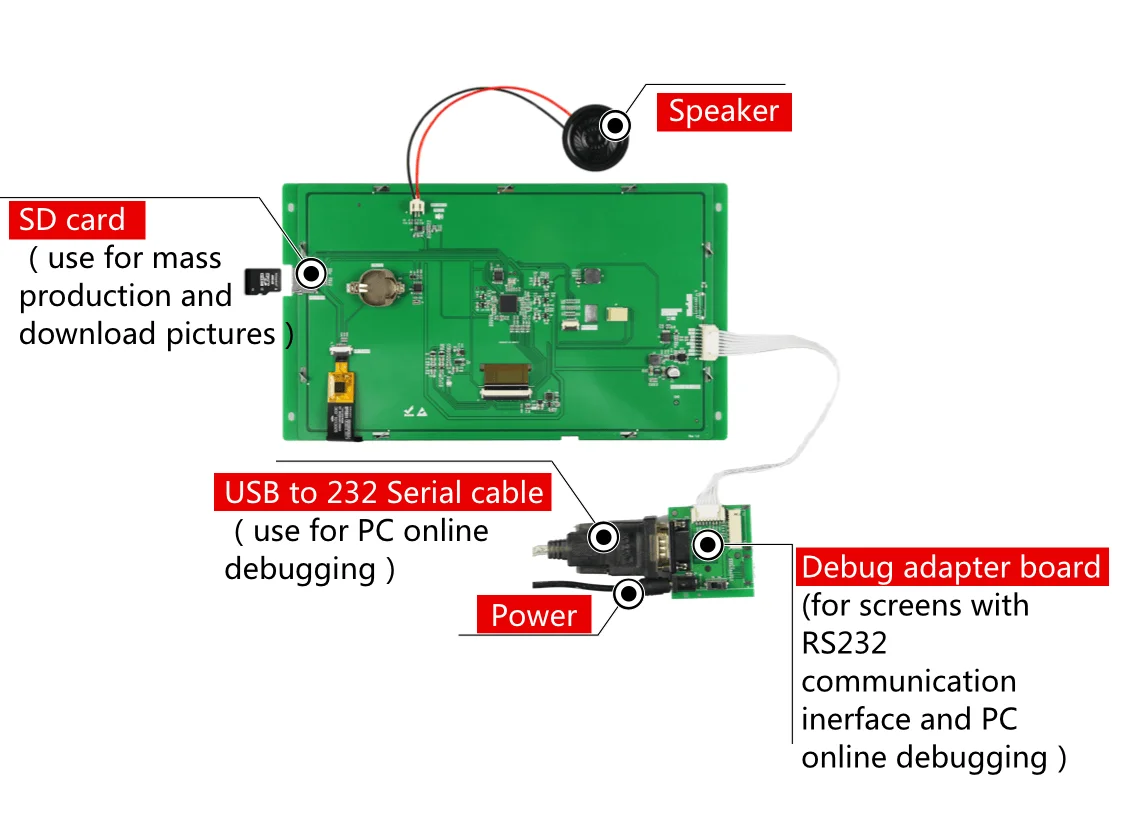

Image Local Download

SD card

Firmware local/remote upgrade

Insert SD card to upgrade locally / support user motherboard remote serial port to upgrade screen firmware

Image remote upgrade

Support users to remotely use their motherboard serial port to upgrade screen related picture projects, fonts, configuration files, etc.

Real-time clock(RTC)

Support clock,countdown, timer,etc.function)

Active Area of Displaying(AA)

L*W = 223.6mm*126.0mm

Product Dimension(L*W*H)

257.7mm*148.3mm*17.6mm(MAX, include TP)

Development Software

VisualTFT®

Operating temperature

-20~+70℃

Storage Temperature

-30~+80℃

AV input

Not supported

Audio play

MP3 format (horn 4Ω2W, mono), sharing storage space with pictures. If the bitrate of the MP3 format is 128kbps, it takes up 0.92 MB/min of storage

Audio Connector Specification

PH2.0-2P

Video play

support

WIFI

Not support

Three Anti-paint Process

None(It is optional)
