5 мегапиксельная уличная цилиндрическая Ip камера ночного видения POE 2 8 12 мм варифокальный объектив с обнаружением человеческого тела совместима HIK NVR
- Категория: >>>
- Поставщик: Shenzhen YCX Electronics Co. Ltd.
Сохранить в закладки 1600391770321:
Описание и отзывы
Характеристики
Product Description

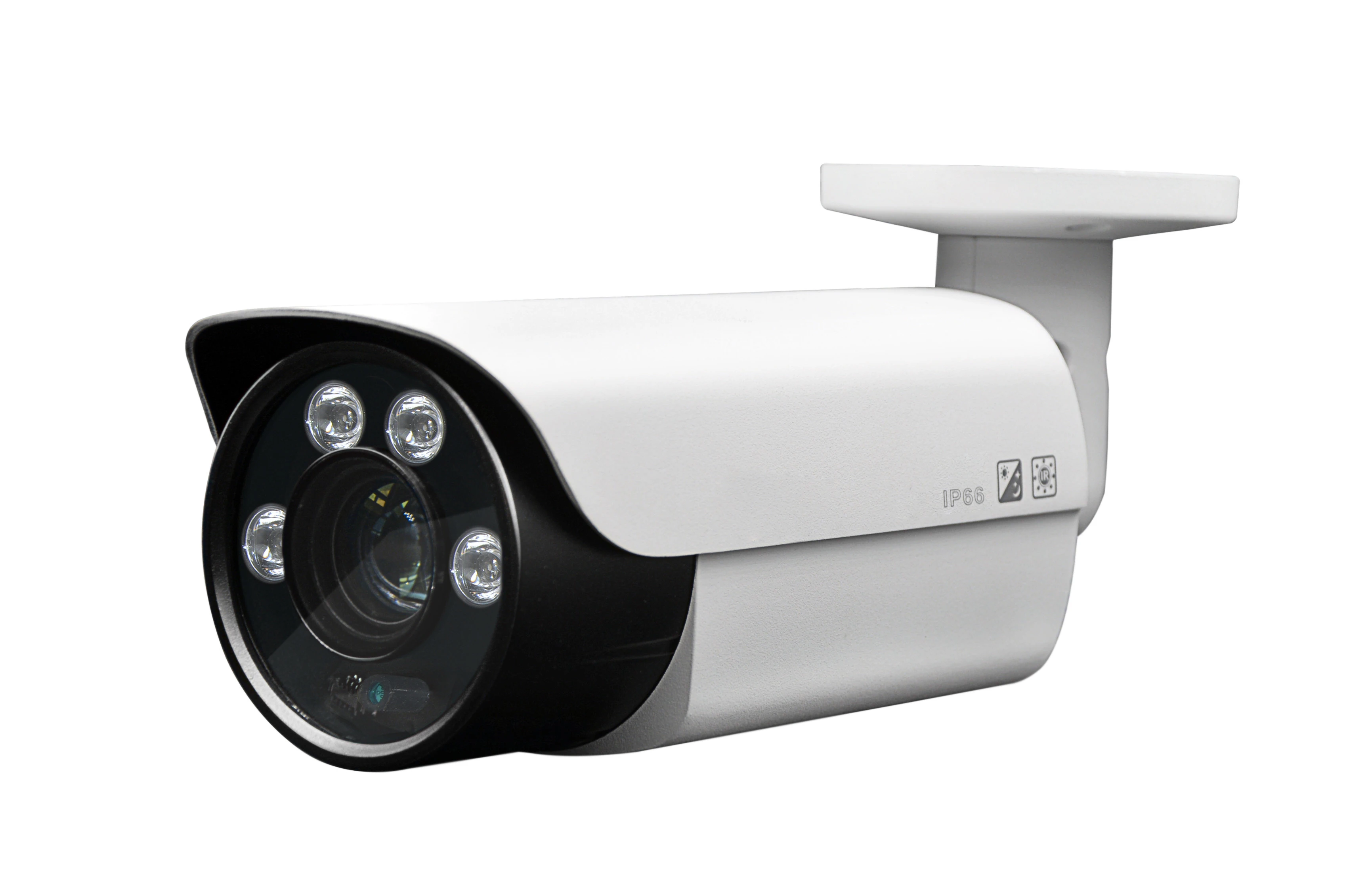

5mp good NightVision Bullet Outdoor Security POE Ip camera 2.8-12mm Varifocal lens with Human Body detection HIK NVR compatible
Features:
* 1/2.8" IMX335 CMOS sensor
* Full HD resolution 2592 x 1944P
* Ultra low illumination 0.01Lux
* Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
* D-WDR, Motion Detection, Privacy Mask, Mirror
* RTSP and 0nvf 17.06compatible
* 265/H.264 dual-stream media server
* Easy-to-use P2P Cloud service
* Multi web browser, PC Client, mobile APP remote access
* Optional customization Lens/Audio/Alarm/Storage/POE, etc.
* Lightning protection 4000V
* 4pcsarray IR Leds, IR distance 80 meters
* HD 8-12mm varifocal lens
* Full HD resolution 2592 x 1944P
* Ultra low illumination 0.01Lux
* Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
* D-WDR, Motion Detection, Privacy Mask, Mirror
* RTSP and 0nvf 17.06compatible
* 265/H.264 dual-stream media server
* Easy-to-use P2P Cloud service
* Multi web browser, PC Client, mobile APP remote access
* Optional customization Lens/Audio/Alarm/Storage/POE, etc.
* Lightning protection 4000V
* 4pcsarray IR Leds, IR distance 80 meters
* HD 8-12mm varifocal lens
Technical Parameters
Model | YC-W595AHZ86A | |
Camera | ||
Image Sensor | 1/2.8" IMX335 CMOS | |
Effective Pixels | 2592 (H) × 1944 (V) | |
Electronic Shutter | AUTO, 1/25s ~ 1/100000s | |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
Day/Night | Auto/Color/(B/W)/Timing | |
WDR | Digital WDR | |
White Balance | Auto/Indoor/Outdoor | |
BLC | Support | |
DNR | 2D/3D DNR | |
Other | Motion Detection, Privacy Mask, Mirror, flip | |
Encode | ||
Embedded Solution | Mstar 328Q | |
Video Standard | H.264/H.265 | |
Video Resolution | Main Stream:30fps@ 5MP(2592*1944) , 30fps@ 4MP(2592*1520) Sub Stream: D1/VGA(640x480)/360P/QVGA@30fps | |
Video Bitrates | 32Kbps - 8Mbps, VBR/CBR | |
Audio Standard | G.711-u/G.711-a | |
OSD Overlay | Title and Time overlay | |
IR Led | ||
IR Led | 4pcs array Leds | |
IR Distance | 80 M | |
Lens | ||
Focal length | HD 2.8-12 mm varifocal lens | |
Optional Function | ||
Audio, etc. | ||
Network Services | ||
Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. | |
P2P | Yes | |
Web | IE , Firefox, etc. | |
Media | CMS, Android, IOS | |
potocol | 17.06 compatible | |
General | ||
Network Port | 1-RJ45, 100Mbps, POE | |
Power Supply | 12 VDC ± 10% | |
Power Consumption | < 8 W | |
Operating Temp. | -30℃-(+60)℃, 10%-90%RH | |
Connection Diagram
Company Profile
Packing & Delivery
Our Service
Warranty
*2 years free repair and lifetime technical support provided after the shipment date.
*Any product proves defective under normal usage, we will repair or replace it by free of Charge.
*If you could repair the products by yourself, we will supply the spare parts.
* If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
*All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
*OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
*ODM Projects acceptable and welcome to your enquiries!
Payment Terms
*T/T, Paypal, Western Union, Sinosure & L/C
*We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
*If order value less than 20,000 USD , we should get 100% payment before production
*Sinosure & L/C acceptable according to the order amount
MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
How to order from us?
* Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
* We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the order.
* After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery date in 2 days.
*When the goods are ready, we will send by DHL, by air or by sea, or other shippiong method appointed by the customers. and let you know the tracking number and estimated time of arrival.
Technical Support
Professional technical support team 24 Hours Online!
*2 years free repair and lifetime technical support provided after the shipment date.
*Any product proves defective under normal usage, we will repair or replace it by free of Charge.
*If you could repair the products by yourself, we will supply the spare parts.
* If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
*All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
*OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
*ODM Projects acceptable and welcome to your enquiries!
Payment Terms
*T/T, Paypal, Western Union, Sinosure & L/C
*We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
*If order value less than 20,000 USD , we should get 100% payment before production
*Sinosure & L/C acceptable according to the order amount
MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
How to order from us?
* Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
* We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the order.
* After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery date in 2 days.
*When the goods are ready, we will send by DHL, by air or by sea, or other shippiong method appointed by the customers. and let you know the tracking number and estimated time of arrival.
Technical Support
Professional technical support team 24 Hours Online!
Contact Us
Похожие товары
Заводская цена rfid/nfc Бесконтактное членство смарт vip карты с печатью
Автомобильный видеорегистратор ThiEYE, парковочный режим, Wi-Fi, G-датчик, реальный HD 1080P, Автомобильный видеорегистратор Safeel Zero + 170, широкоугольный видеорегистратор, автомобильный черный ящик
35,00 $ - 39,00 $
2,35 дюймов индивидуальный дизайн Скрытая информации о транспортном средстве (VIN, быстрая камера, передняя настоящий FHD 1296P с двумя объективами black box магнитный держатель для автомобиля с wifi, туда и обратно dvr
Android 11,0 9 дюймов GPS навигации радио для 2014-2016 Geely Emgrand EC7 с HD сенсорный экран Carplay
152,00 $ - 155,00 $

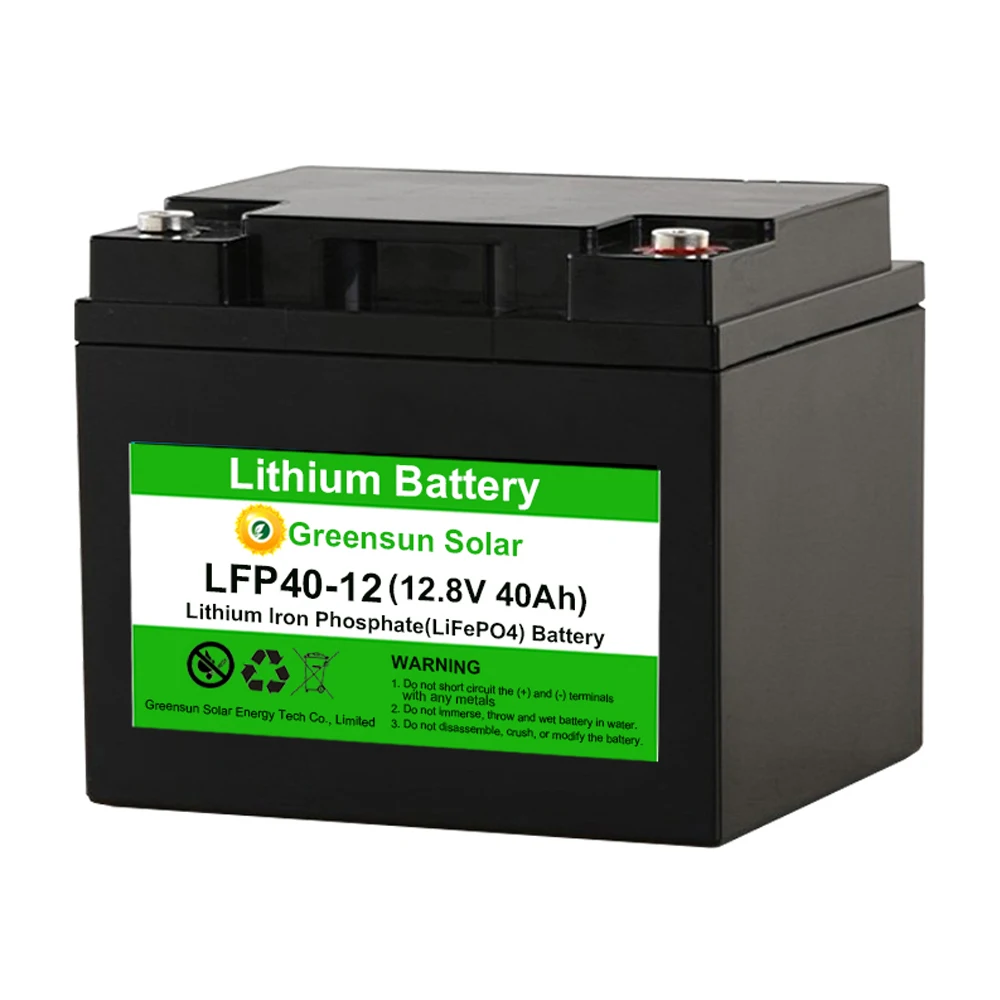

Легкая перезаряжаемая литиевая батарея для гольф-мобиля 12 в 40 Ач перезаряжаемая литий-ионная батарея

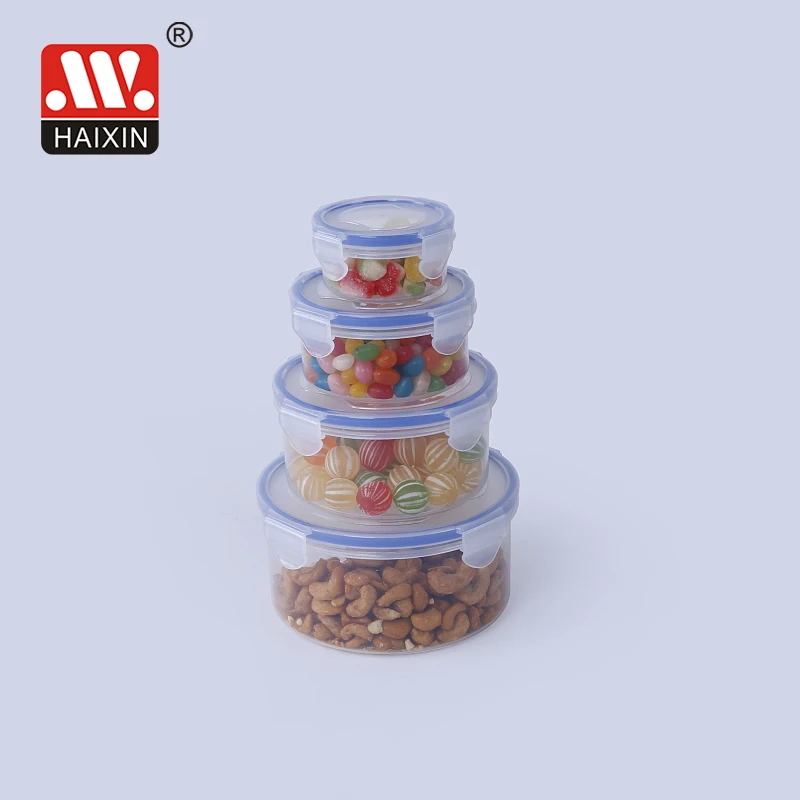

100 мл/300 мл/600 мл/1150 мл герметичный пластиковый контейнер для хранения пищевых продуктов с запирания крышки 4 предмета в комплекте
0,32 $ - 0,33 $

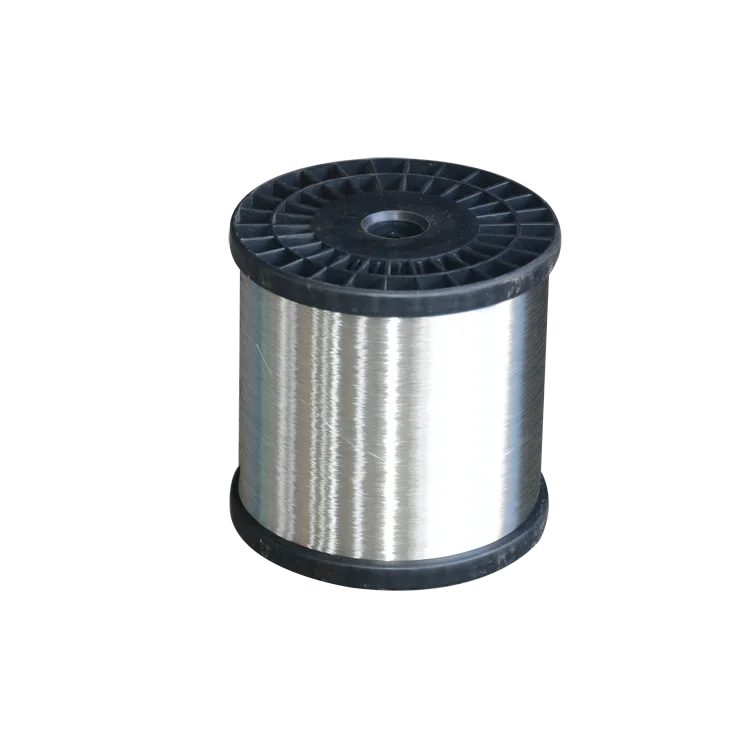

Прямая продажа с фабрики экранированный сетевой кабель материал 0,08 мм-4,0 мм (T-CCC) сердечник из луженой меди клад медных провода
