Product Description

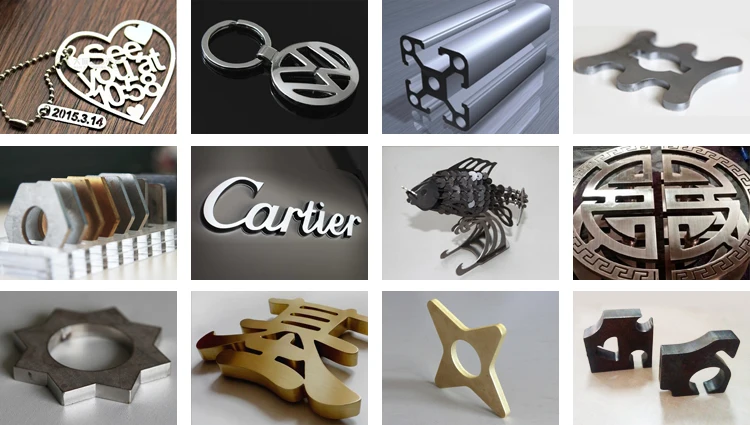

Product Application
The fiber laser cutting machines are similar to pantographs but, instead of the rotating spindle, they mount a head with a system of lenses that focus the laser beam in a single point of decimal dimensions, to facilitate and optimize the cut. They are machines that, moving on 3 or more axes, allow the cutting of various metals through a diode laser source transmitted on an optical fiber system with a yield of about 100 times higher than gas sources.
SPECIFICATIONS Cnc metal laser cutting machine price | ||||||
Item | Details | Features | ||||

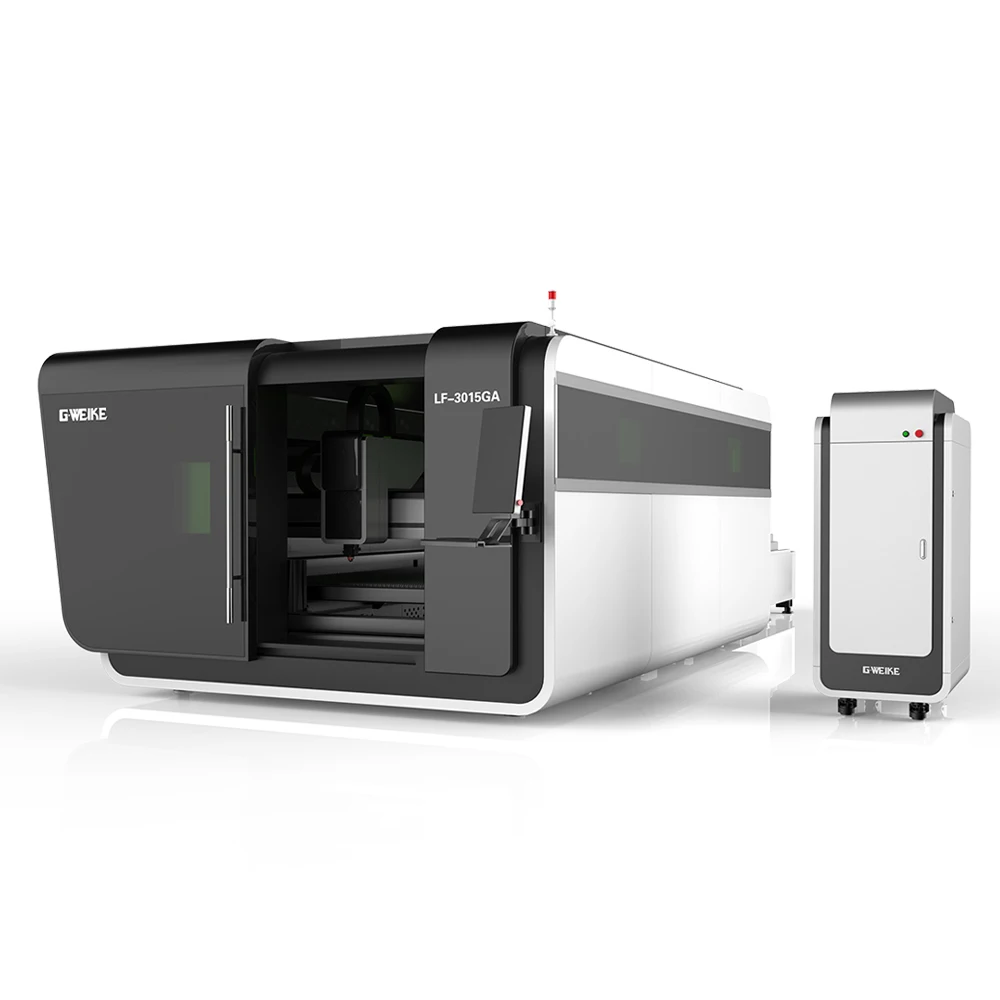

Model | LF3015GA | Metal tube and plate laser cutting machine | ||||
Name | Hot sales G.WEIKE CNC fiber laser metal cutting machine | fiber laser tube cutting machine | ||||
Transmission system | Taiwan YYC gear racks | ATLANTA is one of the best brand of gear racks all of the world | ||||
Laser source | IPG, Raycus | IPG is the best laser source all over the world; Raycus is the best laser source in China brand. | ||||
Driving system | Japan YASKAWA servo motor and driver | 1.8Kw | ||||
Rail guides | Taiwan HIWIN rail guides | HIWIN is the most widely used in China manufactures | ||||
Pneumatic components | Japan SMC pneumatic components | Taiwan Airtec pneumatic components for options | ||||
Electrical components | French Schneider electrical components | / | ||||
Motor reducer | German Neugart motor reducer | 1:5 German neugar reducer is the one of the best refucer all over the world. | ||||
Water cooling system | Tongfei water cooling system | |||||
Positioning accuracy | ±0.03mm | |||||
Repositioning accuracy | ±0.02mm | |||||
Travelling speed | 120mm/min | |||||
Weight | 8000kg | Metal plate welded machine bed with high accuracy | ||||
Main Features

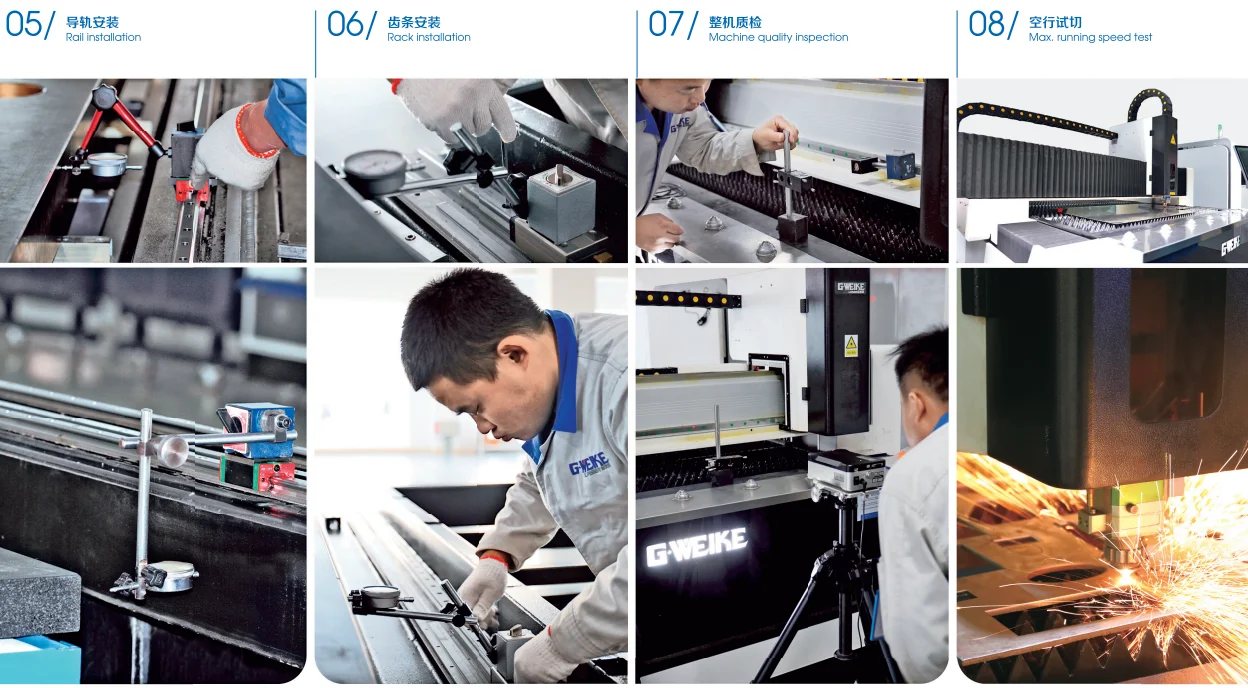

The technology of these machines is of European or Japanese design. The sources are IPG (American), the best currently on the market, and Raycus (Chinese). The structure is treated at 600 ° C and cooled for 24 hours to guarantee a duration of 20 years and precision during processing. To test the alignment and accuracy of the tracks, a self-collimator is used that allows accuracy with very high resolution. To test accuracy, compensation and adjust errors, an original English-designed interferometer is used. Internally, the machines are equipped with self-regulation systems for injected gas pressure. The engines used are Sanyo or Panasonic inertial servomotors, imported from Japan. The transmission system on rails and pinions is from ALTANTA, a German company no. 1 in the world.
Detailed Images
Machine Parts
Name: Plate welded machine bed
Brand: G.WEIKE
Original: China
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
Main Features
Name: 3rd Generation Aviation Aluminum Gantry
Brand: G.WEIKE
Original: China
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.
Machine Parts
Name: IPAD Designing Screen
has a vertical screen display, different from the traditional horizontal screen display with good response speed, higher contrast,
wider view, low power consumption as well as high resolution.
Independent Control Cabinet
1） Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong
the lifespan of the electrical components.
2） Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature
damage to components in summer.
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong
the lifespan of the electrical components.
2） Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature
damage to components in summer.
.
Motoreducer Motor Reducer
1)The lowest backlash
2) The maximum output torque
3)The highest torsion rigidity
4)High efficiency, high quality, low noise, life time lubrication
5)High precision
6)Long life
Main Features
Name:Servo motor
Brand: YASKAWA
Original: Japan
Japan YASKAWA servo motor and driver, which is one of the best servo motor all over the world.
YYC Rack
Accumulated error of grinding grade accuracy 0.015mm / 300mm (any 300mm)
HIWIN Rail And Slider
1)High precision, high load capacity, long life, high efficiency dust prevention, low obstruction, low noise.
2)Using precision alloy steel, excellent material, high load capacity.
SMC electrical proportional valve
1)High precision fluid control
2)It can realize the stepless adjustment of pressure and speed.
3)It can realize remote control, easy use.
4)Low power, low heat and low noise.
5)It has no pollution to the environment and is less affected by changes of ambient temperature.
Japanese Diaphragm Coupling
1)Compact structure and high strength. It can accurately transmit the speed, no slip in operation, no rotating gap and long service life.
2)It is not affected by temperature and oil, and has high resistance to acid, alkali and corrosion.
3)Large flexibility and small reaction force in radial displacement, allowing for greater axial, radial and angular displacement.
2)It is not affected by temperature and oil, and has high resistance to acid, alkali and corrosion.
3)Large flexibility and small reaction force in radial displacement, allowing for greater axial, radial and angular displacement.
.
Company Profile
Our Advantages
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 4000Kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
Exhibition
Похожие товары

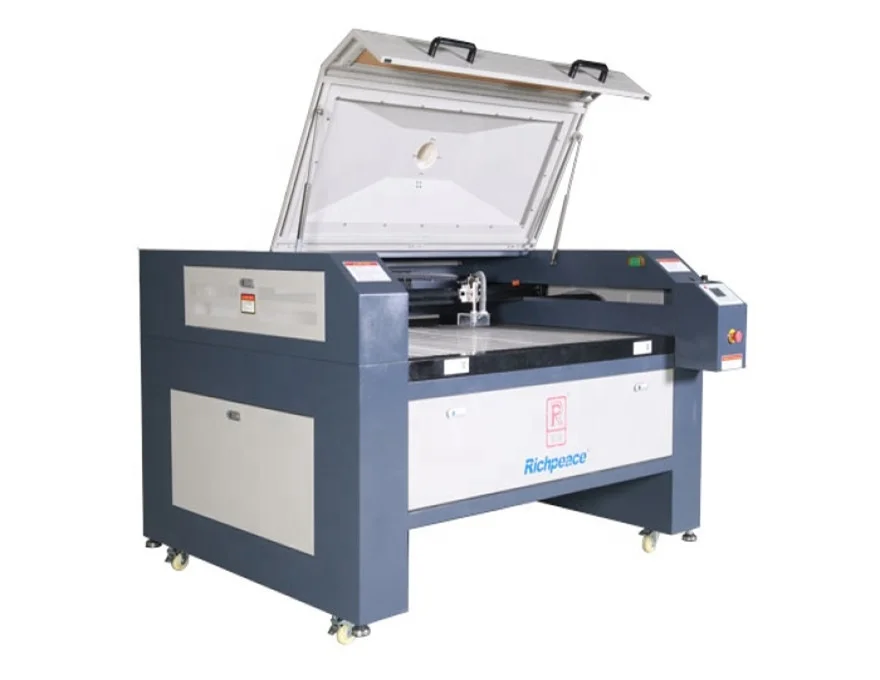

Richpeace шаблон лазерной резки гравировальной машины CO2 лазерный резак
1 050 286,06 ₽ - 1 212 292,40 ₽
Лазер CO2 для одежды лазерная машина рулон 1613 1830 ткань кожа
440 833,60 ₽

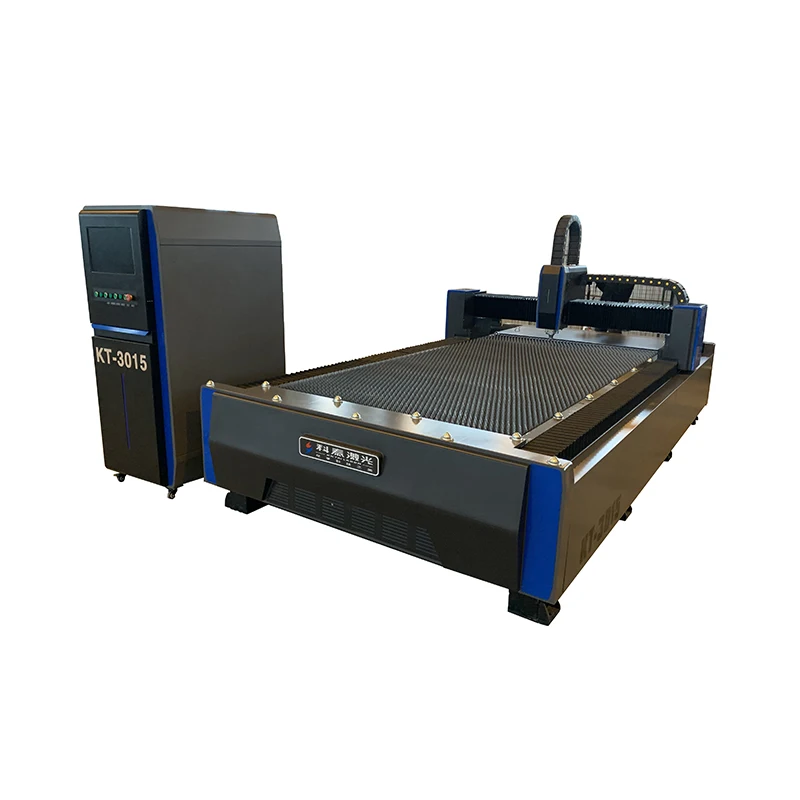

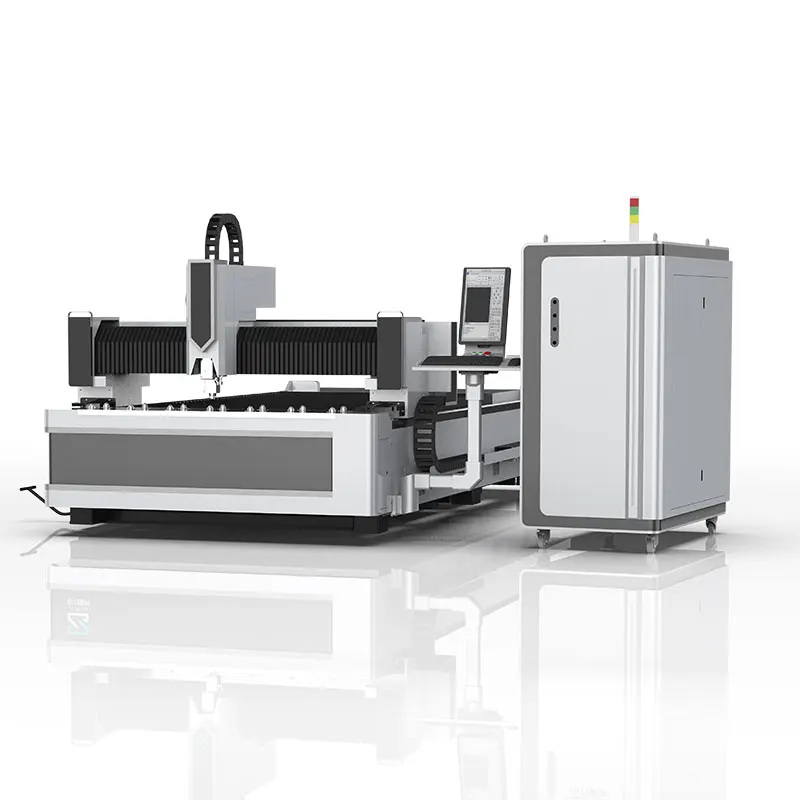

Одноплатформенный лазерный резак из 3015 волокна: Универсальные режущие формы для разнообразной графики адаптируемой предприятий общественного питания и гостиничного бизнеса
3000 Вт волоконно-лазерный резак для работы на месте скорость 1200 массы
1 219 015,12 ₽

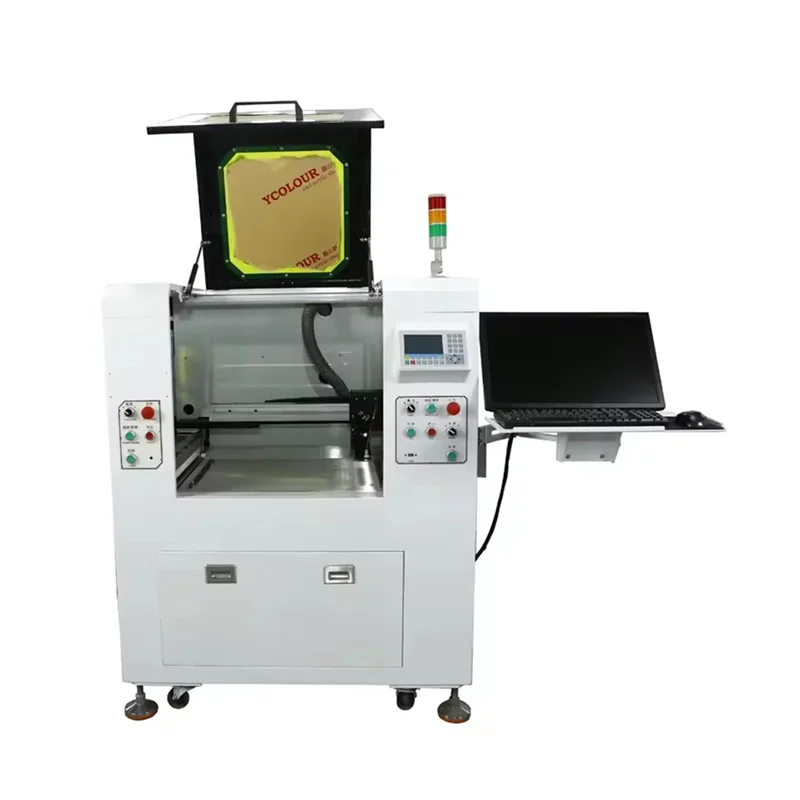

CO2 Лазерная прецизионная резка для ПЭТ пленка резки с функцией позиционирования CCD
2 314 376,40 ₽ - 2 755 210,00 ₽

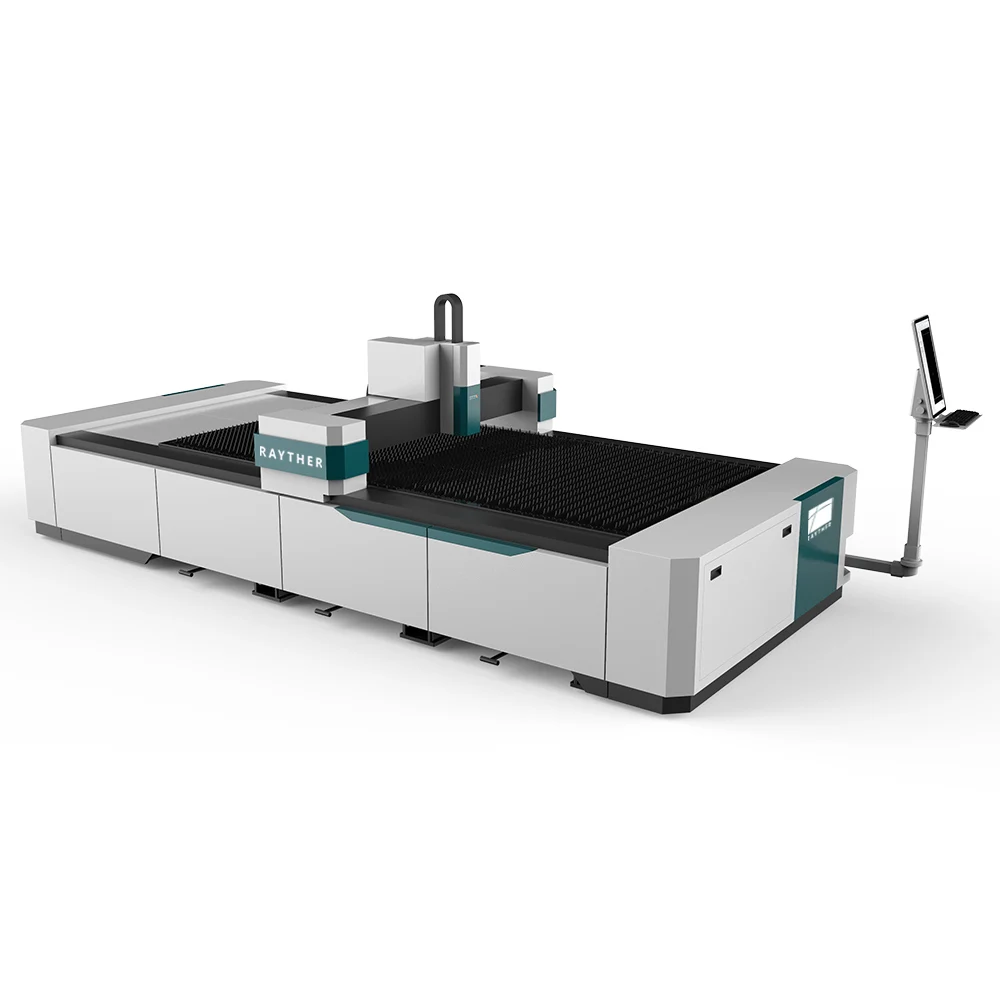

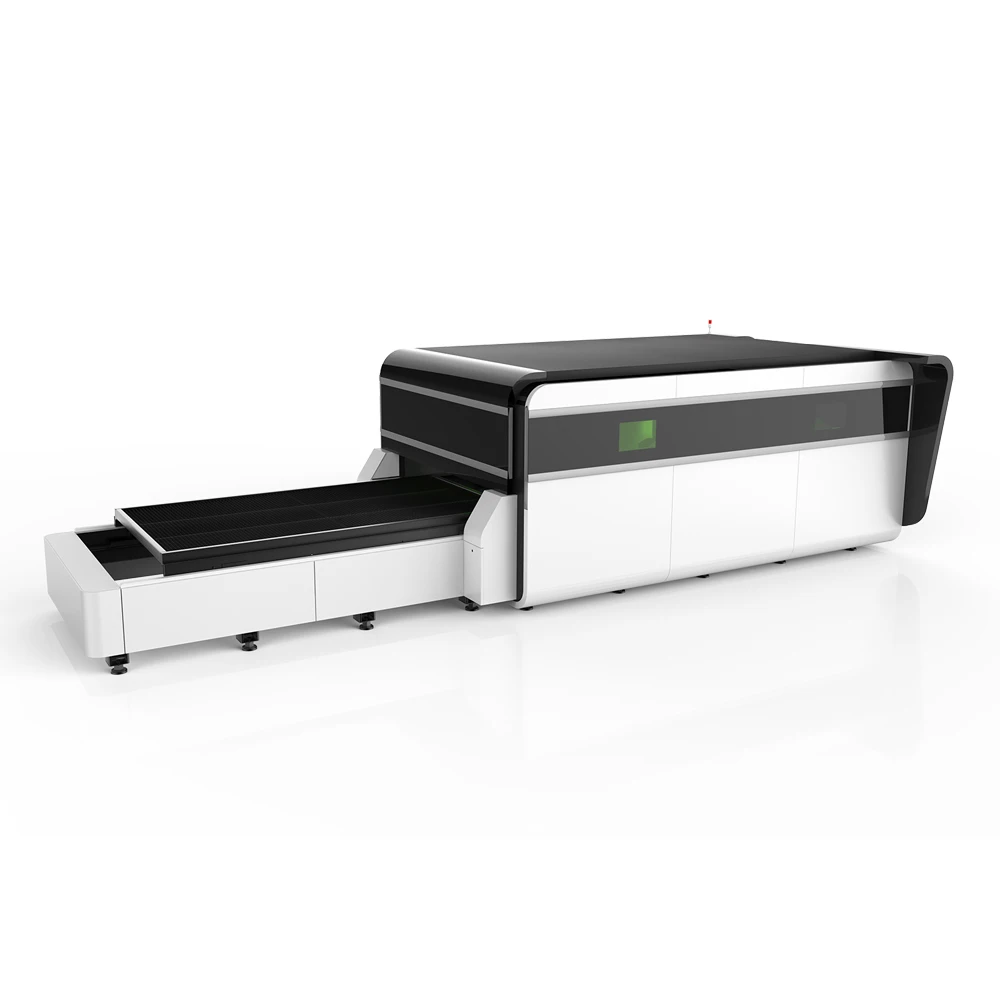

Низкое энергопотребление надежное качество точное позиционирование точность 1000 Вт 2000 3000 волоконно-лазерная резка
1 432 709,20 ₽ - 1 653 126,00 ₽

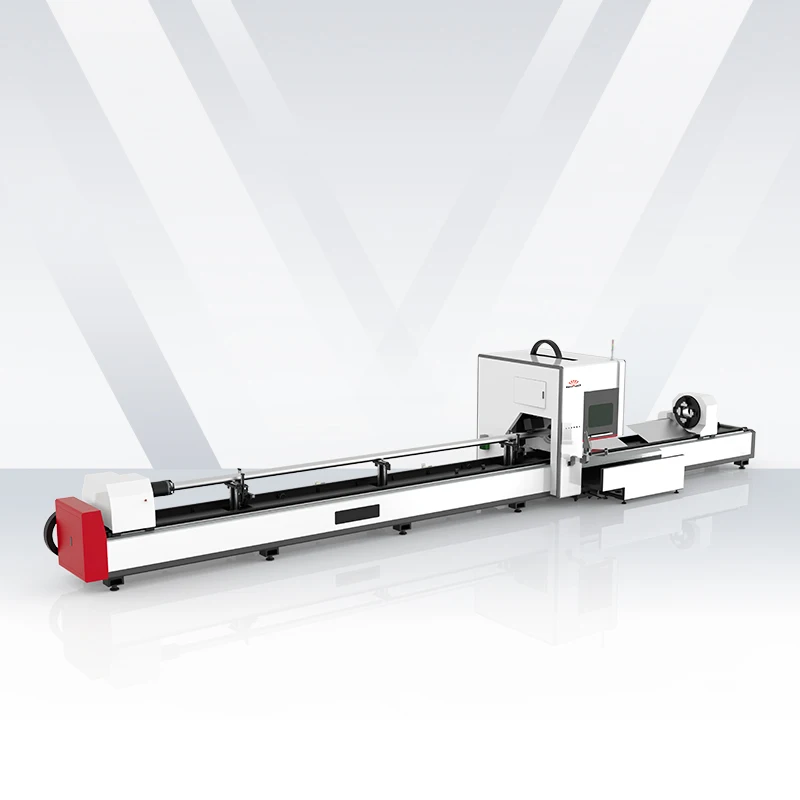

Лазерная машина для резки труб
