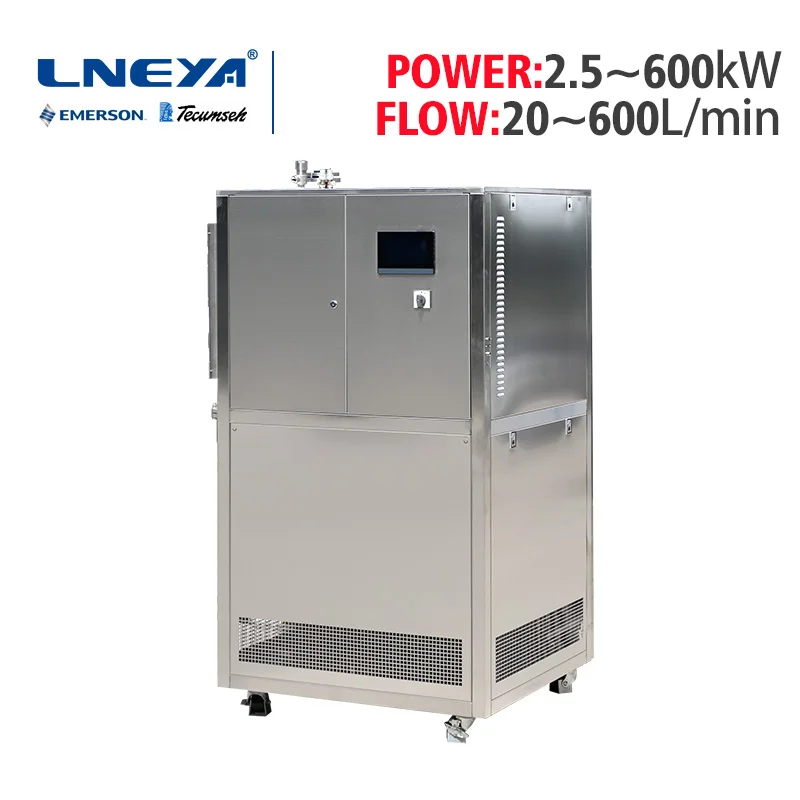

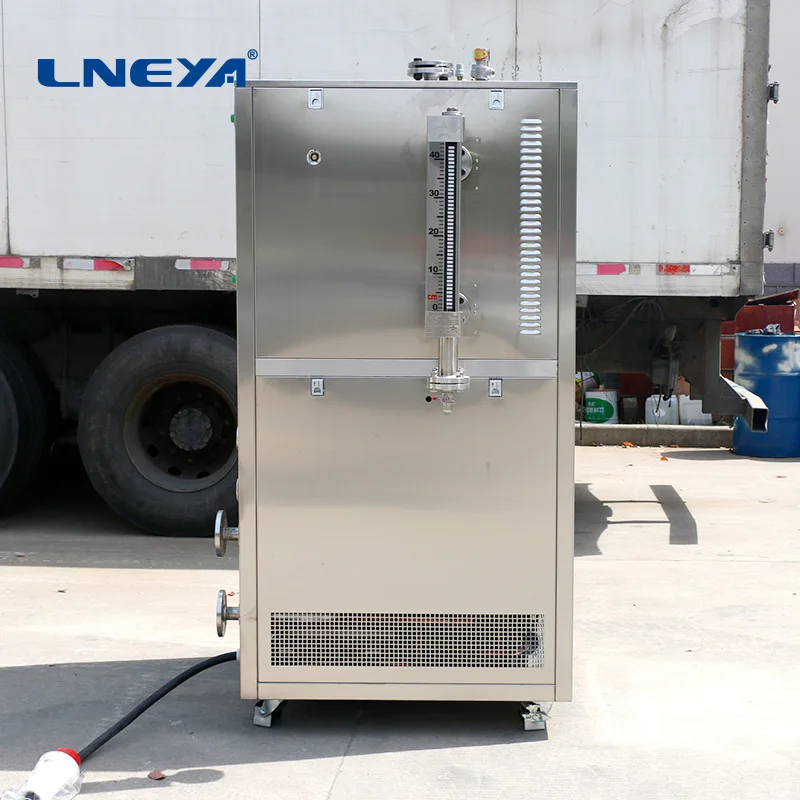

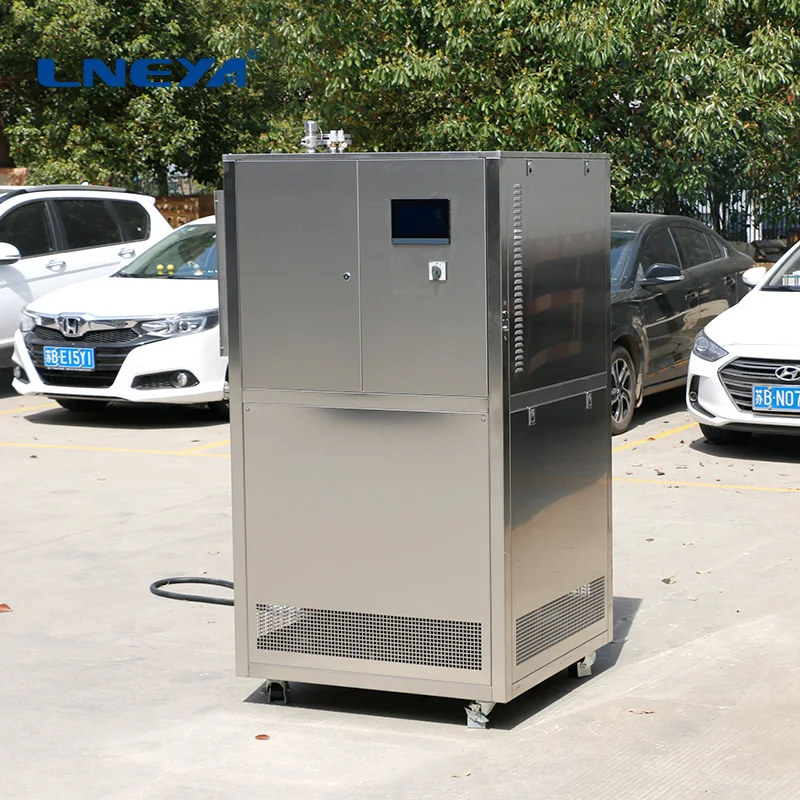

Серия SUNDI промышленная система охлаждения и термостатического контроля
- Категория: >>>
- Поставщик: Wuxi Guanya Refrigeration Technology Co. Ltd.
Сохранить в закладки 1600397777131:
Описание и отзывы
Характеристики
Products Description
Process Control Principle:
Controlled by two PID(PID is a variable in each group control loop structure, known as the two sets of controlloops: the main circuit and from the circuit. the main control loopfrom the loop output as the setting.System with feedforward with PV, the master PID loop operation results of the PV output and feedforward signals as the composite of the settings from the control loop, through such control of the temperature gradient to ensure the accuracy of temperature control system.
Product Paramenters
Model | SUNDI- 825W | SUNDI- 835W | SUNDI- 855W | SUNDI- 875W | SUNDI-8A10W | SUNDI-8A15W | SUNDI-8A25W | SUNDI-8A38W | SUNDI-8A60W | ||||||||
Temp range | -80~+250 ℃ | ||||||||||||||||
Heating power (KW) | 3 | 3.5 | 5.5 | 7.5 | 10 | 15 | 25 | 38 | 60 | ||||||||
Cooling capacity (KW) AT | 2.5@250℃ | 3.5@250℃ | 5.5@250℃ | 7.5@250℃ | 10@250℃ | 15@250℃ | 25@250℃ | 38@250℃ | 60@250℃ | ||||||||
2.5@20℃ | 2.6@20℃ | 5.5@20℃ | 7.5@20℃ | 10@20℃ | 15@20℃ | 25@20℃ | 38@20℃ | 60@20℃ | |||||||||
1@-60℃ | 1.4@-60℃ | 1.6@-60℃ | 3@-60℃ | 3.5@-60℃ | 5.8@-60℃ | 10@-60℃ | 16@-60℃ | 23@-60℃ | |||||||||
0.3@-75℃ | 0.42@-75℃ | 0.7@-75℃ | 1.3@-75℃ | 1.5@-75℃ | 2.4@-75℃ | 5@-75℃ | 8@-75℃ | 11@-75℃ | |||||||||
Circulation pump L/min bar | 20 | 35 | 35 | 50 | 60 | 110 | 150 | 250 | 400 | ||||||||
2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |||||||||
Refrigerant | R-404A/R508B | ||||||||||||||||
Connection size | G1/2 | G3/4 | G3/4 | G1 | G1 | G1 | DN32 | DN40 | DN65 | ||||||||
Dimension cm | 55*100 *175 | 55*100 *175 | 55*100 *175 | 70*100 *175 | 70*100 *175 | 150*100 *185 | 150*100 *185 | 205*145 *205 | 245*145 *225 | ||||||||
Weight kg | 240 | 285 | 345 | 500 | 600 | 950 | 1300 | 1550 | 2200 | ||||||||
Power 380V 50HZ | 7.5KW | 10KW | 13KW | 19KW | 25KW | 37KW | 50KW | 71KW | 110KW | ||||||||
Why Choose Us
Structural design principles and functional advantages of industrial chiller
When the temperature is high, there is no evaporation of heat conducting medium, and the continuous temperature control of -90~195℃，-70~220℃，-55~250℃ and -25~300℃ can be realized without pressure.Adopt the design of fully closed pipeline, reduce the demand of heat-transfer fluid, improve the heat utilization rate of the system, and achieve rapid temperature rise and fall. The heat conducting medium in the expansion vessel does not participate in the circulation, which can reduce the risk of moisture absorption and volatilization during the operation of the heat conducting medium.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？
Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？
We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty?
One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services?
Of course, you only need to send your specific requirements, and we will provide you with the products you want.
Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？
We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty?
One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services?
Of course, you only need to send your specific requirements, and we will provide you with the products you want.
Похожие товары

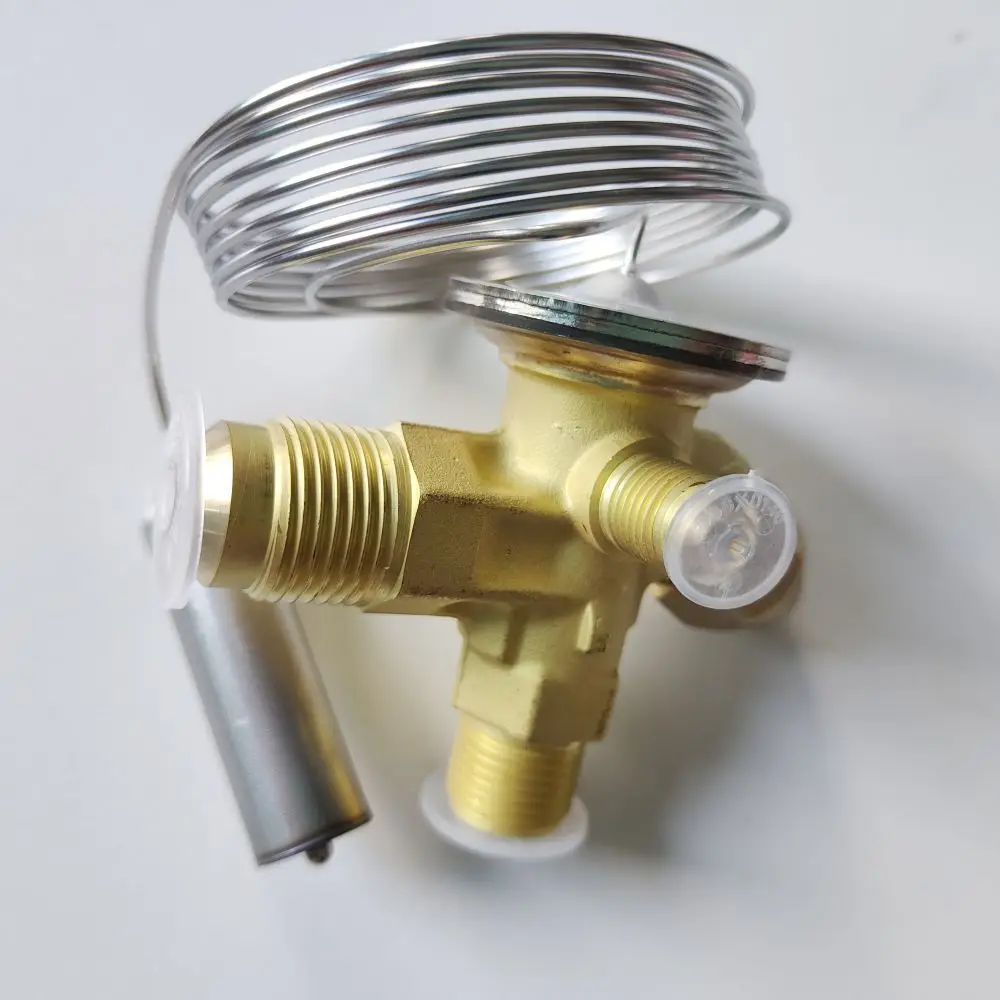

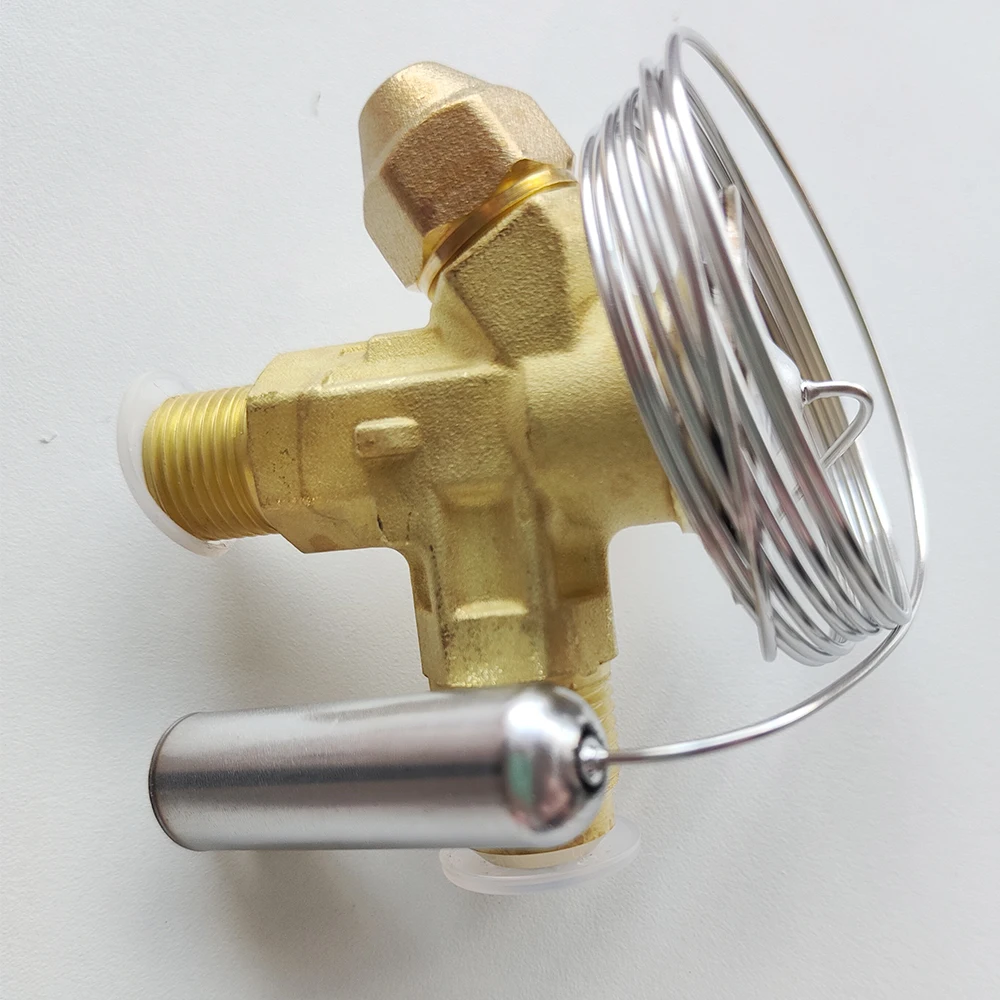

Тепловой расширительный клапан для кондиционирования воздуха Охлаждающий термостатический расширительный клапан для охлаждения
16 ГБ 32 ГБ 64 ГБ мини usb флэш-накопитель, usb-накопитель, Флэшка с бесплатным логотипом
1,55 $ - 6,85 $

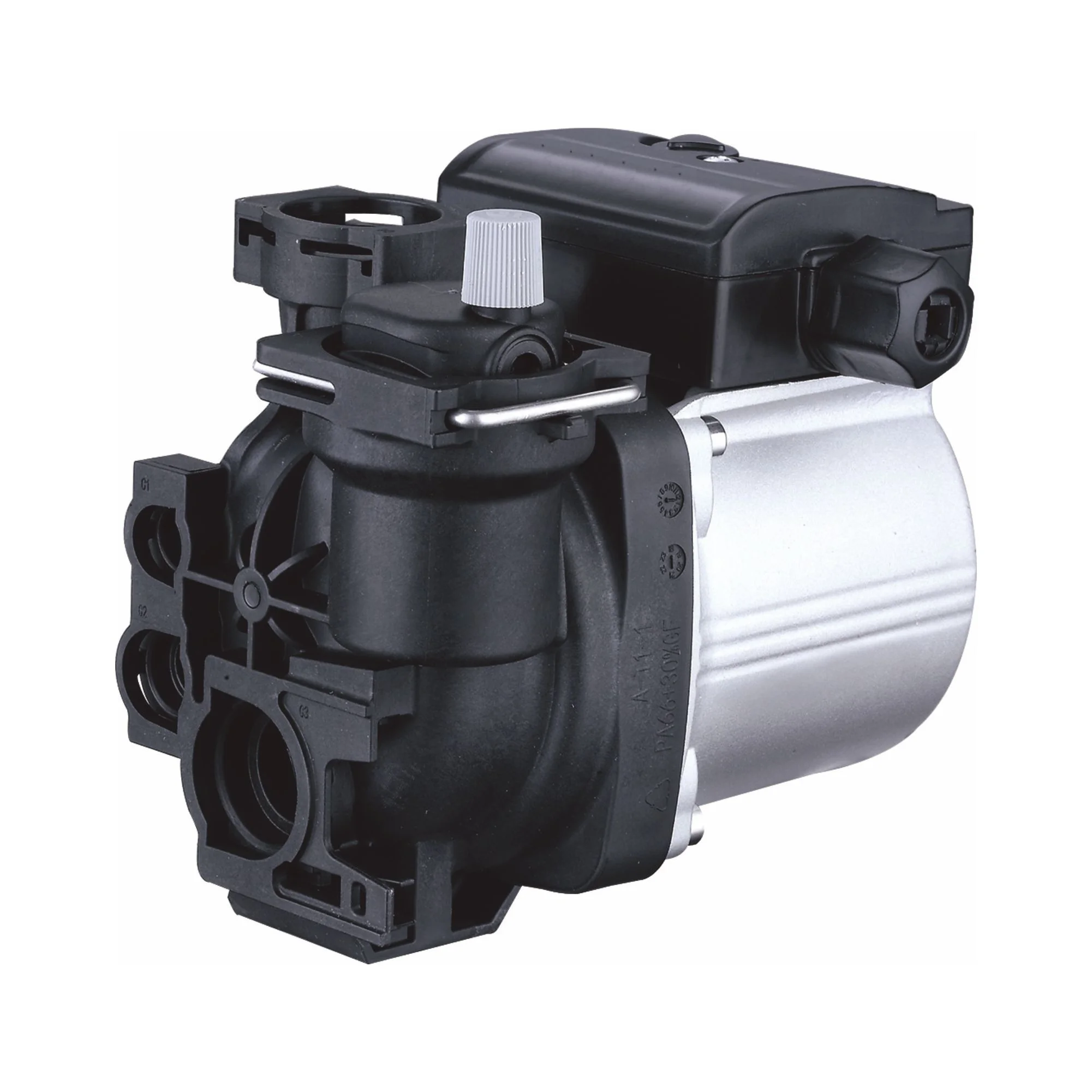

Настенный циркуляционный насос бытовой газовый котел бойлер водонагреватель насос
25,00 $ - 35,00 $

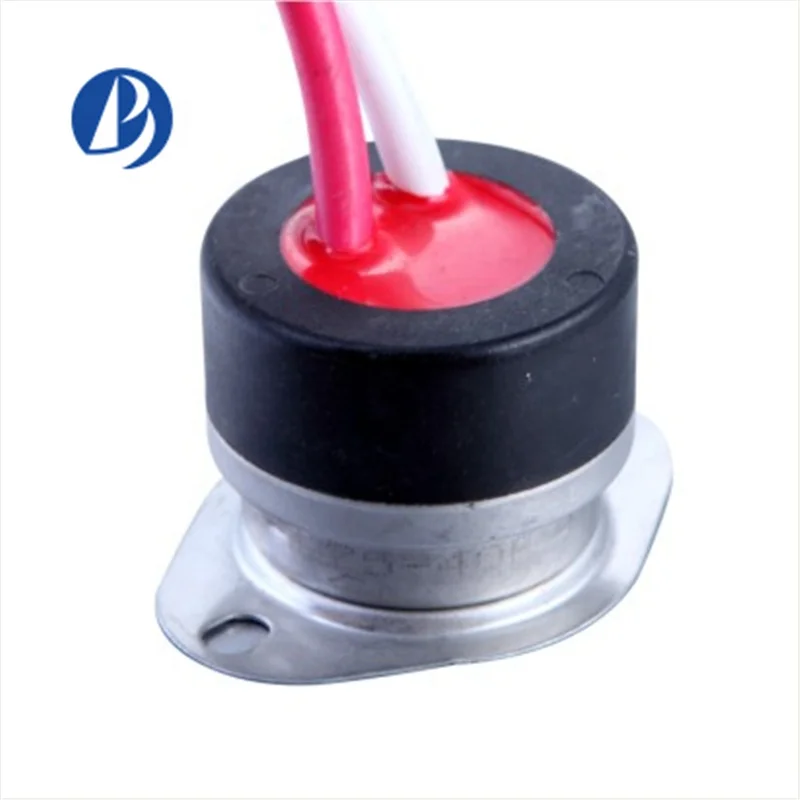

Новый продукт термостат холодильника KSD-301A для джакузи
Акриловый рафиловый барабан 12 Вт с запорной дверью прозрачный для
Пластиковый диспенсер для фруктов для домашней кухни, 4 и 6 отделений, поднос для коктейльных украшений, держатель для приправ
0,90 $ - 2,50 $

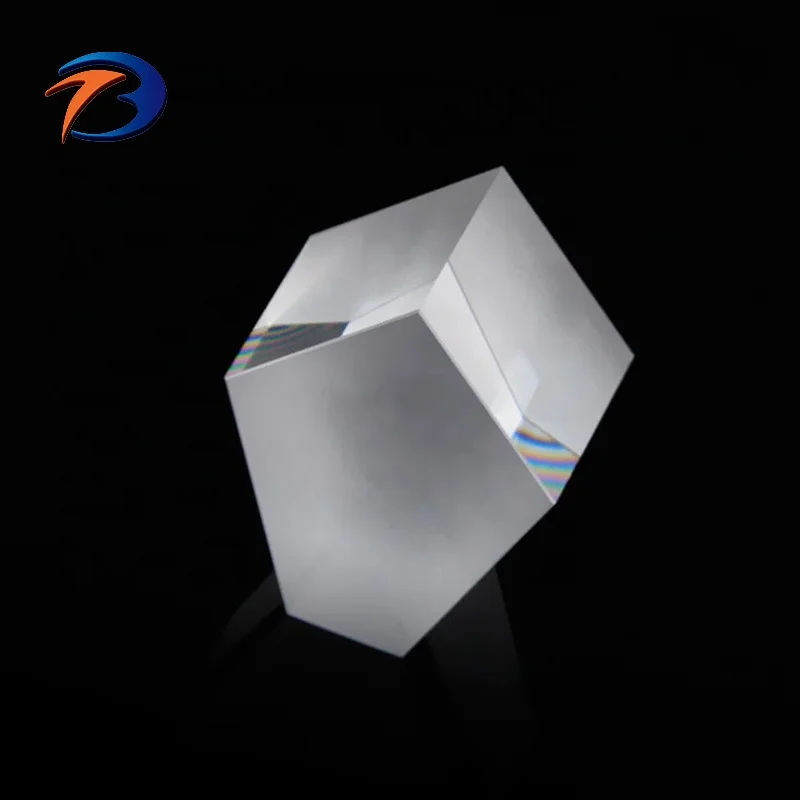

Оптическое стекло k9 B270, стеклянная пятиугольная призма с AR-покрытием 400-700 нм, оптические пятиугольные призмы с вращением изображения
