Brand products HM231111CD taper roller bearing HM231140/HM231111CD

Brand products HM231111CD taper roller bearing HM231140/HM231111CD



1) Tapered roller bearing

2) Double row taper roller beairng

3) OEM/ODM acceptable

4) Factory sales with good quality

5) Bearing No.:  HM231140/HM231111CD



Product Description

Double row taper roller bearing Specification:

1,consists of a single-piece (double) outer ring and two single inner rings.

2,This configuration offers a wide effective bearing spread to support loads created by overturning moments.
3,These bearings can be used at fixed positions or allowed to float in the housing bore to compensate for shaft expansion.

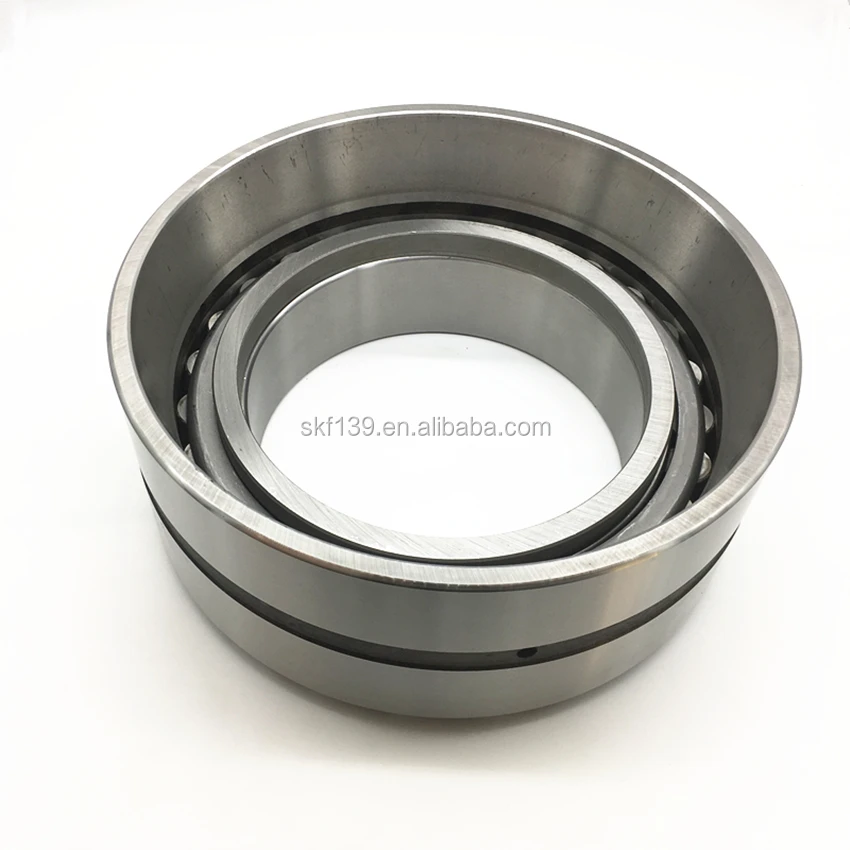

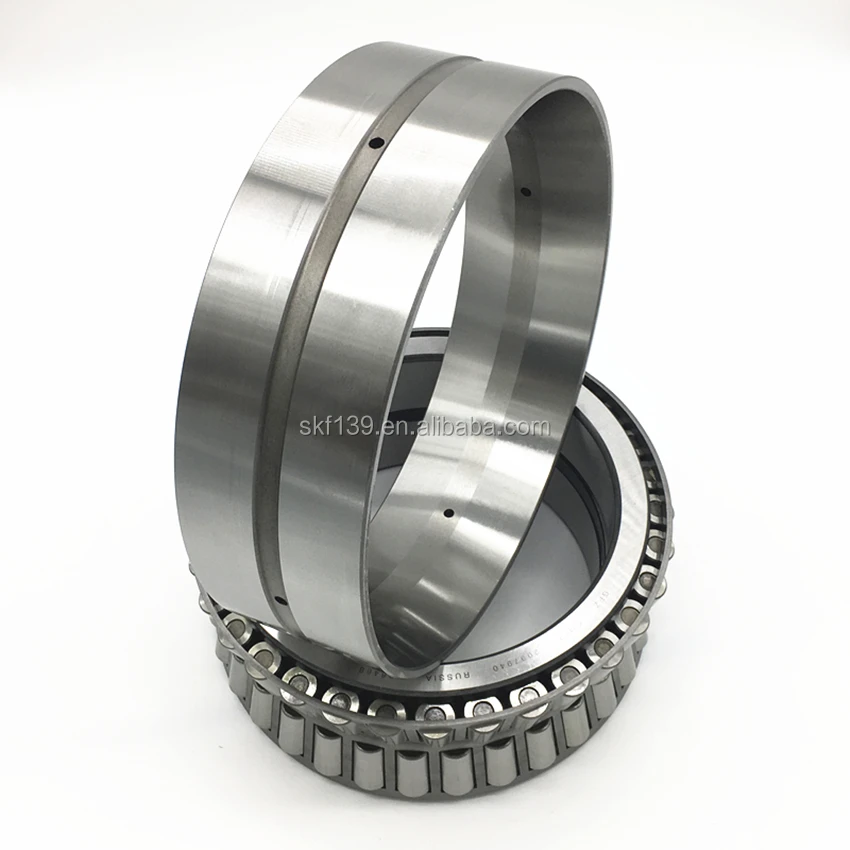

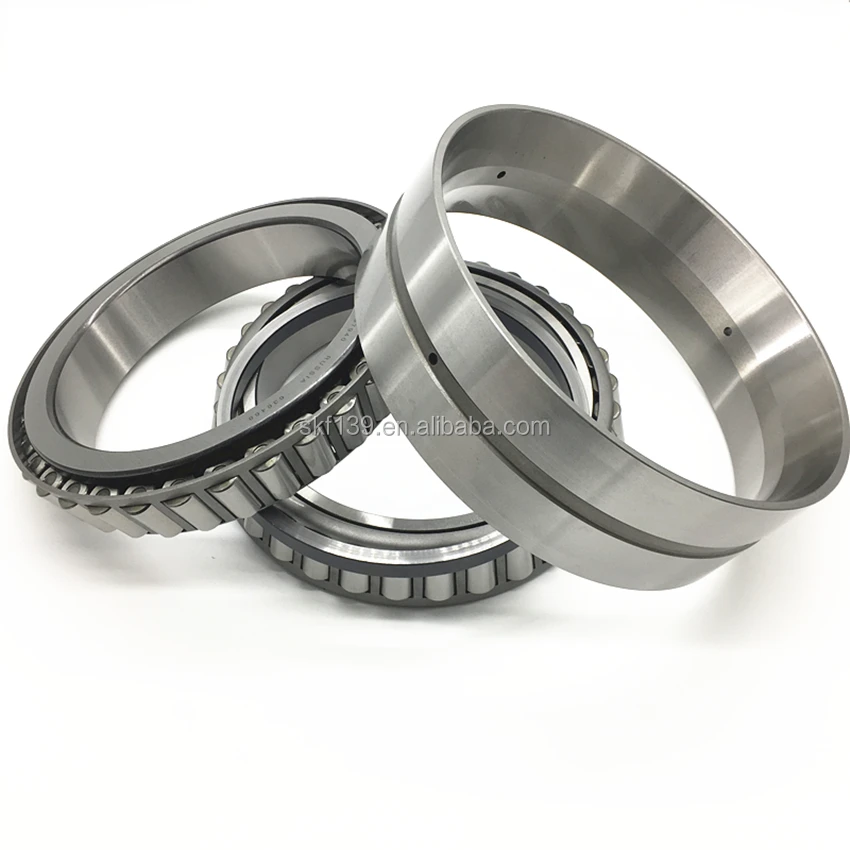

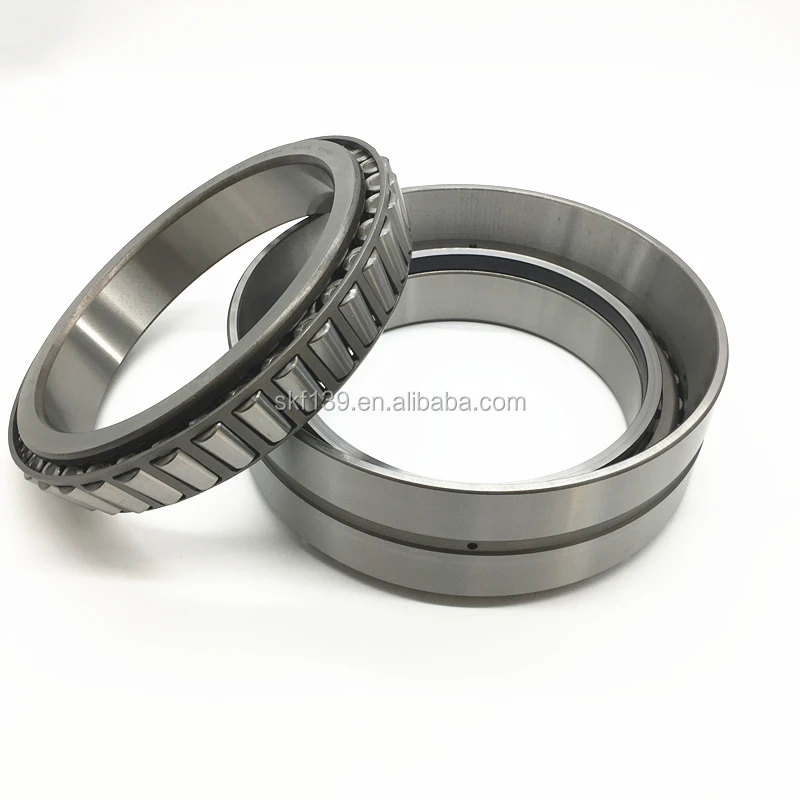

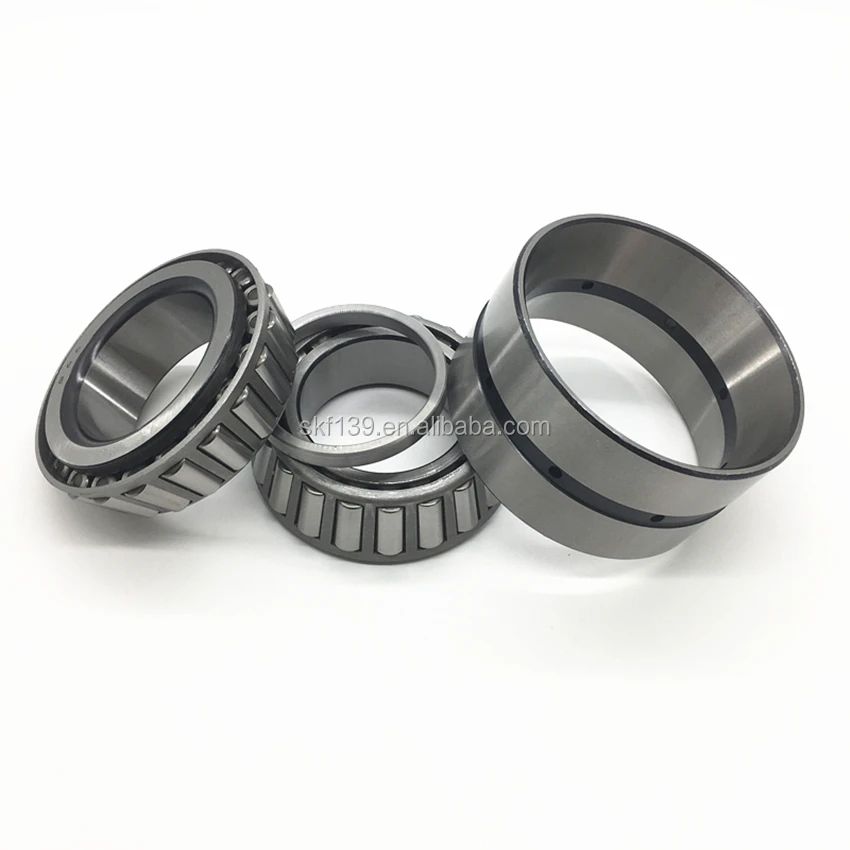

Double row taper roller bearing Picture:

double row taper bearingsTDO taper roller bearing-700double taper bearingbearing using




Double row taper roller bearing Drawing:



 TDO drawing

Double row taper roller bearing Parameter:

PartNumberBearingdimensionsWeightBearingNumber
InnerOuterBoreO.DWidthOuterringwidthkg
dDTC
mmmmmmmm
7356273876CD142.875222.2575.69253.9758.9473562/73876CD
8256282951CD142.875241.3131.762106.36222.4982562/82951CD
3669036620D146.05193.67565.08553.9754.8936690/36620D
HM231140HM231111CD146.05236.538131.762106.36220.26HM231140/HM231111CD
8257682951CD146.05241.3131.762106.36221.882576/82951CD
8157581963CD146.05244.475107.9579.37517.8381575/81963CD
9957599102CD146.05254149.225111.12528.5799575/99102CD
HM231148HM231111CD149.225236.538131.762106.36219.5HM231148/HM231111CD
HM231149HM231111CD149.225236.538131.762106.36219.6HM231149/HM231111CD
8258782951CD149.225241.3131.762106.36220.9882587/82951CD
9958799102CD149.225254149.225111.12527.9999587/99102CD
8159081963CD150244.475107.9579.37517.1881590/81963CD
8159381963CD150.812244.475107.9579.37516.9981593/81963CD
LM330448LM330410D152.4203.292.07579.3757.55LM330448/LM330410D
M231649M231610CD152.4222.25100.0176.211.77M231649/M231610CD
8160081963CD152.4244.475107.9579.37517.281600/81963CD
9960099102CD152.4254149.225111.12526.9899600/99102CD
EE107060107105CD152.4268.288160.338125.41234.82EE107060/107105CD
EE450601451215CD152.4307.975200.025146.0560.77EE450601/451215CD
HH234048HH234011CD152.4307.975200.025155.57561.38HH234048/HH234011CD
HH234049HH234011CD152.4307.975200.025155.57561.66HH234049/HH234011CD
8160681963CD153.988244.475107.9579.37516.5481606/81963CD
4678046720CD158.75225.42585.72569.8510.5846780/46720CD
8162981963CD159.95244.475107.9579.37515.2281629/81963CD
8163081963CD159.95244.475107.9579.37515.481630/81963CD
HM237532HM237510CD160.325288.925142.875111.12537HM237532/HM237510CD
4679046720CD165.1225.42585.72569.859.5446790/46720CD
6778067720CD165.1247.65103.18884.13816.7667780/67720CD
M235145M235113CD165.1254101.676.216.54M235145/M235113CD
9464994114CD165.1288.925142.875111.12536.9994649/94114CD
HM237535HM237510CD165.1288.925142.875111.12535.79HM237535/HM237510CD
4679246720CD166.688225.42585.72569.859.2846792/46720CD
6778267720CD168.275247.65103.18884.13816.0267782/67720CD
M235149M235113CD170254101.676.215.43M235149/M235113CD



Above parameter are for reference only,other size or model you can contact us directly.



Packaging & Shipping
Double row taper roller bearing Packaging



1. Normally use default industrial package with our own logo, customerized logo and marking is also acceptable.

2. Make special plywood box for big bearing or small bearing big order.

Shipping:



1.By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and EMS and so on.

2. By Air: We can ship from Shanghai, Shenzhen, Hongkong etc.

3. By Sea: We can offer you FOB Shanghai, FOB Guangzhou etc.

4. We also can send to your forwarder or agent in China, who can ar range shipment for you.

 PACKING



Our Services

 Leading time:

--Normally we have most bearings in stock with plenty quantities, so we are able to ship the goods immediately once confirm your payment.

-- For big order or special new design bearing, we need around 20 days for production then ship out.



Payment terms

-- 30% paid in advance as deposit, the balance shall be cleared before shipping-

-- other payment methods: Paypal, WestUnion, etc.

Company Information

About our company:



Nanjing Younarui Bearing Co., Ltd. is a professional and one of the leading manufacturer of variouse bearings since 2004. After many years efforts,

our company has got very good reputation and establish long term business relationship with many client from both at home and abroad, especially in European and American markets.

Our own bearing brand is "YNR". Welcome to contact us.



Our Main products:



Spherical roller bearing, deep groove ball bearing, taper roller bearing, thrust bearing, angular contact ball bearing, cylindrical roller bearing, thrust ball bearing, thrust roller bearing,

self-aligning roller bearing, needle roller bearing, linear guide bearing and slewing bearing, etc.

_700

...



Related Products

We are professional company and sales various types of bearings,click the following picture to check the details informations of other bearings:

16_16_
Deep groove ball bearingNeedle bearings
8_2_
Cylindrical roller bearingThrust spherical roller bearing

If haven't find the product you want,pls contact us directly!!!





FAQ

 1,What about the MOQ?Can you accept sample order?

------Our company MOQ is 1pc,we can accept sample order.

2,Can you accept OEM/ODM?

------Yes,we can.Customizing according to your requirement or drawing.

3,Do you supply door to door service?

------By air or express(DHL,FEDEX,EMS etc.)

4,Could you tell me the materials of your bearings?

------ Chrome steel, carbon steel, and stainless steel, ceramic and plastic material.

5, Your company is a factory or trading company?

------ We have our own factory,also doing trade.
