Магнитострочный датчик уровня топливного бака 4 ~ 20 mA 304 из нержавеющей стали

Сохранить в закладки 1600398966422:


Цена:300,00 $ - 320,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Products Description


The structure of the magnetostrictive liquid level sensor is composed of a stainless steel tube (measurement rod), a magnetostrictive wire (waveguide wire), and a movable float part. Used for continuous measurement of liquid level and interface.




Measuring range
Hard rod: 150mm-7000mm
Soft rod: up to 20000mm
Process connection
Threaded flange
Medium temperature
-40~110℃
Precision
1mm
error
0.10%
Process pressure
4MPa
Repeatability
Better than ±0.002%FS
Product power consumption
≤50mA
Measuring rod material
304/316/PP/tetrafluoro
Float material
316L/PP/coated PTFE
Signal output
4~20mA/ MODBUS-RTU
Protection level
lp65
Explosion-proof certificate number
CNEX19.0862X
Explosion-proof grade
Ex ia IICT5 Ga
Safety certification level
SIL2
Certificate Number
1N190712.JAATS22

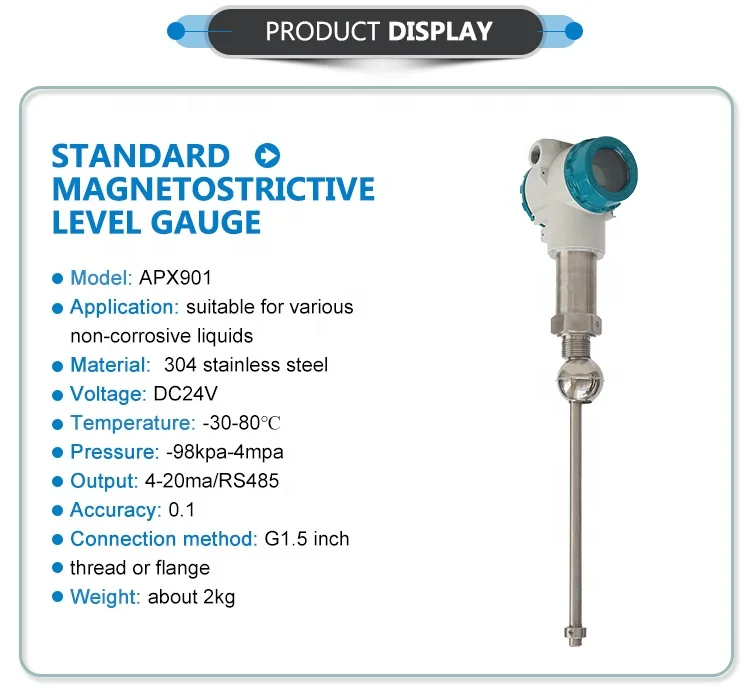

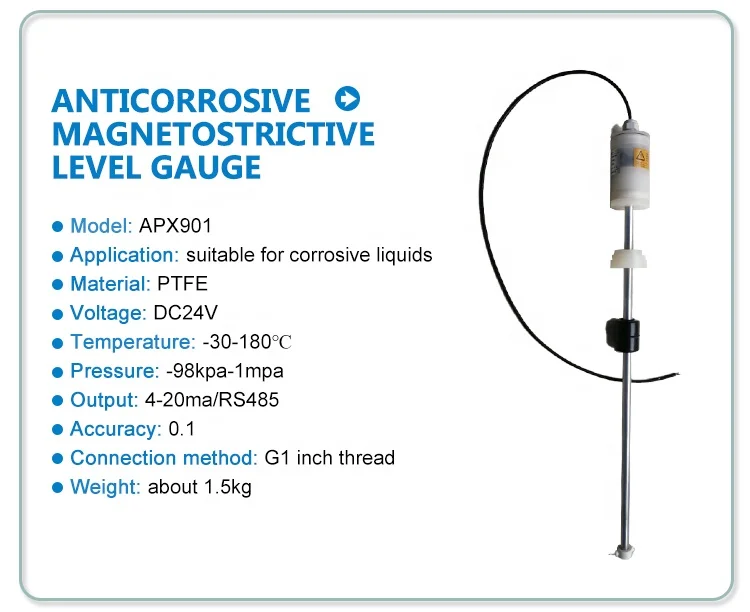

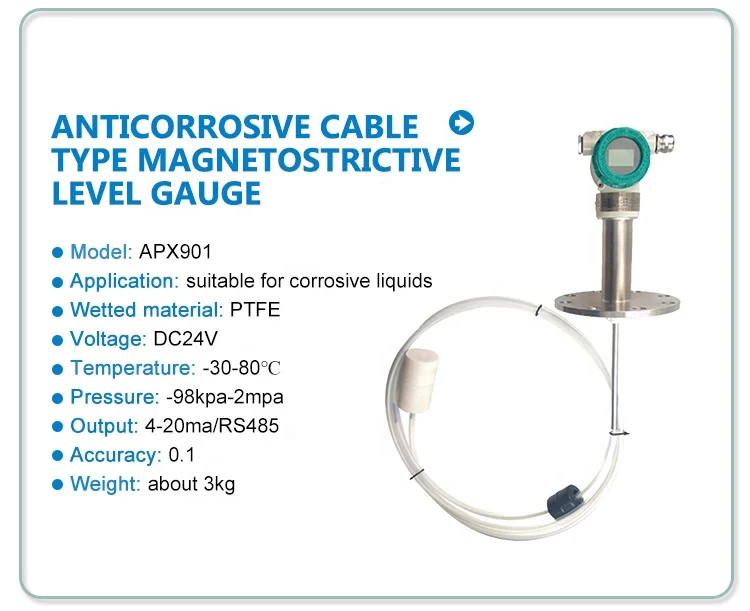

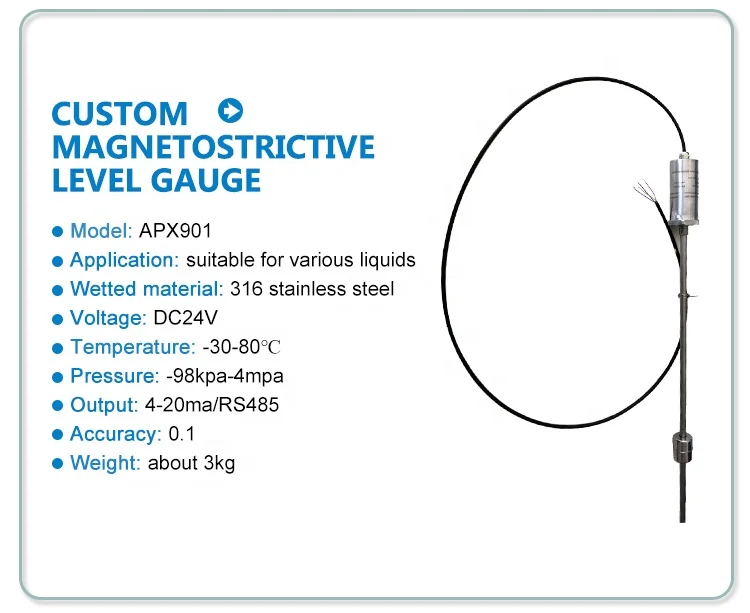

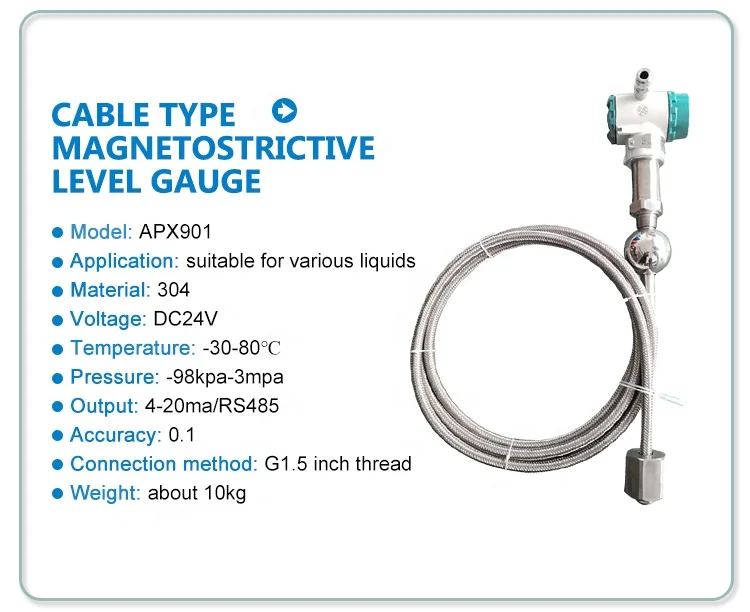

Product Display




Details Images




Aging test








Packaging & Shipping




Company Profile




Jining aipuxin automation instrument co., LTD is a domestic emerging automation enterprise specialized in the development, design and production of material level instrument products. In recent years, it has been conducting academic discussions and research projects with relevant research institutions at home and abroad. At present, the international advanced technology, combined with the market demand, has developed a series of tuning fork level switch, radio frequency capacitor level switch, magnetostrictive level meter, radio frequency capacitance level meter, microwave material level switch, radar level meter, tuning fork density meter and other products, product performance has reached or close to the domestic advanced level.The company's products are mainly for dealers and end users all over the country, suitable for all kinds of modern industrial enterprises. With the core value of "quality first, service with heart" over the years, apletter has met the needs of customers, shaped the good reputation of the enterprise and promoted the sustainable development of the enterprise and the continuous growth of the team through professional technology and unremitting efforts. At the same time, a perfect after-sales service system has been established, which can quickly solve the problems encountered by partners and terminal operators when using the products. We believe that through our continuous efforts and pursuit, epson will continue to develop and grow.The company's products in the continuous innovation, upgrading, has passed the ISO9001 quality system recognition, SIL safety certification, explosion-proof certification. Research, development, design, production are strictly in accordance with international standards, each link has strict operating procedures, to ensure that different products in different industries demand.






FAQ


Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?
A: It usually takes about 3-5 working days

Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What's your warranty terms?
A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
