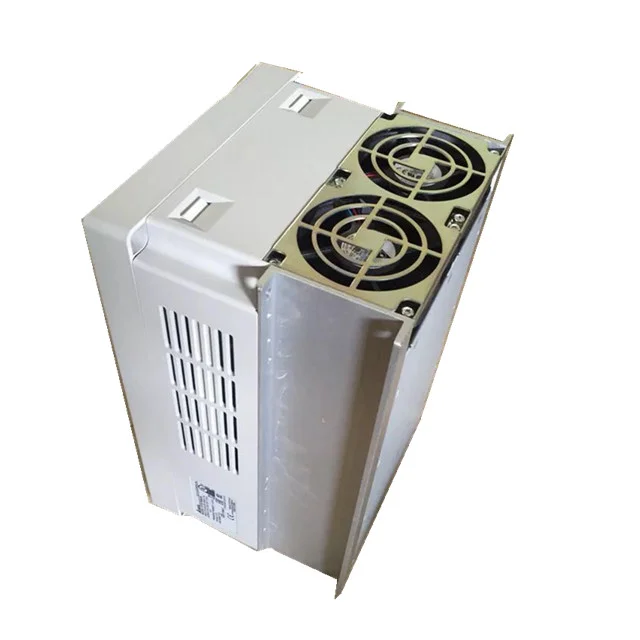

Delta Inverter VFD037B23A 3.7kw 3Phase 240v 5HP VFD-B Series AC Motor Drives

Specification

1.Using 16-bit microprocessor, Zhengxuan wave PWM control

2.Automatic torque boost and automatic slip compensation

3.Output frequency 0.1 ~ 400Hz

4.16 segments can be preset speed and 15 sections can run the program

5.Built-in PID feedback control and PG speed feedback control

6. Four kinds of acceleration and deceleration time selection

7. Built-in MODBUS (RS-485 baud rate up to 38400)

8. Can prohibit the reverse, deceleration stop and freewheeling stop

9. Automatic estimation of motor parameters and extensive use of vector control

10. Settable V / F curve and automatic voltage regulator output

Features of Delta VFD037B23A VFD-B Series AC Drive 240 V

• The Delta VFD-B series is a general purpose NEMA 1 drive and offers V/F, Sensorless Vector and Closed Loop Vector control. With its Constant Torque rating and 0-2000Hz output, the VFD-B is designed to handle most conventional drive applications found in the industrial manufacturing industry. The VFD-B series drives are used in many applications including: HVAC, Compressor, Crane Gantry, Elevator, Escalator, Material Handling, Water/Wastewater, and Woodworking to name a few.

Applications of Delta VFD037B23A VFD

• Air Conditioners for Large Buildings


• Woodcarving Machine


• Punching Machine


• Wastewater Treatment Systems


• Crane Drive and Swivel


• Washing Machine


• Vertical Stamping Machines


• Compressor


• Elevator


• Escalator


• Circular Loom


• Flat Knitting Machine


• Pasta Machine


• Four-Sided Woodworking Planer, etc

Specifications of Delta Variable Frequency Drive VFD037B23A VFD-B Series AC Drive 240 V

• Output frequency 0.1 ~ 400 Hz


• Adjustable V/f curve and vector control


• Master/Auxiliary and 1st / 2nd frequency source selectable


• 16-step speed control and 15-step preset speed process control


• Built-in PID feedback control


• Auto torque boost & slip compensation


• Built-in MODBUS communication, baud rate up to 38400 bps


• Support communication module (DN-02, LN-01, PD-01)


• Series : VFD-B


• Nominal Input VAC : 208; 240 Volts AC
