Материнская плата для промышленного компьютера Intel Haswell I3/I5/I7 PGA947 DDR3L MAX 8 ГБ USB/COM 3 5 дюйма
- Категория: >>>
- Поставщик: Fodenn Electronic Technology Co. Ltd.
Сохранить в закладки 1600400058492:
Описание и отзывы
Характеристики
Features
Features
1.Intel Low-power embedded motherboard
2.PGA 947 port MINI Industrial Embedded Motherboard
3.VGA, ,HDMI,LVDS,EDP synchronous/asynchronous
4.Support DDR3Lnotebook memory(Maximum8GB)
5.Support 8 COM port
1.Intel Low-power embedded motherboard
2.PGA 947 port MINI Industrial Embedded Motherboard
3.VGA, ,HDMI,LVDS,EDP synchronous/asynchronous
4.Support DDR3Lnotebook memory(Maximum8GB)
5.Support 8 COM port
6.Support 10USB port
7.Onboard 1 MSATA port
7.Onboard 1 MSATA port
8. Onboard 1 MINIPCIE
Application
Industrial Automation、Rail Transportation、Financial Equipment、Medical Social Security、MINIBOX、Interactive Applications、All-in-one Computer etc.
Application
Industrial Automation、Rail Transportation、Financial Equipment、Medical Social Security、MINIBOX、Interactive Applications、All-in-one Computer etc.

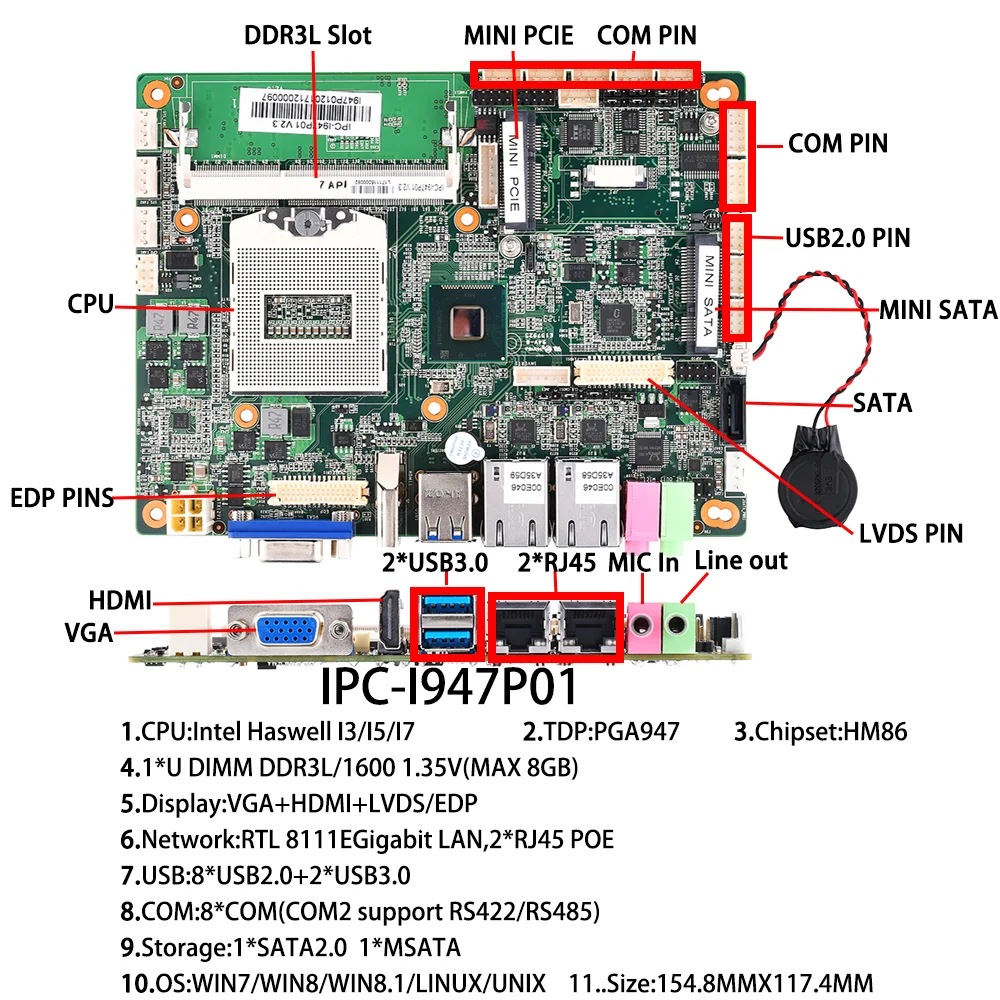

Specification
Processor | CPU | Intel Haswell Mobile i3/i5/i7 | ||
TDP | PGA 947 Socket CPU | |||
BIOS | AMI EFI 64MBIT | |||
Chipset | HM86 | |||
Memory | Slot/Type | 1*U DIMM DDR3L/1600 1.35V | ||
Maximum Memory | 8GB | |||
Display | GPU | Intel HD Graphics | ||
Output Port | 1*VGA+1*HDMI/LVDS+1*EDP | |||
Audio | ALC 662 | 1*LINE-OUT，1*MICIN，1*LINE-IN，Support amplifier | ||
Network Card | RTL 8111EGigabit LAN | 2*RJ45 POE | ||
Other Functions | Watchdog | 256 levels, programmable 0-255 seconds / min | ||
Back-end I/O Port | Display Port | 1*VGA+1*HDMI | ||
LAN Port | 2*RJ45 Gigabit | |||
USB Port | 2*USB2.0 Port | |||
Audio Port | 1*LINE-OUT,1*MIC N, | |||
Power Port | 1*DC 8-36V Wide voltage | |||
Expandable Port | USB Pin | 4*USB2.0 2X4Pin | ||
1*EDP Pin | 2X15 Pin | |||
LVDS Pin | 1*24 bit double channel LVDS pin | |||
MINI-PCIE | 1*full length MINI-PCIE expandable MSATA 1*full length MINI-PCIE expandable 3G /4G/WIFI | |||
COM Pin | 1-8*COM Pin，COM1/2 is standard RS232,COM2 supports RS422/RS485 | |||
Storage | SATA Port | 1*SATA2.0，1*MSATA | ||
Physical parameters | ||||
Operating System | WIN7,WIN8，WIN8.1，LINUX，UNIX | |||
Dimensions | 154.8MMX117.4MM | |||
Environment | Operating Temperature：0-60℃ | |||
Relative Temperature：0-95%RH | ||||
Product Description
Company Profile
Fodenn Electronics Technology Co.,Ltd.
Fodenn electronic technology Co., Ltd is a high-tech enterprise integrating R&D, design, production, sales and after-sales service
, and a global leading provider of high-performance computing technology across multiple embedded industries
Fodenn manufacturing R&D center covers an area of 20000 square meters, other than a complete set of automatic assembly line, there
are 8 automatic DIP lines, 12 automatic SMT lines, 6 automatic packaging lines, 6 test lines and 2 automatic aging lines.
Fodenn provides customers with various types of industrial motherboard, industrial computer, industrial panel PC, multi-function
all-in-one kiosk, etc.
Fodenn’s products are widely used in intelligent manufacturing, financial terminals, medical information, digital signage,
government information, cloud storage and other scenarios.
As a member of Intel IoT Solutions Alliance, Fodenn has provided customers with more than 1000 kinds of solutions, completed the
product customization as fast as 35 days, to meet various needs of customers. Fodenn will keep focusing on Intel product solutions
and provide more innovative application scenarios..
, and a global leading provider of high-performance computing technology across multiple embedded industries
Fodenn manufacturing R&D center covers an area of 20000 square meters, other than a complete set of automatic assembly line, there
are 8 automatic DIP lines, 12 automatic SMT lines, 6 automatic packaging lines, 6 test lines and 2 automatic aging lines.
Fodenn provides customers with various types of industrial motherboard, industrial computer, industrial panel PC, multi-function
all-in-one kiosk, etc.
Fodenn’s products are widely used in intelligent manufacturing, financial terminals, medical information, digital signage,
government information, cloud storage and other scenarios.
As a member of Intel IoT Solutions Alliance, Fodenn has provided customers with more than 1000 kinds of solutions, completed the
product customization as fast as 35 days, to meet various needs of customers. Fodenn will keep focusing on Intel product solutions
and provide more innovative application scenarios..
