1000 Вт 1500 2000 лазерная машина для удаления ржавчины удалитель Лазерная промышленность Удаление Очистительная Машина
- Категория: >>>
- Поставщик: Jinan Jinqiang Laser Cnc Equipment Co. Ltd.
Сохранить в закладки 1600400479230:
Описание и отзывы
Характеристики
Product Description

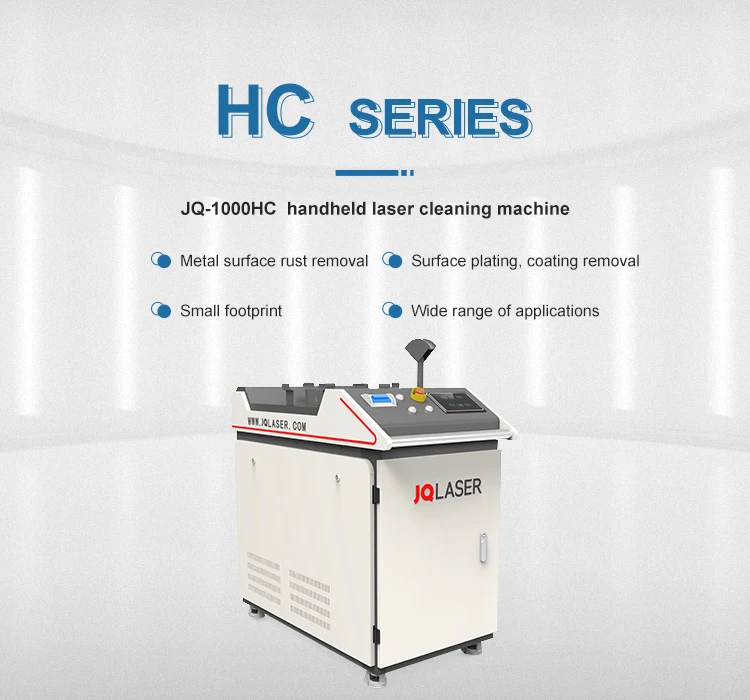

JQ-1000HC can be cleaned quickly, brightly and accurately to remove surface paint, coating and oxidation layer; the equipment processing has no damage to the substrate; it can be used for a long time with low running cost; the equipment can be operated automatically and is easy to operate; it is environmentally friendly and has no secondary pollution.
Widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, laser cleaning, such as coating, etc

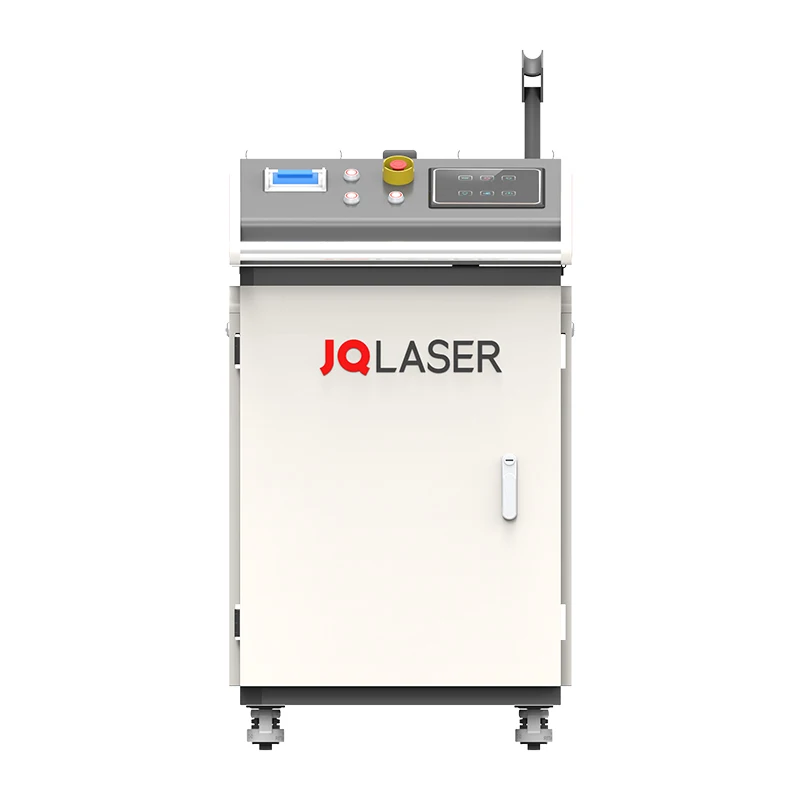

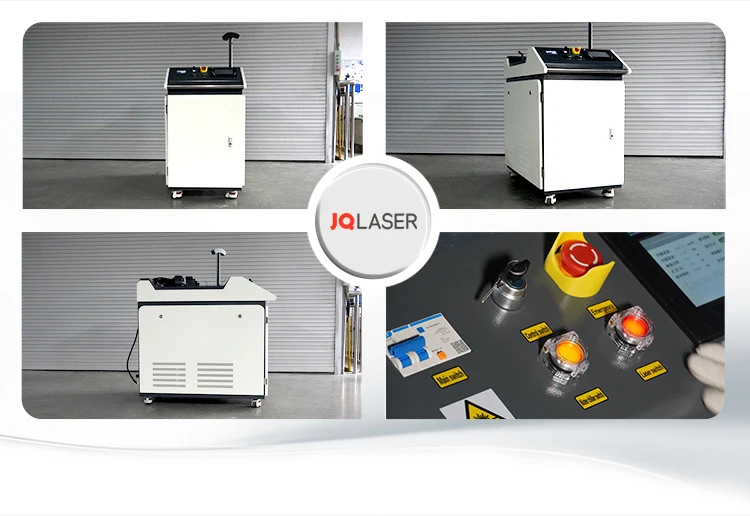

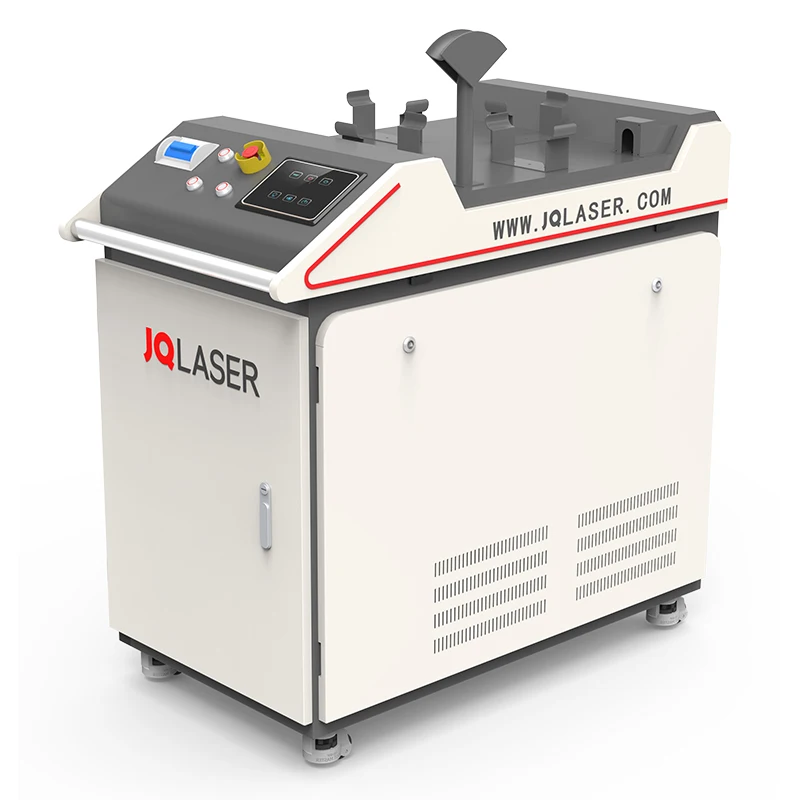

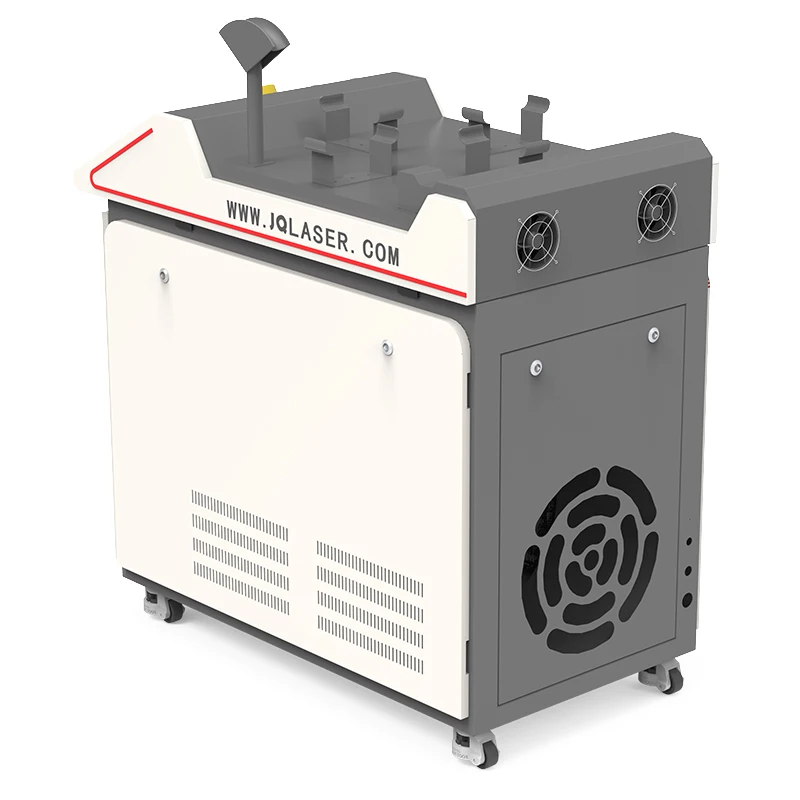

Product Show
Details&Parts

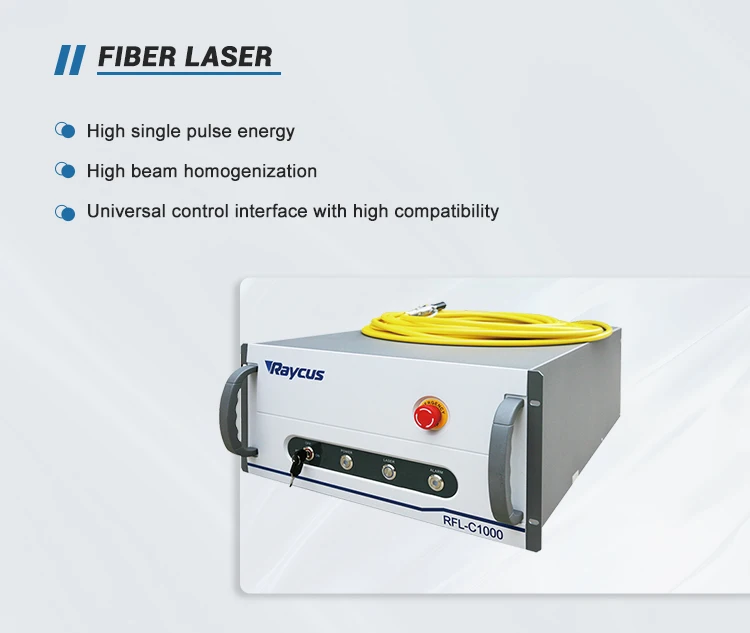

Fiber laser
High single pulse energy
High beam homogenization
Universal control interface with high compatibility
High single pulse energy
High beam homogenization
Universal control interface with high compatibility

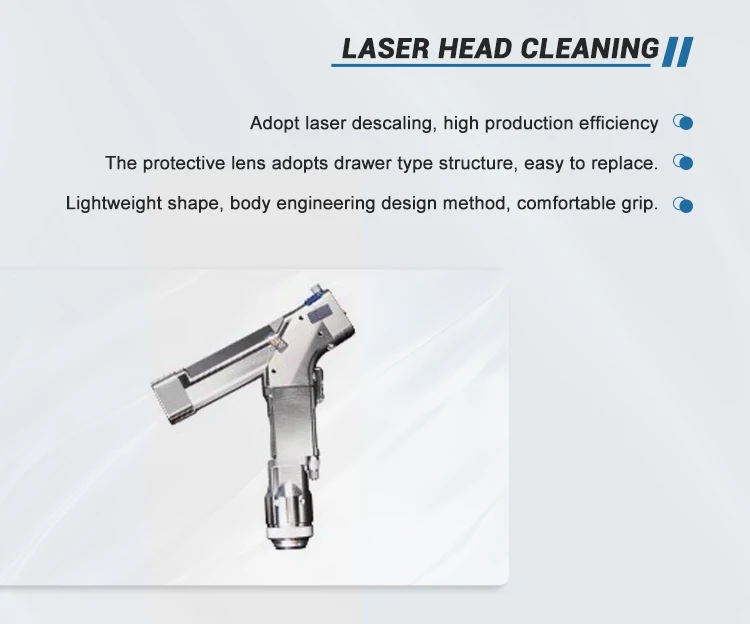

Laser head cleaning
Adopt laser descaling, high production efficiency
The protective lens adopts drawer type structure, easy to replace.
Lightweight shape, body engineering design method, comfortable grip.
Adopt laser descaling, high production efficiency
The protective lens adopts drawer type structure, easy to replace.
Lightweight shape, body engineering design method, comfortable grip.

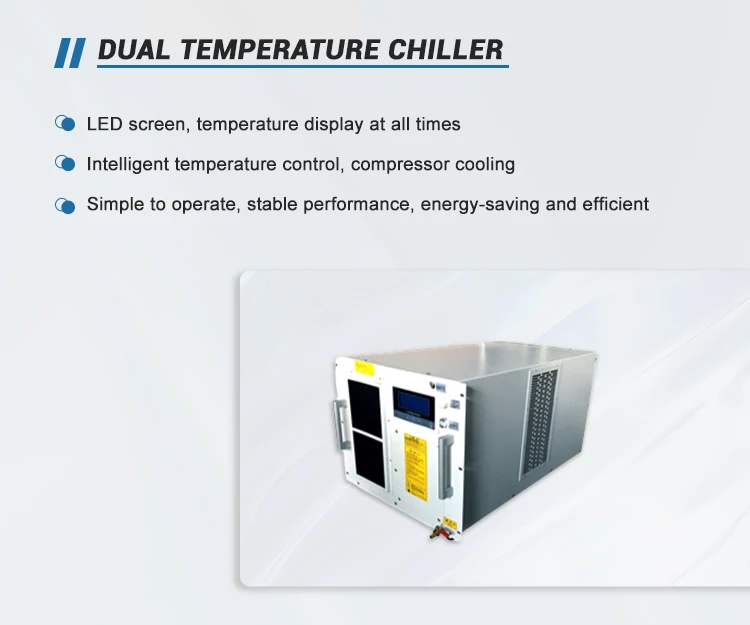

Dual temperature chiller
LED screen, temperature display at all times
Intelligent temperature control, compressor cooling
Simple to operate, stable performance, energy-saving and efficient
LED screen, temperature display at all times
Intelligent temperature control, compressor cooling
Simple to operate, stable performance, energy-saving and efficient

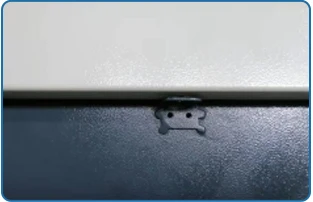

The electric control part adopts the air lift rod and the hinge opening and closing device, also the screws are fastened during transportation, which is durable, safe and reliable.

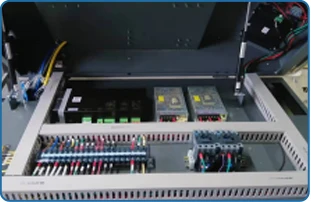

The electrical layout is reasonable, the lines are neat, the markings are clear, and the trunking is beautiful.
Lasers can be transmitted via fiber optics and easily operated at a distance in conjunction with robots and manipulators.

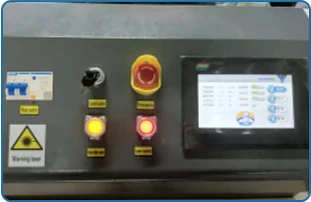

Adopt three safety devices: general switch, control switch and emergency stop switch.
Machine Details
Laser Power | 1000W |
Laser working mode | Continuous |
Laser wavelength | 1064nm |
Laser type | Optical fiber |

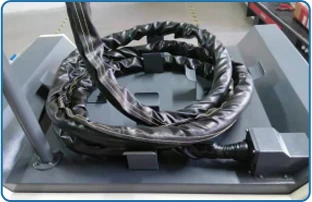

Fiber length | 10m |
Scan amplitude | 60mm |
Way of working | Handheld/Automated |
Refrigeration unit | Intelligent dual temperature chiller |
Total power | 6KW |
Cleaning Speed | 10-50 m²/hour |
The distance between cleaning head to cleaning material | 300-500mm (400mm is better) |
Working time | It can work continuously for 24 hours |
Working environment temperature range | 15-35℃ |
Humidity range of working environment | <70% non-condensing |
Machine size（length x width x height） | 350mm*600mm*1300mm |
Voltage requirement | AC220±10%VAC,50/60HZ |

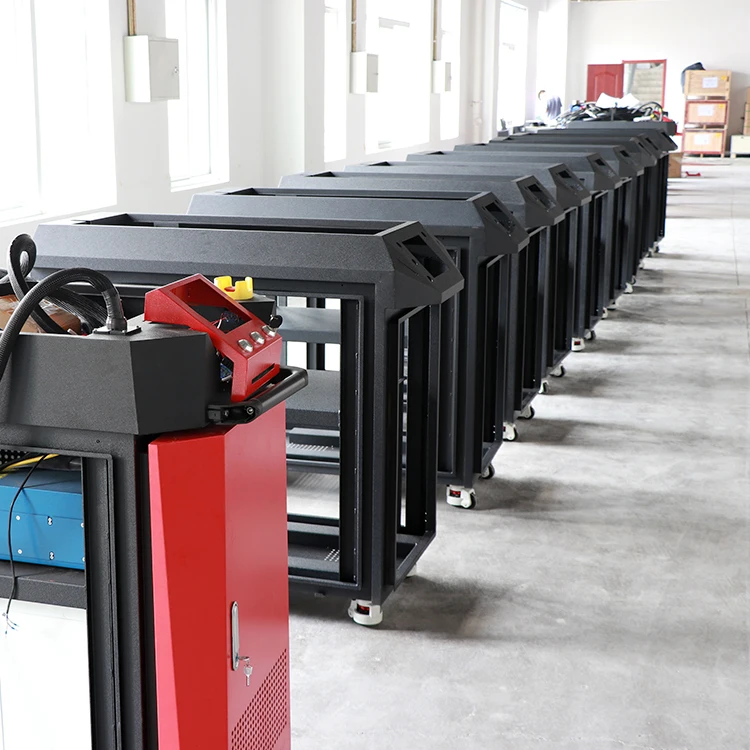

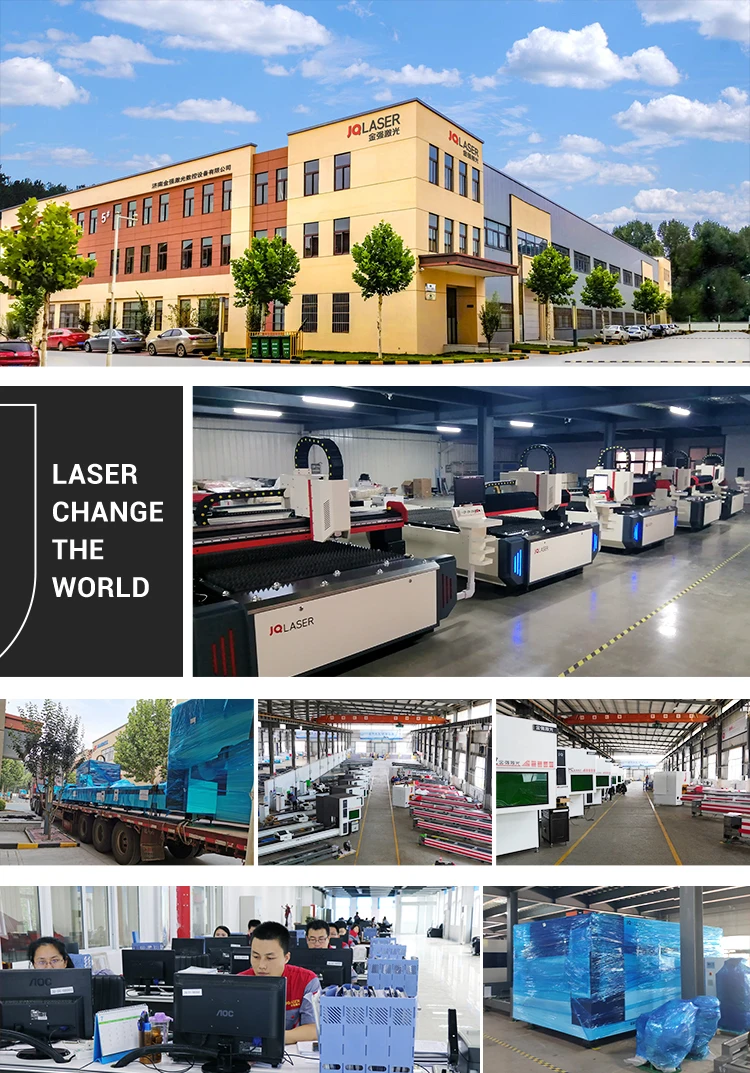

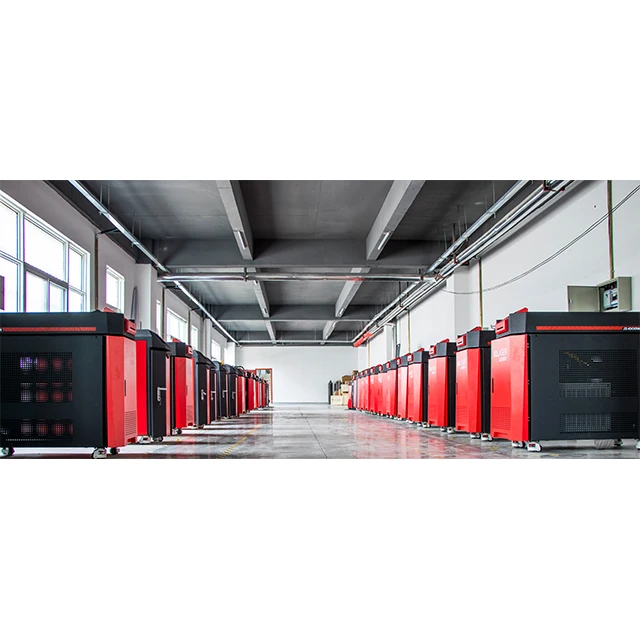

Factory Show

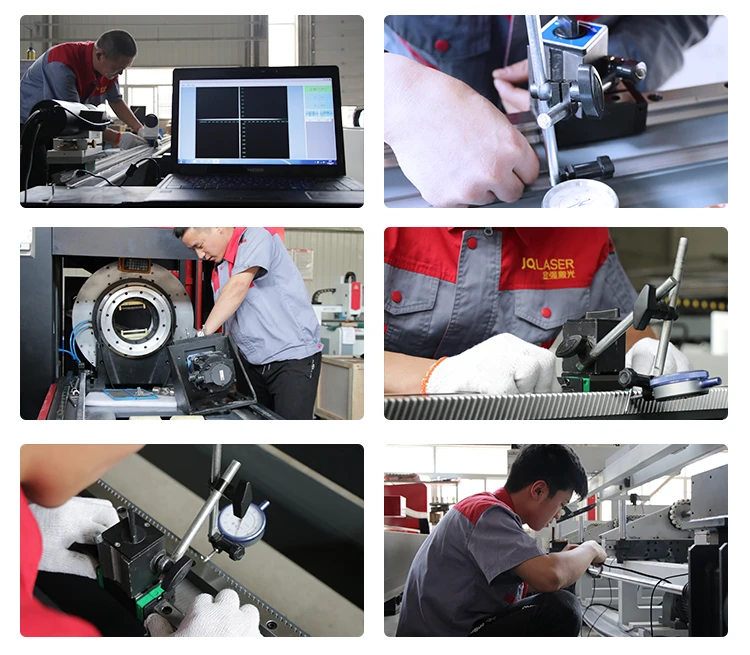

Machine quality inspection
FAQ
1. What is the speed of the laser cleaning machine?
Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
2. Is it possible to clean the mold?
Yes，You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox 3.The effect of paint and rust removal Very good, you can refer to our video below
3. Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,Relative damage of material, pulse type is less than continuous type.
5.Language interface
Support Chinese and English, and language settings can also be set according to customer needs
6.lassification of cleaning objects

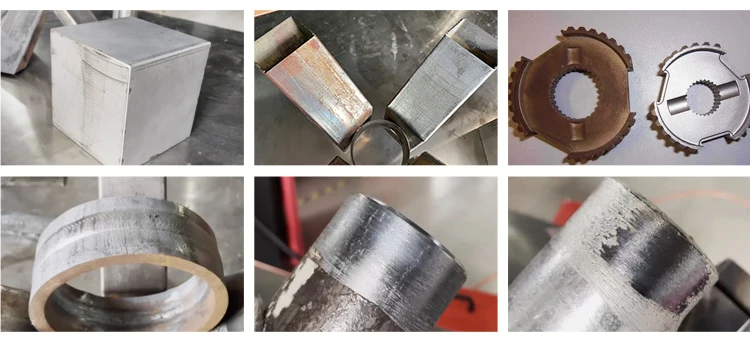

oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others
Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
2. Is it possible to clean the mold?
Yes，You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox 3.The effect of paint and rust removal Very good, you can refer to our video below
3. Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,Relative damage of material, pulse type is less than continuous type.
5.Language interface
Support Chinese and English, and language settings can also be set according to customer needs
6.lassification of cleaning objects
oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others
Our Service
Our service
Free Pre-Sales Consulting / Free Sample Marking
Speedy Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
Free Pre-Sales Consulting / Free Sample Marking
Speedy Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
Похожие товары
Оцинкованная стальная катушка с цветным покрытием, холоднокатаная катушка, размер ppgi
Высокоадгезивные альтернативные чернила для струйного кодирующего принтера linx
41,00 $ - 44,00 $

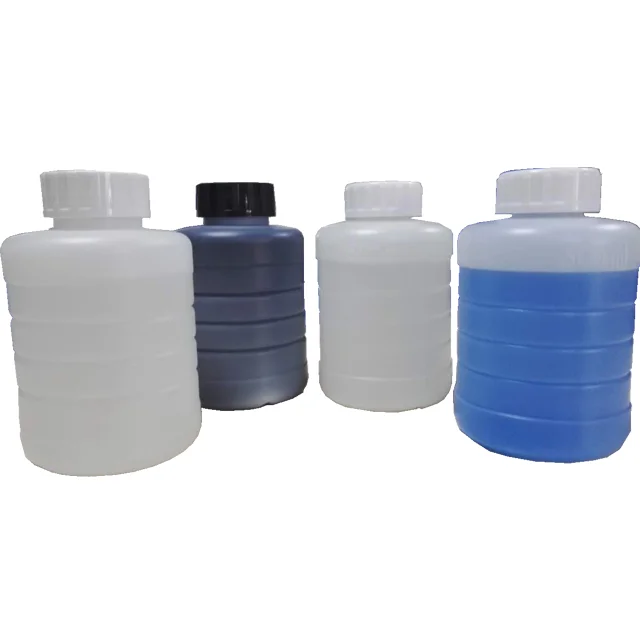

Расходные материалы 1240 чернила с чипом для струйного принтера Linx
17,00 $ - 42,50 $
Заводская поставка высококачественные совместимые чернила linx 1240 с макияж 1512 чипом Rfid для принтера

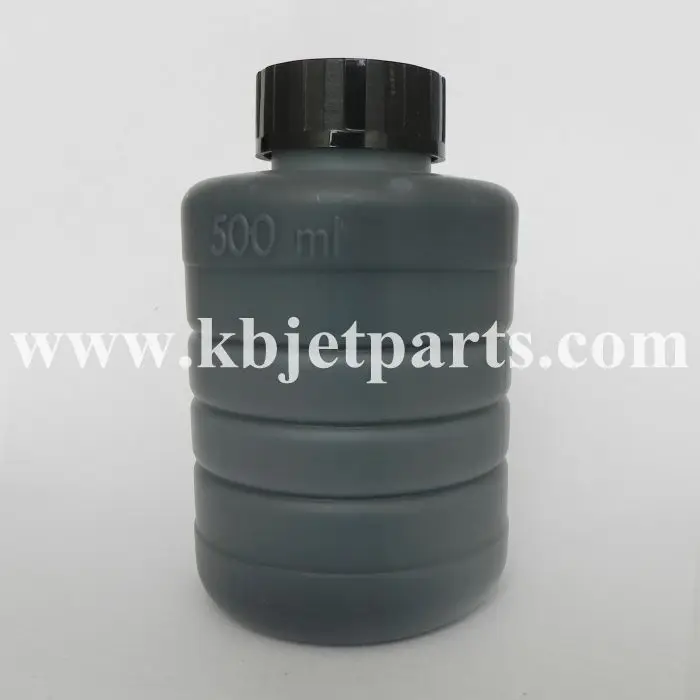

Самое лучшее экономичное решение 1010/1240 500 мл белый пигментированные 1059 высокое качество Linx Чернила
