KSD303 термостат 150 градусов фраза 380 в промышленное электрическое отопительное оборудование сварочный аппарат паровой нагреватель KSD306 KSD308KSD301
- Категория: >>>
- Поставщик: Shenzhen Huahengxin Technology Co. Ltd.
Сохранить в закладки 1600401915547:
Описание и отзывы
Характеристики
Product Description

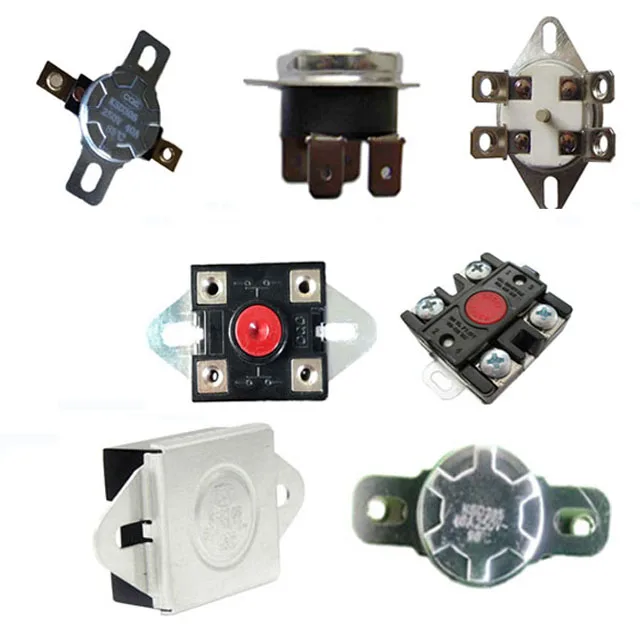

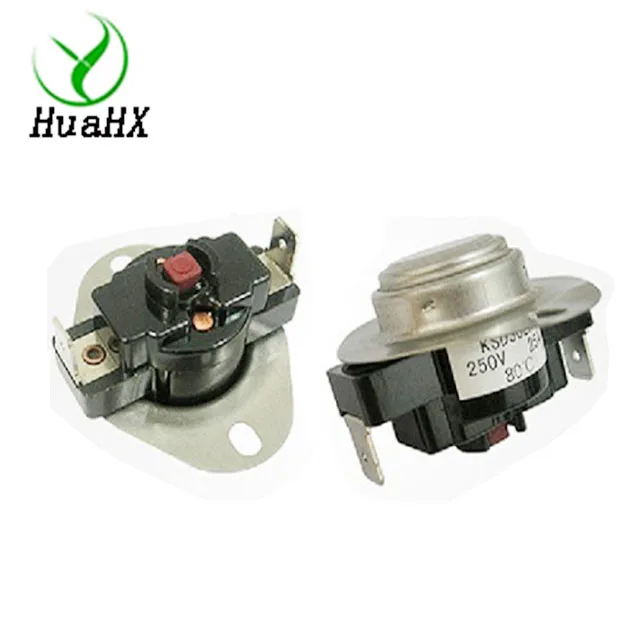

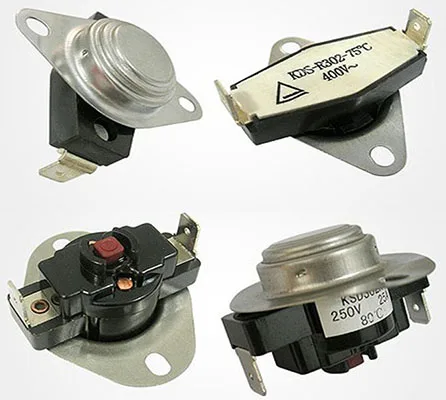

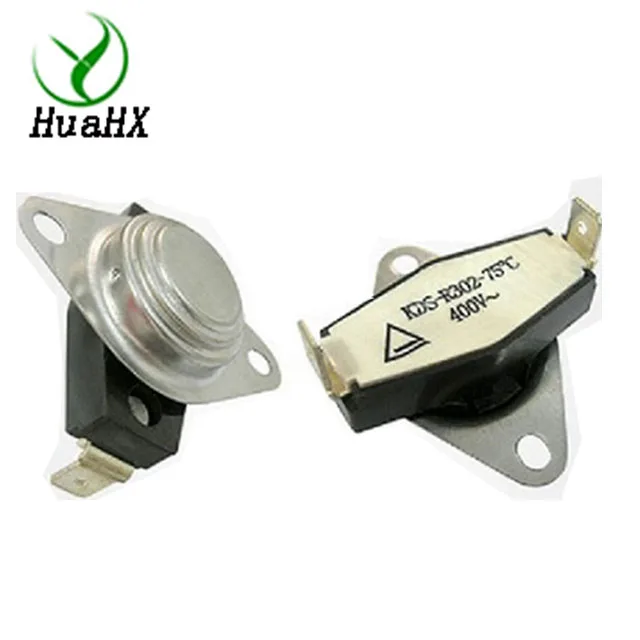

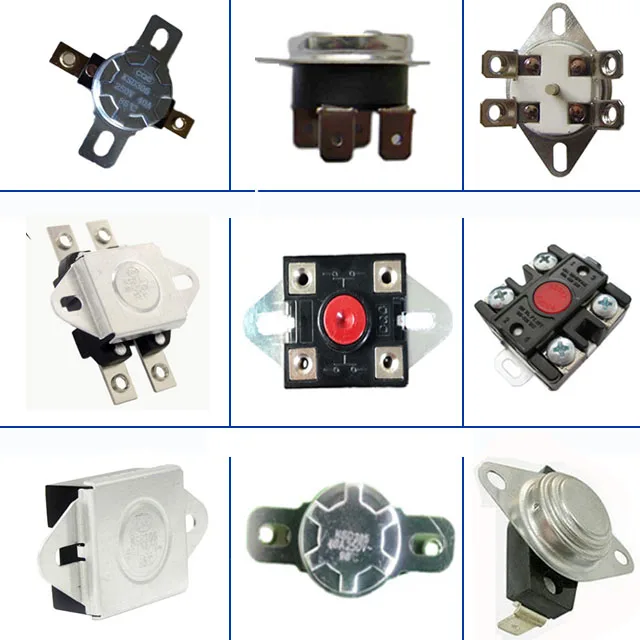

KSD303/KSD308 series thermostat, is a fully enclosed bimetallic sheet contact temperature relay, according to the principle of hot expansion and cold shrinking to bend the metal sheet, so as to achieve a pre-set temperature range of rapid jump and switch on, the electrical appliances play a safety protection role, its disconnect temperature and re-temperature can be made according to customer needs.
Note:
1) When using contact-sensing temperature mounting, the metal cover surface should be attached to the mounting surface of the accused apparatus.
2) Do not deform the cover face when installing, so as not to affect performance.
3) To prevent leakage, do not allow liquid to seep into the thermostat, so as not to affect electrical reliability.
4) This product is bipolar wiring, when used in accordance with the marking symbol, correct wiring.
5) Products should be less than 90% relative humidity, ambient temperature of less than 40 degrees C ventilation, clean, dry, non-corrosive gas storage.
Technical parameters: Function: temperature protection and overheat protection, anti-drying
Electrical characteristics: AC250V, 50 to 60Hz, 60A
Maximum ambient temperature: 180 degrees C
Operating temperature range: 40C to 150C
Temperature tolerances: ±3, ±5 (can be made according to customer needs)
Durability: > 6000 times
Normal insulation resistance: >300M
Normal contact resistance: ≤ 50m
Normal electrical strength: AC1500V lasts 1min no breakdown, flash phenomenon
Housing protection rating: IP00
INSPI value: PII175
Scope of application:
Suitable for electric water heaters, electric heating equipment, welding machines, steam heaters.
Note:
1) When using contact-sensing temperature mounting, the metal cover surface should be attached to the mounting surface of the accused apparatus.
2) Do not deform the cover face when installing, so as not to affect performance.
3) To prevent leakage, do not allow liquid to seep into the thermostat, so as not to affect electrical reliability.
4) This product is bipolar wiring, when used in accordance with the marking symbol, correct wiring.
5) Products should be less than 90% relative humidity, ambient temperature of less than 40 degrees C ventilation, clean, dry, non-corrosive gas storage.
Technical parameters: Function: temperature protection and overheat protection, anti-drying
Electrical characteristics: AC250V, 50 to 60Hz, 60A
Maximum ambient temperature: 180 degrees C
Operating temperature range: 40C to 150C
Temperature tolerances: ±3, ±5 (can be made according to customer needs)
Durability: > 6000 times
Normal insulation resistance: >300M
Normal contact resistance: ≤ 50m
Normal electrical strength: AC1500V lasts 1min no breakdown, flash phenomenon
Housing protection rating: IP00
INSPI value: PII175
Scope of application:
Suitable for electric water heaters, electric heating equipment, welding machines, steam heaters.
Company Profile
ShenZhen Hua Hengxin Technology co.,ltd industry leader in Pearl River Delta temperature control, temperature control industry experience in manufacturing in 15, favored by the industry and recognition. Introduction of foreign advanced technology, products have TUV and CQC The complete company management product produced according to iso9001quality management system, strong technical strength, with a full productionequipments and computers tool, all products get the cqc, TUV, rohs, iso9001certifications
Manufacturing Technique
Sample Room
Why Choose Us
1、Factory Direct Selling
2、High Quality
3、Focus on R & D for 15 years
4、Annual output of 3 million
Certificate
Packing & Delivery
FAQ
Q1:How can we get a quote?
A: Please offer the specification of the product, such as operating temperature, volt, current, application, quantity etc. Picture or drawing are welcome for our reference.
A: Please offer the specification of the product, such as operating temperature, volt, current, application, quantity etc. Picture or drawing are welcome for our reference.
Q2: What about the lead time?
A: It usually takes about only 7-15 days to produce KSD thermostat
A: It usually takes about only 7-15 days to produce KSD thermostat
Q3:Which payment terms you can accept?
A: T/T, Western Union, L/C
A: T/T, Western Union, L/C
Q4: How could I get a sample?
A:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
A:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
Q5: Whether you could make our brand on your products?
A:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
A:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q6: How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
Похожие товары
Переключатель дифференциального давления TEA604 для HVAC
Лидер продаж, бензиновый/масляный скутер объемом 1,00 литров с объемом двигателя 43 куб. См
Посадочная крышка люка для газона SMC, 400-1000 мм, квадратная крышка люка
14,00 $ - 19,00 $
5000kpa Test Bucket Plumbing Hydrostatic Pressure Pump 12L Gas / Water
Крышка люка Smc для цветочного горшка/крышка лужайки/крышка из травы/крышка из композитной смолы, крышка люка, обработка композитных материалов
16,00 $ - 17,00 $
Необычные фабричные флуоресцентные женские туфли на шпильках на заказ для дам
15,00 $ - 23,00 $

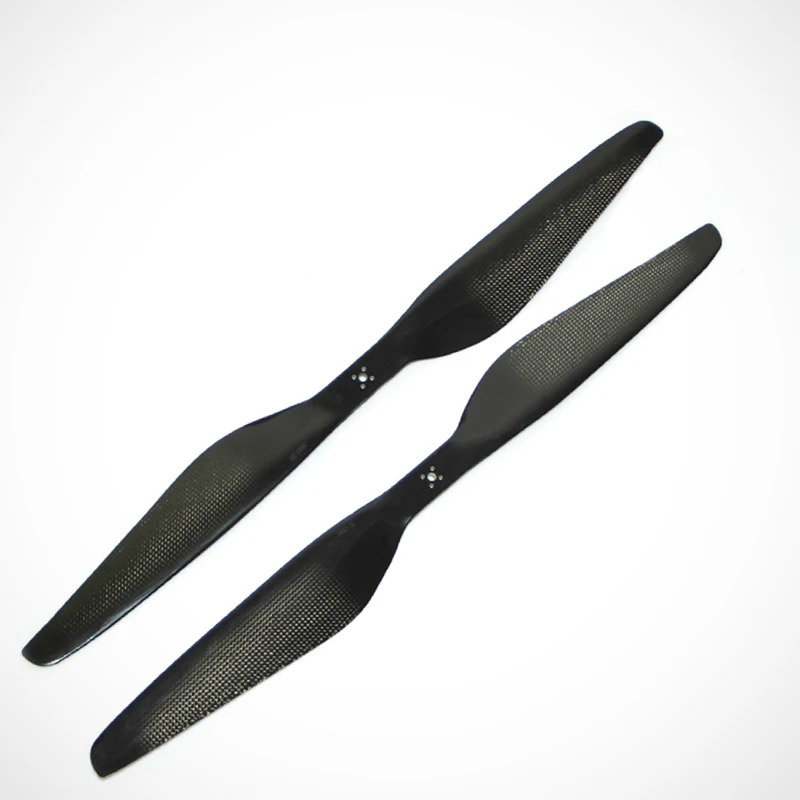

Матовые радиоуправляемые пропеллеры для дрона MAD Flux er 26x7,8 дюйма
