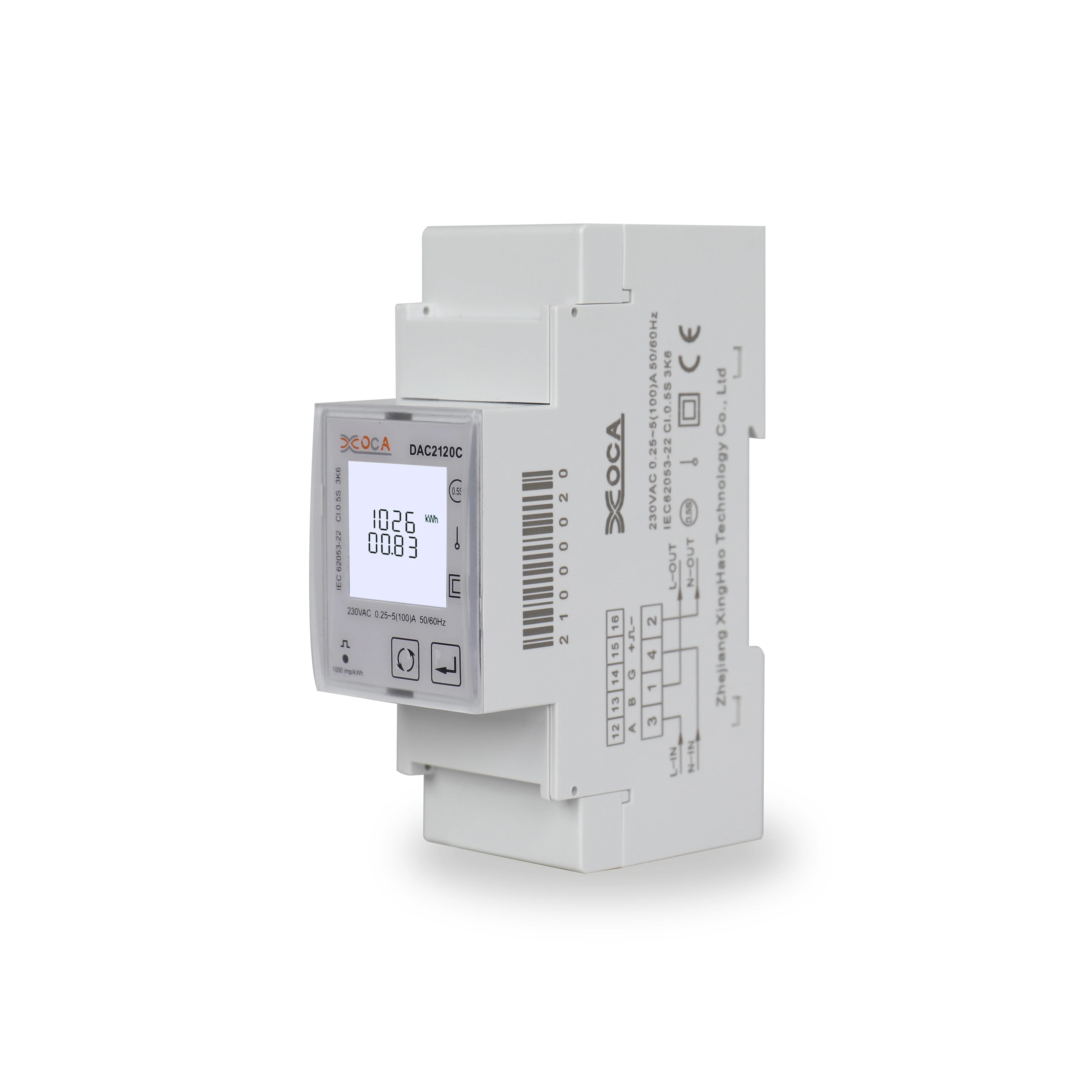

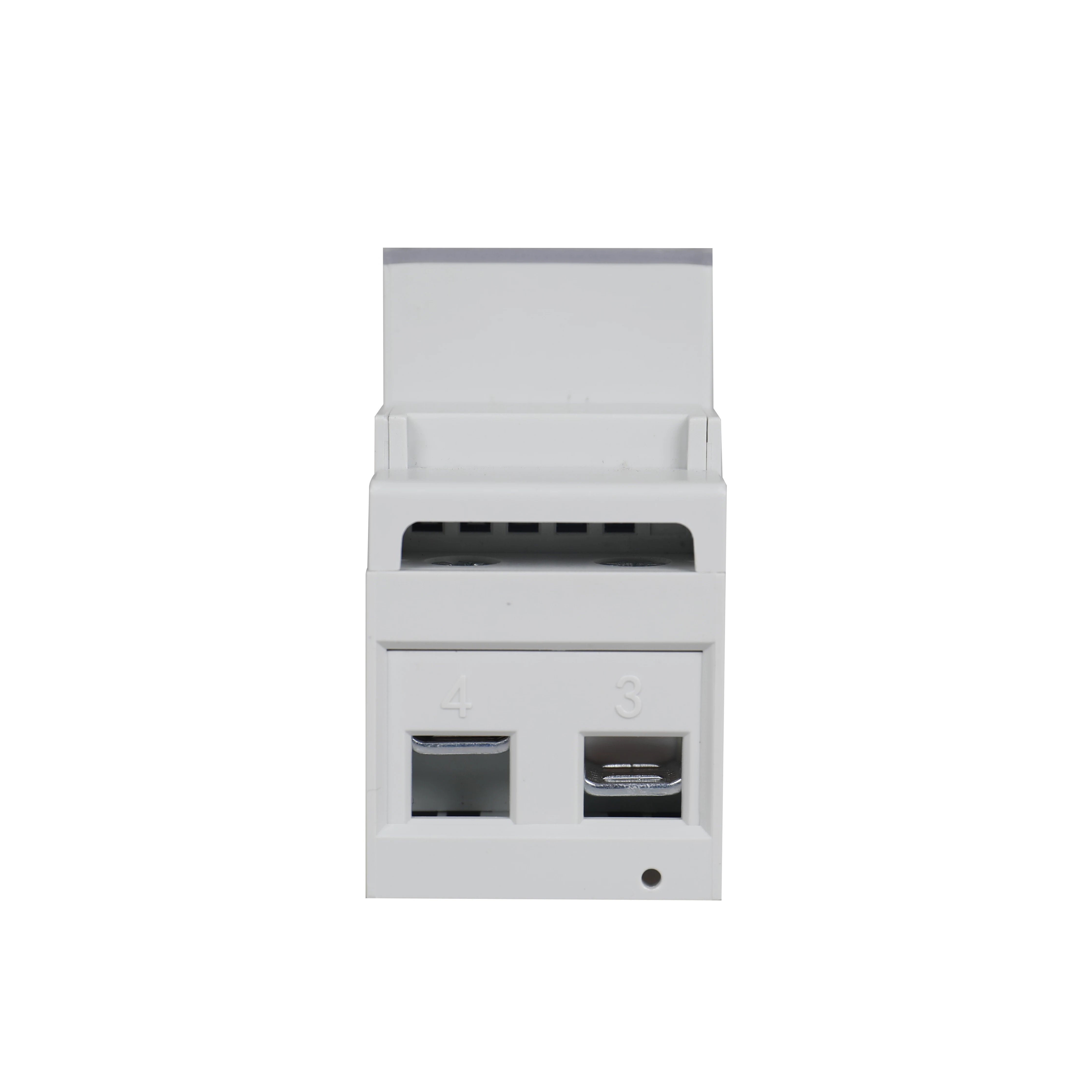

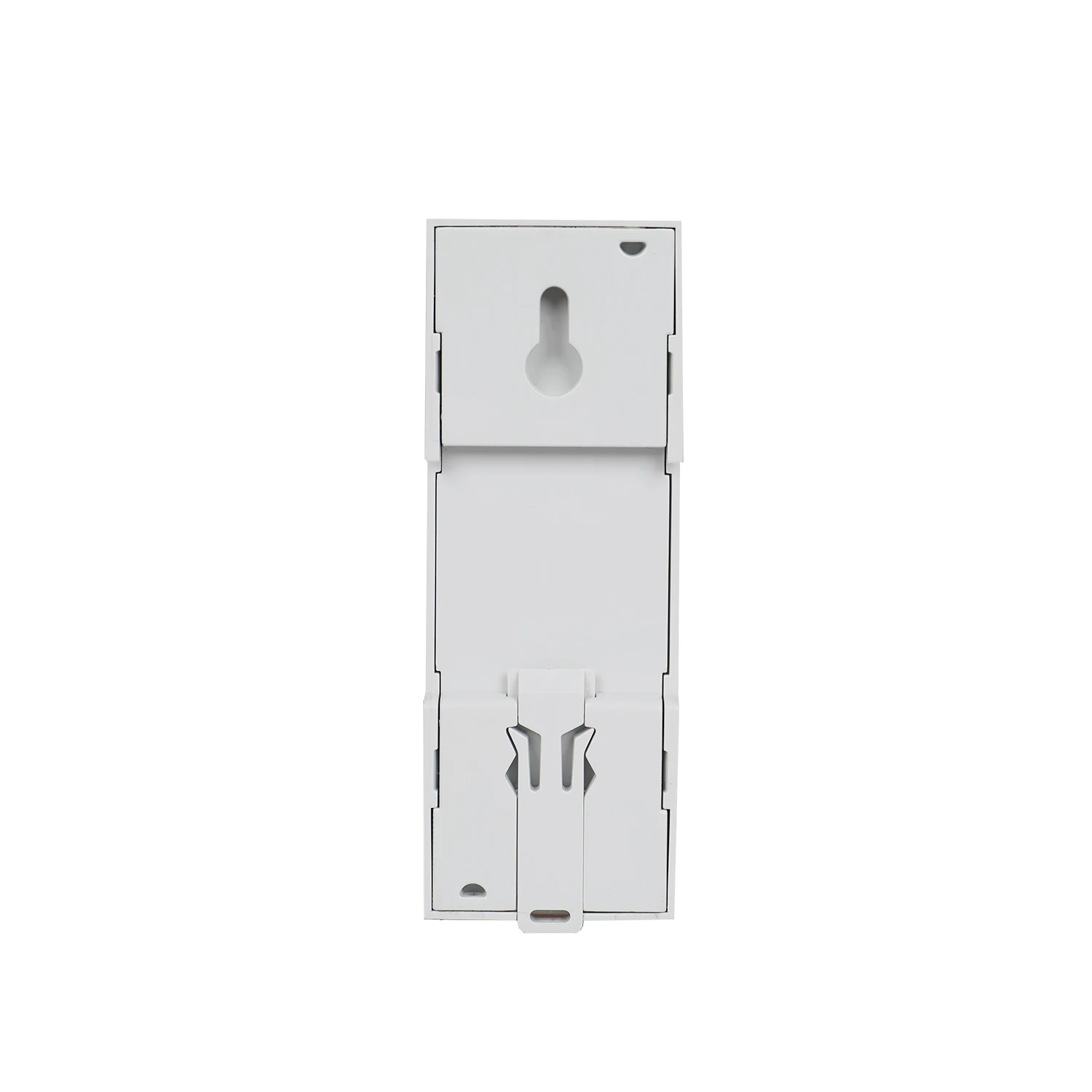

Беспроводной счетчик энергии DAC2120C с Wi Fi однофазный многофункциональный modbus RS485 встроенное реле
- Категория: >>>
- Поставщик: Jiaxing Bontop Import&export Co. Ltd.
Сохранить в закладки 1600403004879:
Описание и отзывы
Характеристики
DAC2120C series products are single phase multi-function rail installtion enegery meter. This series of products can support a variety of electric parameter measurement analysis, such as voltage, current, the four quadrant power parameters, power factor, etc.Meanwhile they can provide a variety of electrical energy parameters measurement, such as two-way active energy, reactive energy, monthly and daily energy consumption statistics.
This series of products also can support the analysis of electric power parameter measurement in one phase two wires grid environment, is suitable for power monitoring for photovoltaic inverter ,new energy electricity consumption statistic analysis,real time power monitoring and a variety of other environments, has the multi-function, high stability and long life characteristics.
This series of products with RS485 communication interface, baud rate maximum support 38400bps, supporting Modbus, DLT645 communication protocols. It can easily realize the function of remote data read, and adopt the design of large-screen LCD and touch-sensitive key, which can easily carry out the local view and set operation of various parameters. The product has the function of password protection, which ensures the data security of the product.
This series of products meet IEC61010, IEC61326, IEC62053, IEC61557, EN50470 etc. international standard.
This series of products also can support the analysis of electric power parameter measurement in one phase two wires grid environment, is suitable for power monitoring for photovoltaic inverter ,new energy electricity consumption statistic analysis,real time power monitoring and a variety of other environments, has the multi-function, high stability and long life characteristics.
This series of products with RS485 communication interface, baud rate maximum support 38400bps, supporting Modbus, DLT645 communication protocols. It can easily realize the function of remote data read, and adopt the design of large-screen LCD and touch-sensitive key, which can easily carry out the local view and set operation of various parameters. The product has the function of password protection, which ensures the data security of the product.
This series of products meet IEC61010, IEC61326, IEC62053, IEC61557, EN50470 etc. international standard.
Characteristic:
1.Max 100A DC.
2. Standard 2-moduli 36mm,TH35-7.5 type rail installation
3.Touch key design improves the operation of the keys and reduces the key failure rate.
4.Multi-function parameter measurement for voltage, current, active power, reactive power, apparent power, power factor, and phase angle
5.Support two-way energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
6.Support dual timing of meter start up running time and load running time
7.Support WIFI wireless communication.
8.Support 1 passive pulse output, 1 RS485 communication, Baud rate up to 38400bps, support Modbus RTU, DL/T645-2007 protocol
2. Standard 2-moduli 36mm,TH35-7.5 type rail installation
3.Touch key design improves the operation of the keys and reduces the key failure rate.
4.Multi-function parameter measurement for voltage, current, active power, reactive power, apparent power, power factor, and phase angle
5.Support two-way energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
6.Support dual timing of meter start up running time and load running time
7.Support WIFI wireless communication.
8.Support 1 passive pulse output, 1 RS485 communication, Baud rate up to 38400bps, support Modbus RTU, DL/T645-2007 protocol
Q1. What is the advantage about your company? |
A1. Our company has professional team and professional production line. |
Q2. Why should I choose your products? |
A2. Our products are high quality and low price. |
Q3. The logo and the color can be customized? |
A3. Yes, we welcome you to sample custom |
Q4. Any other good service your company can provide? |
A4. Yes,we can provide good after-sale and fast delivery. |
Похожие товары

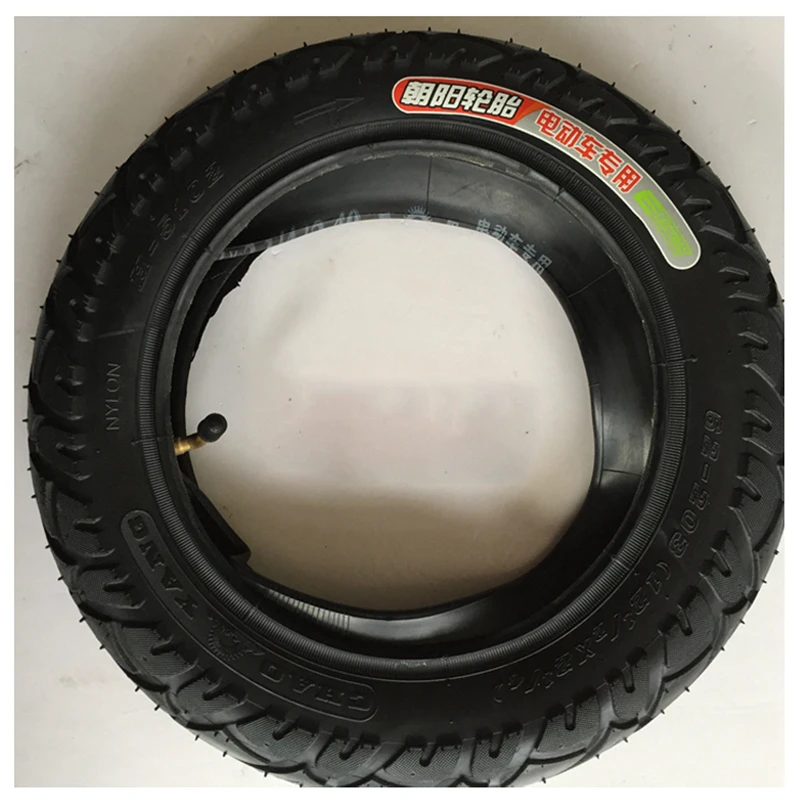

12 1/2X2 1/4 62-203 шины электровелосипеда Газовые Электрические Скутеры шины с внутренней трубкой аксессуары для электрического скутера
9,00 $ - 9,80 $

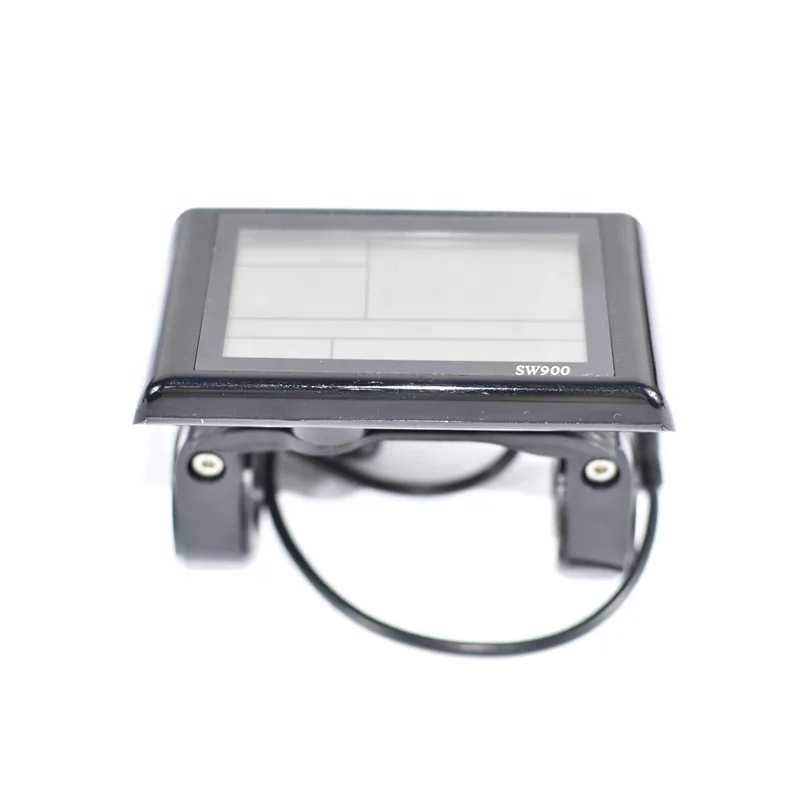

Аксессуары для электрических велосипедов устанавливают Наружные Вывески ЖК-дисплеи sw900
18,50 $ - 20,00 $

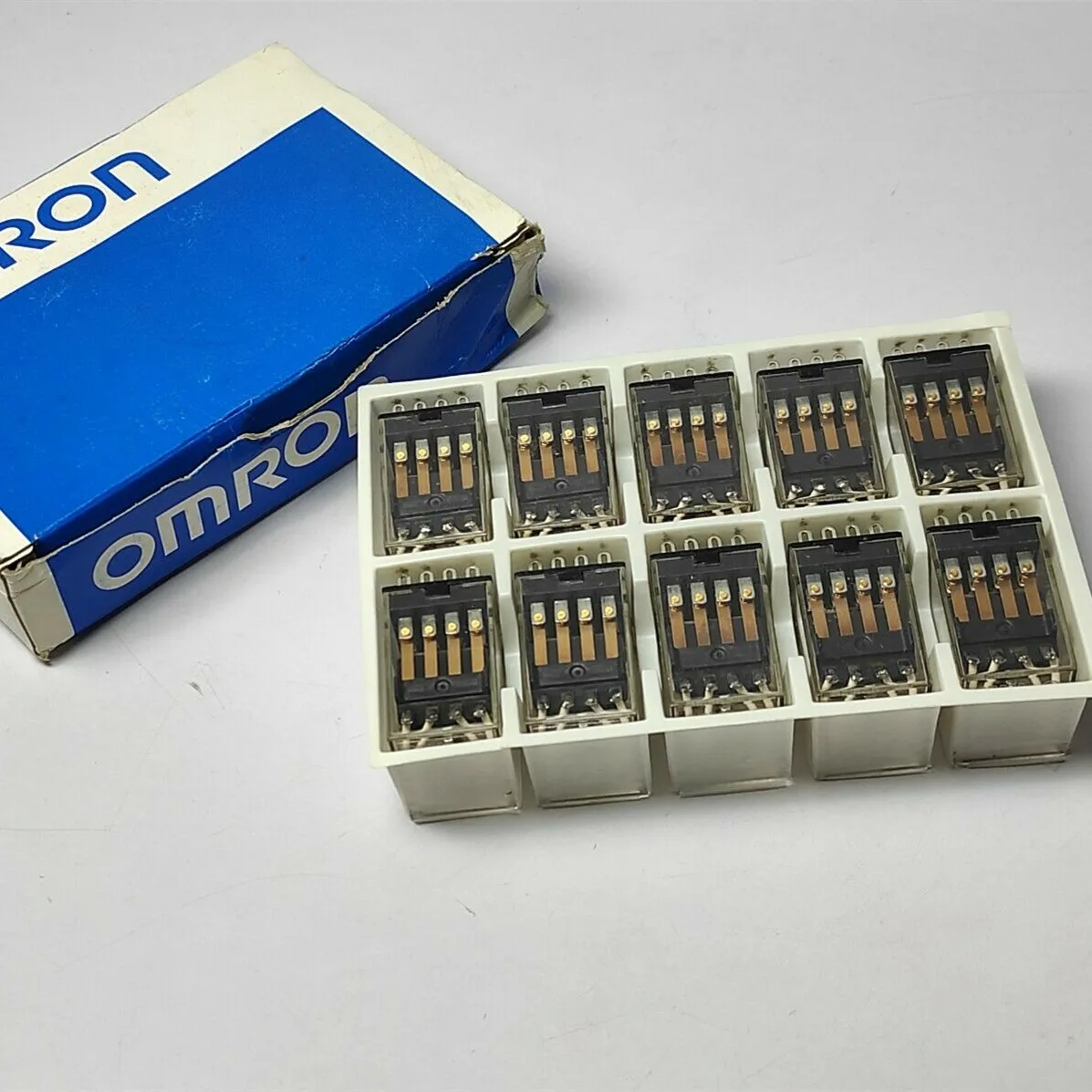

Siftech BOM обслуживание в Китае сделать оригинальная реле LY4N-J DC100/110
Совершенно новое оригинальное контакторное реле 3TF2184-8BB4
FXU-48MT/DS | Япония Mitsubishi Оригинальное ПЛК

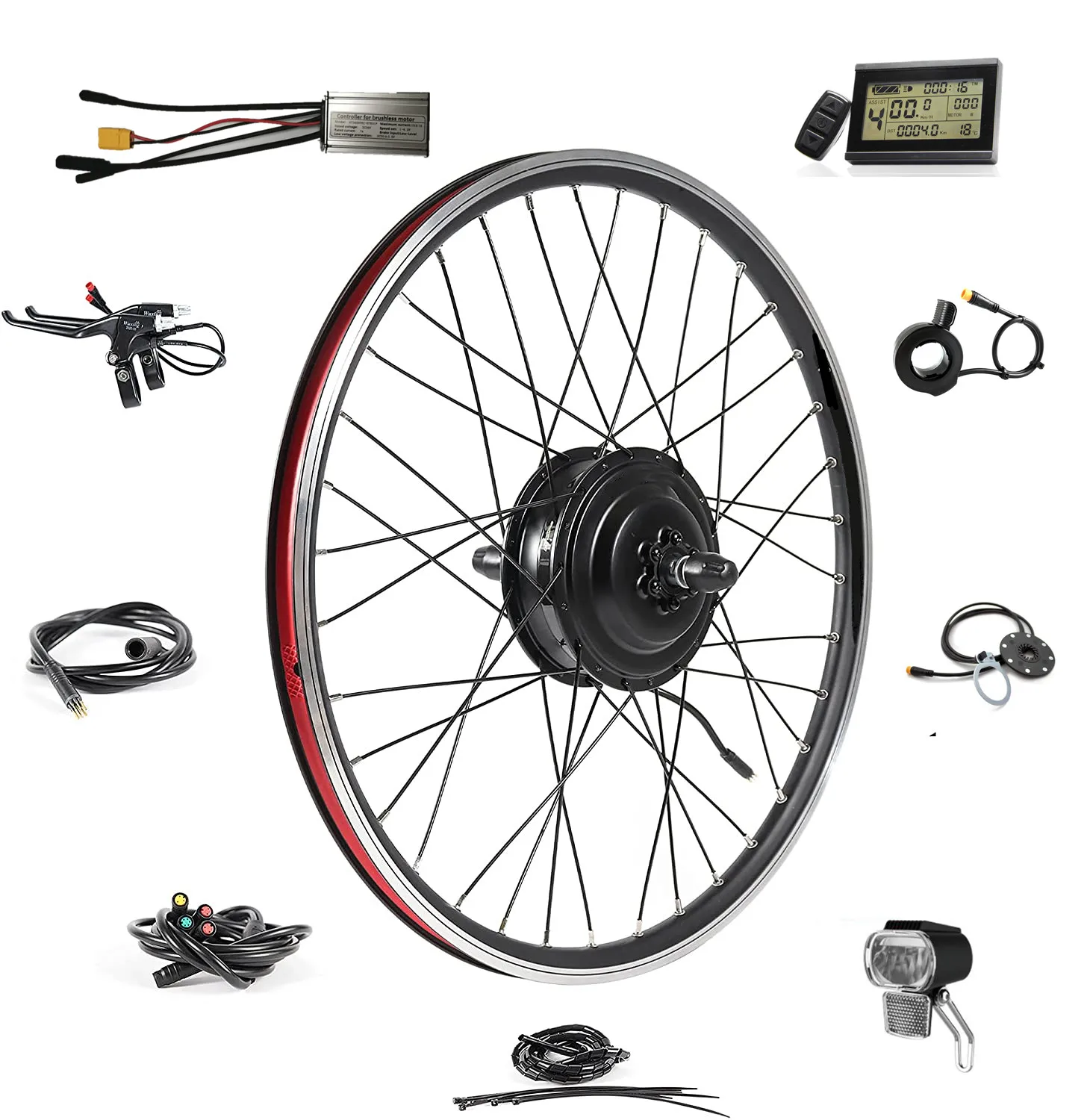

Комплект для переоборудования ebike 700c 250 Вт 350 Вт, комплект для переоборудования ebike 27,5, комплект для переоборудования заднего колеса
