Ip67 мгновенная высокая круглая головка 22 мм 12 В 220 Электрический Водонепроницаемый металлический кнопочный переключатель

Ip67 мгновенная высокая круглая головка 22 мм 12 В 220 Электрический Водонепроницаемый металлический кнопочный переключатель

Категория: >>>
Поставщик: Yueqing Aibeiken Electric Co. Ltd.

Цена:1,20 $ - 1,40 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Description:

Great for electron magnetic Starter, relay, Horn Button Switch,
PC Power Switch or any circuit controls on over 500,000 cycles.
Ring LED can be on all the time or only when switch is on which depends on how you wire it.
High quality metal material & IP65 IP67 waterproof protection can be used in wet or dusty environment.

Specification:

Mounting Hole Size: Φ16mm Φ19mm Φ22mm
Switch Rating: 10A/250AC
Switch Combination : 1NO 1NO1NC 2NO
Operated function: Momentary / Self locking
Head type: Flat head
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Ring led / power logo
Illuminated LED Voltage: 12V
Degree of Protection: IP65/IP67, IK10

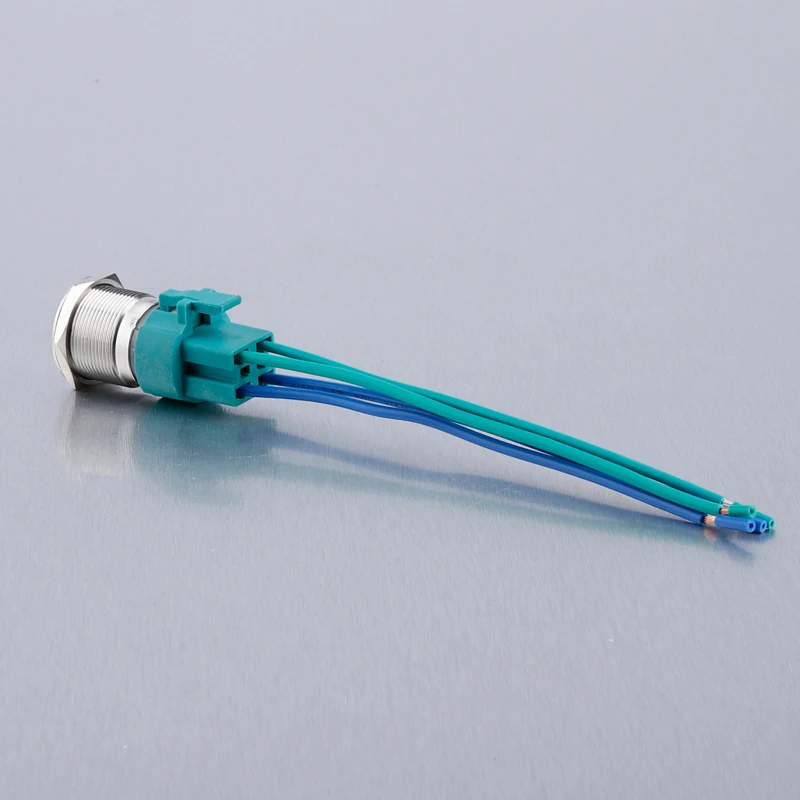

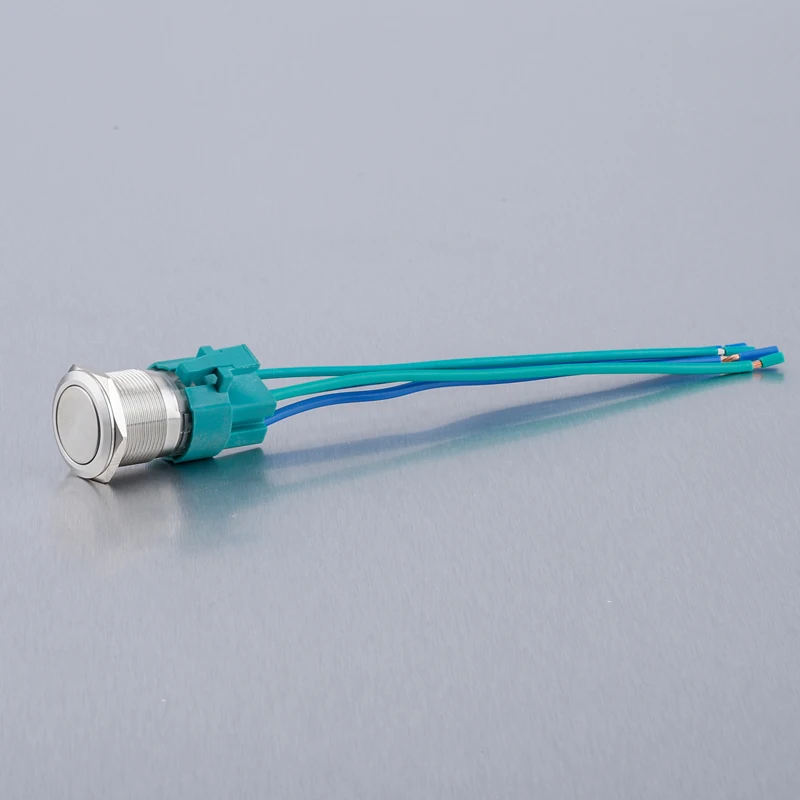

The Wire Connector:

With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket

Note:

-These switches come with a rubber O-ring which makes them splash resistant

but they can NOT be submerged underwater

-The project you are going to be used for, don't let current go above 5 amps.
Or the switch will get warm and to be burned out

Product Paramenters

Model Specification
Model NO.	IB22K1 series push button switch
Mounting diameter	22mm
Head shape	Flat head
Switch Combination	1NO
Operation type	Momentary / Latching
Rated Current	10A
Illuminating type	Ring led, Power logo, Ring and power
Illuminating color	Red,green,blue,yellow,orange,white,purple
Lamp voltage	2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material	Brass nickel,Stainless steel,aluminum oxide
Contact Resistance	50mΩ max
Insulation Resistance	1000MΩ Min
Dielectric Intensity	2000VAC
Accessories	Nut, Rubber Waterproof O-ring

Recommend Products

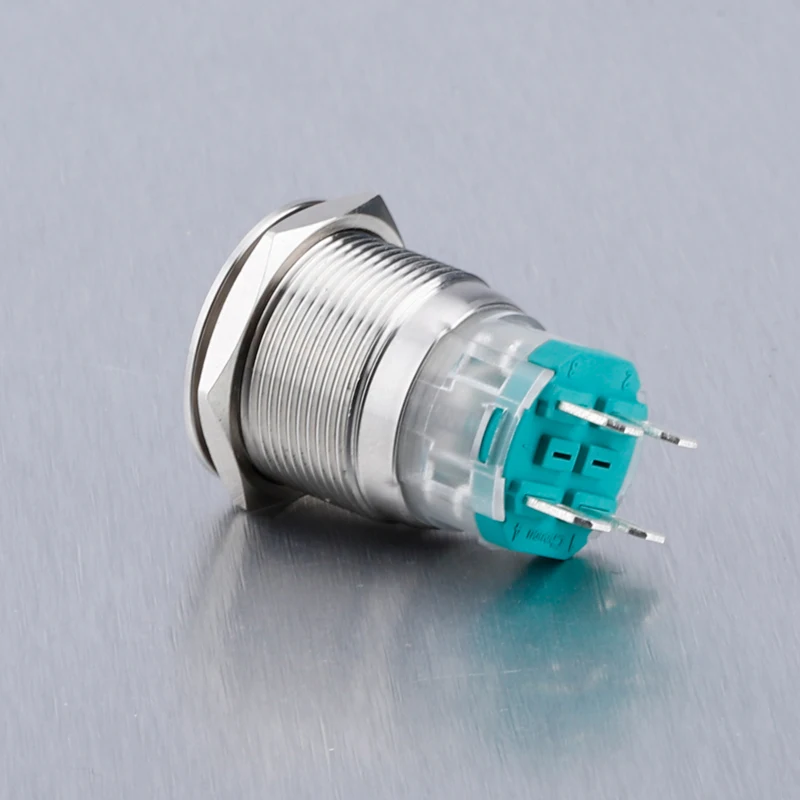

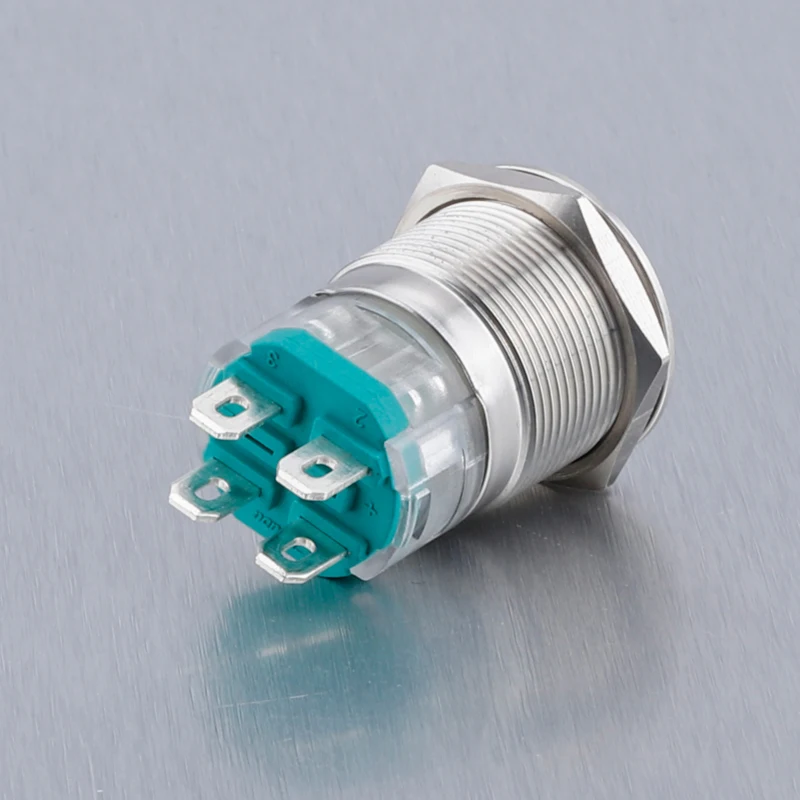

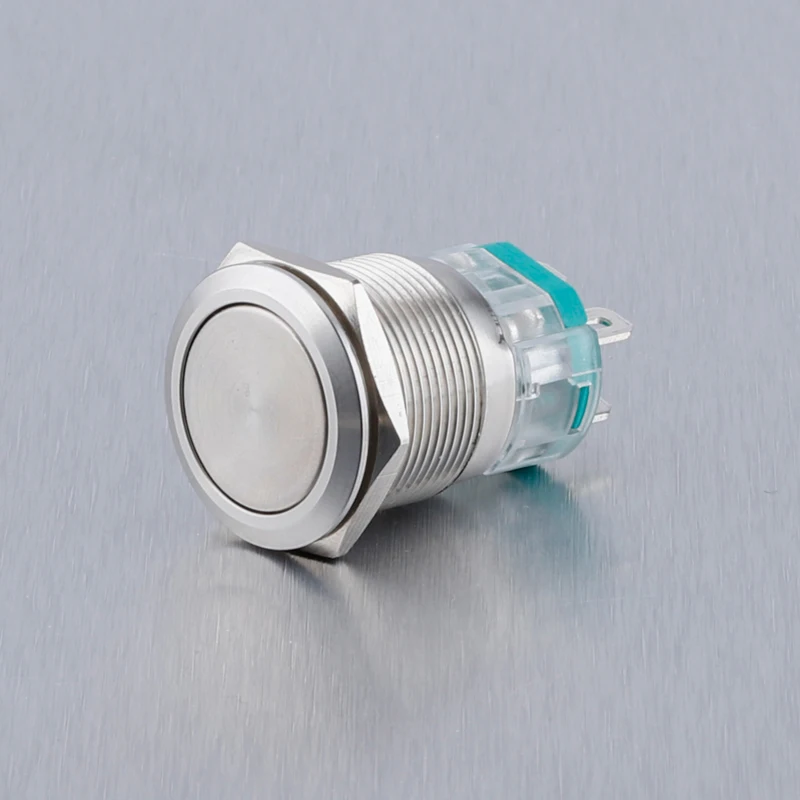

Details Images

Company Profile

Product packaging

FAQ

Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What are your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
