Tantalite, Zircon Sand, Ilmenite, Monazite, Chromite, Silica Sand, Gold Mining Spiral Chute
Hengchang machinery Mining Spiral Chute can be used for many minerals separating, such as gold, copper, tungsten, tin, tantalum, coltan, chrome, zinc ore and some other minerals. When you find us, you find one best mining machinery manufacturer.
Mining Spiral Chute Introduction:
Mining Spiral Chute is also called spiral chute or spiral chute separator, is the best equipment in mining and ore dressing industries, which is often applied to sort materials with size 0.3 - 0.02 mm, such as ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore and other non-ferrous metals, precious metals and non-metallic minerals.
It can easily adopt to different raw material size, density, ore grade and feed volume. Spiral chute is suitable for treatment of 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer and gold ore.
Mining Spiral Chute is also called spiral chute or spiral chute separator, is the best equipment in mining and ore dressing industries, which is often applied to sort materials with size 0.3 - 0.02 mm, such as ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore and other non-ferrous metals, precious metals and non-metallic minerals.
It can easily adopt to different raw material size, density, ore grade and feed volume. Spiral chute is suitable for treatment of 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer and gold ore.
Mining Spiral Chute Working Principle:
Mining Spiral Chute is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
Fiber Reinforce Plastic Spirals
Diffluent Box
Normal Type Spiral
Riffle Type Spiral
BLL-400 Mining Spiral Chute
BLL-600 Mining Spiral Chute
BLL-900 Mining Spiral Chute
BLL-1200 Mining Spiral Chute
BLL-1500 Mining Spiral Chute
PVC Mining Spiral Chute
Mining Spiral Chute Applications:
The Mining Spiral Chute is a gravity equipment. With the water, action of gravity friction force, minerals would be separated by its gravity difference. Then we could get heavy, middling and light products.It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof,anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new high effective equipment.
Model | BLL-1500 | BLL-1200 | BLL-900 | BLL-600 | BLL-400 |
Outside Diameter (mm) | 1500 | 1200 | 900 | 600 | 400 |
Screw Pitch (mm) | 900, 675 | 900, 720, 540 | 675, 540, 405 | 450, 360, 270 | 240, 180 |
Pitch Diameter Ratio | 0.48, 0.36 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.6, 0.45 |
Lateral slope (degree) | 9° | 9° | 9° | 9° | 9° |
Max. Screw Numbers | 4 | 4 | 4 | 2 | 2 |
Feed Size (mm) | 0.8 ~0.037 | 0.3~0.03 | 0.3 ~0.03 | 0.2~0.02 | 0.2 ~0.02 |
Feed Density (%) | 30 ~55 | 25 ~55 | 25 ~55 | 25 ~55 | 25 ~55 |
Capacity (t/h) | 6~8 | 4~6 | 2~3 | 0.8~1.2 | 0.15~0.2 |
Length (mm) | 1600 | 1360 | 1060 | 700 | 460 |
Width (mm) | 1600 | 1360 | 1060 | 700 | 460 |
Height (mm) | 5300 | 5230 | 4000 | 2600 | 1500 |
Weight (kg) | 850/800 | 700/650/600 | 450/400/350 | 150/120/100 | 50 |

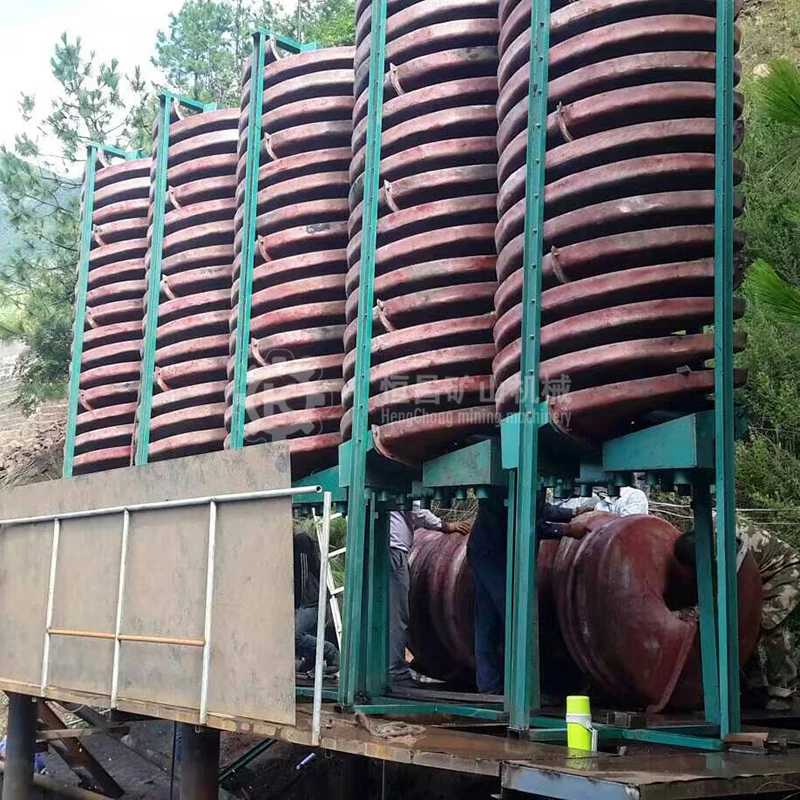

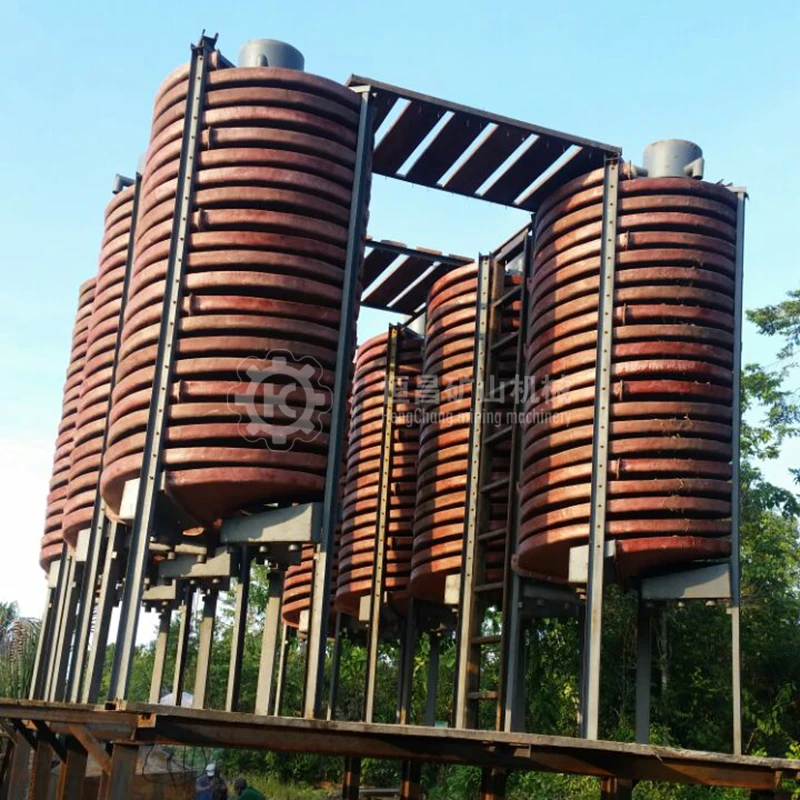

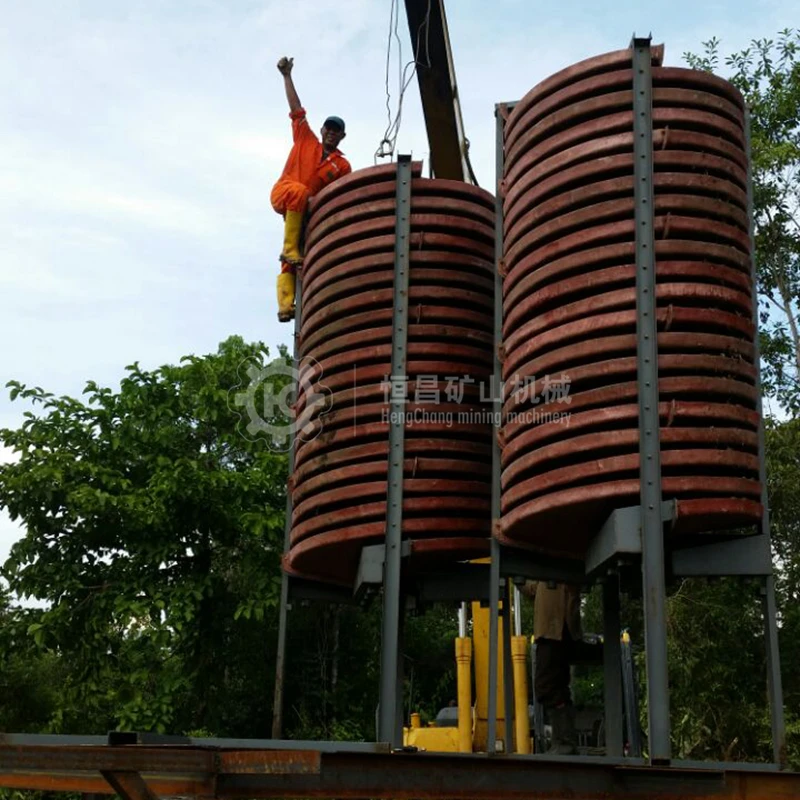

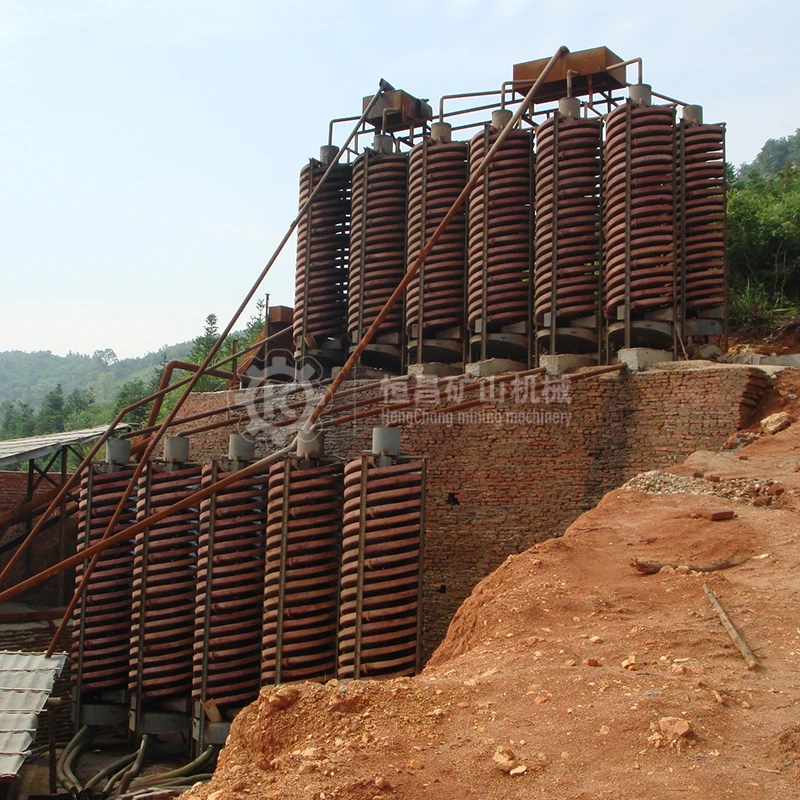

Mining Spiral Chute in Malaysia
For separating tin ore
Mining Spiral Chute in Australia
For separating tungsten ore
Mining Spiral Chute in Indonesia
For concentrating chrome ore
Mining Spiral Chute in China
For concentrating limonite ore
Mining Spiral Chute in India
For Ilmenite ore separation
Mining Spiral Chute in Nigeria
For tantalum ore separation
Mining Spiral Chute in Pakistan
For chrome ore concentration
Mining Spiral Chute in Rwanda
For tantalum ore concentration
Похожие товары

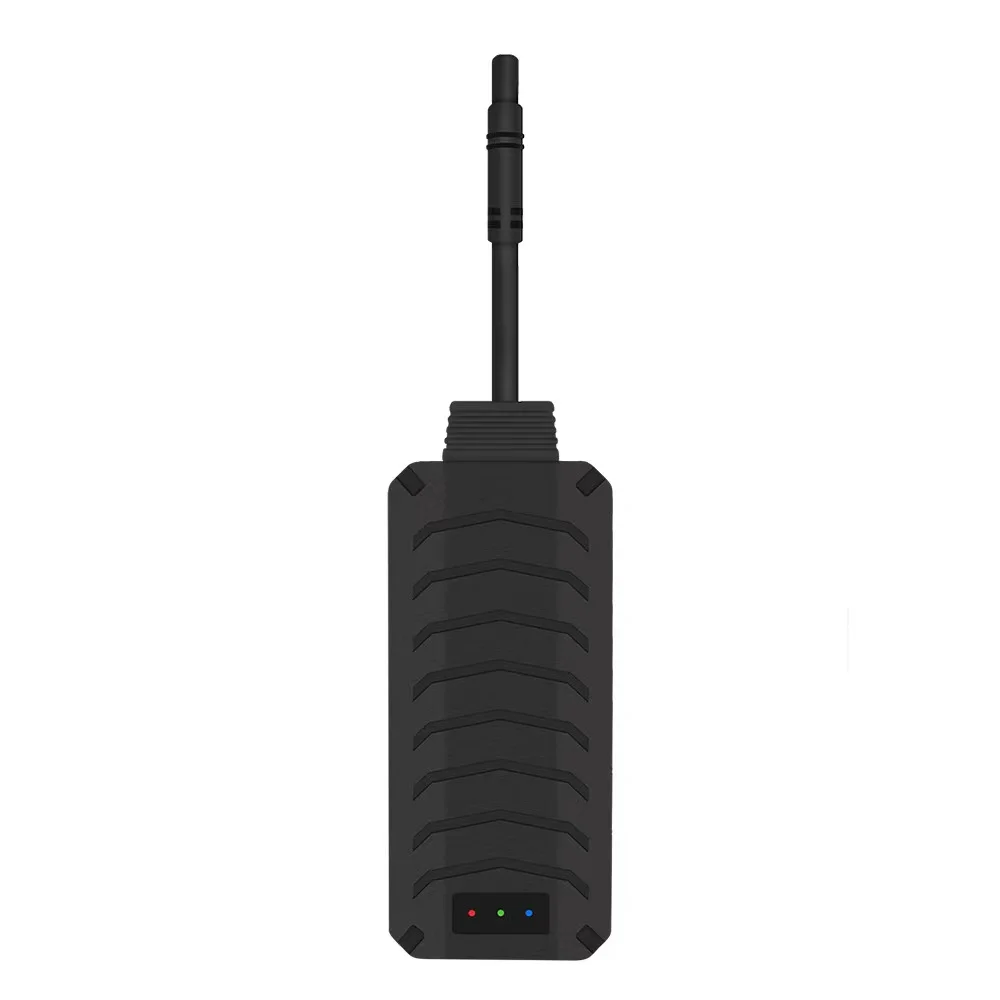

Самый популярный автомобильный GPS-трекер CJ790 4PIN 4G с функцией дистанционного отключения питания
32,00 $ - 35,00 $
Популярный объектив камеры Универсальный 12-кратный телескоп зум телескоп объектив камеры телефона
1,37 $ - 1,99 $
New Scratch-resistant Supplier Manufacture Sun Visor Hat Plastic UV Protection Kids Sun Visor Cap Hat Full Face Cover Lens
5,50 $ - 6,00 $

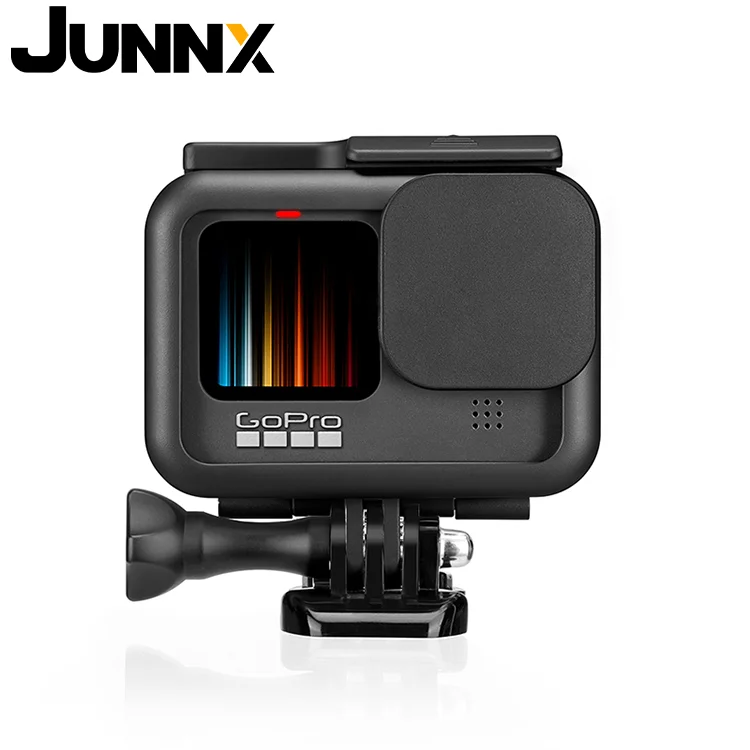

JUNNX боковые открытые крышки объектива черная рамка чехол для спортивной камеры водонепроницаемый Дайвинг твердый силиконовый Go Pro 9 чехол для Gopro Hero 9
1,40 $ - 1,99 $

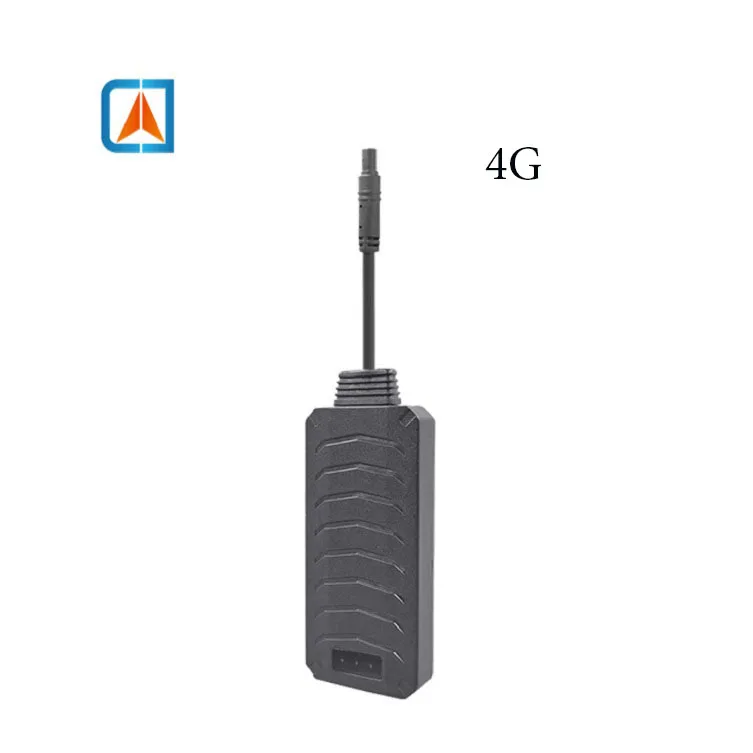

Автомобильный GPS-трекер CJ790, Бесконтактный Определитель частоты, с определением диапазона частот и контроля двигателя, для автомобиля, 4G
