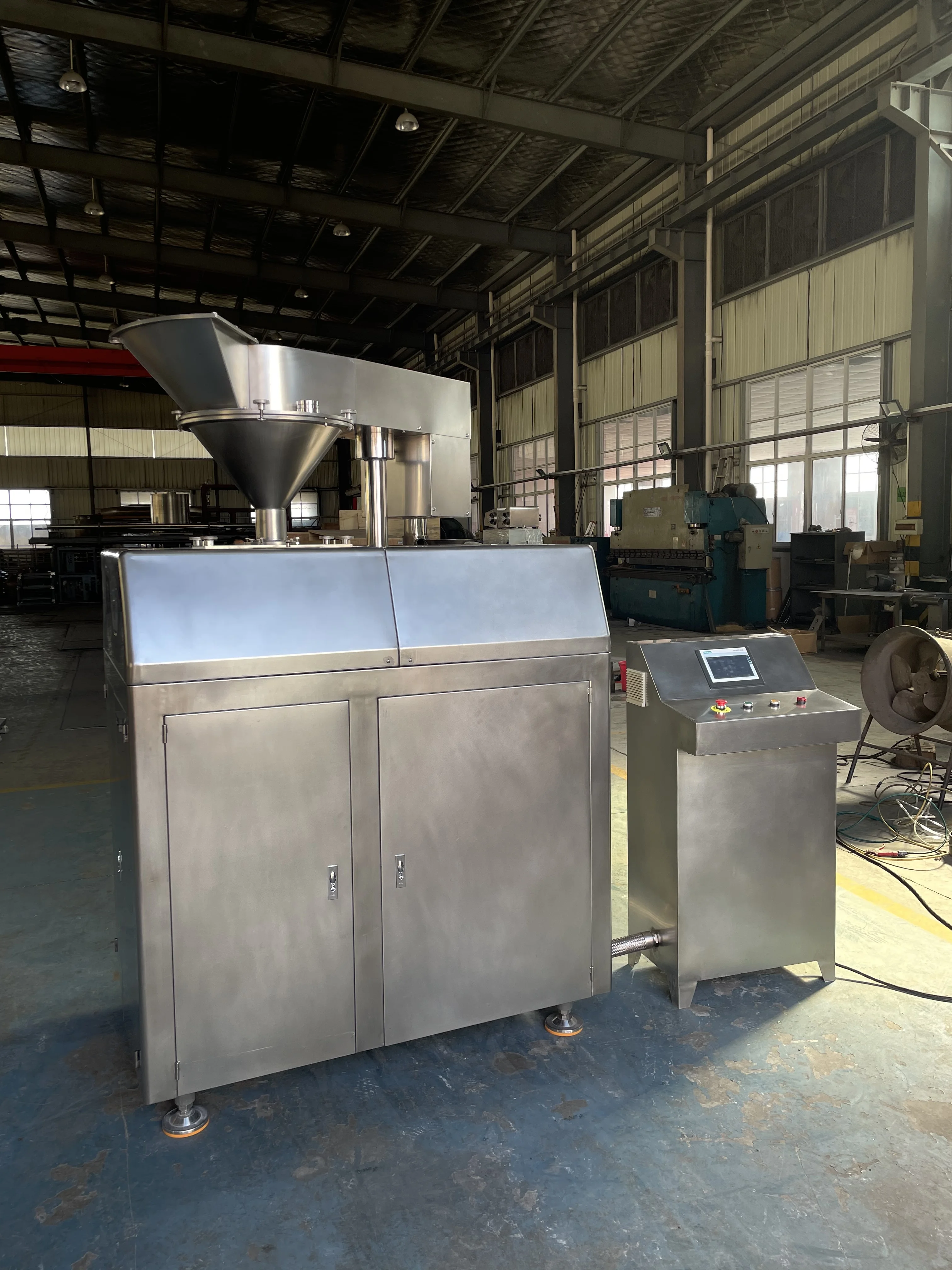

GK-100B Dry Granulator & Granulating Machine & Pharmaceutical Machinery

I. main working principles and uses:

Dry granulator is mainly dry shrinkage by hydraulic acting on the degassing roller extrusion into thin slices, and then crushed finishing process to meet user requirements of particles.

II. structure features:

1, the machine has lifting mechanism, feeding device, tablet pressing device, granulating and granulating device, hydraulic system, cooling system, electrical control, and other components.

A: the lifting mechanism adopts the electric oil pump device to realize the lifting and lifting of the feeding device during the cleaning.

B: feeding device: variable frequency speed regulation to change feed speed

C: the pressing device: variable frequency speed control is used to change the speed of the press.

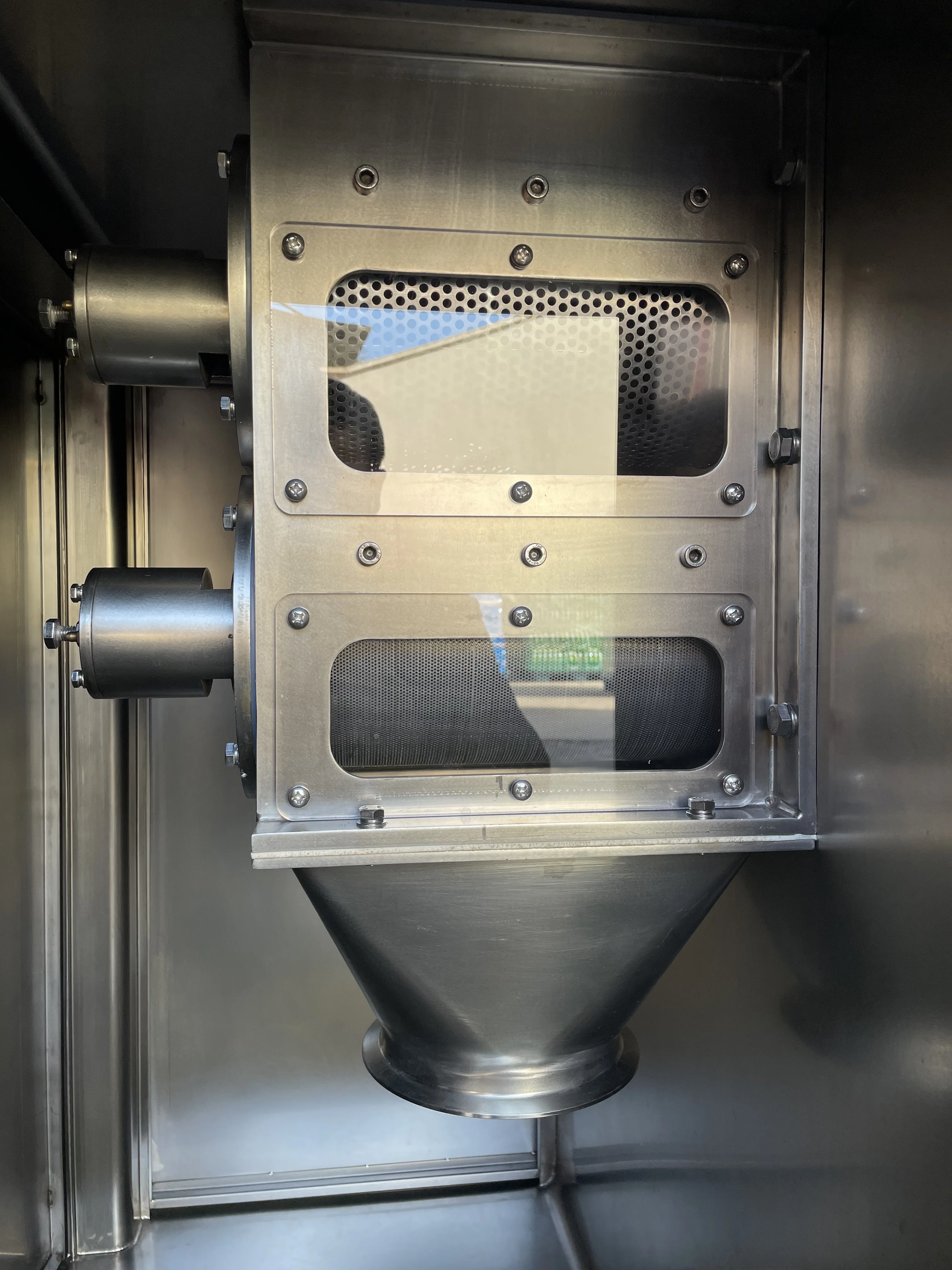

D: pelletizing and granulating device: different granulating tools are applied to different materials to increase the rate of finished products, and the speed of granulating and granulating is changed by frequency control.

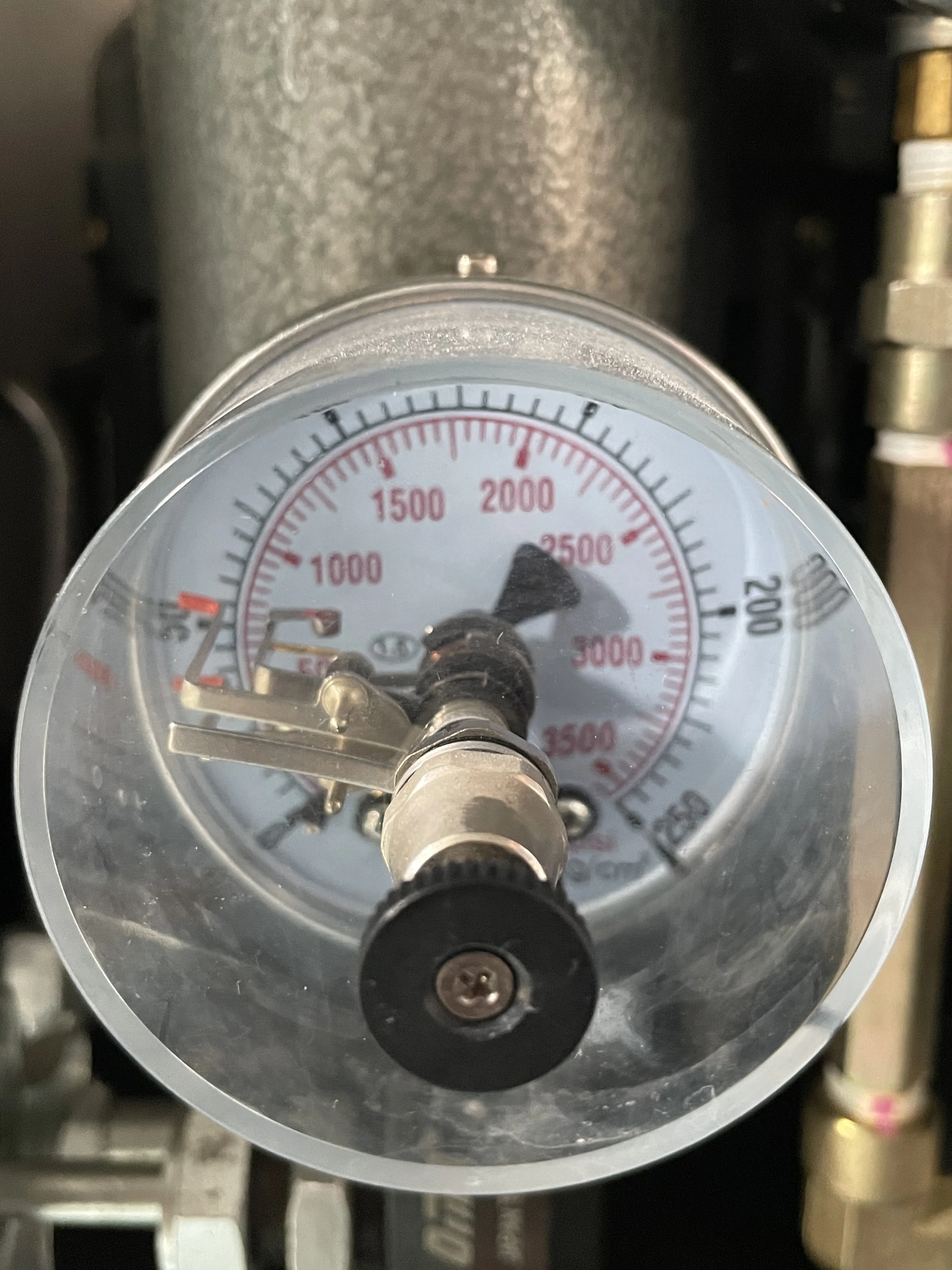

E: hydraulic system: imported hydraulic components, good pressure keeping performance, so that the pressure of materials in the working process is basically the same, and the breakdown of hydraulic system is reduced.

F: cooling, using tap water or cooling water, and forcing the extrusion heat produced by the roller through the rotary joint cycle cooling device.

G: electronic control part: using man-machine interface control, friendly interface, intuitionistic and simple operation.

The man-machine interface and PLC control system, instead of a button, the traditional relay control system, to reduce a lot of electrical components, to reduce a lot of contacts, wiring is greatly reduced, greatly reduced due to failure to produce bad contacts, greatly improve the reliability of the system, according to user needs and memory parameters, simple and convenient operation, system have the function of automatic detection of a failure can prompt the user, convenient maintenance. It has early warning and alarm functions.

Inverter can achieve stepless speed regulation, motor soft start, frequency converter has many kinds of protection and alarm function, it can well protect motor and extend motor life. Make the motor run out of electricity.

This system can avoid the die of block motor plugging, such as the automatic alarm motor reverses and eliminates the fault, and the degree of automation is high.

III. Main technical parameters

Main Configuration list as following

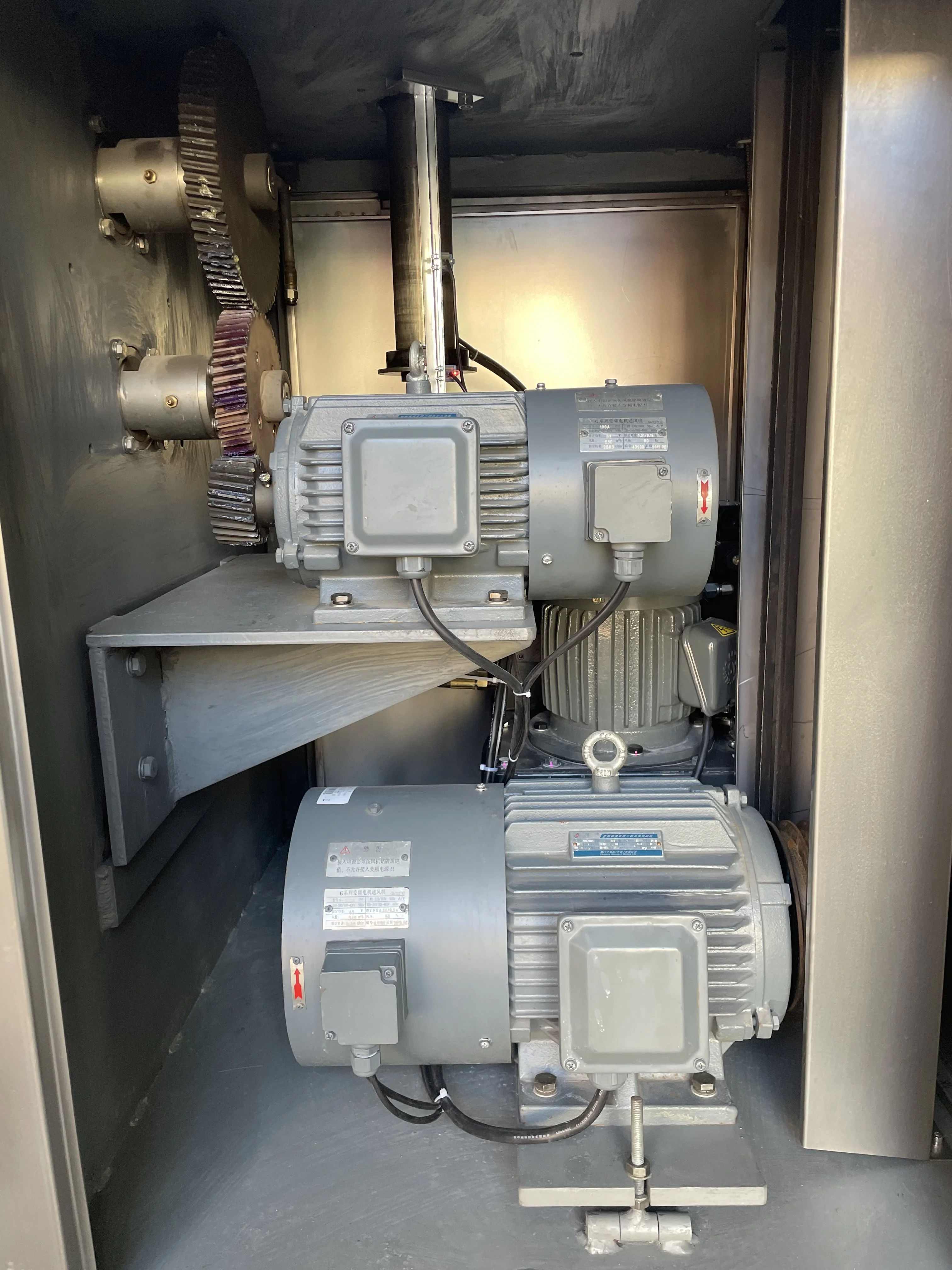

I. Motor

1. Sheet Motor (Main Motor) YVF2 132S-4-5.5KW Variable Frequency Motor

2. YVF2 90L 4-1.5KW variable frequency motor

3. Granulation motor YVF2 100L-6-1.5KW variable frequency motor

The above motors are customized by Siemens Bed Motor or Anhui Southern Anhui Motor for 220V, 60HZ three-phase.

II. Frequency Converter

1.5kw, 2.2kw, 5.5kw  Inverter Three-phase 220V, 60HZ each one

3. Electric Oil Pump Shanghai Qiyang Hydraulic Machinery Co., Ltd.

IV. Major Standard Parts

1. (Main) Bearing Zhejiang Tianma Bearing Co., Ltd.

2. Synchronized Belt (Belt Wheel) Shanghai Huihai Transmission System Co., Ltd.

3. Rotary Joint HS-X 25-102 Tengzhou New Cooperative Sealing Technology Co., Ltd.

5. Reducer Zhangjiagang Cathay Pacific Reducer Co., Ltd.

VI. MAIN MATERIALS

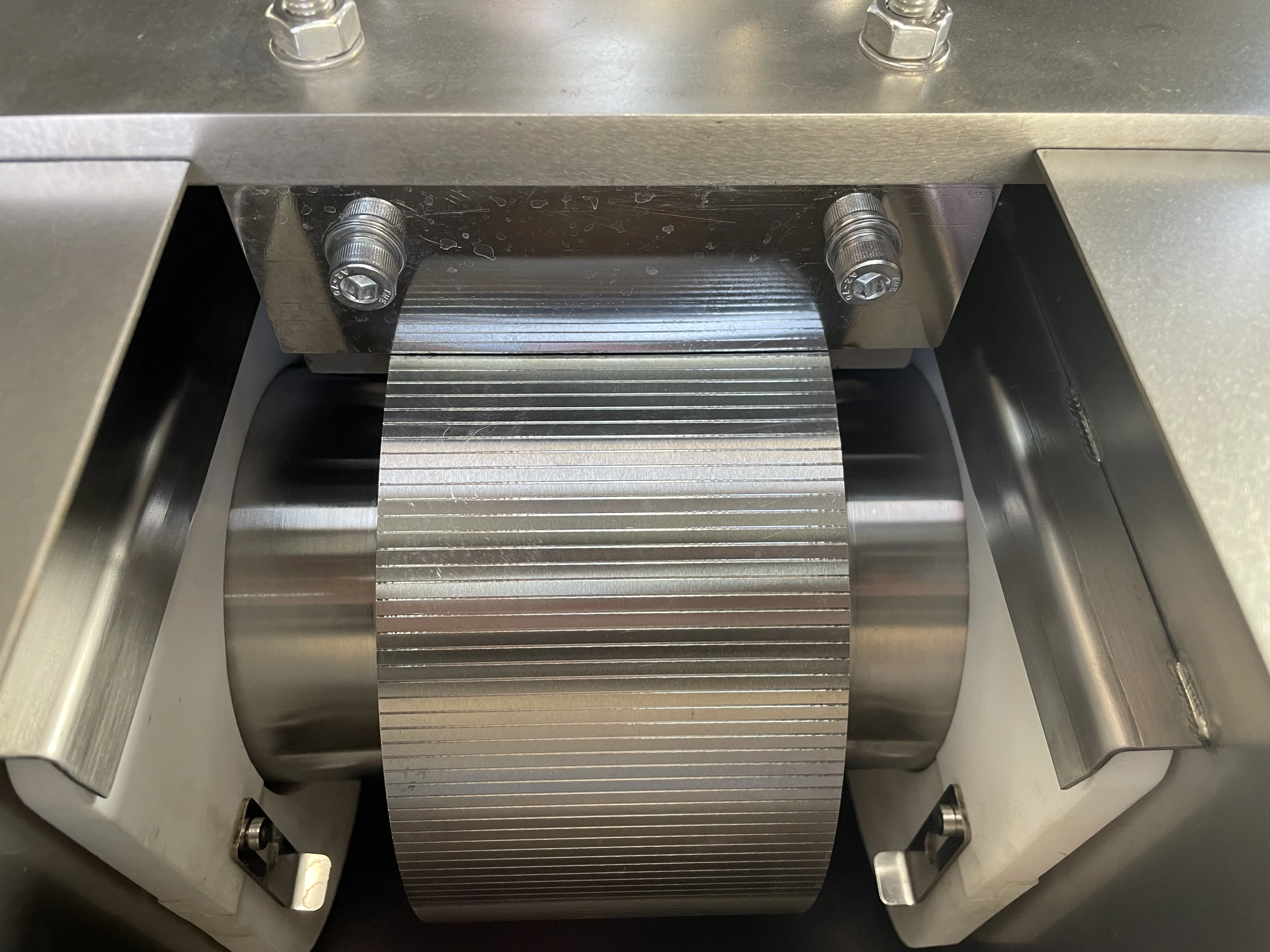

1. Ion Nitriding of Duplex Stainless Steel Surface for Press Wheel 200X100 Material

2. Quenching and tempering treatment of 42CrMo forgings

3. Bearing seat ductile iron

4. High Frequency Quenching of 40Cr Forging of Drive Gear

5. The frame is 6.3 channel steel, the upper and lower platforms are Q235 and the thickness is 16.

6. The top cover plate, the outer seal and the door plate thickness are 2, all made of stainless steel (304).

7. The contact parts with materials are made of stainless steel (304), which is provided by Zhangjiagang Puxiang Company.

VII. Electrical appliances

1. HMI Siemens Seven-inch Screen (Standard is Delta transducer)

2. PLC Siemens 40 Points (Standard is Delta Brand PLC)

3. Schneider is the low voltage electrical appliances such as contactors, transformers, thermal relays, air switches, buttons and so on.
