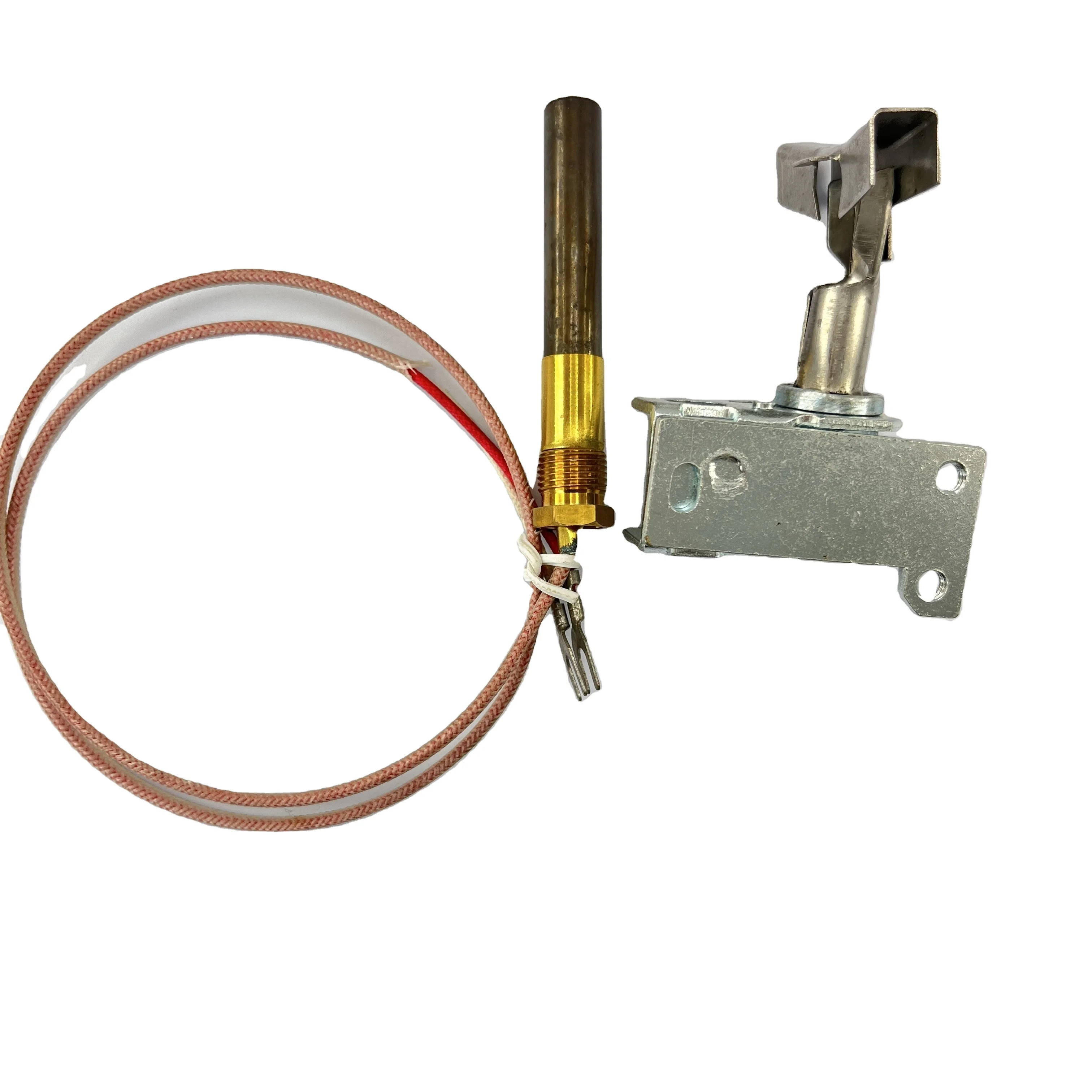

Датчик газового нагревателя пилотная горелка в сборе
703,40 ₽ - 781,07 ₽
Универсальная термопара для фитингов газового обогревателя
- Категория: >>>
- Поставщик: Changxing Benneng Gas Appliance Co. Ltd.
Сохранить в закладки 1600405244963:
Описание и отзывы
Характеристики
Material | Brass/ Stainless steel/ Steel/ Other |
Tip connector | M8/ M9/ M10 4.8x0.5/ 6.3x0.8 |
Compression olive | 4 mm, 6 mm, 1/4” |
Length | ≤2000mm |
Supply ability | 50000pcs/month |
Application | Gas heater/ BBQ/ Pizza oven/ Fireplace/ Water heater/ Gas stove |
Packaging | Customizable |
MOQ | 1000pcs |

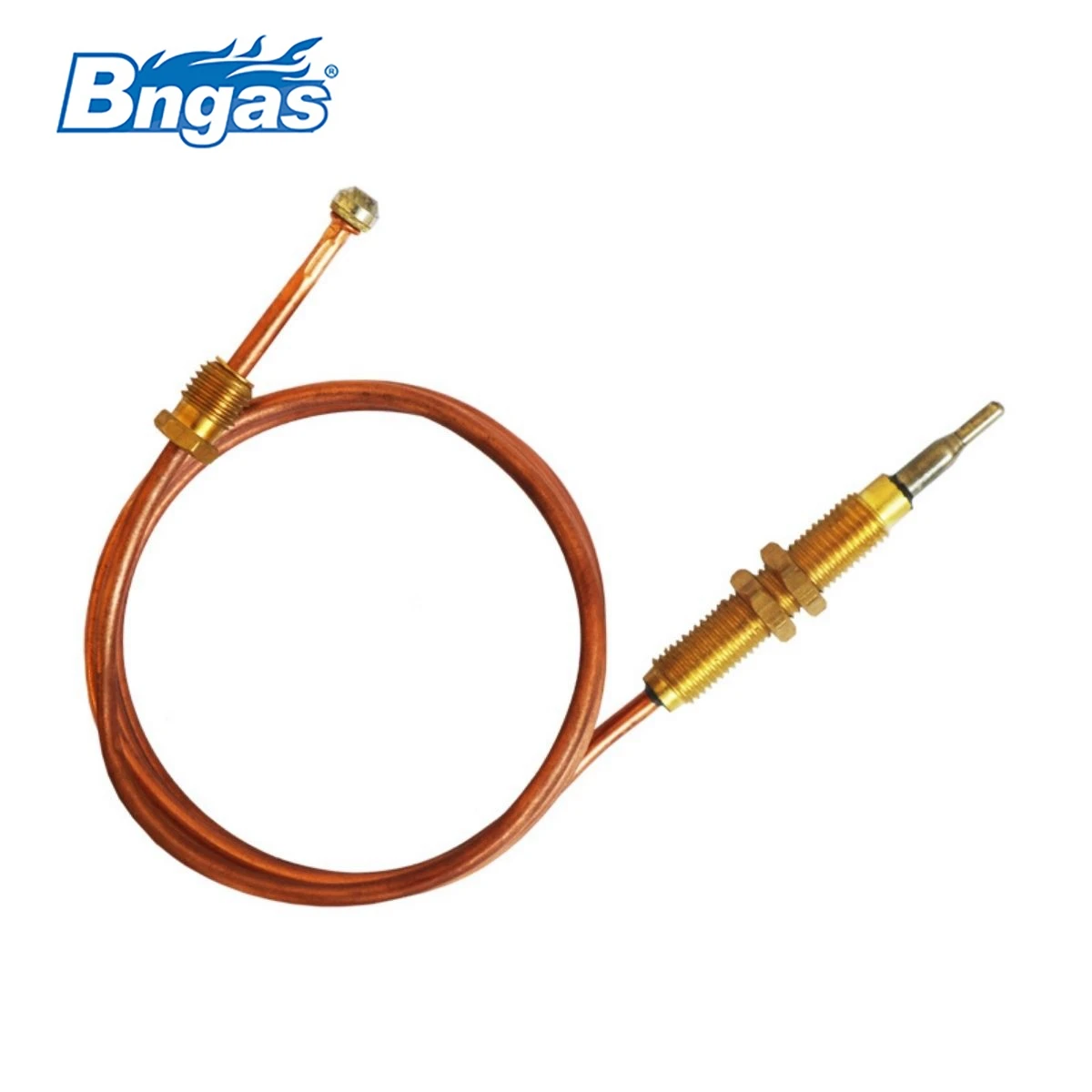

What is the Gas Heater Thermocouple
A thermocouple is an electrical safety device that verifies that the flame of your gas equipment is burning properly, and responds to temperature change by voltage output change.
It is usually used in combination with a pilot burner. If pilot combustion is a necessary safety device in using gas equipment, the thermocouple is the soul of it and it plays a decisive role.
BN4407BNGAS® universal gas heater thermocouple fits most pilot burners on 30-millivolt systems. Our gas thermocouple is easy installation and has a long-time service time.
* It works with the pilot burner for use with gas furnaces, boilers, water heaters, and fireplaces.
* The adapter can be easily mounted on most pilot burners, including clamp-in, push-in, and screw-in burners.
* Universal adapter fits clamp-in, push-in, and screw-in-type pilot burners.
* Long-time service time.
It is usually used in combination with a pilot burner. If pilot combustion is a necessary safety device in using gas equipment, the thermocouple is the soul of it and it plays a decisive role.
BN4407BNGAS® universal gas heater thermocouple fits most pilot burners on 30-millivolt systems. Our gas thermocouple is easy installation and has a long-time service time.
* It works with the pilot burner for use with gas furnaces, boilers, water heaters, and fireplaces.
* The adapter can be easily mounted on most pilot burners, including clamp-in, push-in, and screw-in burners.
* Universal adapter fits clamp-in, push-in, and screw-in-type pilot burners.
* Long-time service time.
Gas Thermocouple: Definition & Uses in Gas Heating Equipment
A thermocouple is a safety device that works by the temperature change of voltage output.
A thermocouple can produce a small voltage output by two different metals or wires forming a measurement junction at the sensor’s tip on the device.
When two different metals are heating, they can be produced an electrical current.
This voltage will let the gas valve close or open or remain open.
This voltage will let the gas valve close or open or remain open.
Gas Heater Thermocouple Selection & Installation
Thermocouples are available in different lengths of connecting copper tubing and are used provided that the thermocouple can be easily made to connect to the gas valve. The thermocouple copper tubing is usually coiled to prevent scratching, kinking, or sharp bending.
Troubleshooting Thermocouples
After you have determined that the fault occurred in the Thermocouple, there are generally two most common problems with thermocouples.
* The head of the Thermocouple is not correctly positioned in the flame.
* The Thermocouple’s connecting tube is damaged or excessively twisted.
You can get the Gas Pocket Thermocouple Tester from BNGAS.
You can get the Gas Pocket Thermocouple Tester from BNGAS.
1. Insert the Thermocouple into the tester.
2. Tighten the knurled sleeve until the TC is secured.
3. Press and hold the white button apply heat to the TC for 20/30 seconds, then release the button. The button will remain held for approx. 20 seconds if the TC is OK.
Choose BNGAS to Custom Gas Heater Thermocouple
We aim to produce Good-quality and reasonable unit-price gas thermocouples as effortlessly as possible. BNGAS offers a comprehensive range of gas heater parts & products for you.
After 100% self-inspect of our gas heater thermocouple, oven thermocouple, gas hob thermocouple, and pilot thermocouple, we will deliver them to our clients asap.
After 100% self-inspect of our gas heater thermocouple, oven thermocouple, gas hob thermocouple, and pilot thermocouple, we will deliver them to our clients asap.
Leader for Gas Heater Parts in China
Over 16 Years Manufacturing Experience
BNGAS' VISION
Bngas’ vision is to be recognized as the leading sustainable partner for gas heater solutions!
BNGAS' MISSION
Our commitment is to create smart solutions for gas heater parts for a more sustainable world!
Clients That Trust Bngas
About Bngas

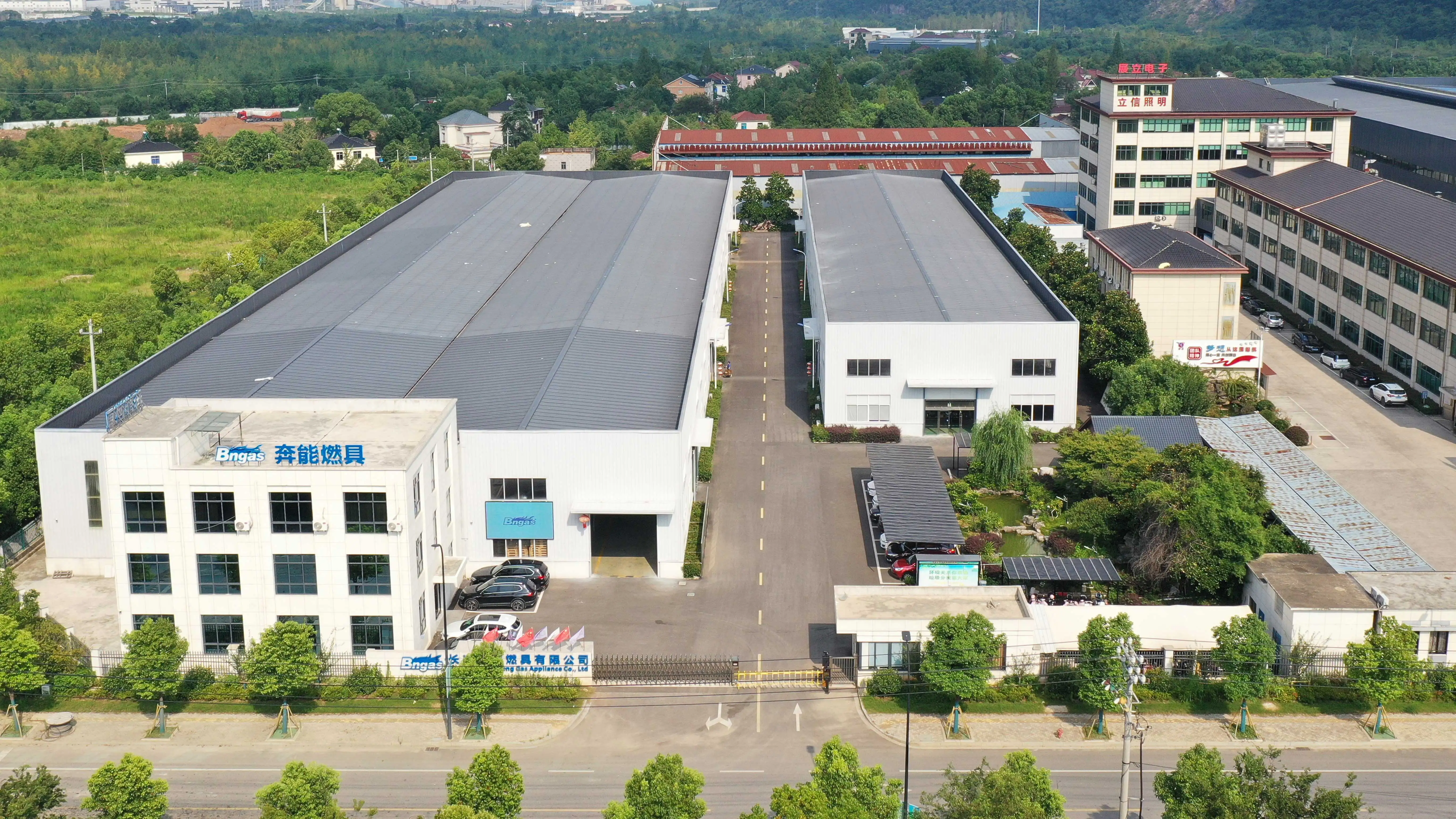

Bngas Ltd. was established by Dr. Yang with Dr. Li in Ningbo, Zhejiang in 2007. Due to their decades of experience in the gas industry and entrepreneurial vision, they successfully integrated and founded a one-stop solution factory.
Since 2007, Bngas has been dedicated to manufacturing gas heater parts and applying gas combustion solutions, and we have our brands: BNGAS and BNPARTS.
Our product lines consist of the following:
Gas Burner, Pilot Burner, ODS, Thermocouple, Gas Igniter, Electrode, Brass Fittings, and Gas Combustion Solution

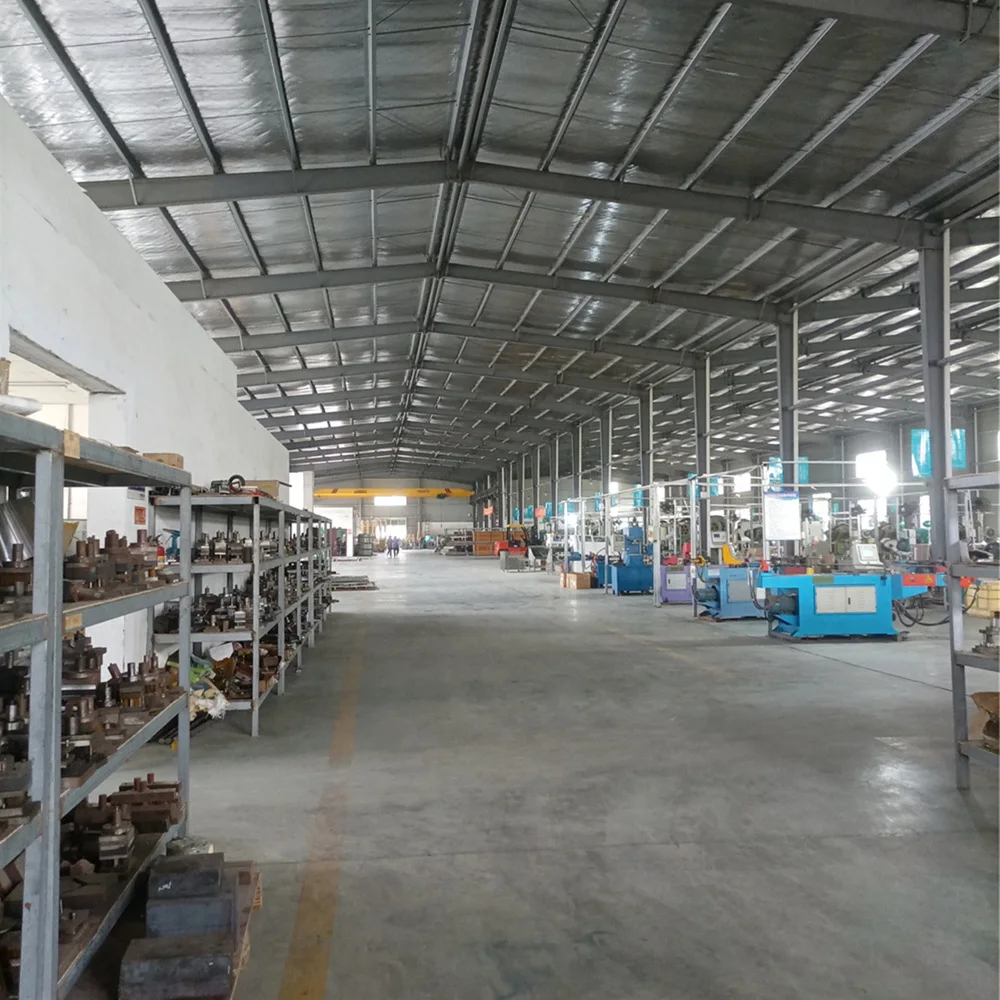

Bngas has the most practical and advanced modern machinery, equipment, and test laboratories, all located in an ISO 9001-certified 13,000-square-meter vast area. Most of our components are certified according to European CE standards and American CSA standards.
Since 2007, Bngas has been dedicated to manufacturing gas heater parts and applying gas combustion solutions, and we have our brands: BNGAS and BNPARTS.
Our product lines consist of the following:
Gas Burner, Pilot Burner, ODS, Thermocouple, Gas Igniter, Electrode, Brass Fittings, and Gas Combustion Solution
Bngas has the most practical and advanced modern machinery, equipment, and test laboratories, all located in an ISO 9001-certified 13,000-square-meter vast area. Most of our components are certified according to European CE standards and American CSA standards.
Meet Our Top Management
During the past 16 years, our teams have helped 1600+ clients grow their businesses, we are always happy to work with you too!
The Gas Heater Thermocouple Ultimate FAQ Guide
Whether you want to choose the best material, the best designs, or different terminals – you will find all information right here.
Keep reading to learn more.
Keep reading to learn more.
A thermopile looks like a thermocouple and is used as a safety device for temperature sensing. It consists of multiple thermocouples connected in series to produce more current than a thermocouple. But unlike thermocouples which require direct contact with the object being monitored, it can be used without touching the object. It is important to note that they are not interchangeable with each other.
* A thermocouple relies on the tip of its sensor to be in direct contact with the object to be measured.
* A thermopile simply absorbs the infrared (IR) rays emitted by the object’s surface to be measured. No direct contact is required. That is why they are generally painted “black”.
Our MOQ is 2,000 pcs each. Volume is always the best way to a cost down.
Q3: How can l Get a Quotation?
Please send us your inquiry, and we’ll reply to you within 24 hours.
Our regular lead time is 30-40 working days. May be extended if there are too many orders waiting to be completed
Q5: Can you OEM?
Yes, we have experience in handling OEM/ODM orders.
As an OEM & ODM service provider, our success strongly relies on our customer’s profitability and therefore we are willing to leave this open for further discussion.
As an OEM & ODM service provider, our success strongly relies on our customer’s profitability and therefore we are willing to leave this open for further discussion.
Yes, we have experience in handling OEM/ODM orders.
As an OEM & ODM service provider, our success strongly relies on our customer’s profitability and therefore we are willing to leave this open for further discussion.
We have a lot of experience in helping buyers to do this. Please feel free to ask us.
