Гусеничный Экскаватор LONKING на 15 тонн LG6150 с бесплатными запасными частями
- Категория: >>>
- Поставщик: Maxizm Construction Machinery (Qingdao) Co. Ltd.
Сохранить в закладки 1600405433955:
Описание и отзывы
Характеристики
Product Overview

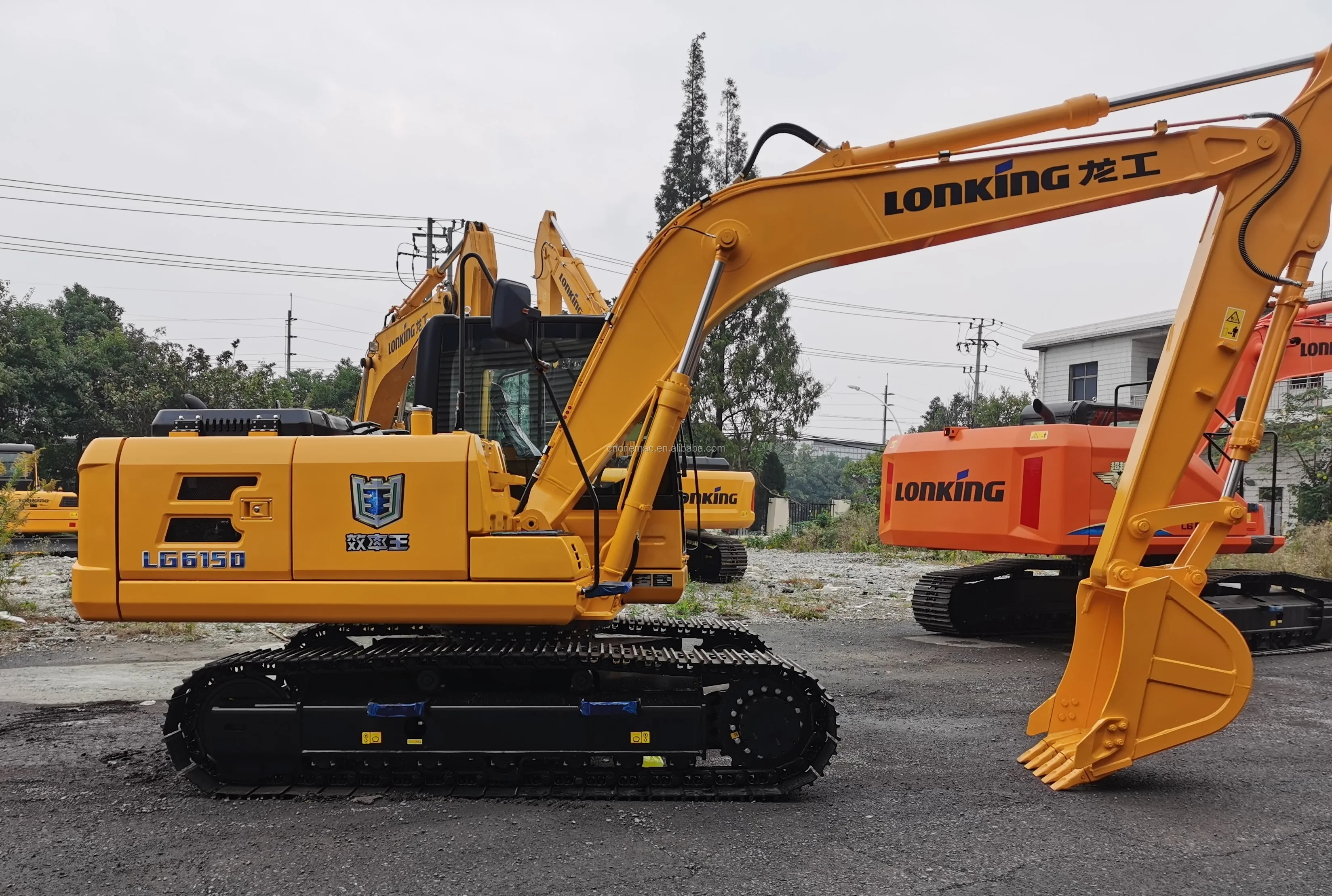

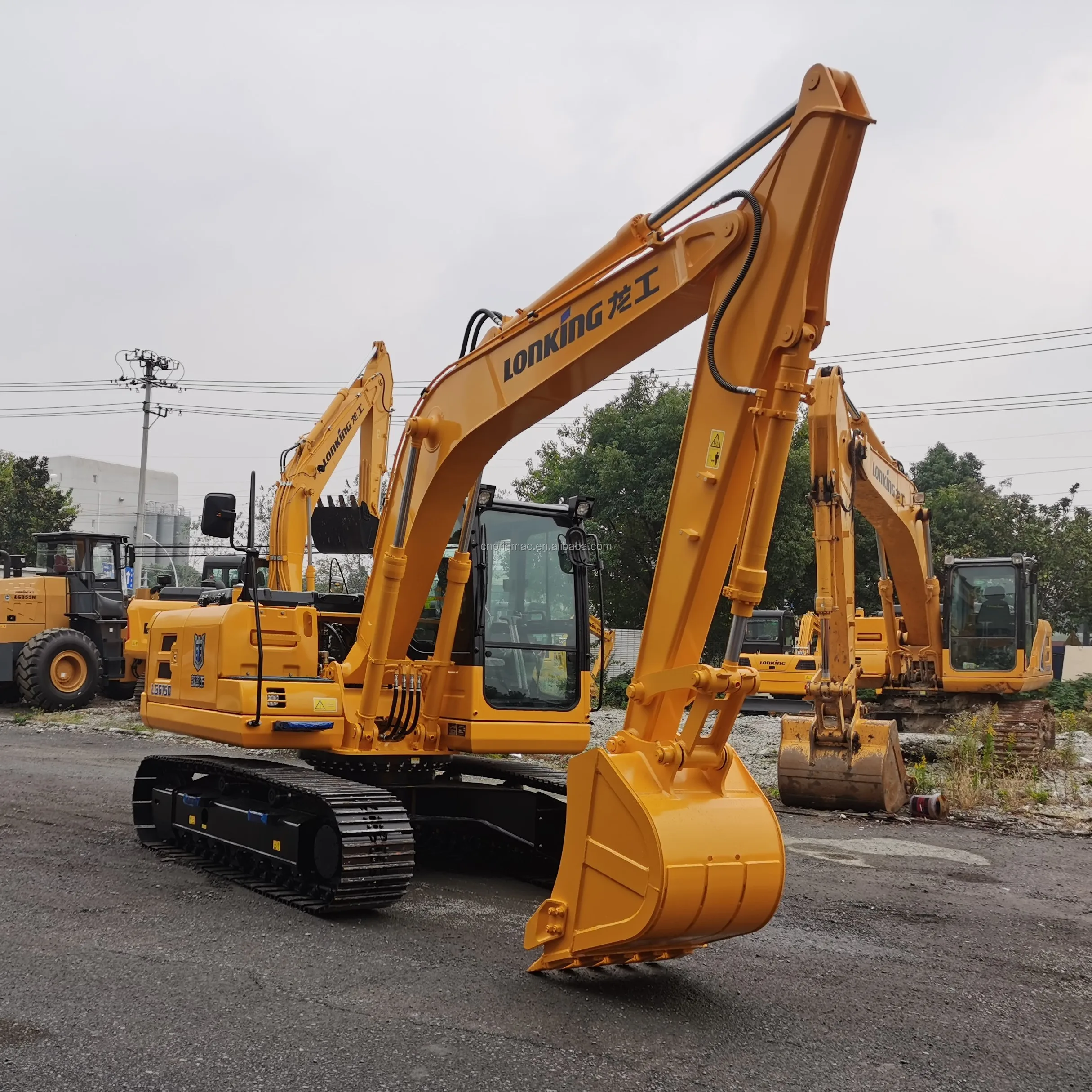

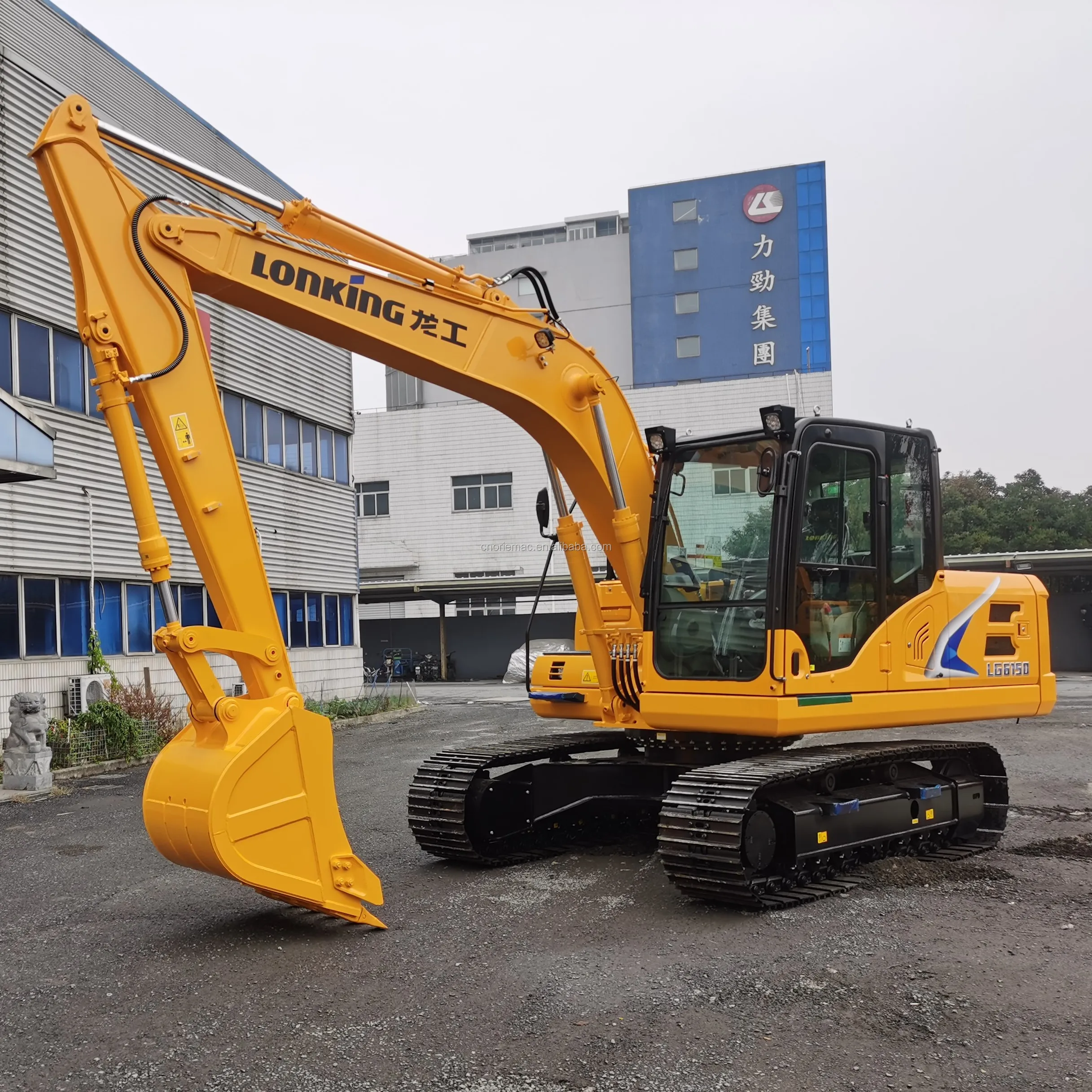

Brand New 15 Ton Crawler Excavator LG6150
01.TDCI 4-cylinder engine.
02.Three-stage air and fuel filtering system.
03.Air-air inter cooling system with parallel radiator.
04.Dual-pump double-circuit constant power control hydraulic system.
05.Multi-purpose true color monitor with large screen.
06.No frame cab glasses to enlarge the visual field.
07.High performance and healthy A/C allows the air circulat.
08.Comfortable suspension seat with hydraulic damper.
09.Safe and comfortable cabin with 2.7m³ inner space.
10.Free maintenance track with non- lubricated pins.
11.Heavy-duty boom and arm with high strength low alloy structural steels.
12.Heavy-duty bucket with high strength and wear-resistant steels.
03.Air-air inter cooling system with parallel radiator.
04.Dual-pump double-circuit constant power control hydraulic system.
05.Multi-purpose true color monitor with large screen.
06.No frame cab glasses to enlarge the visual field.
07.High performance and healthy A/C allows the air circulat.
08.Comfortable suspension seat with hydraulic damper.
09.Safe and comfortable cabin with 2.7m³ inner space.
10.Free maintenance track with non- lubricated pins.
11.Heavy-duty boom and arm with high strength low alloy structural steels.
12.Heavy-duty bucket with high strength and wear-resistant steels.
FEATURES AT A GLANCE
MAXIZM Construction Machinery is a one-stop machinery supplier, leading in China. Including engineering, mining, warehousing, logistics, and various parts. Cooperate directly with the brand, and the official warranty for all machines is one year. We have shipped machines to over 148 countries in the past 13 years. Any machine, please feel free to consult.
PRODUCT SPECIFICATIONS
Model | LG6150 | |||
General | Operating weight( kg) | 14000 | ||
Standard bucket(m³) | 0.56 | |||
Bucket range(m³) | 0.25-0.75 | |||
Ground pressure(kPa) | 45 | |||
Travel speed(km/h) | 3.34/5.5 | |||
Swing speed (rpm) | 11.9 | |||
Gradeability | 35° (70%) | |||
Engine | Model | QSF3.8 | QSB4.5 | |
Rated power(Kw(hp)/rpm) | 86 (117) /2200 | 90(122)/2000 | ||
Displacement (L) | 3.8 | 4.5 | ||
Fuel tank(L) | 270 | |||
Hydraulic System | Max.pressure of Implements(MPa) | 34.3 | ||
Max. flow of system( L/min) | 120×2 | |||
Hydraulic oil tank(L) | 159 | |||
Working Device | Boom length(mm) | 4600 | ||
Arm length(mm) | 2500 | |||
Bucket radius(mm) | 1270 | |||
Digging Force | Max. arm digging force (SAE/ISO)(kN) | 75/85.6 | ||
Max. bucket digging force (SAE/ISO)(kN) | 116/132.4 | |||
01. Adopt new environmental protection engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable. The layout of intake pipe is optimized to reduce intake resistance, increase intake and improve fuel efficiency.
02. By adjusting the pump power and adopting a new generation of low-pressure loss main valve, the overall optimization of the hydraulic pipeline system, the machine energy consumption is lower, the response speed is faster, more accurate control. The industry leading runner design, the workgroup cancels the traditional bridge design, the pressure loss reduces more than 30%.
03. The new and upgraded flow priority distribution method makes the combined motion of walking + working device and climbing + working device far superior to the traditional load sensitive system. The adaptability of working condition with load is greatly improved.
04. Large space cab spacious and comfortable, more open view, new cab surrounded by shading shade; Optimize the three-stage shock absorption system to further improve seat comfort. Push and pull the Windows on both sides of the cab, greatly improve the operating comfort.
02. By adjusting the pump power and adopting a new generation of low-pressure loss main valve, the overall optimization of the hydraulic pipeline system, the machine energy consumption is lower, the response speed is faster, more accurate control. The industry leading runner design, the workgroup cancels the traditional bridge design, the pressure loss reduces more than 30%.
03. The new and upgraded flow priority distribution method makes the combined motion of walking + working device and climbing + working device far superior to the traditional load sensitive system. The adaptability of working condition with load is greatly improved.
04. Large space cab spacious and comfortable, more open view, new cab surrounded by shading shade; Optimize the three-stage shock absorption system to further improve seat comfort. Push and pull the Windows on both sides of the cab, greatly improve the operating comfort.
Our Services & Strength
Our business range is very large as below:
01. Hosting equipment (truck cranes, crawler crane, towe crane, truck mounted crane, etc.)
02. Earthmoving equipment ( excavator, wheel loader, bulldozer, etc.)
03. Road equipment ( road roller, motor grader, asphalt paver, cold milling machine, etc.)
04. Logistic equipment ( forklift, reach stacker, container handler, pallet stacker, etc.)
05. Special trucks (dump truck, tractor truck, water tank truck, semi-trailer, crago truck, etc.)
06. Concrete equipment( concrete mixer, concrete pump truck, concrete/asphalt mixing plant, etc.)
07. Drilling equipment (rotary drilling rig, horizontial direction drill rig, etc.)
08. Agricultural machine( tractor, harvester, etc.)
09. Spare parts all available.
We will be happy to receive your inquiry for any machine you need. By using professional foreign trade experience, we will
recommend exatcly you need with good quality and competitive price.
Our business range is very large as below:
01. Hosting equipment (truck cranes, crawler crane, towe crane, truck mounted crane, etc.)
02. Earthmoving equipment ( excavator, wheel loader, bulldozer, etc.)
03. Road equipment ( road roller, motor grader, asphalt paver, cold milling machine, etc.)
04. Logistic equipment ( forklift, reach stacker, container handler, pallet stacker, etc.)
05. Special trucks (dump truck, tractor truck, water tank truck, semi-trailer, crago truck, etc.)
06. Concrete equipment( concrete mixer, concrete pump truck, concrete/asphalt mixing plant, etc.)
07. Drilling equipment (rotary drilling rig, horizontial direction drill rig, etc.)
08. Agricultural machine( tractor, harvester, etc.)
09. Spare parts all available.
We will be happy to receive your inquiry for any machine you need. By using professional foreign trade experience, we will
recommend exatcly you need with good quality and competitive price.
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
