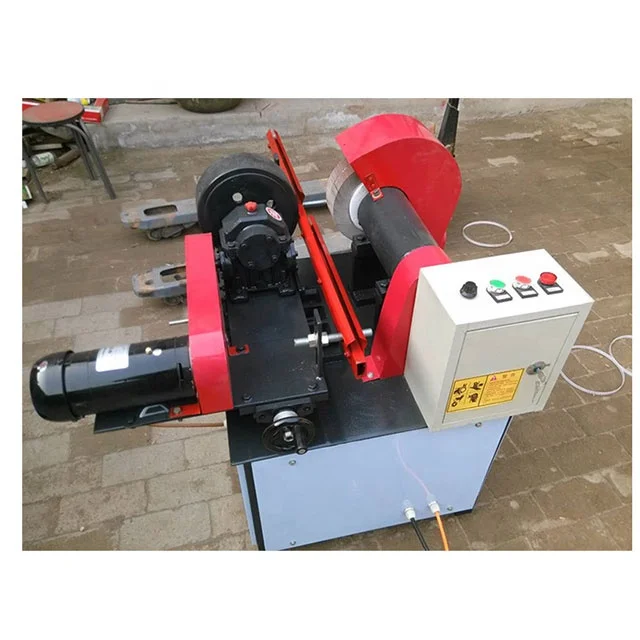

Бесцентровая шлифовальная машина, полировальная машина 220 В, цилиндрическое полировальное устройство для труб из нержавеющей стали
700,00 $ - 880,00 $

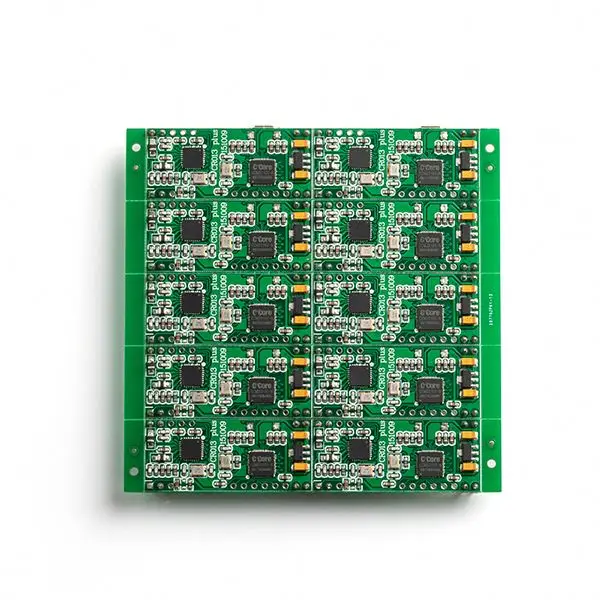

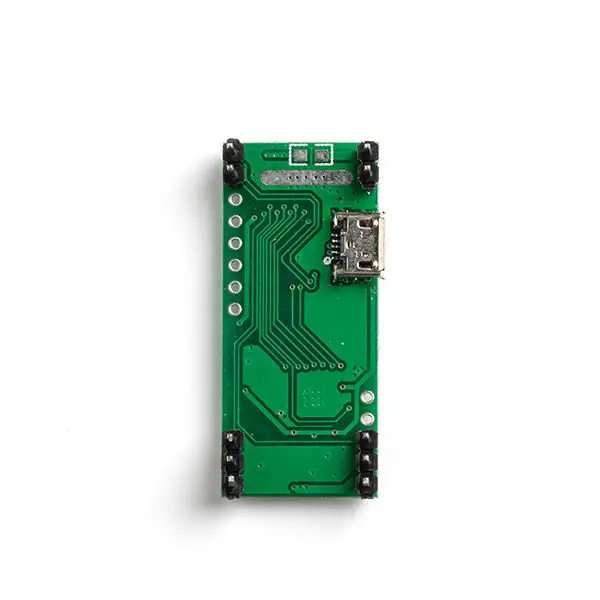

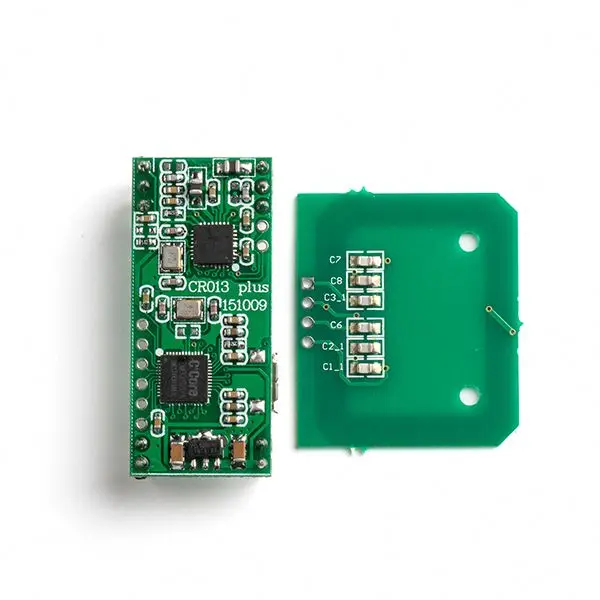

Модуль считывания карт 13 56 МГц TTL индивидуальный интеллектуальный модуль Rf
- Категория: >>>
- Поставщик: Beijing ChinaReader Technology Co. Ltd.
Сохранить в закладки 1600405452778:
Описание и отзывы
Характеристики
Products Display
PRODUCT DESCRIPTION
Our company is a leading RFID (2.45G 13.56M 125K / 134.2K) ODM/OEM
supplier, designing and manufacturing RF antennas, contactless RFID
modules, especially in terms of RF antennas. ChinaReader is committed to
promoting the development of RFID technology. Our products mainly include
radio frequency cards, magnetic cards, smart cards, RFID readers, RFID
reader modules, The operating frequencies of the RFID development kit and
TYPE A/B products are 125KHZ, 134.2KHZ and 13. 56MHZ, respectively.
Specification
32-bit reduced instruction set computer (RISC) architecture
On-chip, 16K Bytes of static random-access memory (SRAM):
Single cycle byte, half-word (16-bit), and word (32-bit) reads and writes
On-chip, 16K Bytes of static read only memory (ROM):
Single cycle byte, half-word (16-bit), and word (32-bit) read access.
On-chip 256K Bytes embedded flash (EFLASH)
USB Controller:
USB 2.0 Compliant with on-chip integrated PHY module
Certified for High Speed (480MHz) USB and Full Speed (12MHz) USB
UTMI+ Level 2 transceiver interface
Supports eight transmit/receive
endpoints(ep0,ep1,ep2,ep3,ep4,ep5,ep6,ep7)
Aes, RSA, Des Jet Fast to visit Ultralgith® C, MIFARE Plus® cards
NXP RC522 or RC523 Reader IC, support TYPE A Or TypeA&TYPE B
On-chip, 16K Bytes of static random-access memory (SRAM):
Single cycle byte, half-word (16-bit), and word (32-bit) reads and writes
On-chip, 16K Bytes of static read only memory (ROM):
Single cycle byte, half-word (16-bit), and word (32-bit) read access.
On-chip 256K Bytes embedded flash (EFLASH)
USB Controller:
USB 2.0 Compliant with on-chip integrated PHY module
Certified for High Speed (480MHz) USB and Full Speed (12MHz) USB
UTMI+ Level 2 transceiver interface
Supports eight transmit/receive
endpoints(ep0,ep1,ep2,ep3,ep4,ep5,ep6,ep7)
Aes, RSA, Des Jet Fast to visit Ultralgith® C, MIFARE Plus® cards
NXP RC522 or RC523 Reader IC, support TYPE A Or TypeA&TYPE B
Technical
Power supply: 3V or 5V, 40-80mA
Interface: UART ,USB HID ,USB virtual RS232 , USB CCID, USB emulation Keyboard Options;
Transmission speed: Default 19200 bps
R/W distance of up to 60mm ~ 100mm ,depending on TAG and Antenna Size.
Storage temperature: -40 ºC ~ +85 ºC
Operating temperature: -25 ºC ~ +70 ºC

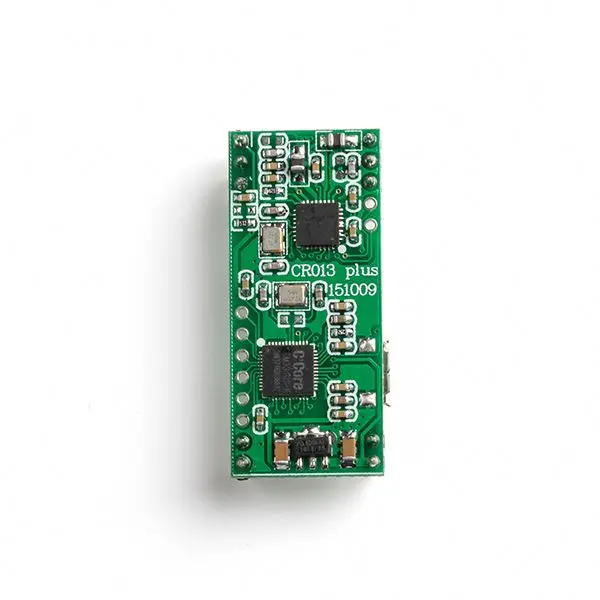

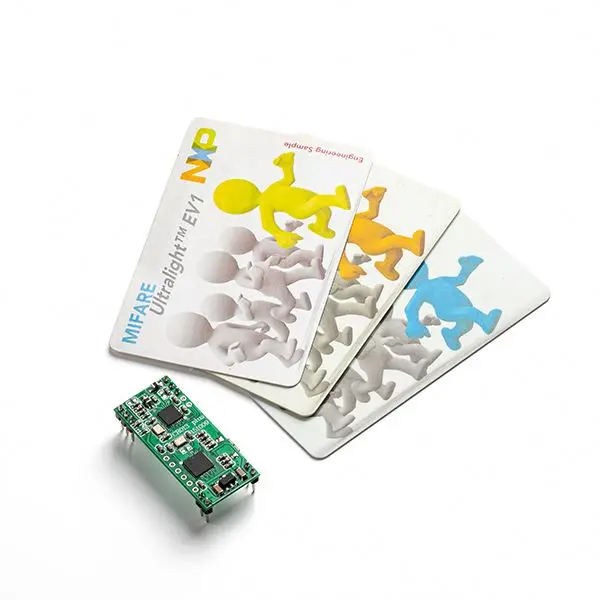

CR013A Plus TYPE A support MIFARE® 1k ,4k,Ultralight® ,Ultralight® C, Ntag serial,
Sle66r01P, MIFARE Plus® ,MIFARE DESFire® Pipe mod , C =TL 14443-4
CR013B Plus TYPE B C=TL 14443-4
Interface: UART ,USB HID ,USB virtual RS232 , USB CCID, USB emulation Keyboard Options;
Transmission speed: Default 19200 bps
R/W distance of up to 60mm ~ 100mm ,depending on TAG and Antenna Size.
Storage temperature: -40 ºC ~ +85 ºC
Operating temperature: -25 ºC ~ +70 ºC
CR013A Plus TYPE A support MIFARE® 1k ,4k,Ultralight® ,Ultralight® C, Ntag serial,
Sle66r01P, MIFARE Plus® ,MIFARE DESFire® Pipe mod , C =TL 14443-4
CR013B Plus TYPE B C=TL 14443-4
Communication setting
The communication protocol is byte oriented. Both sending and receiving bytes are in hexadecimal format. The communication
parameters are as follows,
Baud rate: 19200 bps （default, 4800 ~ 115200 volatile Setting）
Data: 8 bits
Stop: 1 bit
Parity: None
Flow control: None
parameters are as follows,
Baud rate: 19200 bps （default, 4800 ~ 115200 volatile Setting）
Data: 8 bits
Stop: 1 bit
Parity: None
Flow control: None
Application Scene
ENTRANCE GUARD
KOLLER SYSTEM / HOTEL EL EVATOR
KOLLER SYSTEM / HOTEL EL EVATOR
BUS/CAMPUS CARD
TRANSPORTATION PAYMENT SYSTEM
TRANSPORTATION PAYMENT SYSTEM
MOBILE NFC PAYMENT
MOBIL E PHONE PAYMENT AND
OTHER NFC OCCASIONS
MOBIL E PHONE PAYMENT AND
OTHER NFC OCCASIONS
SMART WATER
ELECTRIC METER
SWIPE CARD PAYMENT CHARGING SYSTEM
ELECTRIC METER
SWIPE CARD PAYMENT CHARGING SYSTEM
Product Category
About Us
Company Profile
Beijing ChinaReader Technology Co., Ltd. is a leading RFID (2.45G 13.56M 125K/134.2K) ODM/OEM provider, designing and manufacturing RF antennas and contactless RFID modules. We have made our commitment of resource investment, especially in RF antennas. With more than 30 R&D employees, we utilize superior engineering resource.ChinaReader is devoted to RFID technology's promotion. Our products mainly include RF cards, Magcards, Smart cards, RFID readers, RFID reader modules, RFID development kits, and TYPEA/B products operated at 125KHZ, 134.2KHZ, and 13.56MHZ. All our products are ISO14443 and ISO155693 certified. We also can make special RFID reader module kits and RFID reader modules under the requirements of customers.
Prodution Runs
Certificate Show
All our products are ISO14443 and ISO155693 certified. We also can make special RFID
reader module kits and RF ID reader modules under the requirements of customers.
reader module kits and RF ID reader modules under the requirements of customers.
Logistics Package
PACKAGE AND TRANSPORTATION
Trading information
Trade Terms: EXW, FOB,CFR,CIF,FCA.
Payment terms: T/T,Paypal,Western,union,Casch,Escrow.
Delivery Time: 7-15 days for mass production, 2-3 days for samples.
Shipping: bulk order by sea, by air or by express delivery. Sample order by express delivery.
Trade Terms: EXW, FOB,CFR,CIF,FCA.
Payment terms: T/T,Paypal,Western,union,Casch,Escrow.
Delivery Time: 7-15 days for mass production, 2-3 days for samples.
Shipping: bulk order by sea, by air or by express delivery. Sample order by express delivery.
PACKAGE AND TRANSPORTATION
FAQ
Q:Do you offer OEM/ODM serive?
A:We have been offering OEM/ODMproduct to customers for many years, we have a large R&D group who can customize the hardware and software as your request.
Q:How can l order some samples?
A:Afetr confirming the module Nowth our salesyou can transfer the payment and we will send the samples to youWe can accept
T/Tpaypal and western union payment for samples,you can offer your shipment account to pick up the samples or prepay shipment cost
for us to arrange shipment.We always use DHL/FEDEX/UPS/TNT for the goods.
Q:Can you provide after sale technical support?
A:Yes,we have strong R&D group can provide after sale technical support service.
Q:How can l order some samples?
A:Afetr confirming the module Nowth our salesyou can transfer the payment and we will send the samples to youWe can accept
T/Tpaypal and western union payment for samples,you can offer your shipment account to pick up the samples or prepay shipment cost
for us to arrange shipment.We always use DHL/FEDEX/UPS/TNT for the goods.
Q:Can you provide after sale technical support?
A:Yes,we have strong R&D group can provide after sale technical support service.
Похожие товары

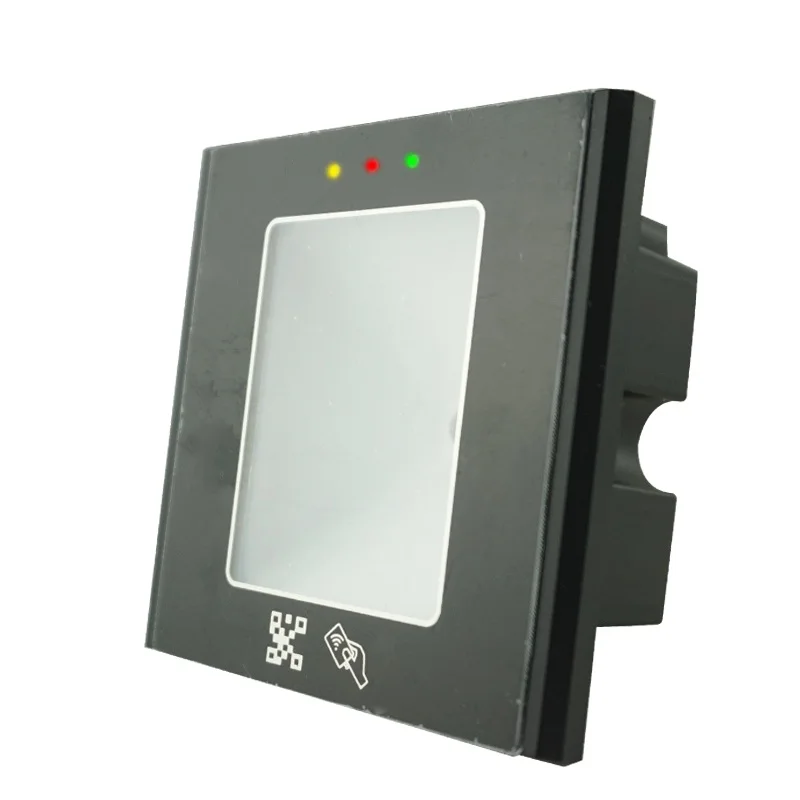

Новейший смарт-считыватель карт NFC ID IC, считыватель карт доступа Wiegand, сканер QR-кода
33,00 $ - 35,00 $

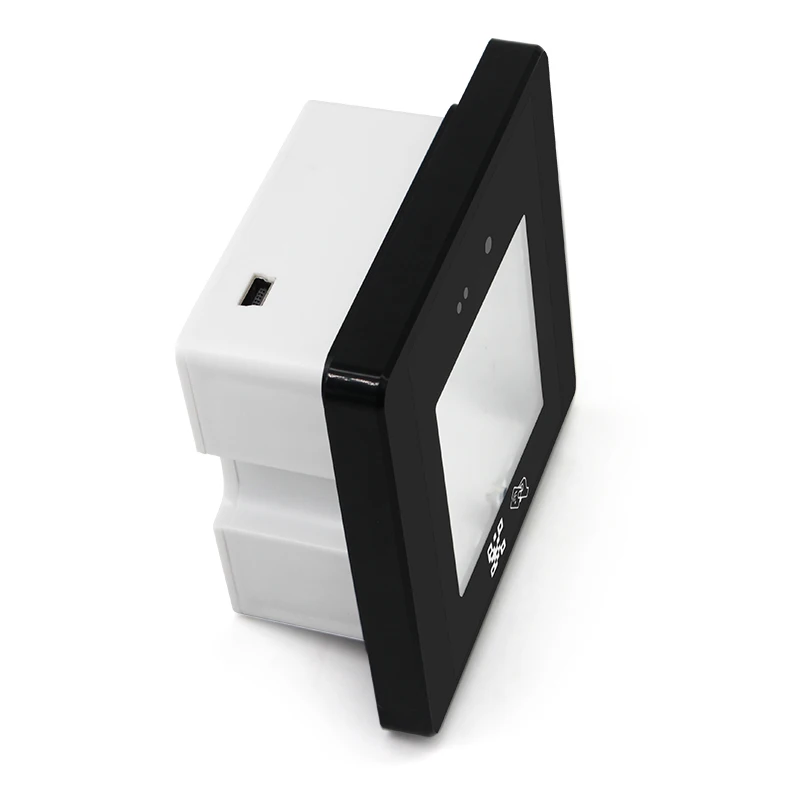

ACM-QR80 Wiegand RS232 USB RS485 EM IC QR сканер штрих-кода USB Смарт карты контроля доступа кард-ридер от производителя
36,00 $ - 38,00 $

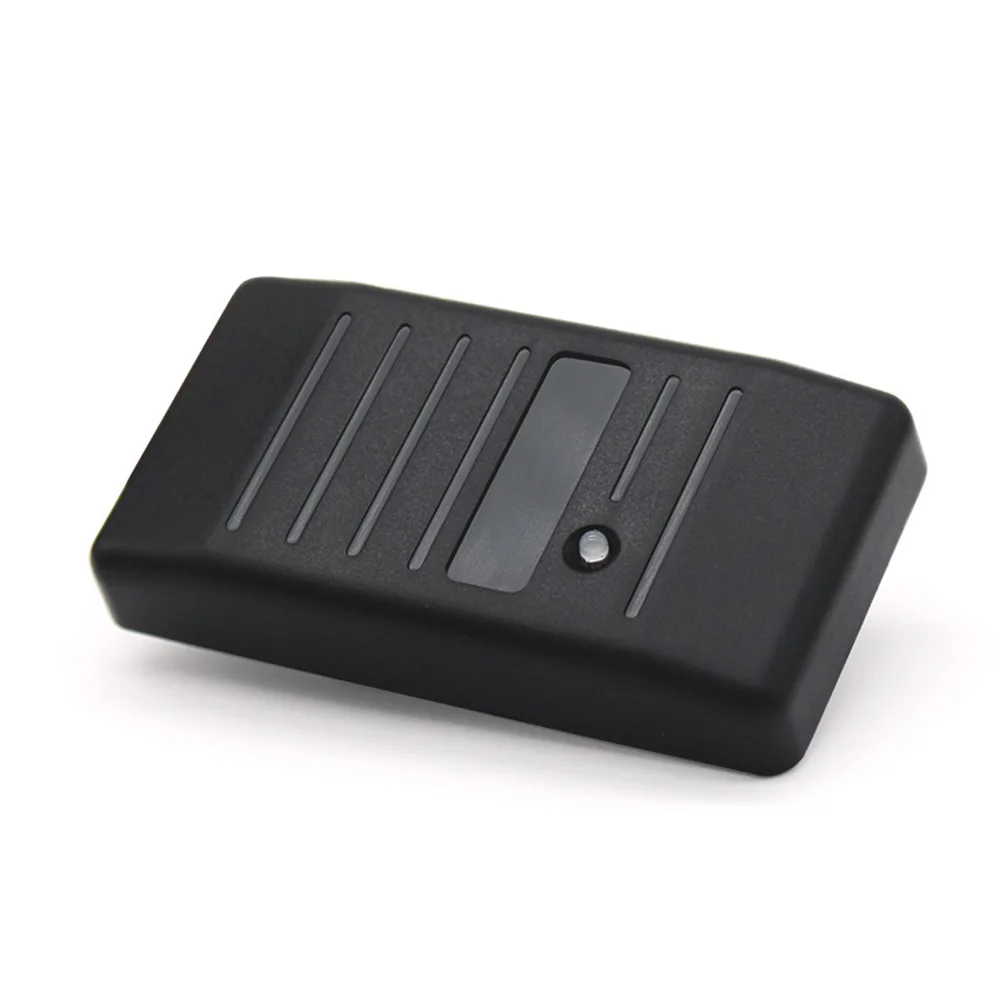

13,56 МГц RFID Wiegand 26 вход системы Смарт бесконтактный считыватель светодиодные индикаторы безопасности доступа считыватель отпечатков пальцев
5,00 $ - 6,00 $

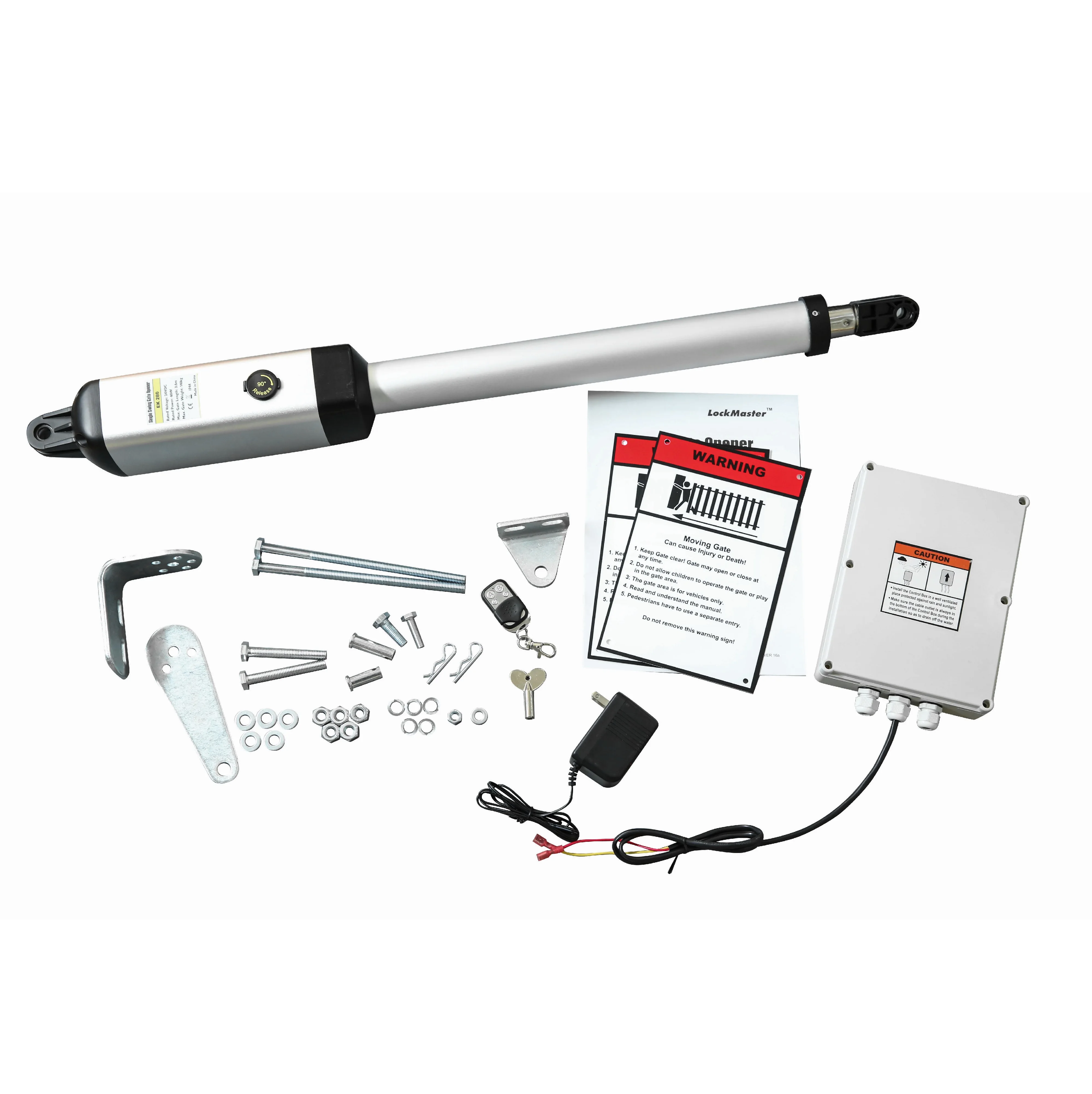

Система открывания автомобильных ворот на солнечных батареях, 24 В
98,00 $ - 116,50 $

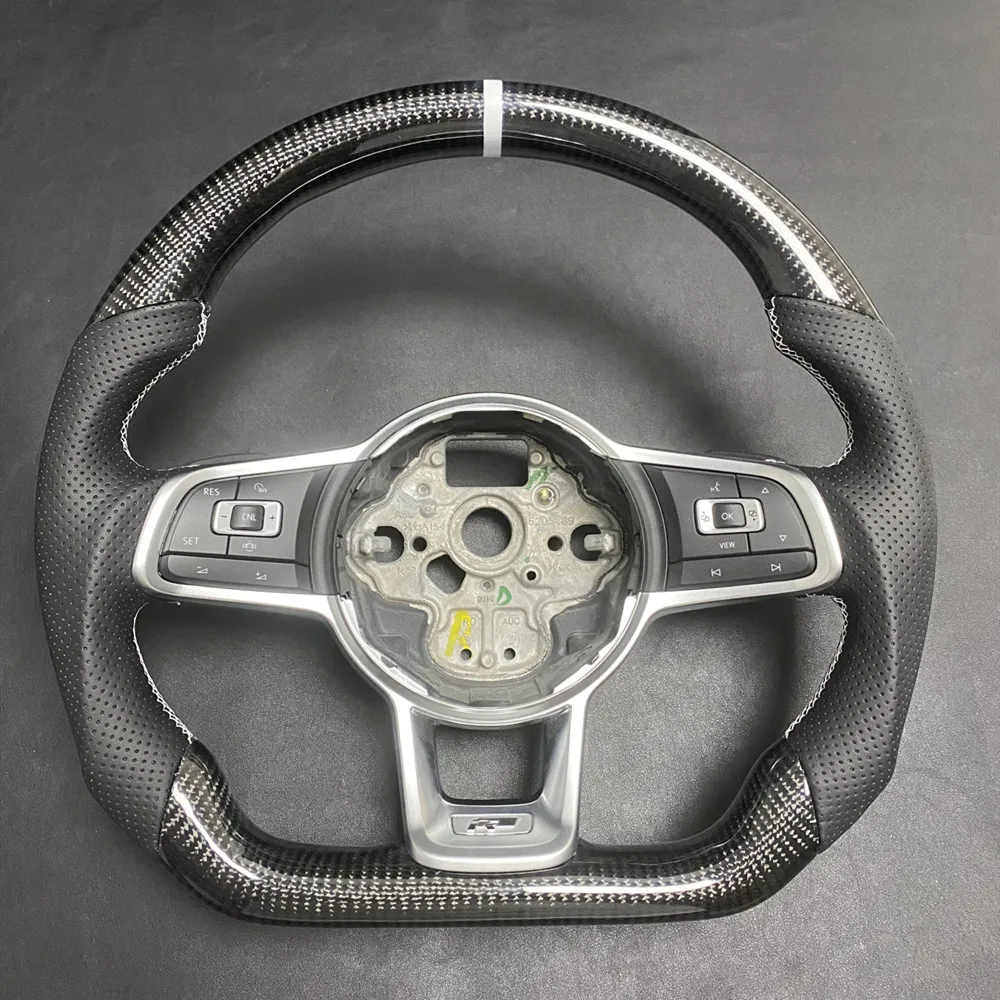

Сменное рулевое колесо из углеродного волокна для Volkswagen VW Golf 7 GTI Golf R MK7 Polo GTI Scirocco 2015 2016 на заказ
Рычаг переключения передач из углеродного волокна для VW Golf 7, Scirocco (2015-16), 2016 sagintgli, Lamandogts, Polo GTI (модели 1

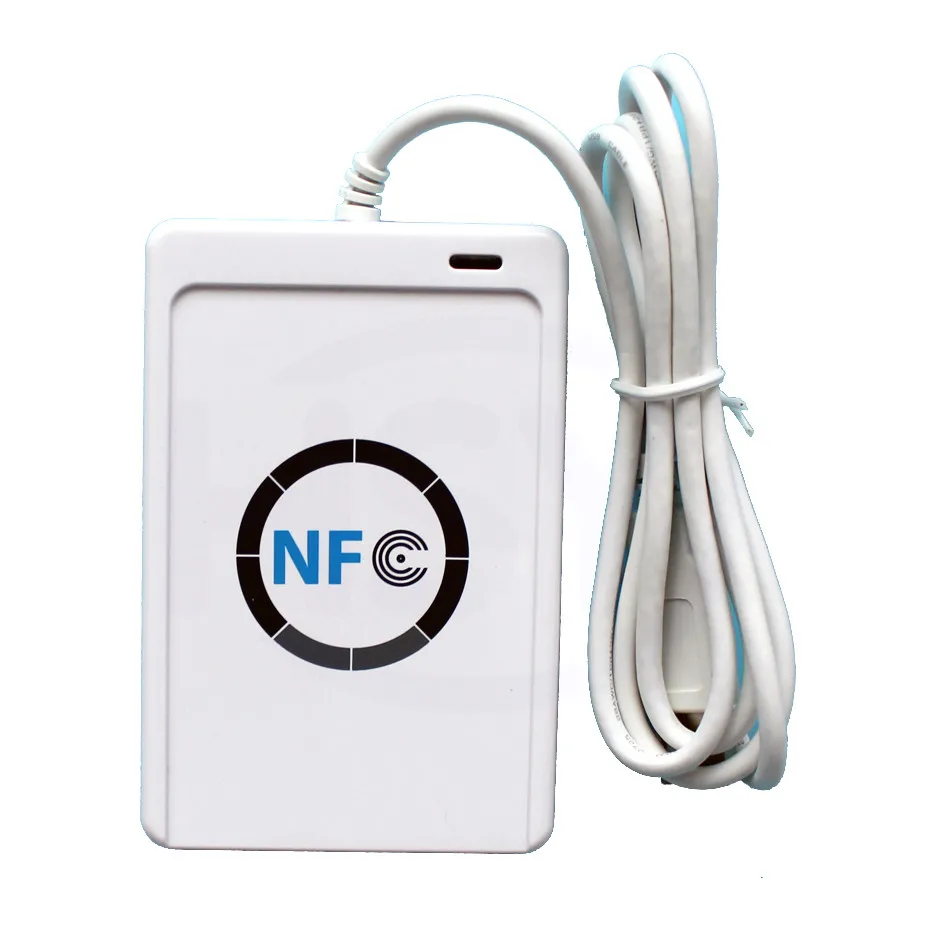

ACR122U 13,56 МГц USB NFC RFID Бесконтактный смарт-кардридер с бесплатным SDKder с бесплатным SDK
