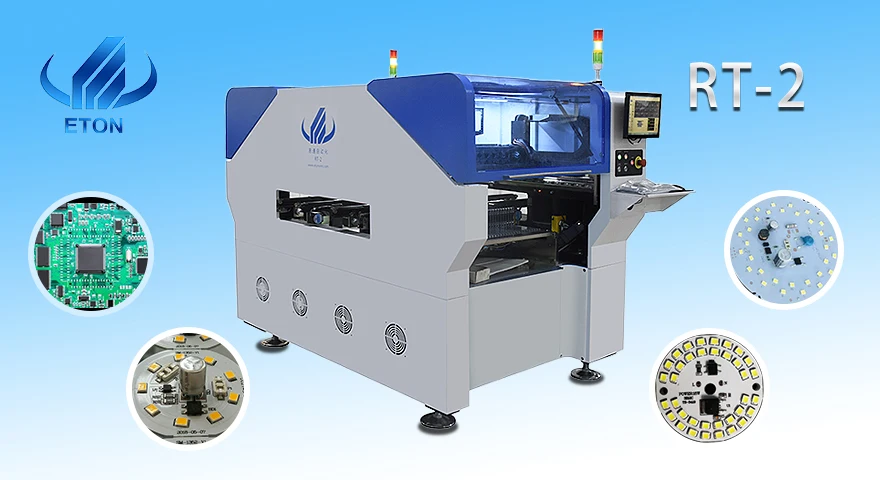

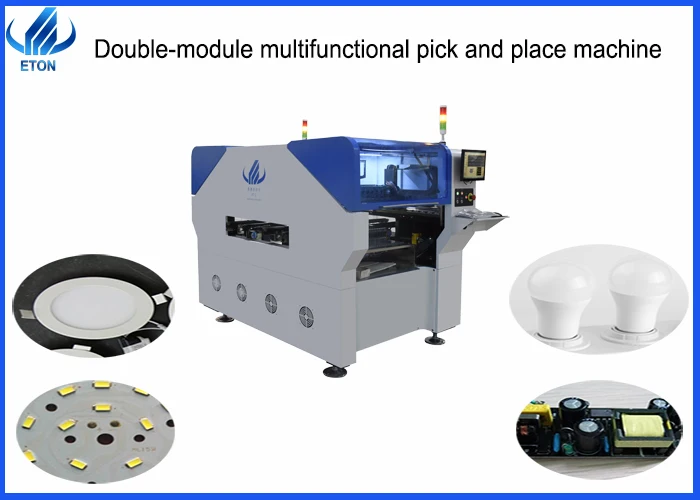

Double moudle magnetic linear motor multifunctional pick and place machine

Machine features

²  Multifunctional pick and place machine, suitable for producing LED Bulb, DOB, panel light, downlight, street light, corn light, power driver, electrical board,etc.

²  Machine functions: Picking components grouply or seperatly and mount on the PCB automatically grouply.

²  Intelligent PCB Clamping mode: Electric clamping, adjustable track width.

²   Double motor Magnetic linear motor, 20 nozzles for each mounting part, total 64 feeder station. Speed reach 70000 cph.

²  High precision, Calibration automatically, available for all kinds of components, such as LED, capacitors, resistor, shaped components, etc.

²  Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.

²  Optinal :8mm,12mm,16,and 24mm automatic feeder, different nozzles and feeding way.

Main parameters

Applications

RT-2 is the module suitable for many products, It is applied to LED Bulb, downlight light, power driver, panel light, DOB, Display,etc. If you need other products machine, we also have related modules.

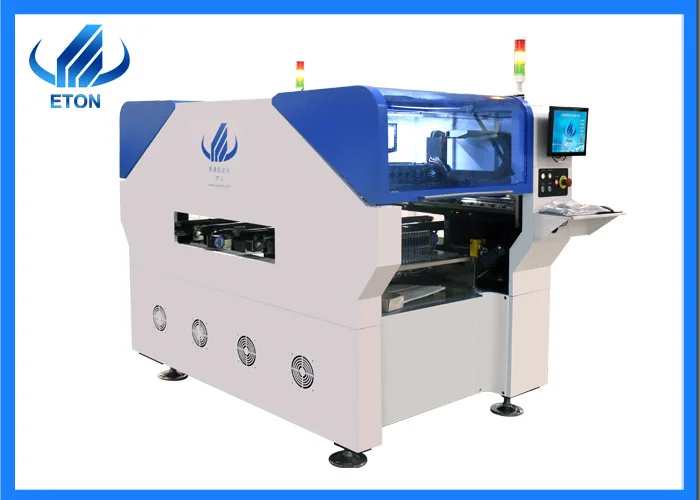

Machines Pictures show

SMT Production line

SMT Production line is mean the surface mounting technology production line. It can be semi auto line or total automatic line. Usually include Loader machine(Send board machine), Stencil printer, Reflow oven, Conveyor, Belt line, Reflow oven, Un-loader machine, etc. For strip light, different length need different length space. For T9, normally apply to 25 m Strip light, here is the line design:

After sales service

ETON as the biggest high speed pick and place machine in China, we are not only famous with  high speed, but also famous with the good service . ETON set up office in different cities, like Shenzhen, Shanghai, Zhongshan, India Delhi, Turkey, Egypt, etc.

If you buy our machine, we provide free install and training for you, will sent engineer to your factory to install and training.

One year warranty, during warranty, any parts need to be repaired and replaced will be free.

Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.

Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.

And we also give professional technology suggestion with our clients.

Honor client’s factory show

Finished product show

ETON manufacturer

In 2020, ETON Jiangxi Industrial Park was successfully completed, equipped with an advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes. ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patens, 112 practical patents, 12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000 CPH, which save much labors and space of production, got large market share in USA, KOREA, INDIA, GERMANY, EGYPT, TURKEY, VIETNAM, TUNISIA, THAILAND more than 20 counties.
