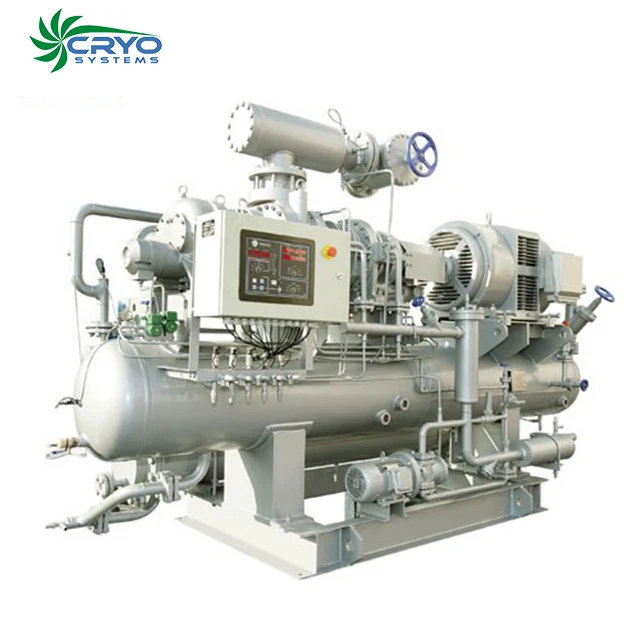

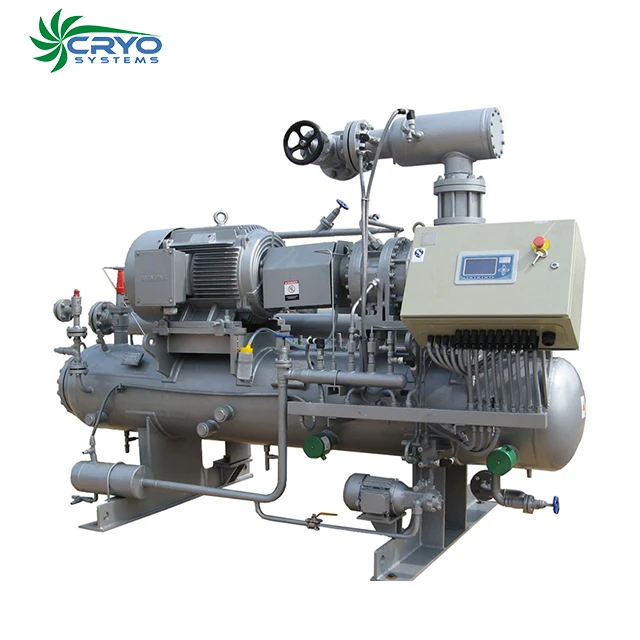

Промышленное холодильное оборудование одноступенчатый/двухступенчатый компрессор R717
- Категория: >>>
- Поставщик: Guangzhou Cryo Systems Refrigeration Equipment Co. Ltd.
Сохранить в закладки 1600405877822:
Описание и отзывы
Характеристики
About Us
Products Description
We have many kinds of Screw compressor units
Compresor Units Type | Open Type single-stage Screw Compressor Unit Open Type Dual-stage Screw Compressor Unit Variable Inner Ratio Screw Compressor Unit Dual-compressor two-stage Screw Unit Semi-hermetic Two-stage Screw Compressor Unit and so on |
Refrigerant | Ammonia (R717), Freon (R22 R744 R507A R404A R290 R1270) |
Temperature | -70~+20deg.C |
Cooling Capacity | 0~18000kw |
Capacity Scope | Theoretical Exhaust Volume: 624～4800m3/h |
Refrigeration capacity:144～1191 kW/153～1526.3kW/148～2636kW | |
Application | food processing, cold logistics, slaughter, aquaculture, chemical industry, and so on |
Design Features of Screw Refrigeration Compressor Unit
Refrigerant | R717 | R22 | |
Discharge pressure MPa | below 1.67 | below 1.67 | |
Corresponding saturated temperature °C | below 45 | below 46 | |
Suction pressure MPa | -0.615 | -0.637 | |
Corresponding evaporative temperature °C | -57.5 | -57.5 | |
Volume ratio adjustment | 2.5~5.0 stepless adjustment | ||
Energy level adjustment | 10~100% stepless adjustment | ||
Oil Temperature (ºC) | 25~65 °C | ||
Features
1. The latest contemporary technology
2. Large capacity and low noise
3. Super sealed
4. High reliability and high efficiency
5. Microcomputer controlled
6. Precisely circulation oil control
2. Large capacity and low noise
3. Super sealed
4. High reliability and high efficiency
5. Microcomputer controlled
6. Precisely circulation oil control
Our Advantages

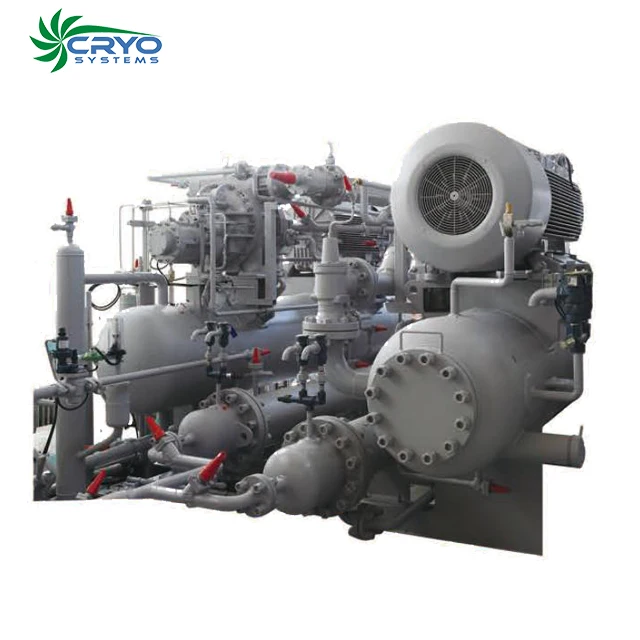

Two-stage Screw Compressor Unit
1. The unit adopts a modular design, compact structure, reasonable layout, and reliable operation.
2. Circulation mode: incomplete cooling in the middle of two-stage compression and one-stage throttling, low-pressure stage with economizer
3. High Reliability
2. Circulation mode: incomplete cooling in the middle of two-stage compression and one-stage throttling, low-pressure stage with economizer
3. High Reliability
- Sliding bearing, long operating life
- Less wearing parts, smooth operation, suitable for long-term operation
4. High efficiency
- Less wearing parts, smooth operation, suitable for long-term operation
4. High efficiency
- The exhaust temperature of the unit is low, high volumetric efficiency
- World's leading screw compressor rotor profile, high efficiency
- Energy step-less adjustment
- Adopt a high-efficiency oil separator and high-efficiency oil cooler to ensure low oil consumption and high heat exchange
efficiency of the unit
5. Intellectualized:
- Manual control and microcomputer automatic control
- The special microcomputer controller, strong control capability. And realize modulation and networking
- World's leading screw compressor rotor profile, high efficiency
- Energy step-less adjustment
- Adopt a high-efficiency oil separator and high-efficiency oil cooler to ensure low oil consumption and high heat exchange
efficiency of the unit
5. Intellectualized:
- Manual control and microcomputer automatic control
- The special microcomputer controller, strong control capability. And realize modulation and networking

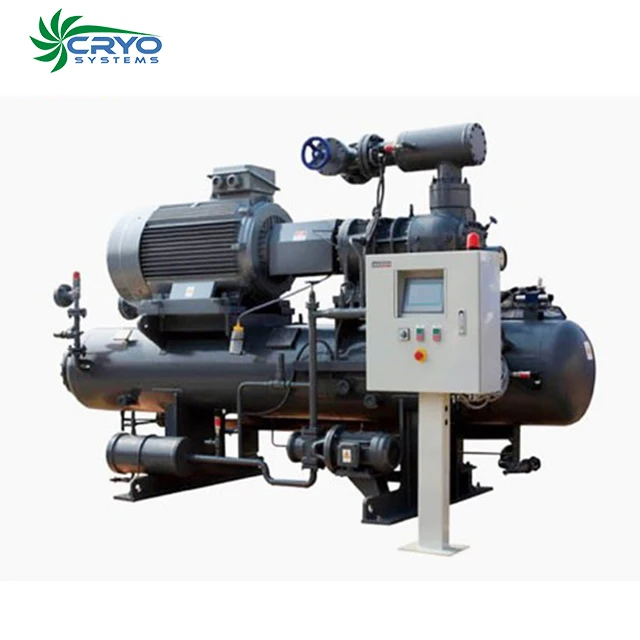

Single-stage Screw Compressor Unit
1. Perfect structure and reliable performance
* Single compressor realized two-stage compression, compact structure, reasonable layout, nice appearance, and simplifies the configuration of the refrigeration system. (can be equipped with Bitzer/Mycom compressor)
* Imported mechanical seal, simple structure, easy installation, excellent sealing performance to ensure continuous and
long-term stable operation of the compressor
* Advanced processing equipment and technology to ensure more accurate processing accuracy and higher efficiency, improve the reliability of the compressor operation
* Whole rolling has low noise, small vibration, rotor precise ,which ensures continuous operation and long life of the
compressor.
* Oil cooler can adopt water cooling or thermal siphon cooling
2. High efficiency and energy saving
* Small single-stage pressure ratio and high COP value in large pressure ratio condition
* World's leading screw compressor rotor profile, high efficiency
* Compressor differential pressure oil supply, saving power consumption, improving the reliability of the oil pump
* Both high and low stage using step-less adjustment energy to ensure efficient operation
* Adopting high efficient oil separator to ensure that oil fuel consumption is ≤5ppm, ensuring unit with low fuel consumption
* High precision suction and oil filter element
3. Ultra low-temperature screw compressor unit
* Evaporative temperature as low as -55 ℃
4. Intellectualized
* Automatic microcomputer control, run faster, more reliable, more powerful control, has achieved a modular, network, and also has a beautiful appearance, convenient operation, friendly interface, etc
* Single compressor realized two-stage compression, compact structure, reasonable layout, nice appearance, and simplifies the configuration of the refrigeration system. (can be equipped with Bitzer/Mycom compressor)
* Imported mechanical seal, simple structure, easy installation, excellent sealing performance to ensure continuous and
long-term stable operation of the compressor
* Advanced processing equipment and technology to ensure more accurate processing accuracy and higher efficiency, improve the reliability of the compressor operation
* Whole rolling has low noise, small vibration, rotor precise ,which ensures continuous operation and long life of the
compressor.
* Oil cooler can adopt water cooling or thermal siphon cooling
2. High efficiency and energy saving
* Small single-stage pressure ratio and high COP value in large pressure ratio condition
* World's leading screw compressor rotor profile, high efficiency
* Compressor differential pressure oil supply, saving power consumption, improving the reliability of the oil pump
* Both high and low stage using step-less adjustment energy to ensure efficient operation
* Adopting high efficient oil separator to ensure that oil fuel consumption is ≤5ppm, ensuring unit with low fuel consumption
* High precision suction and oil filter element
3. Ultra low-temperature screw compressor unit
* Evaporative temperature as low as -55 ℃
4. Intellectualized
* Automatic microcomputer control, run faster, more reliable, more powerful control, has achieved a modular, network, and also has a beautiful appearance, convenient operation, friendly interface, etc
Application
Screw Compressor units widely used in food refrigeration and freezing, dairy, ocean fisheries processing, cold chain, logistics, cold storage, chemical industry, polycrystalline silicon, electronics, aerospace, pharmaceuticals, coal, petroleum, etc. field.
Recommend Products
Похожие товары
OEM X.erox VersaLink B7101V/D (100S14640) B7130 MFP A3/A4 фотокопия + сканер + Факс + Многофункциональный моно-лазерный принтер
2 400,00 $ - 2 450,00 $

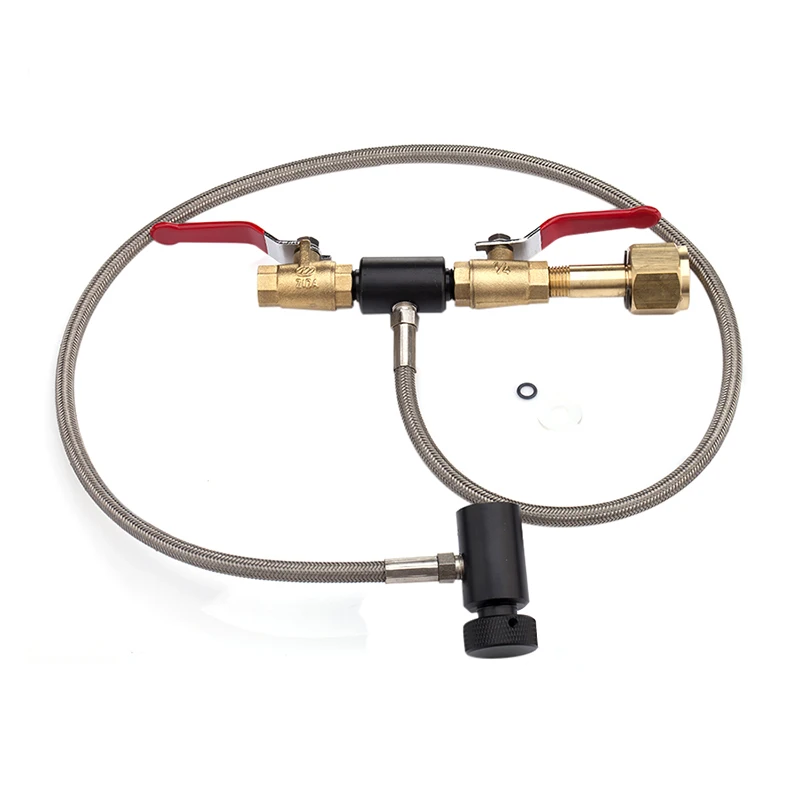

Стальной шланг Kobalt для заполнения бутылок с баком CO2 для пейнтбола
15,00 $ - 18,00 $

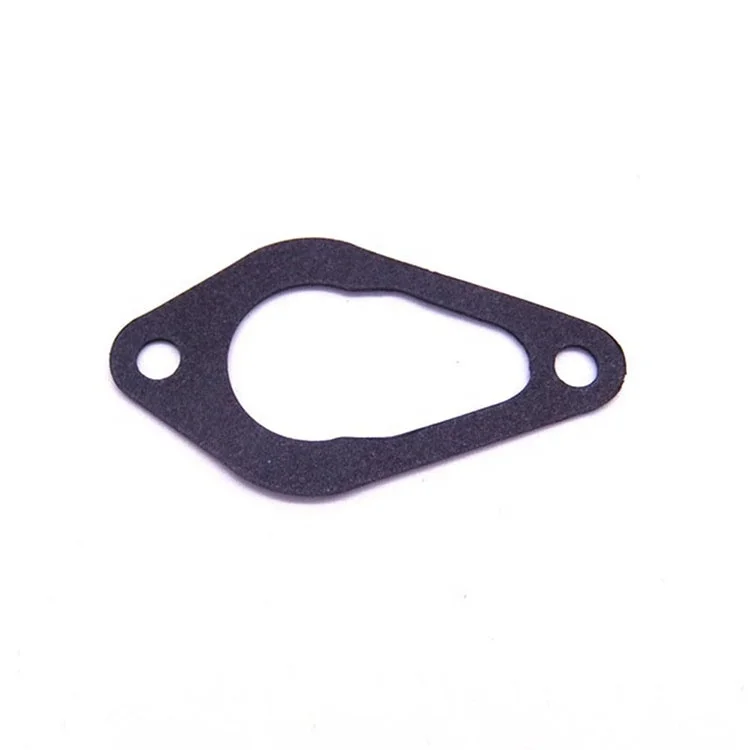

Прокладка Крышки термостата лодочных двигателей 346-01032-0 346010320 346010320 м подходит для подвесного двигателя Tohatsu Nissan NS M 9.9HP 15HP 18HP 25HP
1,20 $ - 3,00 $

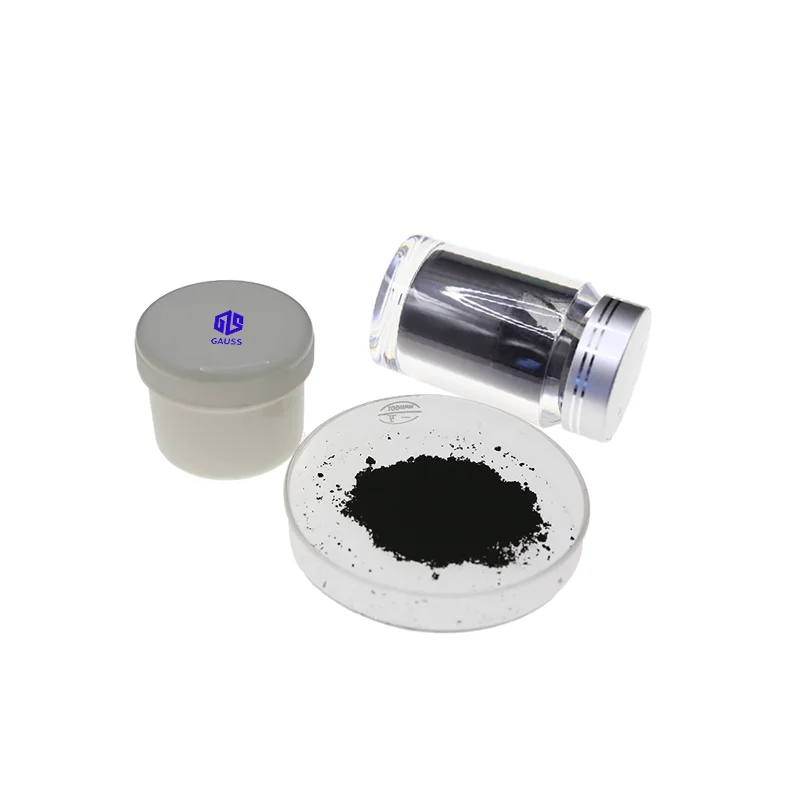

Супер чистый супер проводящий углерод черный порошок для литиевой батареи проводящий материал
25,00 $

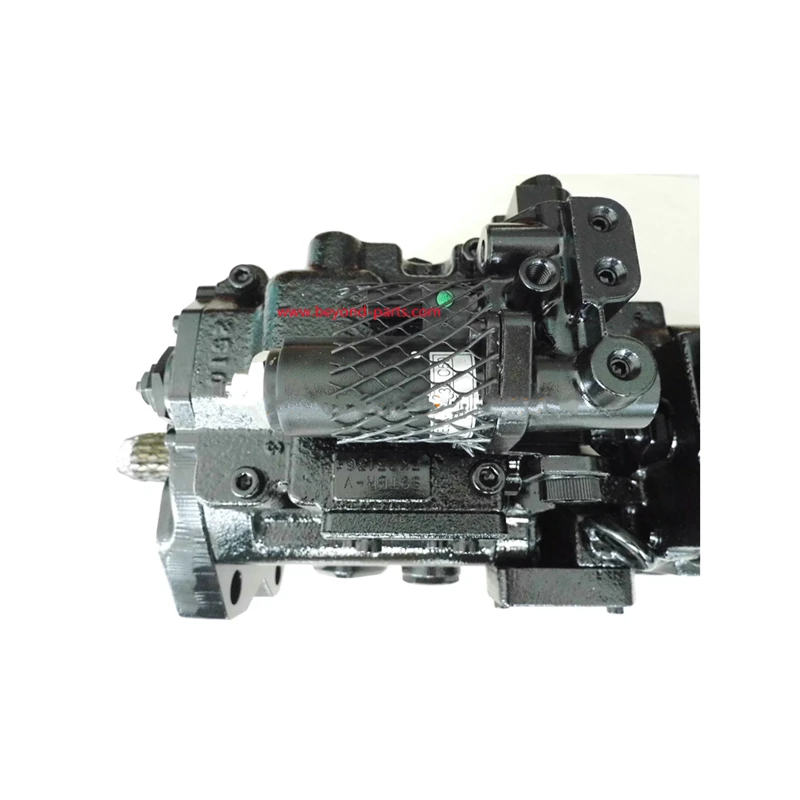

SK330LC-6E SK330-6 экскаватора до 14 ти лет kawasa * ki гидравлический насос LC10V00018F1 K5V14001P100R0-9PBR-V K5V140-DTP-1G9R-9C12-AL
3 500,00 $

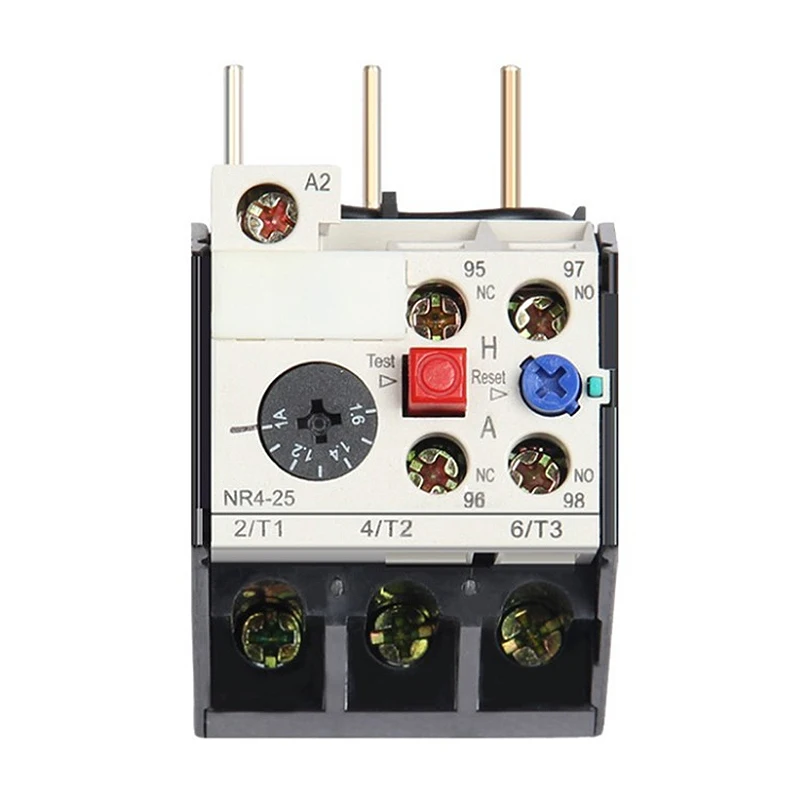

CHINT NR4-25/Z NR4-63/F электронные Тепловая перегрузка реле NR4 (JRS2) из нержавеющей стали серии перегрузки напряжения тока автомат защити цепи мотора перегрузка реле
6,88 $ - 9,94 $

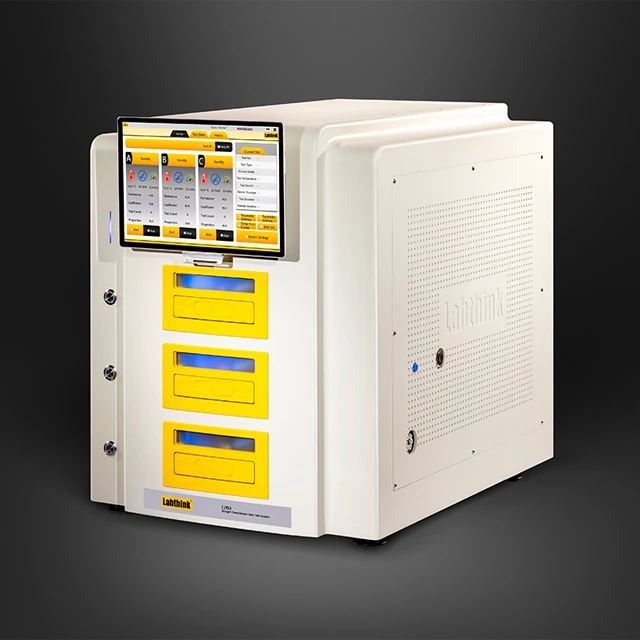

Система тестирования скорости передачи кислорода C203H
