Полностью автоматическая энергосберегающая пластиковая машина haichen для литья под давлением
166 000,00 $ - 168 000,00 $
55 дюймов 85 тонн Тапочки сандалии ручка кабельная стяжка машинное оборудование для изготовления литьевых машин вертикальная пластиковая машина литья под давлением
- Категория: >>>
- Поставщик: Dongguan Zan Yang Machinery Company Limited
Сохранить в закладки 1600406875435:
Описание и отзывы
Характеристики
55 85 Ton Slipper Sandal Pen Cable Tie Hair Chair Making Machinery Moulding Machines Vertical Injection Molding Plastic Machine
Products Description
CY-500C machine characteristics:
1. CY-500C is a vertical opening and closing mold, horizontal injection glue, suitable for large-size mosaic injection molding;
2. High-rigid, column-free C-type architecture, three-sided unobstructed, more convenient for product operation;
3. Spiral pedestal height rising and falling adjustment, suitable for many kinds of products mold installation;
4. Optional left and right sliding mode double slide structure, one upper mold and two lower molds, safe operation and high production efficiency;
5. High-quality nitrided alloy steel pipe set, high wear-resisting and anti-reverse structure, long service life of screw;
6. The temperature control system adopts computer PID control, which is intuitionistic and easy to operate, and the material temperature is accurate
7. The hydraulic system adopts multi-stage pressure independent control, linear control of speed and temperature, precise control of injection glue, opening and closing mode and other actions to make the production injection stable, and the appearance of the product is beautiful;
8. The closed mode and the injection adopt the closed-loop feedback position information of the grating ruler, and the position control is more precise;
9. The electrical appliance is equipped with safety protection device to maintain the safety of the operator; and the fault alarm information display makes the maintenance easier and convenient;
10. The computer adopts large-screen LCD design, intuitive and easy-to-operate human-machine interface, and is free to switch between Chinese, English, Russian and Korean four languages; it can store 60 sets of mold paramete memory, and the production adjustment is easy and efficient.
1. CY-500C is a vertical opening and closing mold, horizontal injection glue, suitable for large-size mosaic injection molding;
2. High-rigid, column-free C-type architecture, three-sided unobstructed, more convenient for product operation;
3. Spiral pedestal height rising and falling adjustment, suitable for many kinds of products mold installation;
4. Optional left and right sliding mode double slide structure, one upper mold and two lower molds, safe operation and high production efficiency;
5. High-quality nitrided alloy steel pipe set, high wear-resisting and anti-reverse structure, long service life of screw;
6. The temperature control system adopts computer PID control, which is intuitionistic and easy to operate, and the material temperature is accurate
7. The hydraulic system adopts multi-stage pressure independent control, linear control of speed and temperature, precise control of injection glue, opening and closing mode and other actions to make the production injection stable, and the appearance of the product is beautiful;
8. The closed mode and the injection adopt the closed-loop feedback position information of the grating ruler, and the position control is more precise;
9. The electrical appliance is equipped with safety protection device to maintain the safety of the operator; and the fault alarm information display makes the maintenance easier and convenient;
10. The computer adopts large-screen LCD design, intuitive and easy-to-operate human-machine interface, and is free to switch between Chinese, English, Russian and Korean four languages; it can store 60 sets of mold paramete memory, and the production adjustment is easy and efficient.
Product Paramenters
Specifications
CATEGORY | ITEM | UNIT | CY-500C | Standard♦ Option ◊ | ||||||
INJECTIONUNIT | Screw Diameter | mm | 42 | 45 | ◊ | |||||
Injection Pressure | kg/cm² | 1015 | 885 | ♦ | ||||||
Theoretical injection capacity | cm³ | 263 | 302 | ♦ | ||||||
Injection volume (ps) | g | 242 | 277 | ♦ | ||||||
Injection volume (ps) | OZ | 8.5 | 9.7 | ♦ | ||||||
Injection rate | cm³/sec | 103 | 118 | ♦ | ||||||
Screw stroke | mm | 190 | ♦ | |||||||
Screw Speed | rpm | 0-175 | ♦ | |||||||
Nozzle contact force | Tons | 1.5 | ♦ | |||||||
Nozzle stroke | mm | 170 | ♦ | |||||||
Temperature control segment | 4 | ♦ | ||||||||
CLAMPINGUNIT | Clamping Force | Tons | 55 | ♦ | ||||||
Template size | mm | 660×300 | ♦ | |||||||
Min.mold thickness | mm | 215 | ♦ | |||||||
Opening Stroke | mm | 200 | ♦ | |||||||
Max.mold opening distance | mm | 415 | ♦ | |||||||
Ejetor force | Tons | 1.5 | ♦ | |||||||
Ejetor Stoke | in | 135 | ♦ | |||||||
POWER\\HEADING UNIT | Max.Hydaulic Pressure | kg/cm² | 140 | ♦ | ||||||
Pump output | l/min | 40 | ♦ | |||||||
Acting oil capacity | l | 180 | ♦ | |||||||
Cooling water consumption | l/hr | 800-1000 | ♦ | |||||||
Motor power | KW/HP | 7.5/10HP | ♦ | |||||||
Electric heating capacity | KW | 4.35 | ♦ | |||||||
Total power | KW | 13 | ♦ | |||||||
OTHER | Machine Weight | Tons | 3.2 | ♦ | ||||||
Machine external size(LxWxH) | cm | 280×100×238 | ♦ | |||||||
Shipping Weight | Tons | 3.35 | ♦ | |||||||
Shipping size(LxWxH) | cm | 300×115×245 | ♦ | |||||||
If the above values are changed, we will not inform you otherwise. If you have any special requirements, please contact us. | ||||||||||
CY-500C Plasti type | ||||||||||||||
Plasti type | TEMPERATURE SET | Hopper Temp | Screw RPM | Mold Temp | Contract | |||||||||
Nozzle | First | Second | ||||||||||||
ABS | 190-250 | 180-240 | 170-240 | 80-90 | 30-60 | 50-80 | 0.6 | |||||||
AS (Styrene) | 205-240 | 190-235 | 180-230 | 75-85 | 30-60 | 35-50 | 0.4-0.6 | |||||||
PS (Polystyrene) | 180-260 | 200-260 | 160-250 | 75-85 | 35-65 | 10-75 | 0.4 | |||||||
HIPS 475 | 220-270 | 190-260 | 160-250 | 80-90 | 50-80 | 5-75 | 0.4 | |||||||
PP (Polypropylene) | 210-330 | 180-260 | 160-240 | 70-80 | 50-99 | 50-80 | 1.0-2.5 | |||||||
LDPE | 230-310 | 220-300 | 170-220 | 70-80 | 50-60 | 35-60 | 1.5-5.0 | |||||||
HDPE | 230-310 | 220-300 | 170-220 | 70-80 | 50-60 | 35-60 | 2.0-5.0 | |||||||
PMMD | 180-230 | 160-240 | 140-220 | 80-100 | 40-80 | 50-90 | 0.5 | |||||||
PA6 (Nylon 06) | 210-230 | 210-230 | 200-210 | 80 | 45-50 | 50-80 | 0.8-1.5 | |||||||
PA66 (Nylon 66) | 250-280 | 240-280 | 220-280 | 80 | 45-50 | 50-80 | 2.25 | |||||||
POM | 190-210 | 175-220 | 160-210 | 80-90 | 40-80 | 50-90 | 2 | |||||||
PC (Polycarbonate) | 250-320 | 260-340 | 280-350 | 100-120 | 25-55 | 80-100 | 0.8 | |||||||
PVC | 170-220 | 160-195 | 150-190 | 60-80 | 30 | 15-60 | 0.1-0.5 | |||||||
PET (Polyester resin) | 280-295 | 270-275 | 265-270 | 130-140 | 25-45 | 30-85 | 5.0-15 | |||||||
PBT | 250 | 245 | 235 | 130-140 | 40 | 60-70 | 10 | |||||||
CA | 180-220 | 170-190 | 150-180 | 50-70 | 85-90 | 40-75 | 0.5 | |||||||
SAN | 190-250 | 180-230 | 170-220 | 75-90 | 90 | 50-80 | 0.2 | |||||||
DRE+EVA | 185 | 160 | 160 | 50-80 | 99 | 35-45 | 10 | |||||||
TPE(PE) | 170-210 | 160-190 | 150-185 | 60-80 | 30 | 20-60 | 0.1-0.4 | |||||||
Application fields:
Widely used in the production of a variety of junction boxes, household appliances, consumer electronic products, power tools,automotive dashboards, medical devices, open containers, connectors, cables, auto parts, plugs and so on.

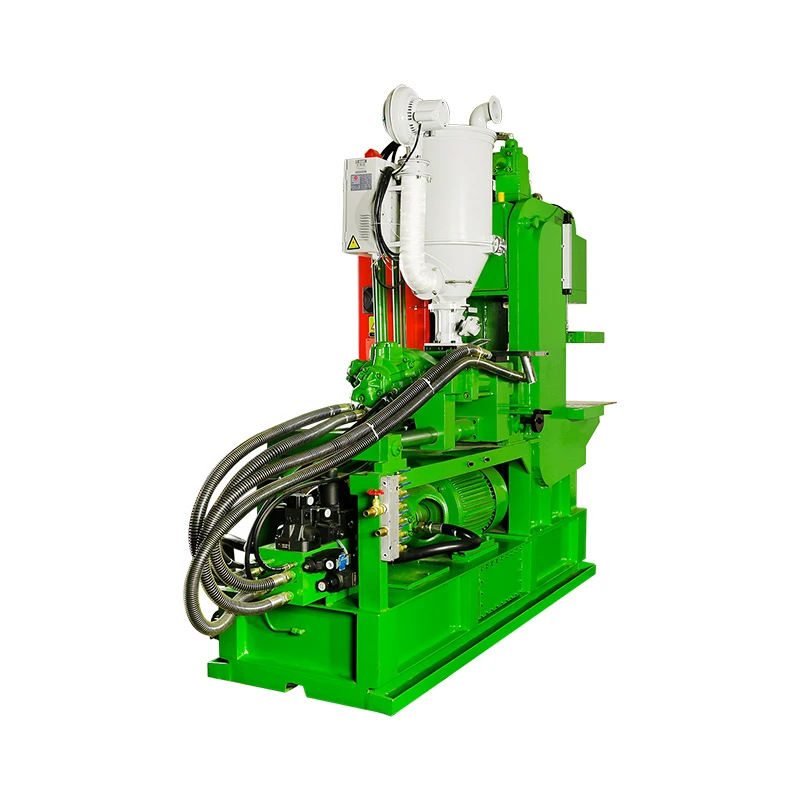

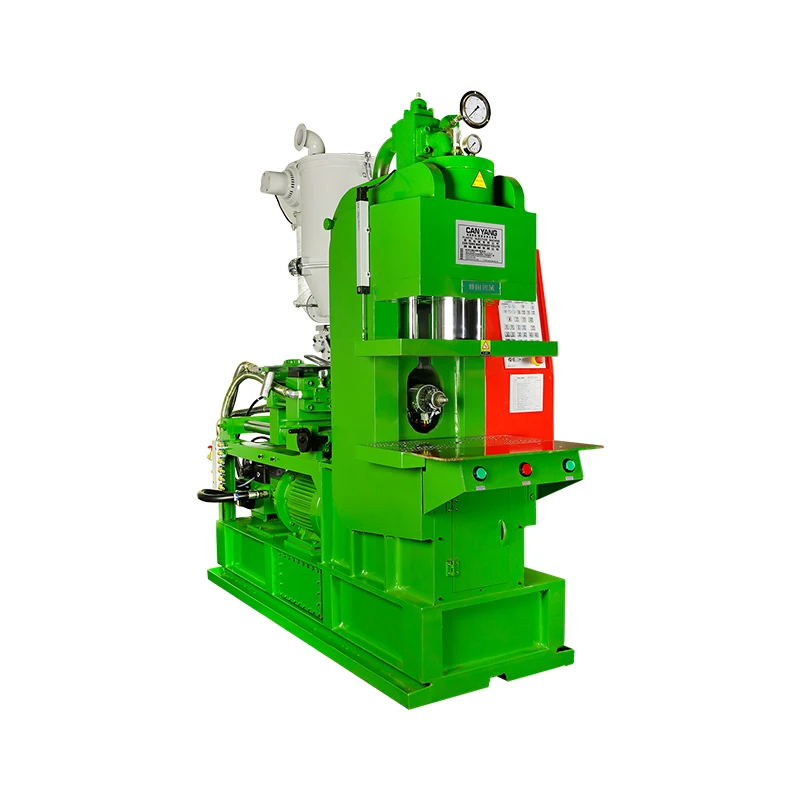

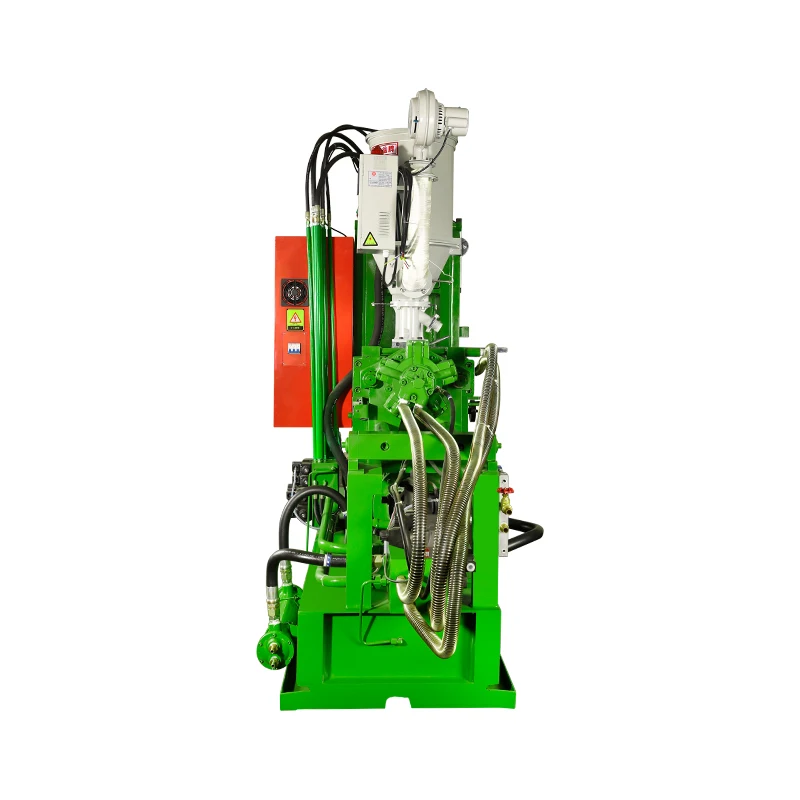

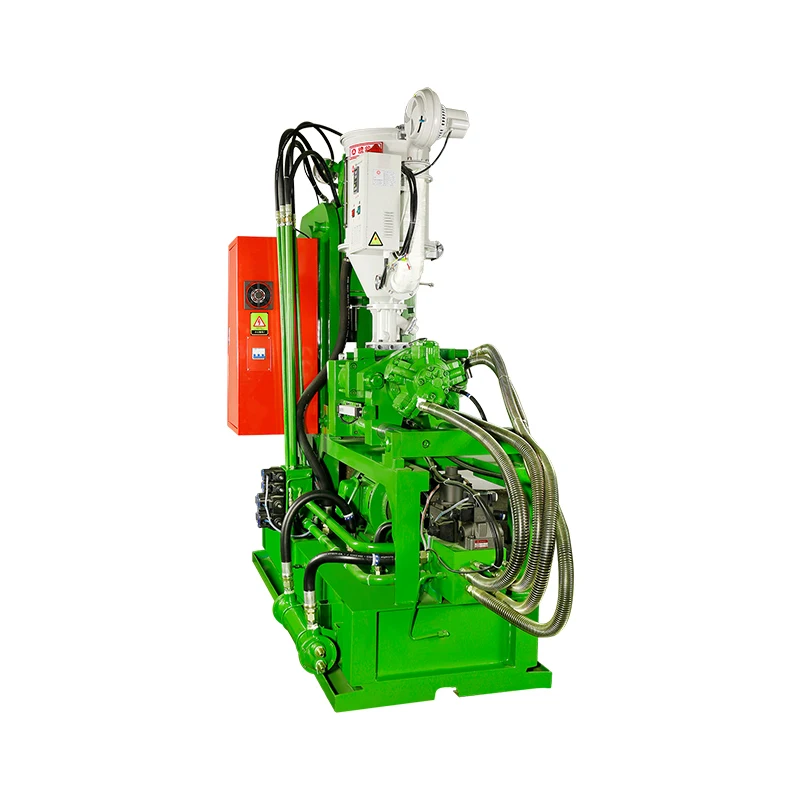

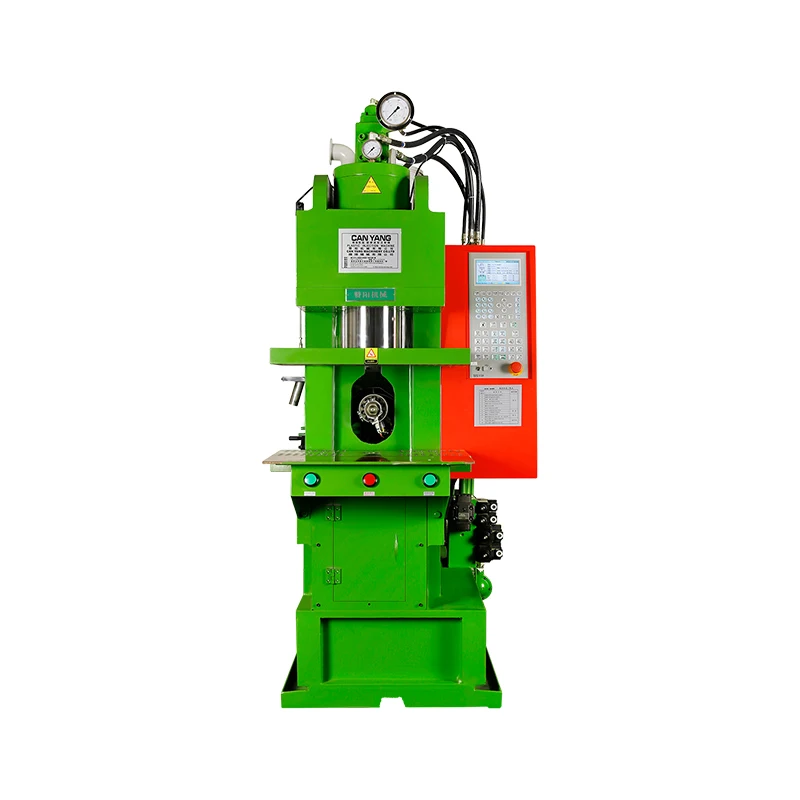

Details Images
Why Choose Us
The advantage of choosing Canyang?
Taiwan Canyang is a well-established company with over 50 years of development, production, sales and after-sales of vertical injection molding machines.
Rich export experience: one-stop solution, including installation, disassembly, moving machine, customs clearance shipment,assembly, debugging machine and so on. All machines are strictly carried out aging test run in accordance with the electricity supply of industrial electricity in the local countries.
After-sale support: provide one-on-one video guidance fbr maintenance of spare parts, debugging machines, input programs. PCB boards or other machine parts
Quality assurance: a total of more than 300 tests were carried out on pumps. toggle rods, screws, cylinders, oil seals, ball
bearings, pressure plates and other mechanical parts.
Taiwan Canyang is a well-established company with over 50 years of development, production, sales and after-sales of vertical injection molding machines.
Rich export experience: one-stop solution, including installation, disassembly, moving machine, customs clearance shipment,assembly, debugging machine and so on. All machines are strictly carried out aging test run in accordance with the electricity supply of industrial electricity in the local countries.
After-sale support: provide one-on-one video guidance fbr maintenance of spare parts, debugging machines, input programs. PCB boards or other machine parts
Quality assurance: a total of more than 300 tests were carried out on pumps. toggle rods, screws, cylinders, oil seals, ball
bearings, pressure plates and other mechanical parts.
Company Profile
Our Advantages
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(32.00%),Eastern Asia(15.00%),Southeast
Asia(11.00%),Central America(10.00%),North America(7.00%),Eastern Europe(5.00%),South America(5.00%),South Asia(5.00%),Southern
Europe(3.00%),Oceania(3.00%),Western Europe(2.00%),Mid East(2.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
plastic injection machine,Vertical injection molding machine,horizontal injection press,Molding machine accessories,mould
4. why should you buy from us not from other suppliers?
Cangyang Machinery Co.,Ltd use its own independent research and development team advantages to obtain Introduction of precision
processing equipment, producing injection molding machines with fast, stable, wear-resistant and high safety factor.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2013,sell to Domestic Market(32.00%),Eastern Asia(15.00%),Southeast
Asia(11.00%),Central America(10.00%),North America(7.00%),Eastern Europe(5.00%),South America(5.00%),South Asia(5.00%),Southern
Europe(3.00%),Oceania(3.00%),Western Europe(2.00%),Mid East(2.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
plastic injection machine,Vertical injection molding machine,horizontal injection press,Molding machine accessories,mould
4. why should you buy from us not from other suppliers?
Cangyang Machinery Co.,Ltd use its own independent research and development team advantages to obtain Introduction of precision
processing equipment, producing injection molding machines with fast, stable, wear-resistant and high safety factor.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
Похожие товары
55T 85T оборудование для литья тапочек, прайс-лист, вертикальные машины для литья под давлением волос, машина для изготовления пластиковых стекол
Haichen твердого типа, полностью Автоматический Серводвигатель 1500 t, большой пластиковый стул, машина для литья под давлением, цена
270 000,00 $ - 274 400,00 $

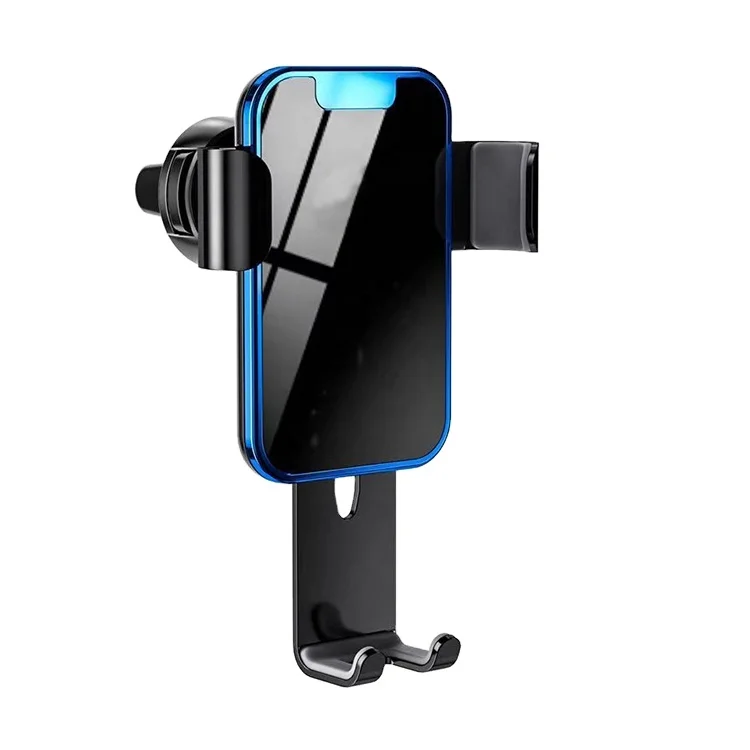

Высококачественная многофункциональная гравитационная подставка для мобильного телефона, автомобильный держатель для телефона, автомобильный держатель для мобильного телефона
2,60 $ - 2,80 $
Распродажа от производителя, популярный Штабелируемый стул из прозрачного акрила для свадебных торжеств
59,20 $ - 64,20 $
Хорошая цена, автоматическое изготовление пластиковых стульев, литье под давлением для стола
15 000,00 $

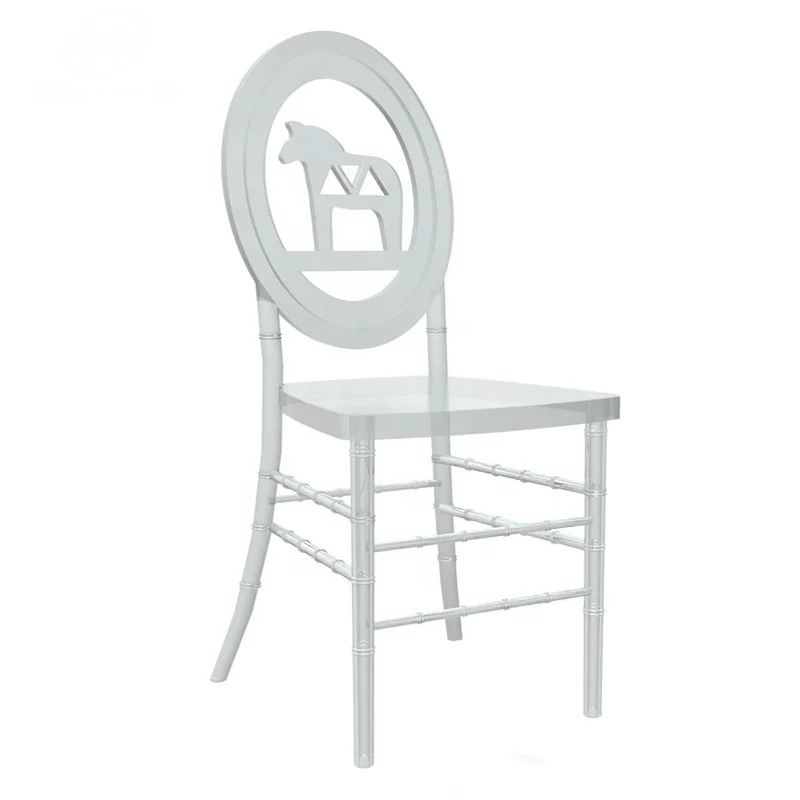

Прозрачные полимерные стулья для свадьбы банкета с изображением лошади из Швеции
14,60 $ - 23,40 $

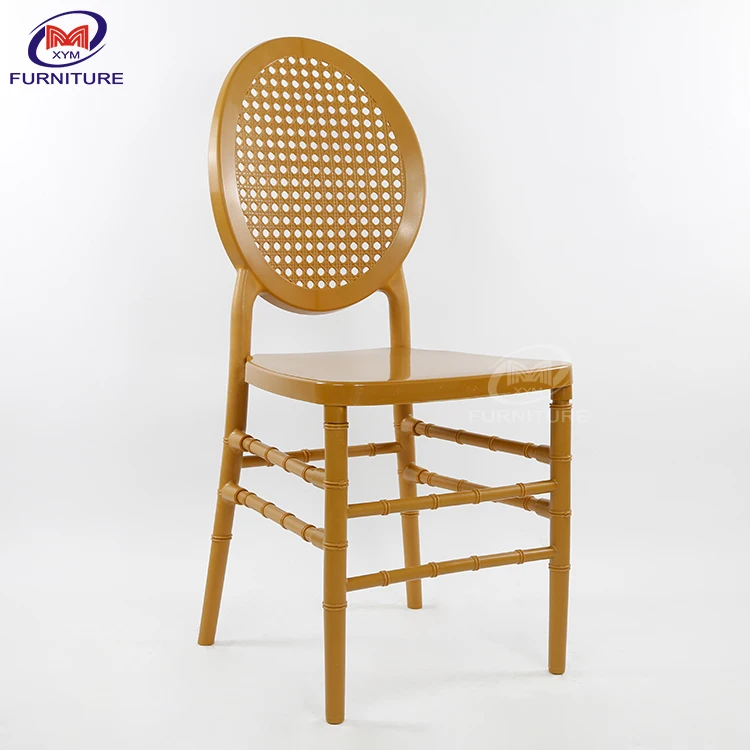

Оптовая продажа, поликарбонатные золотые современные свадебные пластиковые стулья chiavari с круглой спинкой
