Новинка 2021 цифровой измеритель мощности с креплением на панели умным подключением анализатор

Новинка 2021 цифровой измеритель мощности с креплением на панели умным подключением анализатор

Категория: >>>
Поставщик: Jiaxing Bontop Import&export Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

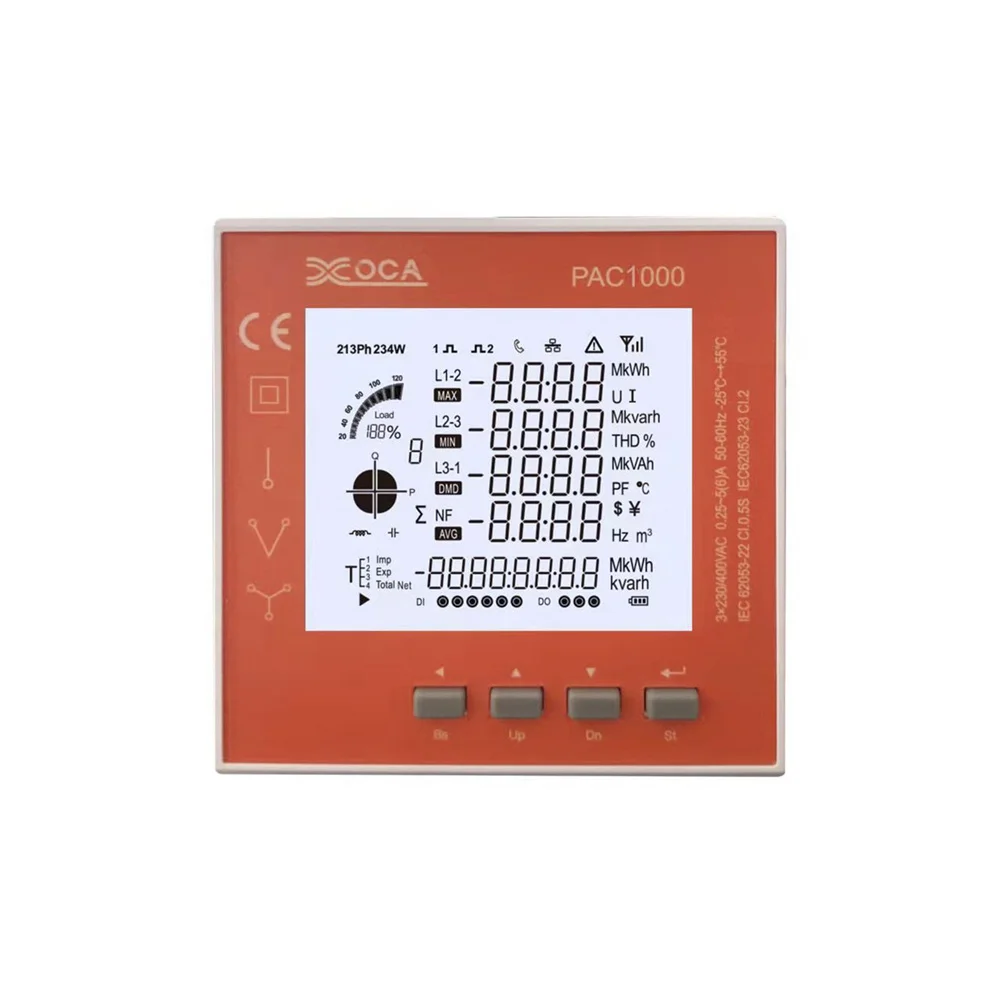

P1000 series of multifunctional electric power meter is an ideal equipment for electric power monitoring. The instrument has the function of simultaneous measurement of current, voltage, frequency, active power, reactive power, apparent power, positive and negative active energy, positive and negative reactive energy, power factor, etc. It is suitable for distributed detection of transformer, generator set, capacitor bank and motor, etc., and on-site monitoring display of power grid and automatic control system. This series of multifunctional electric power instrument can replace many traditional analog or digital measuring instruments (such as current meter, voltmeter, power meter, power factor meter, frequency meter, etc.), can greatly reduce the cost of the system, convenient field wiring, improve the reliability of the system. The multifunctional power monitor is equipped with serial port, allowing the connection of open structure eeg network; Modbus communication protocol, convenient computer programming setting or reading data. This series of products comply with IEC61010, IEC61326, IEC62053, IEC61557, EN50470 and other international standards.

\t\t\t

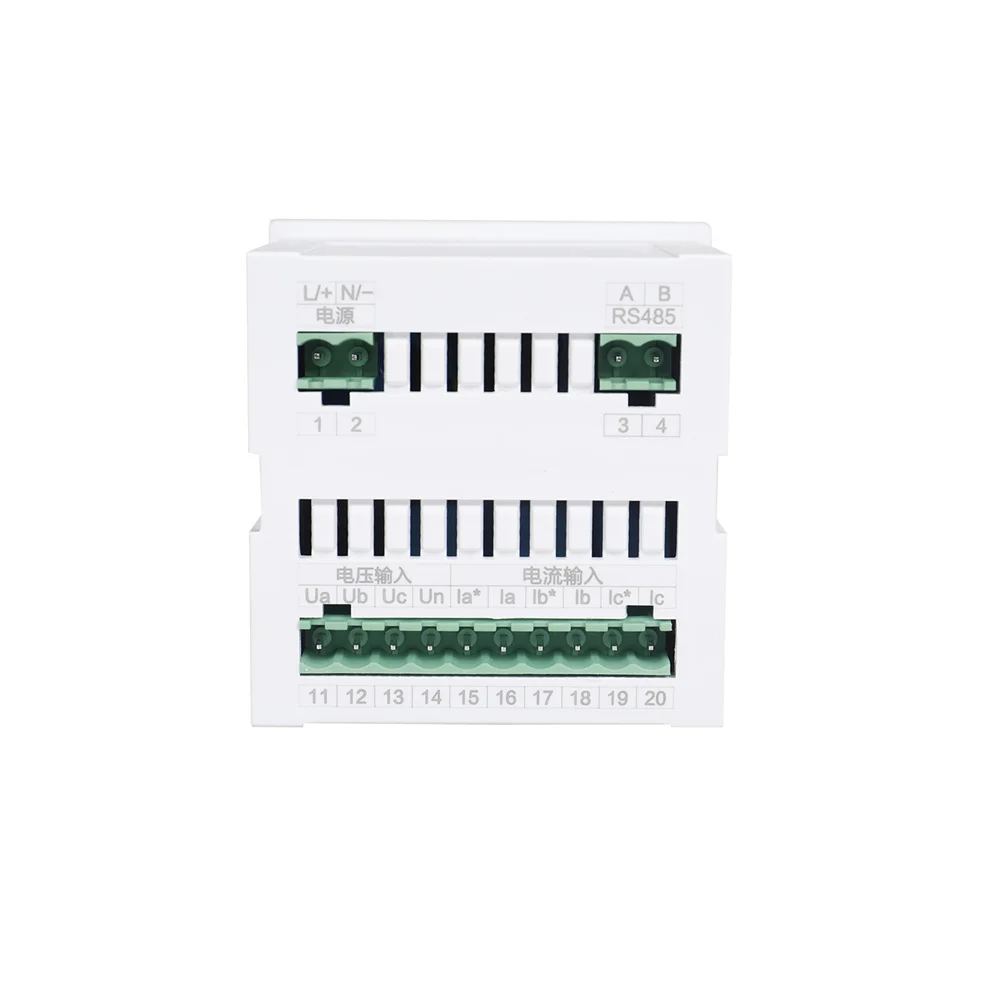

1, panel embedded installation, product panel size 72*72mm \t\t\t\t\t\t\t

2, multi-function parameter measurement, provide voltage, current, active power, reactive power, apparent power, power factor, phase Angle and other rich measurement data \t\t\t\t\t\t\t
3. Provide statistical data of four-quadrant electricity, demand, maximum/minimum value, etc \t\t\t\t\t\t\t
4, support bidirectional energy metering \t\t\t\t\t\t\t
5, support multi-channel digital input, output interface \t\t\t\t\t\t\t
6, support 2 channels of passive pulse output, 1 channel RS485 communication, baud rate up to 19200bps \t
