AMD Ryzen™ 7 5800H processor
NVIDIA® GeForce RTX™ 3060 Notebook GPU
16GB DDR4 3200MHz
512GB PCIe SSD
144Hz Full HD high color gamut screen
Shadow black
Processor
AMD Ryzen™ 7 5800H processor
Reference clock frequency 3.2GHz
Maximum acceleration clock frequency 4.4GHz
8-core 16-thread processor
L3 cache 16MB
Hard disk
512GB PCIe3.0 × 4 SSD
Reserve the second M.2 PCIe/SATA SSD slot
RAM
16GB DDR4 3200MHz
Graphics card and video output
NVIDIA® GeForce RTX™ 3060 Notebook GPU
HDMI 2.0: 4K resolution (up to 60Hz)
USB-C (DP 1.4): 5K resolution (up to 60Hz)*
Mini DP 1.4: 5K resolution (up to 60Hz)
Internet
2×2 MIMO dual antenna
Support 802.11ax (Wi-Fi 6) network protocol
Support 2.4GHz, 5GHz dual frequency, compatible with 802.11 a/b/g/n/ac
wireless technology
Gigabit wired network interface
Display screen
16.1" FHD Full HD screen, resolution 1920 × 1080,
144Hz high refresh rate
100% sRGB (typical value)
Screen-to-body ratio 81%, 1000:1 (typical value)
178° wide viewing angle, 300 nits brightness (typical value)
High-precision anti-glare
72Hz / 144Hz (supports fast switching of Fn+S refresh rate)
Passed TÜV Rheinland low blue light certification
Support software anti-blue light (enabled by the service center)
Audio and camera
Speaker: 2W × 2
Sound system: DTS:X Ultra
720p camera resolution
Peripheral interface
The left side near the shaft end:
USB 2.0 interface × 1, 480Mb/s maximum theoretical transfer rate
Near the user terminal on the left:
3.5mm headphone microphone jack × 1
The right side near the shaft end:
USB 3.2 Gen2 interface × 2, 10Gb/s maximum theoretical transfer rate
Near the user terminal on the right:
USB-C × 1, supports PD charging*, DP 1.4
(DP1.4 only supports output in mixed mode)
Back side:
DC-in × 1, HDMI 2.0 × 1,
Mini DP 1.4 × 1, RJ45 × 1
Size and weight
Length 373.44mm
Width 264.47mm
Thin 24.2~26.95mm
About 2.7Kg (including battery, the specific weight is subject to the product shipment configuration)
130±5 degree opening and closing, maximum 135 degree screen opening and closing angle
Battery power
Rated capacity 80Wh
230W power adapter
Screen brightness 150nits, 50% volume, turn off the keyboard backlight, not connect to WiFi
And the system is in mixed mode test conditions, local 1080p video playback can reach 10 hours

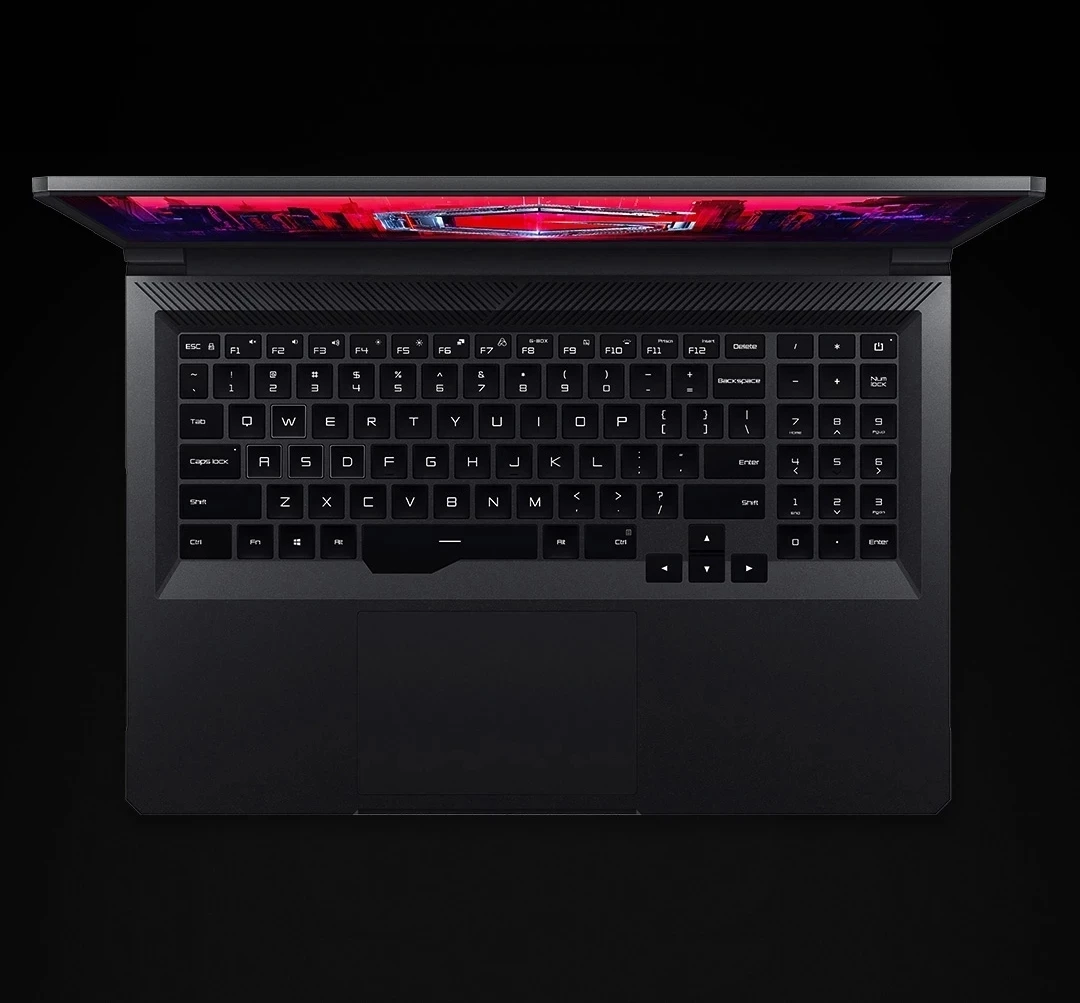

Keyboard trackpad
Full-size three-level adjustable white backlit keyboard, 1.5mm keystroke
Independent numeric keypad
PTP touchpad 125mm × 81.6mm
Support Microsoft PTP clickpad technology, can achieve precise light control and multi-finger
Gesture control functions, such as full-screen scrolling, program switching, screen zooming and other gestures
Outer packaging specifications
458mm × 92mm × 409mm
Notebook computer host × 1; power adapter × 1; power cord × 1;
Getting started (including three packs of certificates) × 1
