Планшетный большой струйный 2513 УФ принтер EPS головка планшетный цифровая печатная машина цены на продажу
- Категория: >>>
- Поставщик: Jinan Yingcai Digital Technology Co. Ltd.
Сохранить в закладки 1600408699659:
Описание и отзывы
Характеристики
Product Description
Printhead
Ricoh GH2220/GEN5/GEN6 Printhead with 2-8 units
Image Quality
The printing effect
is clear and bright
Wide Application
Wide range of applications,
able to meet various needs

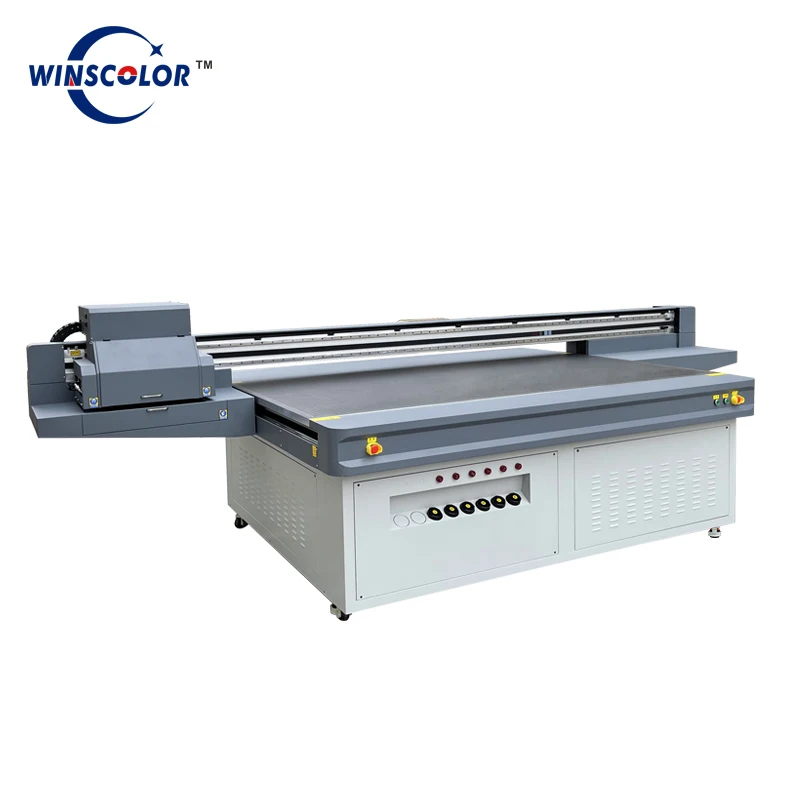

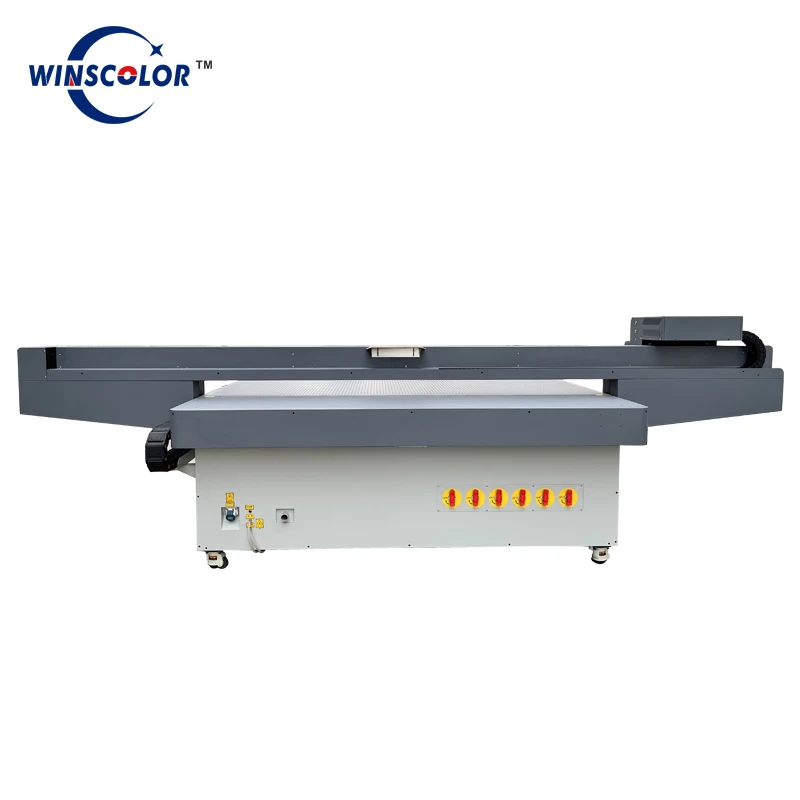

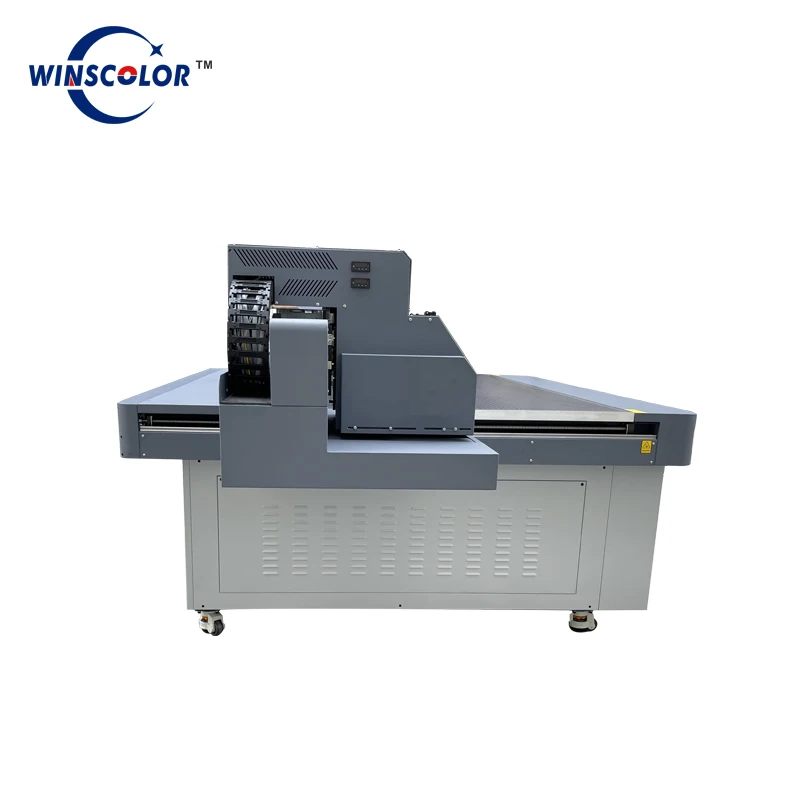

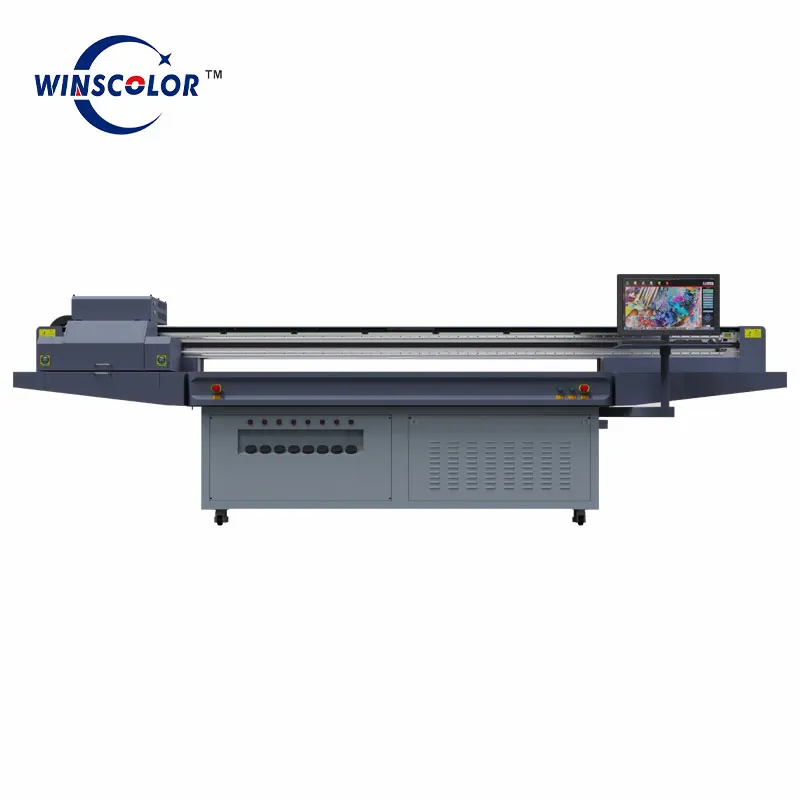

YC2513L UV Flatbed Printer
①UV LED Lamp
④ Switch and power switch area
④ Switch and power switch area
⑦Ink level alarm system
②Industrial print head
⑤Universal wheel
③TAIWAN HIWIN guide rail
⑥ Ink tank
⑥ Ink tank
Product Paramenters
Product Model | YC2513L | |||||||
Printhead Type | RICOH GEN5/GEN6/KM1024I/SPT1024GS | |||||||
Printhead Number | 2-8 heads | |||||||
Ink Characteristics | UV Curing Ink (VOC Free) | |||||||
Ink reservoirs | Refillable on the fly while printing/2500ml per color | |||||||
LED UV Lamp | more than 30000-hours life made in Korea | |||||||
Printhead arrangement | CMYK LC LM W V Optional | |||||||
Printhead Cleaning System | Automatic Cleaning System | |||||||
Guide Rail | TAIWAN HIWIN/THK Optional | |||||||
Working Table | Vacuum Sucking | |||||||
Printing Size | 2500*1300mm | |||||||
Print Interface | USB2.0/USB3.0/Ethernet Interface | |||||||
Media Thickness | 0-100mm | |||||||
Print Resolution& Speed | 720X600dpi | 4PASS | 15-33sqm/h | (GEN6 40% faster than this speed) | ||||
720X900dpi | 6PASS | 10-22sqm/h | ||||||
720X1200dpi | 8PASS | 8-18sqm/h | ||||||
Life of printed image | 3 years(outdoor),10years(indoor) | |||||||
File Format | TIFF,JPEG,Postscript,EPS,PDF etc. | |||||||
RIP Software | Photoprint /RIP | |||||||
Power Supply | 220V 50/60Hz(10%) | |||||||
Power | 3100W | |||||||
Operation Environment | Temperature 20 to 30 ℃,Humidity 40% to 60% | |||||||
Machine Dimension | 2.1*4.4*1.4m | |||||||
Packing Dimension | 4.6*2.3*1.65m | |||||||
Weight | 1200kg | |||||||
Warranty | 12 months exclude the consumables | |||||||
Above specification subject to change without notice beforehand | ||||||||
1. It is suitable for any material and has a wide range of compatibility.
2. No plate making, fast printing and low cost, various output software can be used to support various file formats. 3. Equipped with professional color management software, color can be changed anytime and anywhere without paying extra cost.
4. Full-color image, complete at one time, progressive color fully achieves the photo quality effect, accurate positioning, and zero reject rate.
5. It only takes 30 minutes to master and make high-quality products without professional skills, computer operation, no personnel dependence, and large upgrade space.
Machine Details
Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolu-tion. It is suitable for long-time working, 24 hours running.
Vacuum Adsorption Platform
Hard oxidized honeycomb hole section-alized adsorption platform, strong adso-
rption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing
material,the platform surface hardness is high, scratch resistance, corrosion resistance.
rption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing
material,the platform surface hardness is high, scratch resistance, corrosion resistance.
German IGUS Energy Chain
Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance,low noise, make the working environment more comfortable.
Panasonic Servo Motors And Drives
Using Panasonic servo motor and driver, effectively overcome the step loss prob-lem of step motor. High speed printing
performance is good, low speed running is stable, dynamic response is timely, running stable.
performance is good, low speed running is stable, dynamic response is timely, running stable.
Tempreture control system for printheads plate
Korea UV
LED Lamp
Large capacity ink tank and ink shortage alarm system
Universal roller
Printhead Anti-collision
Sencondery cartrighe
Automatic origin postioning
Automatic height measurement
Antistatic System
Printing Samples
Ricoh piezoelectric nozzle
Using Ricoh piezoelectric nozzles, the accuracy can reach 1440dpi. The new variable ink droplet technology, providing 7/14/21 pl ink dot size, can achieve high-quality images at high speed or low resolution, and achieve dotless printing effect.
CMYK+W+V All three colors at once
The use of gloss oil makes the product gloss more beautiful and has high gloss effect.
Not only makes the surface of the whole picture shiny, and gets more refined.
The printing effect can better protect the coating and make the product more durable.
The printing effect can better protect the coating and make the product more durable.
Decoration
Acrylic
Mouse Pad
Advertising Sign
Glass Photo
Ceramic
Plastic
Wood
Handcraft
Company Profile
Jinan Yingcai Digital Technology Co., Ltd
Jinan Winscolor Digital Technology Co., Ltd. ("Winscolor" for short) was established in 2015, located in Jinan City, Shandong Province, China. The independent workshop is more than 20,000 square meters and has 6 professional production lines.
Winscolor is an exporter of UV digital printers. Now our printer series include UV flatbed printers, roll to roll printers, UV hybrid printers, and smart UV printers.
Winscolor digital printers have been exported since 2015 and have been widely praised and recognized by customers. Our printers are exported to more than 150 countries in Asia, Europe, Australia, and Africa.
Winscolor UV printers have been widely used in industries such as advertising, signage, decoration, glass, and handicrafts.
Winscolor is an exporter of UV digital printers. Now our printer series include UV flatbed printers, roll to roll printers, UV hybrid printers, and smart UV printers.
Winscolor digital printers have been exported since 2015 and have been widely praised and recognized by customers. Our printers are exported to more than 150 countries in Asia, Europe, Australia, and Africa.
Winscolor UV printers have been widely used in industries such as advertising, signage, decoration, glass, and handicrafts.
We strengthen technological innovation, optimize costs, and strive to create the best quality UV digital printers for customers, and provide comprehensive solutions for the different needs of various industries.
Winscolor adheres to the concept of excellence, continuously improves product quality, and becomes the most trusted brand in the UV printing equipment industry.
Winscolor adheres to the concept of excellence, continuously improves product quality, and becomes the most trusted brand in the UV printing equipment industry.
We will continue to devote ourselves to the R&D and innovation of industrial printing and promote the healthy development of the printing industry.
Ｏne Year Warranty
Important parts,
warranty for one year.
Free Replacement
Within the warranty period, free replacement of damaged
parts caused by quality problems.
Intimate After-sales
At least three times a
year after sales return visit,
keep track of the machine use.
Packing & Delivery
Customer Photos
1. How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
3. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
4. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
5. Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.
6. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
7. How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can contact our technician or me directly.
8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
3. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
4. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
5. Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.
6. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
7. How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can contact our technician or me directly.
8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
